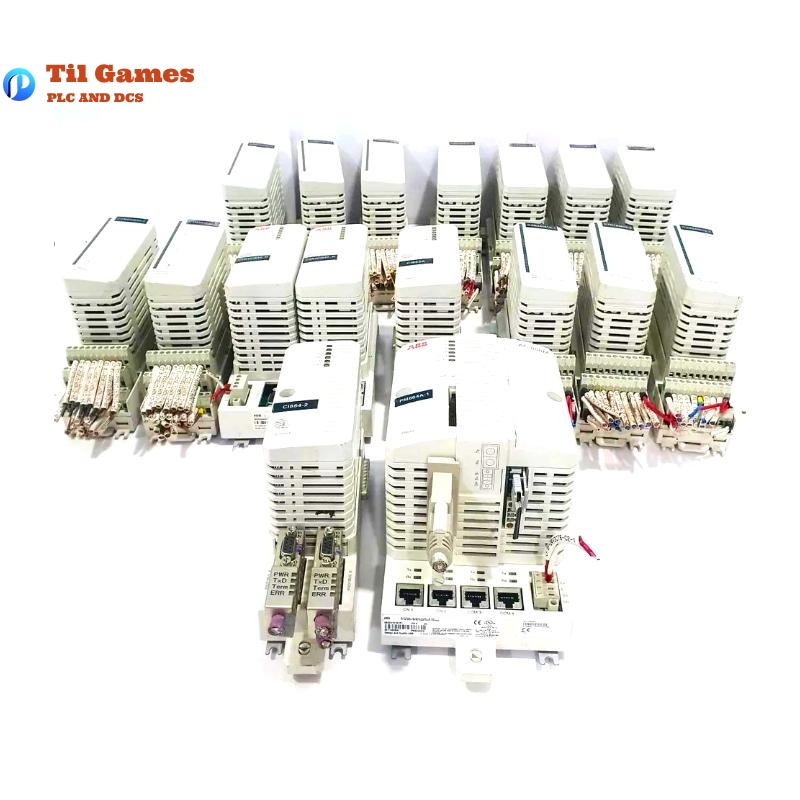

Technical Specifications
| Parameter | Specification |
|---|---|

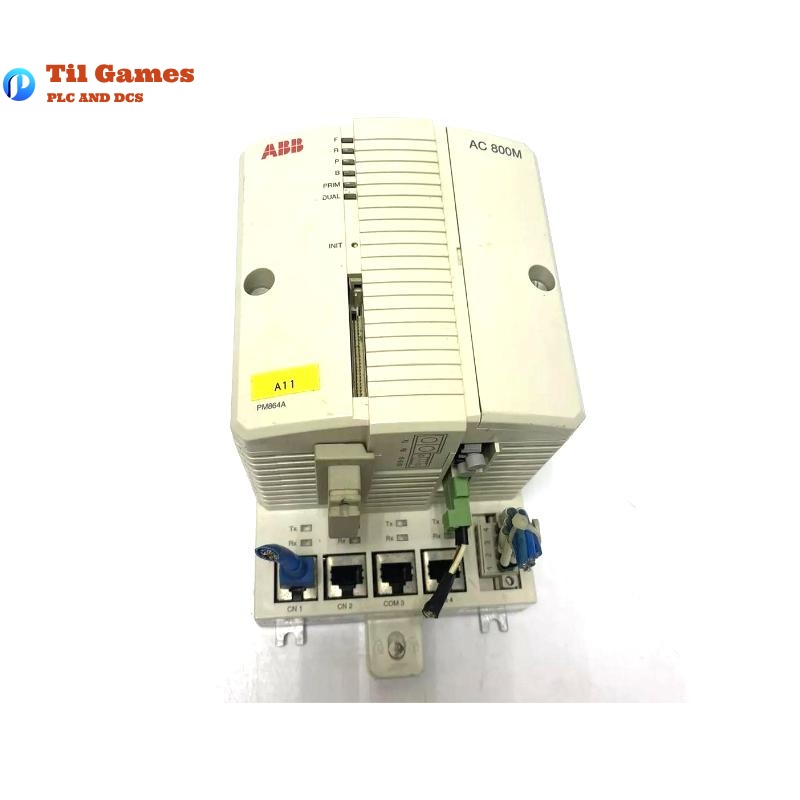

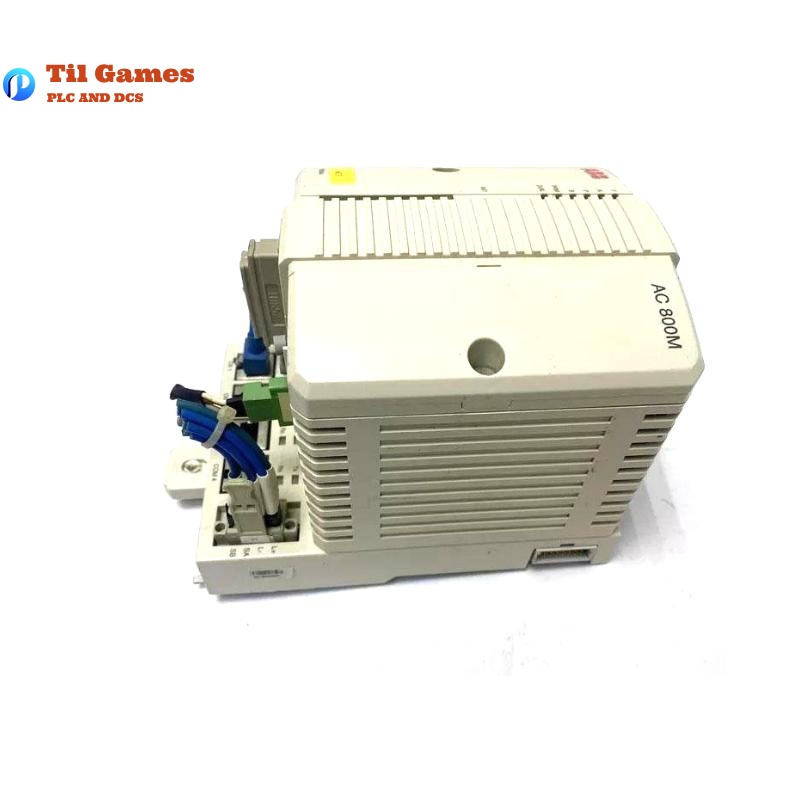

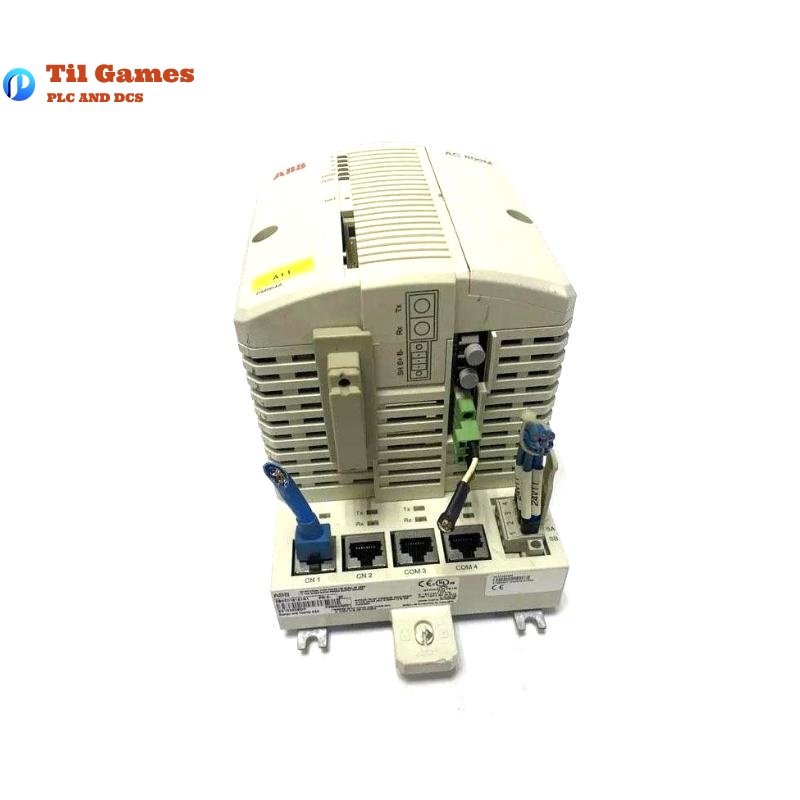

| Product Model | PM864AK02 |
| Article Number | 3BSE018164R1 |
| Processor Type | MPC862 |
| Clock Frequency | 96 MHz |
| Total Memory | 32 MB (23.522 MB available for application) |
| Flash Memory | 2 MB Flash PROM for firmware |
| Clock Synchronization | 1 ms between controllers via CNCP protocol |
| Redundancy Support | CPU, CEX-Bus, and communication redundancy supported |
| Max Applications | Up to 32 applications per controller |
| Max Programs per Application | Up to 64 |
| Max Diagrams per Application | Up to 128 |
| Max Tasks per Controller | Up to 32 |
| Ethernet Ports | 2 × RJ45, IEEE 802.3, 10 Mbit/s |
| Communication Protocols | MMS, IAC |
| Recommended Network Speed | 100 Mbit/s switched Ethernet |
| Serial Interfaces | 2 × RJ45 (COM3: RS-232C, COM4: opto-isolated service interface) |
| Power Supply Voltage | 24 V DC (range: 19.2–30 V DC) |
| Current Consumption (typ/max) | 287 / 487 mA |
| Power Dissipation (typ/max) | 6.9 / 11.4 W |
| Max I/O Modules | 96 (single PM864A), 84 (redundant) |
| Modulebus Scan Rate | 0–100 ms (depending on I/O module count) |
| Comm. Modules on CEX Bus | Up to 12 |
| Modulebus Power Supply | 24V: max 1.0 A; 5V: max 1.5 A |
| Operating Temperature | +5 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5–95%, non-condensing |
| Altitude Limit | Up to 2000 meters |
| Protection Class | IP20 (EN 60529 / IEC 529 compliant) |
| Vibration Resistance | 5–500 Hz: 0.2 g acceleration; 10–50 Hz: 0.0375 mm displacement |
| Dimensions (W × H × D) | 196 × 119 × 135 mm |
| Weight (including base) | 2.9 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the PM864AK02 support redundancy?
A1: Yes, it supports CPU, CEX-Bus, and communication interface redundancy for high availability applications.
Q2: How many applications can it support?
A2: The controller can support up to 32 applications, each with up to 64 programs and 128 diagrams.
Q3: What type of processor is used?
A3: The controller uses the MPC862 processor with a 96 MHz clock frequency.
Q4: What type of network interface does it have?
A4: It features 2 RJ45 Ethernet ports compliant with IEEE 802.3, operating at 10 Mbit/s.
Q5: What is the I/O module capacity on the Modulebus?
A5: It can support up to 96 I/O modules for a single CPU or 84 in a redundant setup.
Q6: What are the power requirements?
A6: It requires 24 V DC (19.2–30 V range), with typical current draw at 287 mA and max at 487 mA.
Q7: What environments is the PM864AK02 suitable for?
A7: It’s designed for industrial environments, with an operating temperature range of +5 to +55 °C and IP20 protection rating.
Q8: Which communication protocols are supported?
A8: The controller supports MMS (Manufacturing Message Service) and IAC (Inter Application Communication) protocols.
