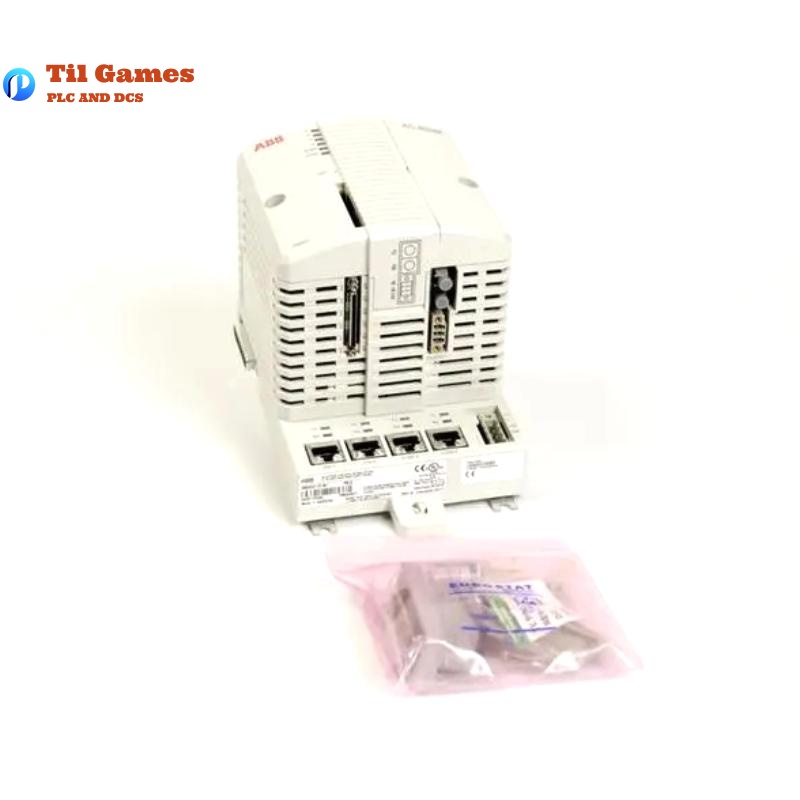

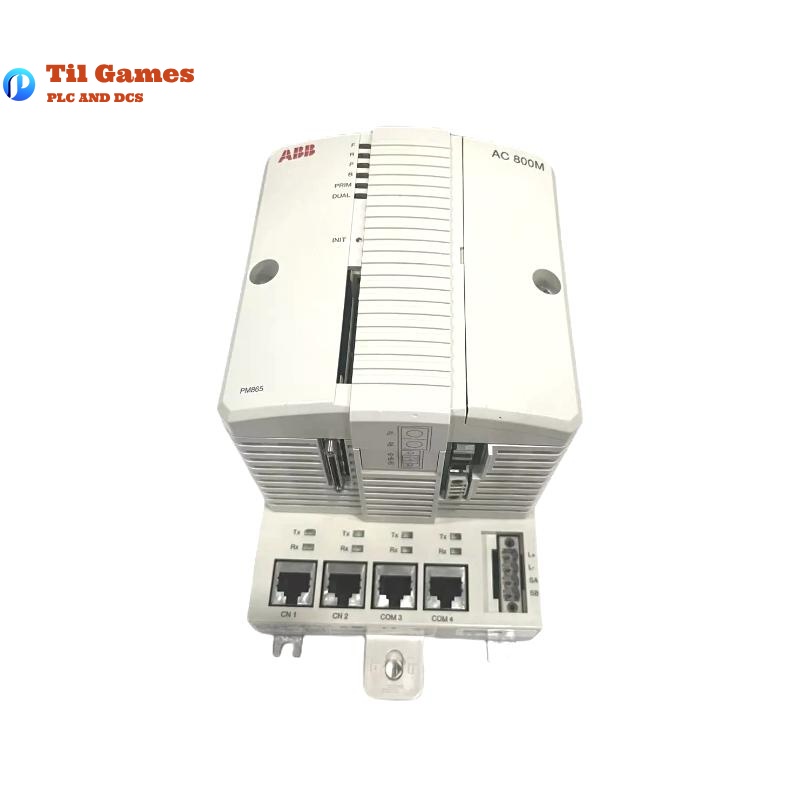

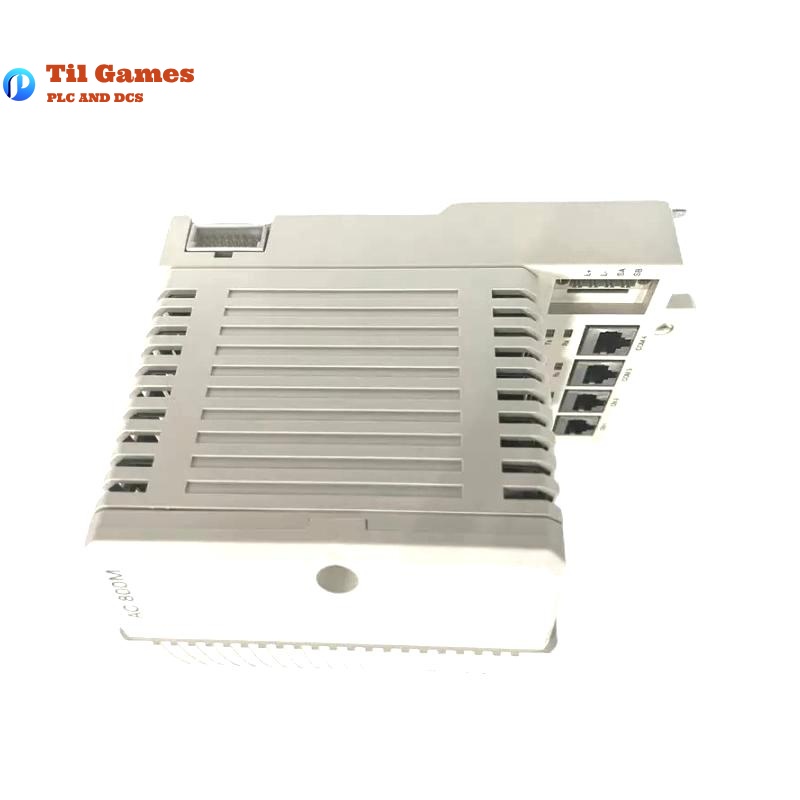

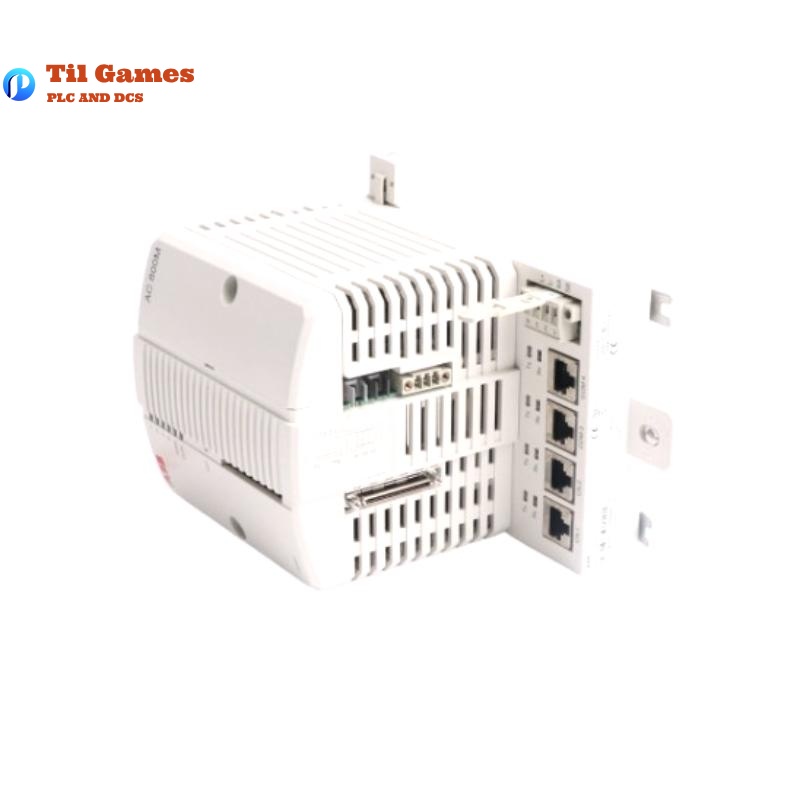

Technical Specifications – PM865K01 Processor Unit
| Parameter | Description |
|---|---|
| Product Code | PM865K01 |
| ABB Order Code | 3BSE031151R1 |
| Processor Type | PM865 |
| CPU Speed | MPC860 series, 133 MHz |
| RAM | 32 MB (application + system memory) |
| Flash Memory | 16 MB |
| Ethernet Ports | 2 x RJ45, 10/100 Mbps (CN1, CN2) |
| Serial Ports | 2 x RS-232C (COM3, COM4) |
| ModuleBus Support | Electrical + Optical (S800 I/O clusters) |
| CEX-Bus | Yes (for communication interfaces) |
| Redundancy Support | Yes (Hot Standby with <10 ms switchover) |
| Internal Battery | Yes (for RAM + RTC backup) |
| External Battery Option | Yes (via SB821 or SB822) |
| Mounting | DIN rail (standard 35 mm rail) |
| Operating Voltage | 24 V DC |
| Real-Time Clock Backup | Yes |
| Secure Memory Card Slot | Compact Flash |
| Dimensions (W x H x D) | 135 × 186 × 119 mm |
| Weight | 1.2 kg |
| Protection Class | IP20 |
| Environmental Compliance | CE, UL508, EMC 2004/108/EC, LVD 2006/95/EC |
FAQ
FAQ – PM865K01 Processor Unit
Q1: Can the PM865K01 be used in High Integrity (SIL3) applications?
A1: Yes, when combined with SM811 and appropriate licensing, the PM865K01 supports SIL3-certified applications.
Q2: What type of communication interfaces are supported?
A2: PM865K01 supports CEX-Bus interfaces including PROFIBUS DP, Modbus TCP, EtherNet/IP, IEC 61850, and more.
Q3: How is redundancy handled in PM865K01?
A3: It supports hot standby redundancy with a switchover time of less than 10 ms using the TK851 cable for RCU linking.
Q4: Is Compact Flash mandatory for operation?
A4: Yes, the Compact Flash card stores the firmware, configuration, and application programs.
Q5: Can it be mounted without a cabinet?
A5: The unit is IP20 rated, and additional enclosure is needed for higher protection classes.
Q6: Does PM865K01 support direct connection to S800 I/O modules?
A6: Yes, it supports both electrical and optical ModuleBus for S800 I/O modules.
Q7: Can PM865K01 operate without an internal battery?
A7: Yes, if equipped with an external battery module (SB821/SB822), internal battery is not required.
Q8: How many communication interfaces can be connected via CEX-Bus?
A8: Up to 12 CEX interface units can be connected under supported configurations.
