Technical Specifications
| Parameter | Description |
|---|---|

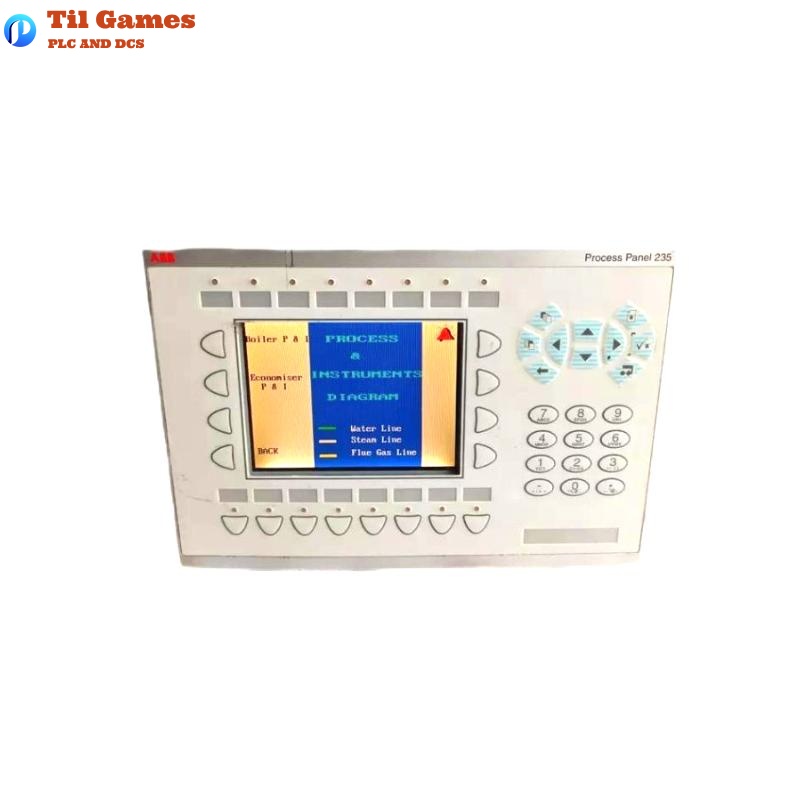

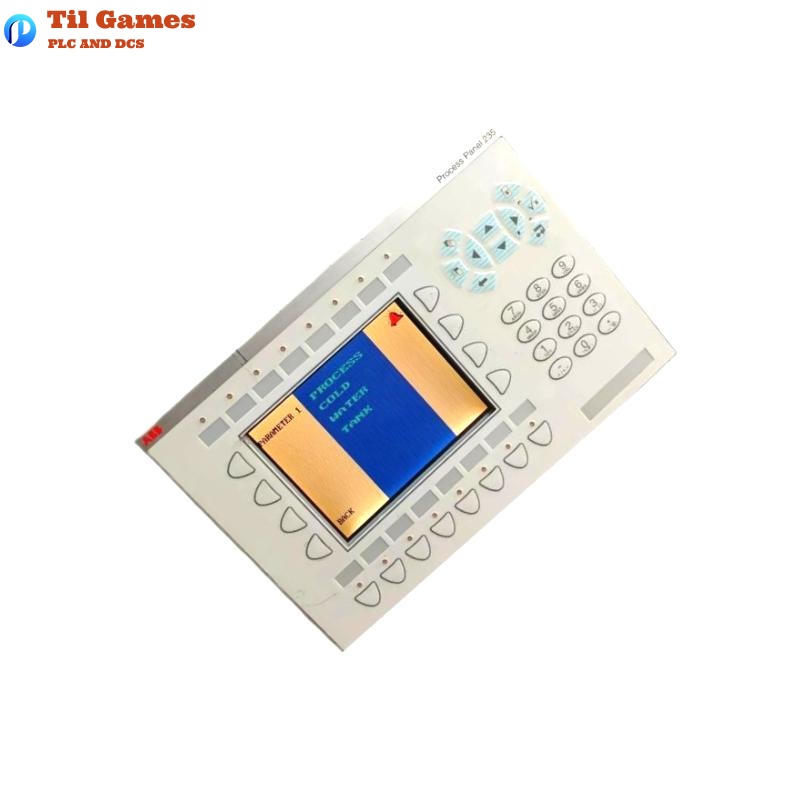

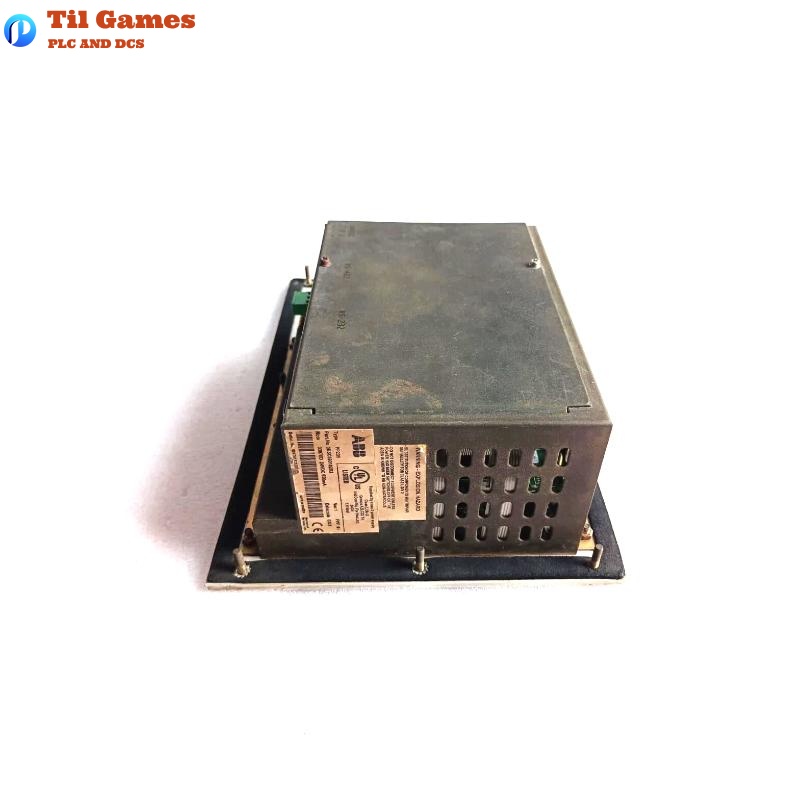

| Model | ABB PP235 3BSC690102R2 |
| Product Type | Process Panel |
| Display Type | Graphic LCD Display |
| Screen Size | 3.5 inches |
| Resolution | 320 x 240 pixels |
| Backlight Type | LED |

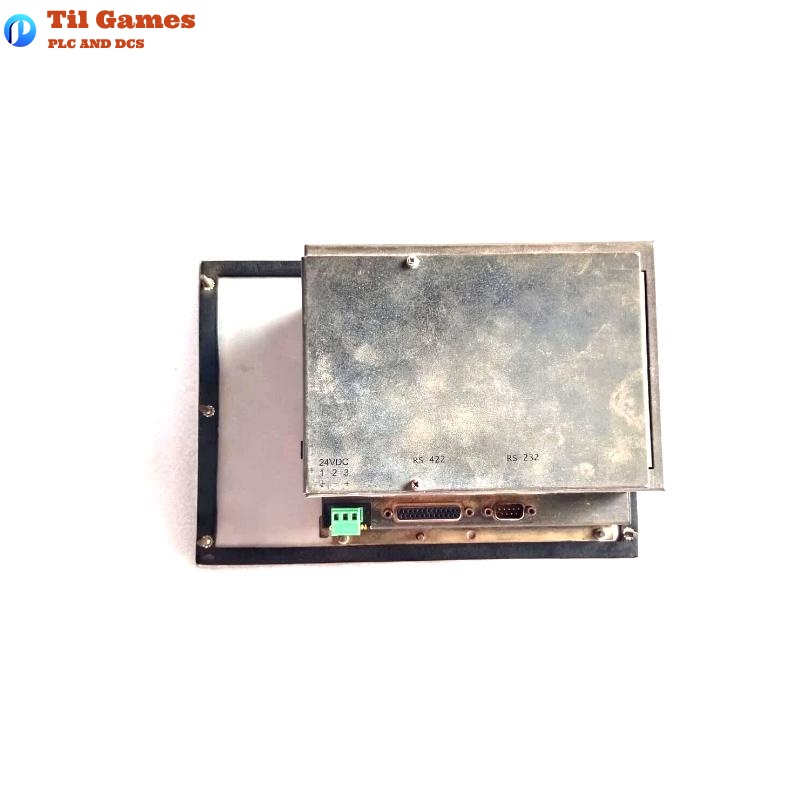

| Communication | RS232/RS485, Ethernet |
| Power Supply | 24 VDC |
| Power Consumption | Approx. 5 W |
| Protection Level | IP65 (front panel) |
| Operating Temp. | -10°C to +50°C |
| Storage Temp. | -20°C to +60°C |
| Mounting Method | Panel Mount |
| Dimensions (W×H×D) | 120 x 75 x 50 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What communication protocols does PP235 support?
A1: PP235 supports RS232, RS485, and Ethernet for flexible industrial network integration.
Q2: Does PP235 support touch operation?
A2: No, PP235 operates through button-based input, not a touchscreen.
Q3: Can this product be used outdoors?
A3: The front panel is rated IP65, suitable for dusty or wet industrial environments, but it is not recommended for direct outdoor exposure.
Q4: What is the input power range for PP235?
A4: It operates on a standard 24 VDC power supply. A stable power source is recommended.
Q5: Is remote configuration possible via Ethernet?
A5: Yes, remote configuration and data communication are supported via the Ethernet port.
Q6: Does the screen support multilingual interfaces?
A6: Yes, the user interface supports multiple languages including English and Chinese.
Q7: What PLCs are compatible with PP235?
A7: It is compatible with ABB PLCs (e.g., AC500 series) and can also interface with other major PLCs using standard protocols.
Q8: What is the mounting method for PP235?
A8: It uses panel mounting. A cutout is required in the control cabinet, and mounting clamps are used for fixation.
