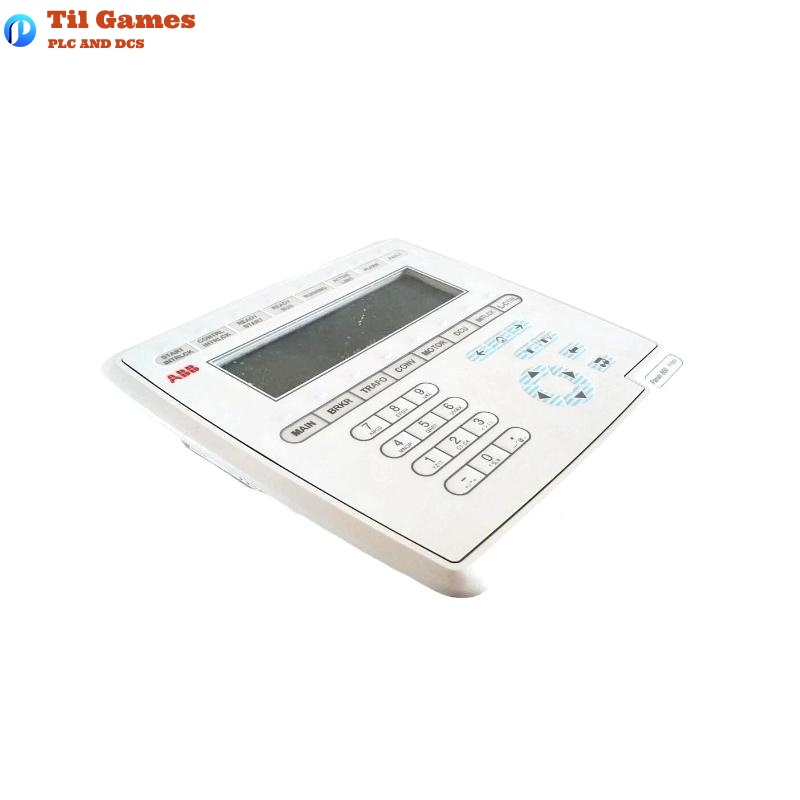

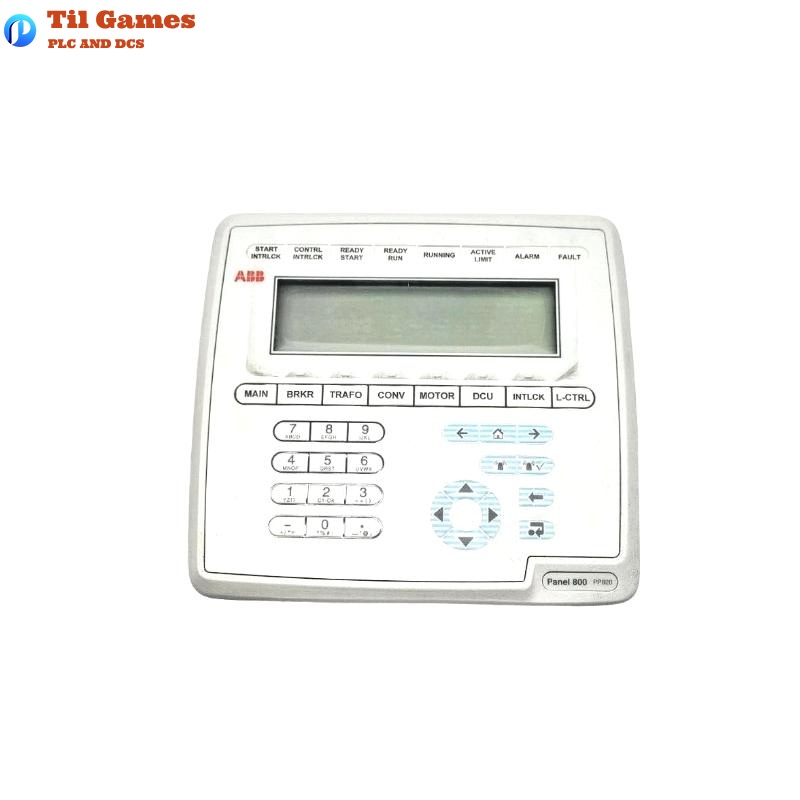

Technical Specifications

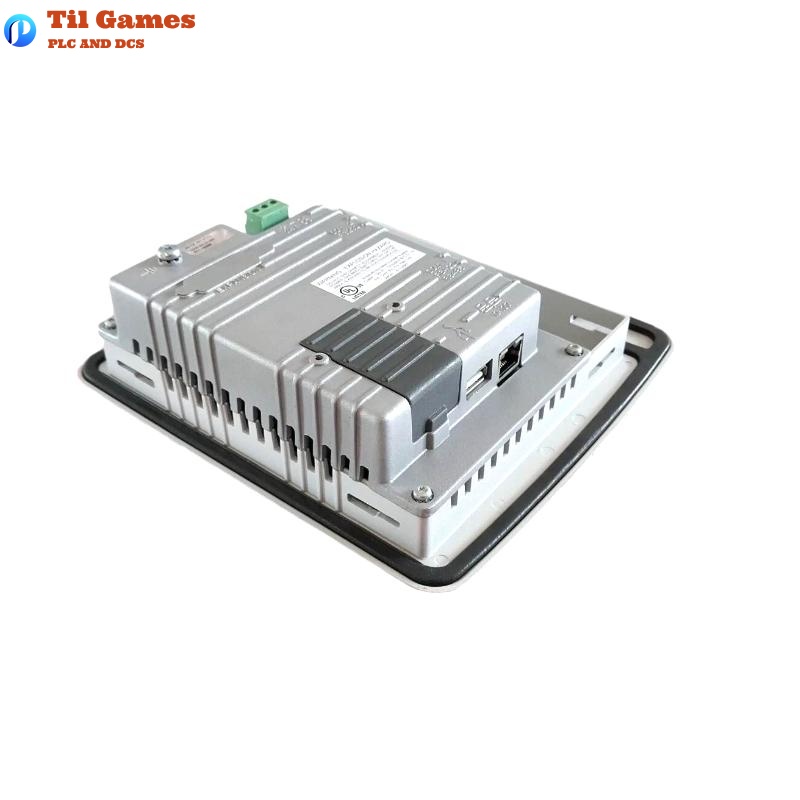

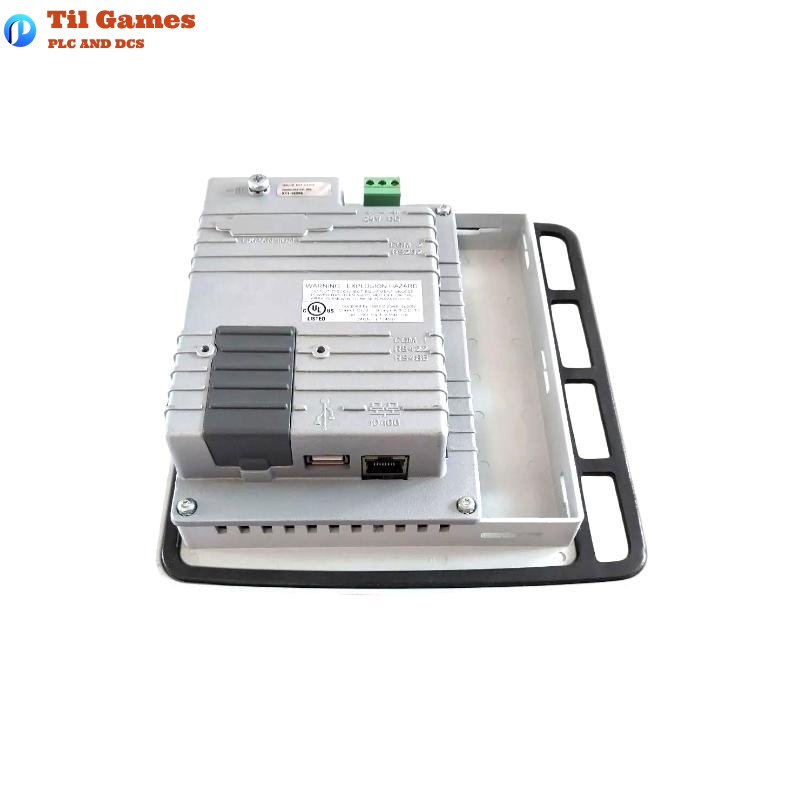

| Parameter | Specification |
|---|---|
| Front Panel Dimensions (W x H x D) | 202 x 187 x 6 mm |
| Mounting Depth | 57 mm (157 mm including cable clearance) |
| Weight | 0.95 kg |
| Front Panel Seal Rating | IP66 |
| Rear Panel Seal Rating | IP20 |
| Display Type | FSTN-LCD, 240 x 64 pixels, monochrome transflective, LED backlight >35,000 h |
| Display Area (W x H) | 127.0 x 33.8 mm |
| Touchscreen Material | Autotex F157 overlay, rated for 1 million operations |
| Housing Material | Powder-coated aluminum |
| Ethernet Port | Shielded RJ45 |
| Serial Port RS422/RS485 | 25-pin D-sub female, standard locking screws |
| Serial Port RS232 | 9-pin D-sub male, standard locking screws |
| USB Interface | USB Host Type A (USB 1.1), max output 500 mA |
| Flash Memory | 12 MB (including fonts) |
| Real-Time Clock | ±20 PPM, temp. coefficient -0.034±0.006 ppm/°C², max error 1 min/month at 25°C |
| RTC Battery | CR2450 (Sanyo or Panasonic only), minimum life 3 years |
| Power Supply | +24V DC (range 20 – 30V DC), 3-pin terminal block |
| Power Consumption | Normal: 0.15 A / Max: 0.35 A |
| Internal Fuse | 2.0 AT, 5 x 20 mm |
| Operating Temp. (V/H) | 0 to +50°C (vertical), 0 to +40°C (horizontal) |
| Storage Temperature | -20 to +70°C |
| Relative Humidity | 5% to 85%, non-condensing |
| Certifications | EN61000-6-3 (emission), EN61000-6-2 (immunity), UL/cUL, NEMA 4X indoor only |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the panel support multiple communication interfaces?
A1: Yes, the PP820 features RS232, RS422/RS485, USB, and Ethernet ports.
Q2: Is the touchscreen supported, and what is its durability?
A2: Yes, it uses an Autotex F157 overlay rated for up to 1 million operations.
Q3: What is the operating temperature range of the panel?
A3: 0 to +50°C when installed vertically, 0 to +40°C when installed horizontally.
Q4: What input voltage does the panel require?
A4: The required supply is +24V DC, acceptable range from 20V to 30V DC.
Q5: Is the panel protected against dust and water?
A5: Yes, it has IP66 protection at the front and IP20 at the rear.
Q6: Does it include a real-time clock and what is the battery life?
A6: It includes a real-time clock powered by a CR2450 battery, minimum life of 3 years.
Q7: What is the display resolution and viewing area size?
A7: The resolution is 240×64 pixels, and the viewing area is 127.0 x 33.8 mm.
Q8: What is the installation depth requirement?
A8: The depth is 57 mm; total installation clearance recommended is 157 mm.
