Technical Specifications
| Parameter | Specification |
|---|---|
| Front panel dimensions (W×H×D) | 202 × 152 × 6 mm |
| Mounting depth | 57 mm (157 mm including clearance) |
| Weight | 0.9 kg |
| Display type | Transmissive color STN-LCD, 320×240 pixels, 64K colors |
| Active display area (W×H) | 115.2 × 86.4 mm |
| Backlight | CCFL, lifetime >75,000 hours at +25 °C |
| Touch screen material | Polyester on glass, 1 million operations |
| Overlay | Autotex F157/F207 |
| Casing material | Powder-coated aluminum |
| Front panel protection | IP66 |
| Rear panel protection | IP20 |

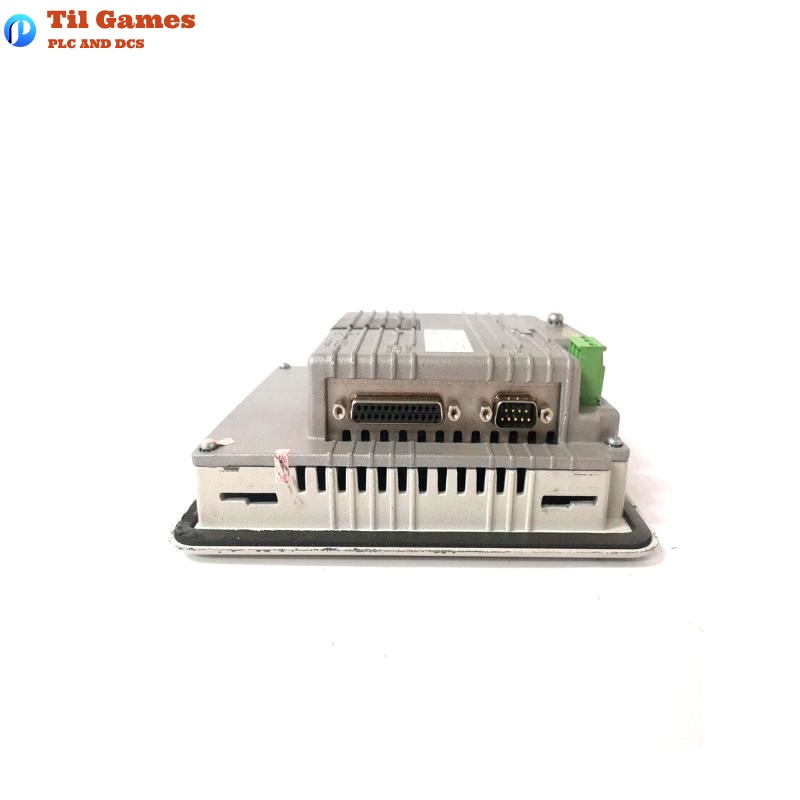

| Serial ports | RS232C (9-pin D-sub male), RS422/485 (25-pin D-sub female) |
| Ethernet | Shielded RJ45 |
| USB | Host type A (USB 1.1), max output 500 mA |
| Flash memory | 12 MB including fonts |
| Real-time clock | ±20 PPM; max error 1 min/month @ 25°C |
| RTC battery | CR2450, lifetime ≥3 years (Sanyo or Panasonic) |
| Power supply | 24V DC (range 20–30V DC), 3-pin block; 2.0A fuse |
| Power consumption | Normal 0.25 A, Max 0.45 A |
| Operating temperature | 0 °C to +50 °C (vertical); 0 °C to +40 °C (horizontal) |
| Storage temperature | -20 °C to +70 °C |
| Relative humidity | 5–85%, non-condensed |
| Certifications | CE (EN61000-6-3, EN61000-6-2), UL 508, UL 50 4X indoor use only, DNV |
FAQ
Frequently Asked Questions (FAQ)

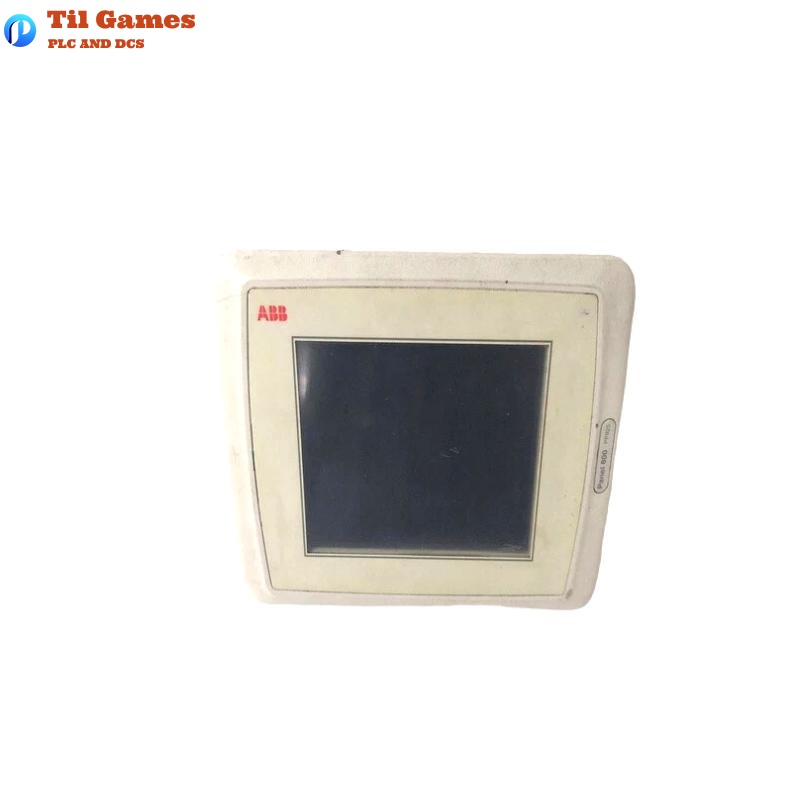

Q1: What is the display type and resolution of the PP825 panel?
A1: It features a transmissive STN-LCD with 320×240 pixel resolution and 64K colors.
Q2: What are the panel dimensions and weight?
A2: The front panel measures 202 × 152 × 6 mm and weighs 0.9 kg.
Q3: What level of ingress protection does the PP825 offer?
A3: The front panel has IP66 protection and the rear panel has IP20.
Q4: What is the power supply requirement?
A4: The panel requires 24V DC (20–30V), with a typical current of 0.25 A and maximum of 0.45 A.
Q5: What interfaces are available on the PP825?
A5: It provides RS232, RS422/RS485, USB Host (Type A), and Ethernet (RJ45).
Q6: How long does the real-time clock battery last?
A6: The CR2450 battery lasts a minimum of 3 years.
Q7: What is the touchscreen rated for in terms of usage?
A7: The polyester-on-glass touchscreen supports 1 million finger touches.
Q8: What standards does the power supply need to comply with?
A8: IEC 60950 and IEC 61558-2-4 for CE; class II for UL and cUL compliance.
