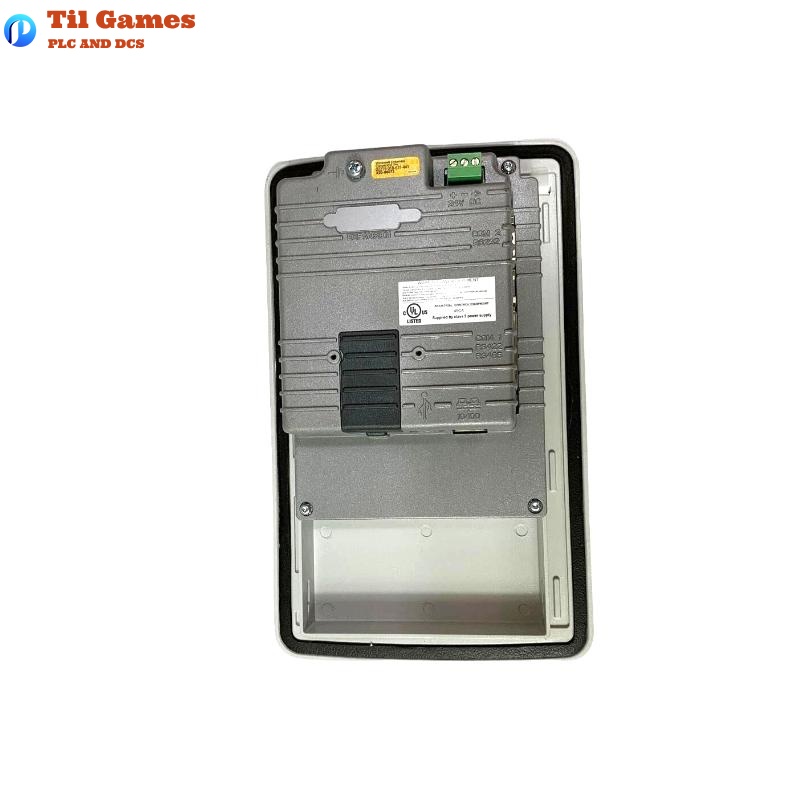

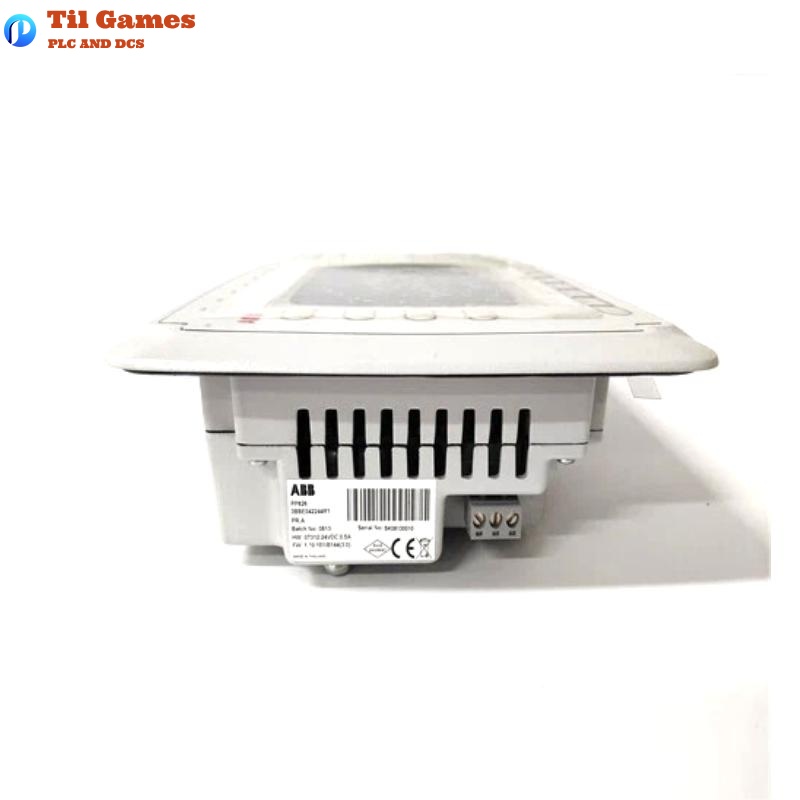

Technical Specifications
| Item | Specification |
|---|---|
| Model Number | ABB PP826 3BSE042244R1 |
| Front Panel Dimensions (W x H x D) | 275 x 168 x 6 mm |
| Mounting Depth | 57 mm (Total clearance: 157 mm) |
| Weight | 1.2 kg |
| Front Panel Protection | IP66 |
| Rear Panel Protection | IP20 |
| Display Type | Color STN-LCD, 320 x 240 pixels, 64K colors |
| Display Active Area (W x H) | 115.2 x 86.4 mm |
| Backlight Lifetime | >75,000 hours (@25°C ambient) |
| Keyboard Type | Membrane switch with metal domes (1M ops) |
| Housing Material | Powder-coated aluminum |
| Power Supply | +24V DC (range 20 – 30V DC) |
| Power Consumption | Typical 0.3 A, Max 0.5 A |
| USB Port | Host Type A, max 500 mA output |

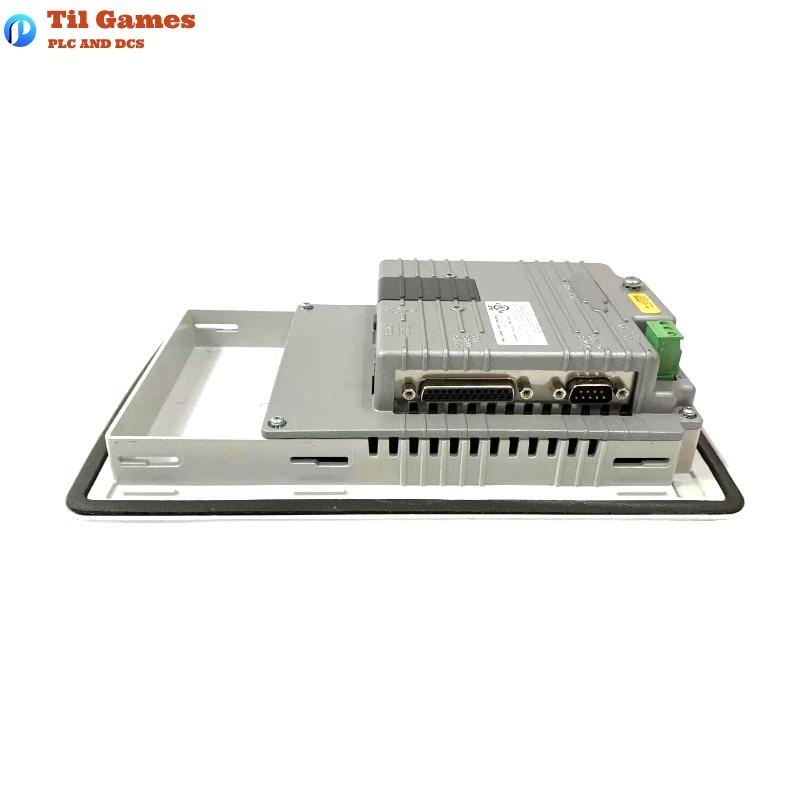

| Serial Port RS232 | 9-pin D-sub male connector |
| Serial Port RS422/485 | 25-pin D-sub female connector |
| Ethernet | Shielded RJ45 port |
| Real-Time Clock | ±20 ppm (max error 1 min/month at 25°C) |
| RTC Battery | CR2450 (Sanyo or Panasonic), min. 3 years |
| Application Memory | 12 MB (including fonts) |
| Operating Temp (Vertical) | 0°C to +50°C |
| Operating Temp (Horizontal) | 0°C to +40°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5 – 85%, non-condensed |
| Certifications | CE, UL/cUL, DNV, NEMA 4x indoor only |
FAQ
Frequently Asked Questions (FAQ)

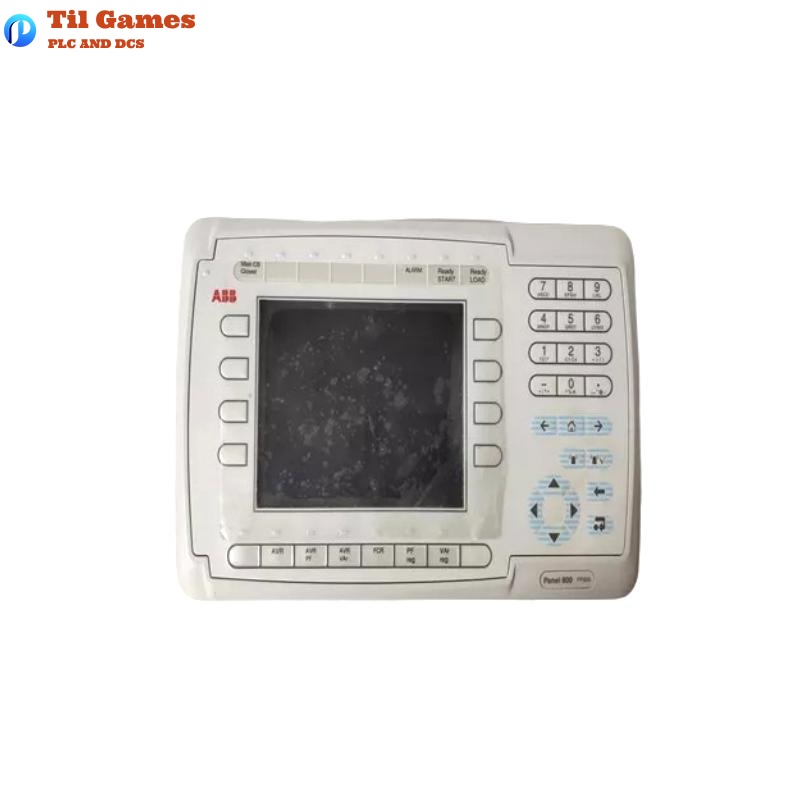

Q1: What type of display does the PP826 use?
A1: It uses a color STN-LCD display with 320×240 resolution and 64K colors.
Q2: Is Ethernet communication supported?
A2: Yes, it includes a shielded RJ45 Ethernet port.
Q3: What is the power specification for this unit?
A3: The unit operates at +24V DC, with an input range of 20 to 30V DC.
Q4: What is the front panel protection rating?
A4: The front panel is rated IP66, suitable for industrial dust and water protection.
Q5: What is the required cutout size for installation?
A5: The panel requires a 240 x 130 mm cutout, with a mounting depth of 57 mm.
Q6: Does it support USB devices?
A6: Yes, it includes a Host Type A USB port with a max 500 mA output.
Q7: How much does the panel weigh?
A7: The unit weighs 1.2 kg.
Q8: Does the panel include a real-time clock?
A8: Yes, with ±20 ppm accuracy, powered by a CR2450 battery.
