Technical Specifications
| Parameter | Description |
|---|---|

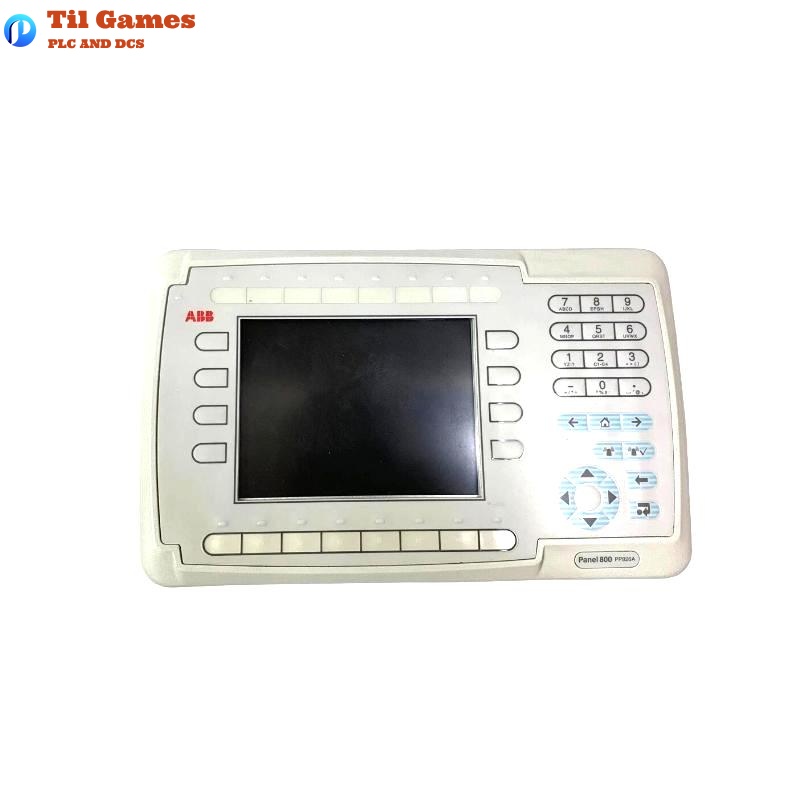

| Model | ABB PP826A |
| Front Panel Size (W×H×D) | 275 × 168 × 6 mm |
| Mounting Depth | 57 mm (157 mm including clearance) |
| Weight | 1.2 kg |
| Front Panel Protection | IP66 |
| Rear Panel Protection | IP20 |
| Power Supply | +24V DC (range: 20 – 30V DC) |
| Normal / Max Current | 0.2 A / 0.4 A |
| Display Type | TFT-LCD, 320×240 pixels, 64K colors, LED backlight |
| Active Display Area | 115.2 × 86.4 mm |
| Backlight Lifetime | >25,000 hours @25°C |
| USB Port | Host Type A (USB 1.1), max output 500 mA |
| Ethernet | Shielded RJ45 |
| Serial Port RS422/RS485 | 25-pin D-sub female |
| Serial Port RS232C | 9-pin D-sub male |
| Flash Memory | 12 MB (incl. fonts) |
| RTC Accuracy | Max error 1 min/month @25°C |
| RTC Battery | CR2450 (Sanyo or Panasonic), min. lifetime 3 years |
| Operating Temperature | Vertical: 0 |
| Storage Temperature | -20~70°C |
| Relative Humidity | 5 – 85% non-condensing |
| Certifications | CE, UL, cUL, DNV, NEMA 4X indoor use only |
FAQ
FAQ
Q1: What kind of environment is the PP826A suitable for?
A1: It is suitable for non-hazardous industrial environments, with IP66 protection on the front and IP20 at the rear.
Q2: Does this model support touchscreen functionality?
A2: Yes, it features a durable touch panel covered with Autotex material, ensuring responsive and rugged touch input.
Q3: What are the exact power requirements?
A3: It operates on +24V DC with a voltage range of 20 – 30V DC, consuming 0.2 A typically and up to 0.4 A maximum.
Q4: What communication interfaces are available?
A4: It supports RS232, RS422/RS485, Ethernet, and USB, making it versatile for various control systems.
Q5: How long does the display last?
A5: The LED backlit TFT-LCD has a lifespan of over 25,000 hours at 25°C.
Q6: Is the internal memory sufficient for complex applications?
A6: With 12 MB of flash memory (including fonts), it is adequate for moderately complex HMI projects.
Q7: How much space is required for installation?
A7: A cut-out of 240 × 130 mm is needed, with a minimum depth clearance of 157 mm.
Q8: Is the battery user-replaceable?
A8: Yes, it uses a CR2450 battery which can be replaced by qualified personnel in non-hazardous areas. Its lifespan exceeds 3 years.
