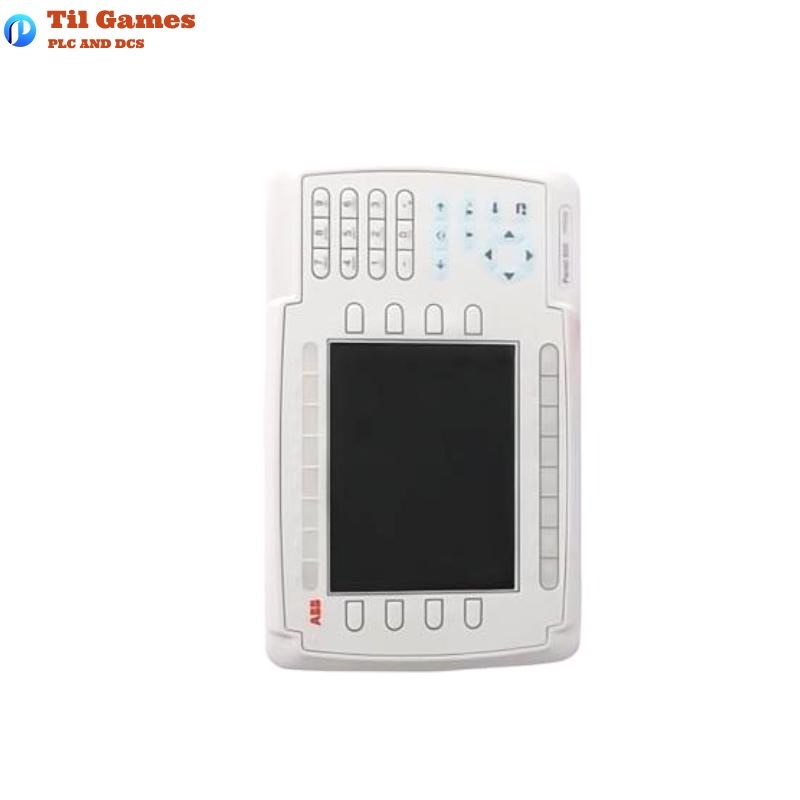

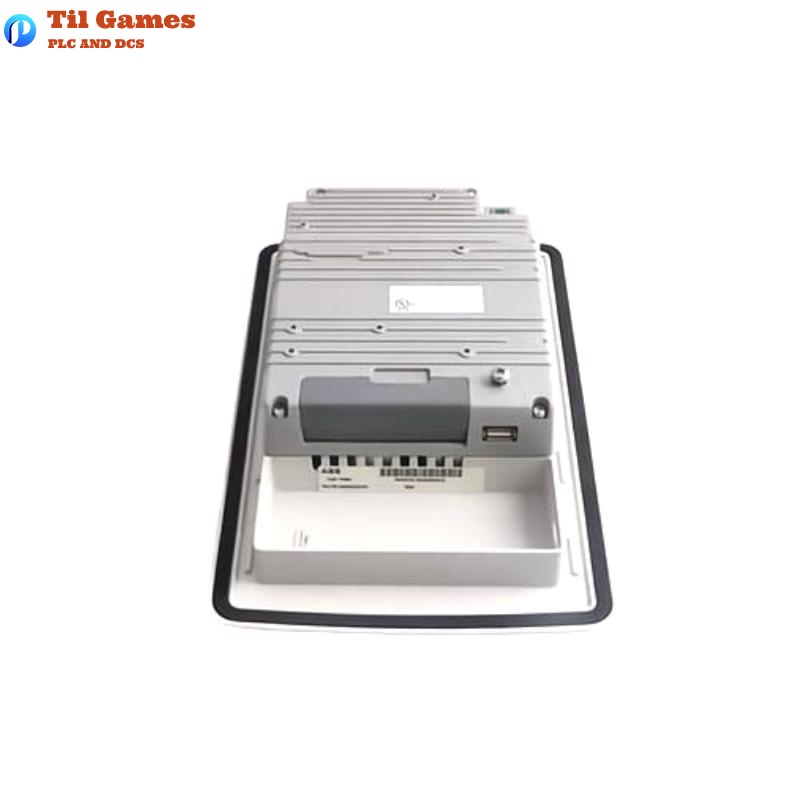

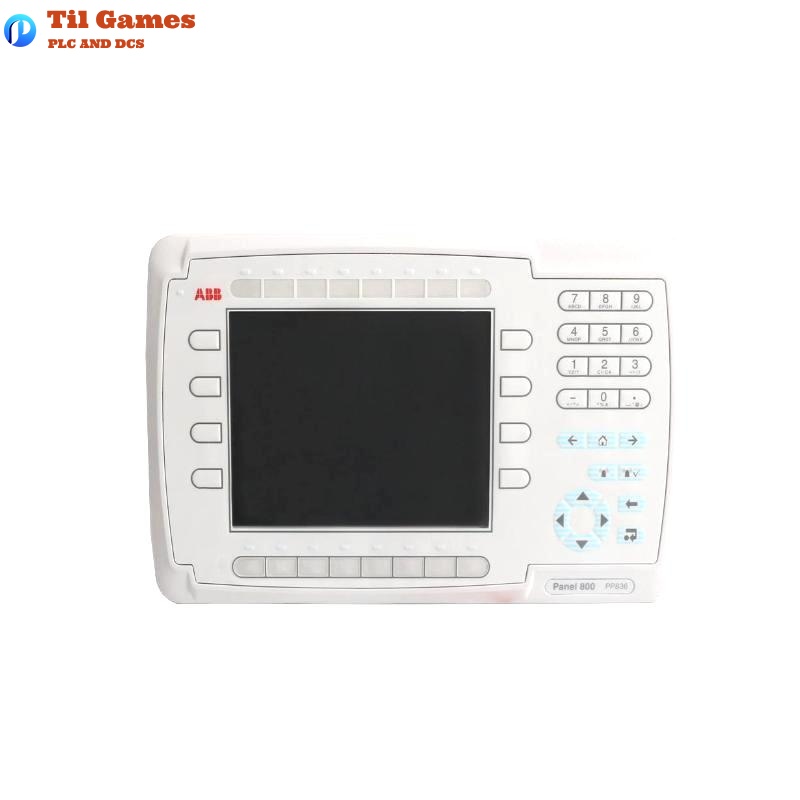

ABB PP836 3BSE042237R1 Technical Specifications

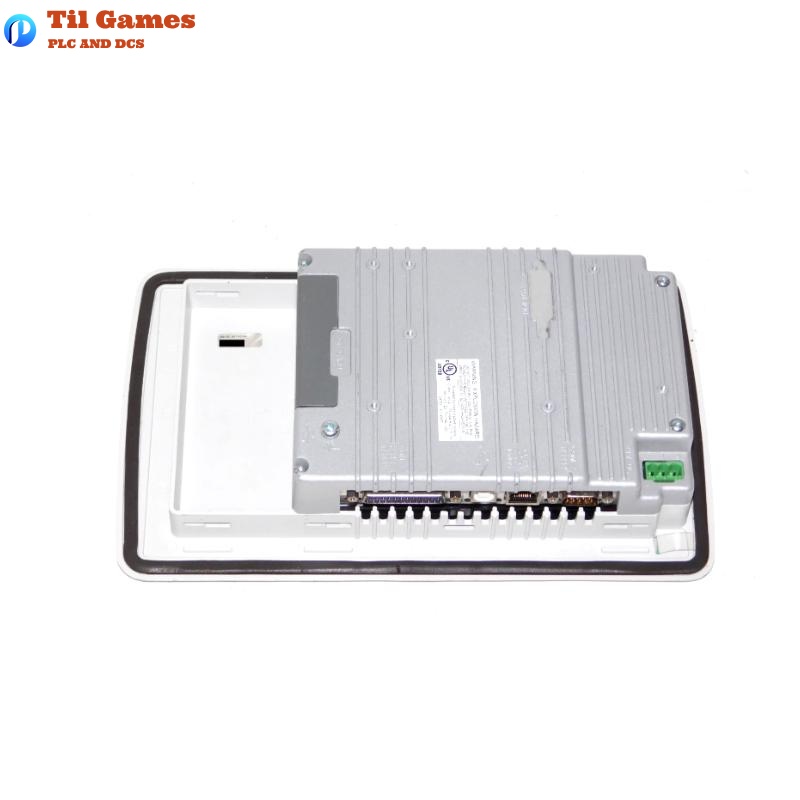

| Parameter | Value/Description |
|---|---|
| Front Panel (W x H x D) | 285 x 177 x 6 mm |
| Mounting Depth | 56 mm (156 mm with clearance) |
| Weight | 1.4 kg |
| Front Panel Seal | IP66 |
| Rear Panel Seal | IP20 |
| Power Supply | +24V DC (20 – 30V DC) |
| Max Power Consumption | Normal: 0.4 A / Max: 0.9 A |
| Display | TFT-LCD, 640 x 480 pixels, 64K colors |
| Active Display Area (WxH) | 131.5 x 98.6 mm |
| Backlight Life | >50,000 hours (CCFL type) |
| RS422/RS485 Serial Port | 25-pin D-sub, female |
| RS232 Serial Port | 9-pin D-sub, male |
| Ethernet Interface | Shielded RJ45 |
| USB Ports | Host Type A / Device Type B, USB 1.1 |
| CF Card Slot | Type I and II supported |
| Flash Memory | 12 MB (including fonts) |
| Real-Time Clock Accuracy | ±20 PPM @ 25°C |
| RTC Battery Type | CR2450 (Min 3 years, Sanyo/Panasonic) |
| Operating Temp (Vertical) | 0 °C to +50 °C |
| Operating Temp (Horizontal) | 0 °C to +40 °C |
| Storage Temp | -20 °C to +70 °C |
| Relative Humidity | 5%–85%, non-condensing |
| Certifications | CE, UL 508, UL 50 4X indoor only, DNV, NEMA 4X |
FAQ
ABB PP836 Frequently Asked Questions (FAQ)
Q1: Does the panel support hot-swapping expansion modules?
A1: No. Power must be turned off before replacing any expansion modules.
Q2: Is PP836 explosion-proof?
A2: It is suitable for Class I, Division 2, Groups A, B, C, D, but requires strict compliance with UL/cUL installation guidelines.
Q3: What is the maximum installation plate thickness supported?
A3: 1.5 to 9.0 mm.
Q4: What types of storage expansion does it support?
A4: Supports Compact Flash Type I and II cards, industrial grade is recommended (e.g., SiliconSystems, SanDisk).
Q5: What communication interfaces are available?
A5: RS232, RS422/RS485, Ethernet (RJ45), and USB.
Q6: Does the real-time clock require a dedicated battery?
A6: Yes, CR2450 with a minimum 3-year life.
Q7: Is the panel equipped with a touchscreen?
A7: Yes, it includes a chemically resistant membrane touchscreen.
Q8: Can the panel be used outdoors?
A8: It is not recommended for outdoor use; certified for NEMA 4X indoor applications only.
