Technical Specifications
| Parameter | Specification |
|---|---|

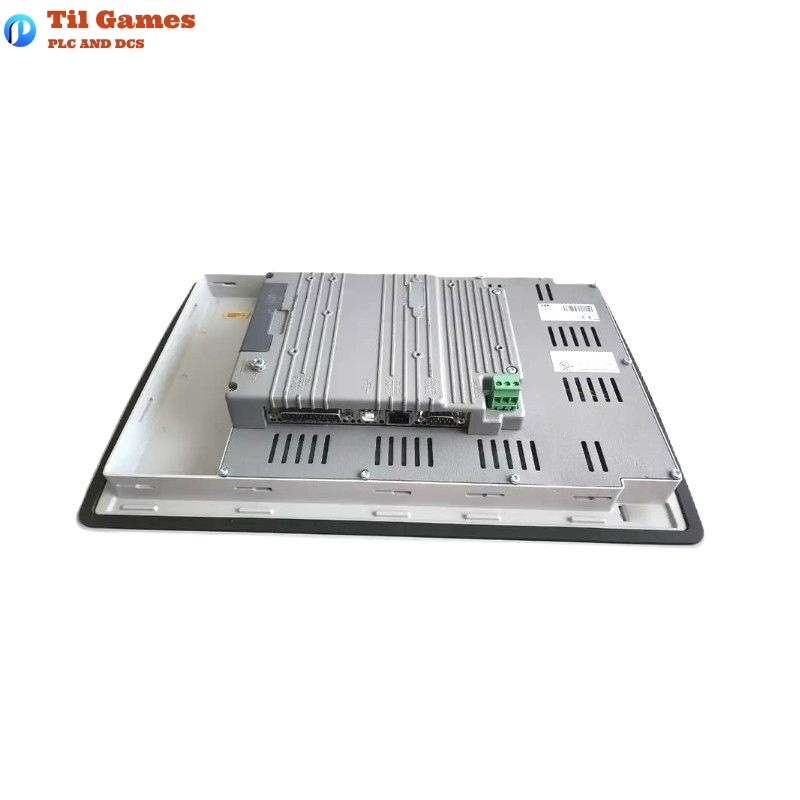

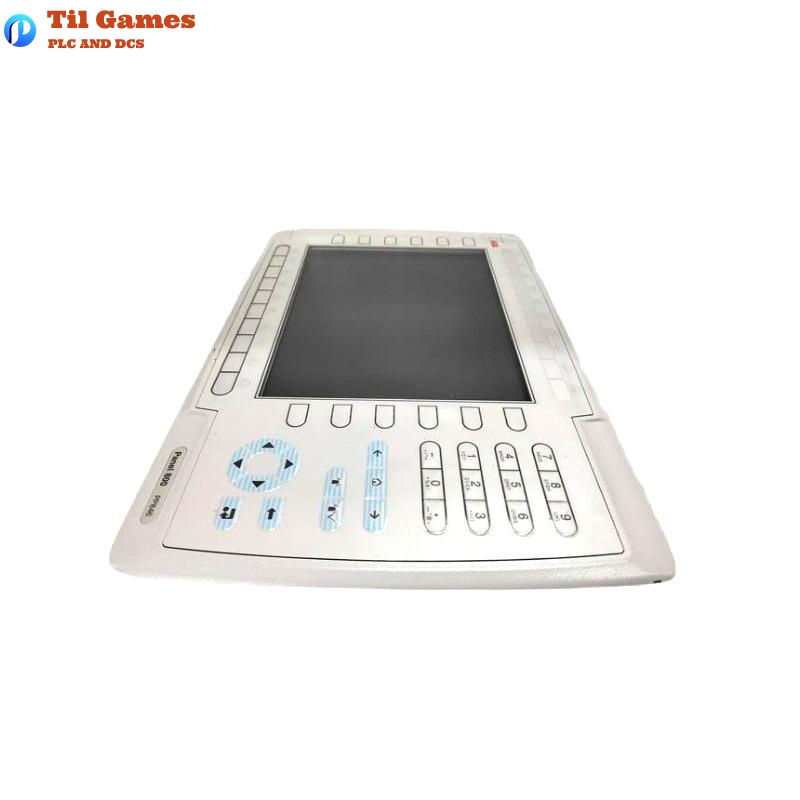

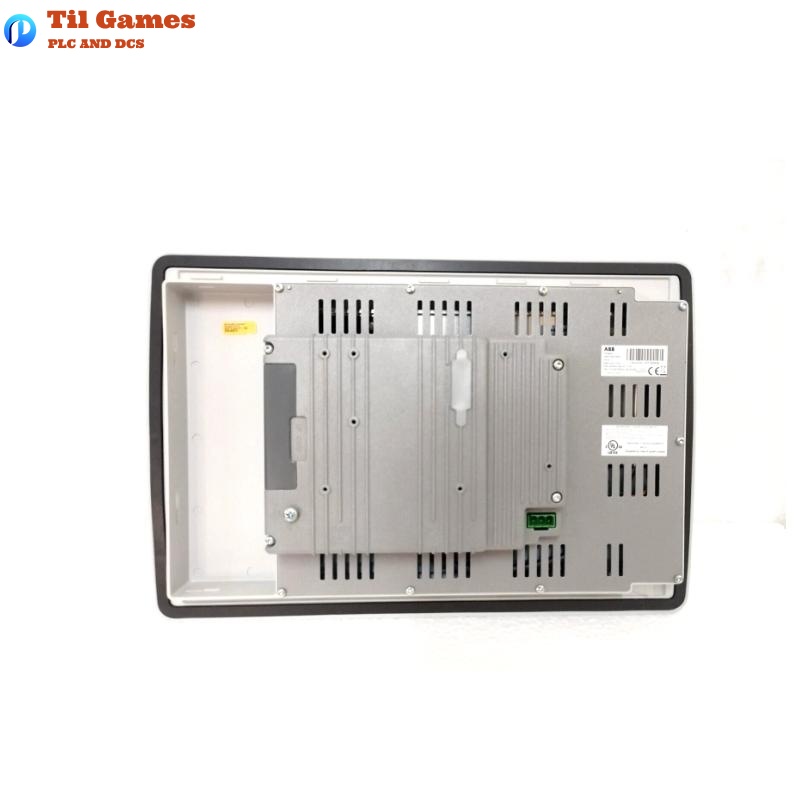

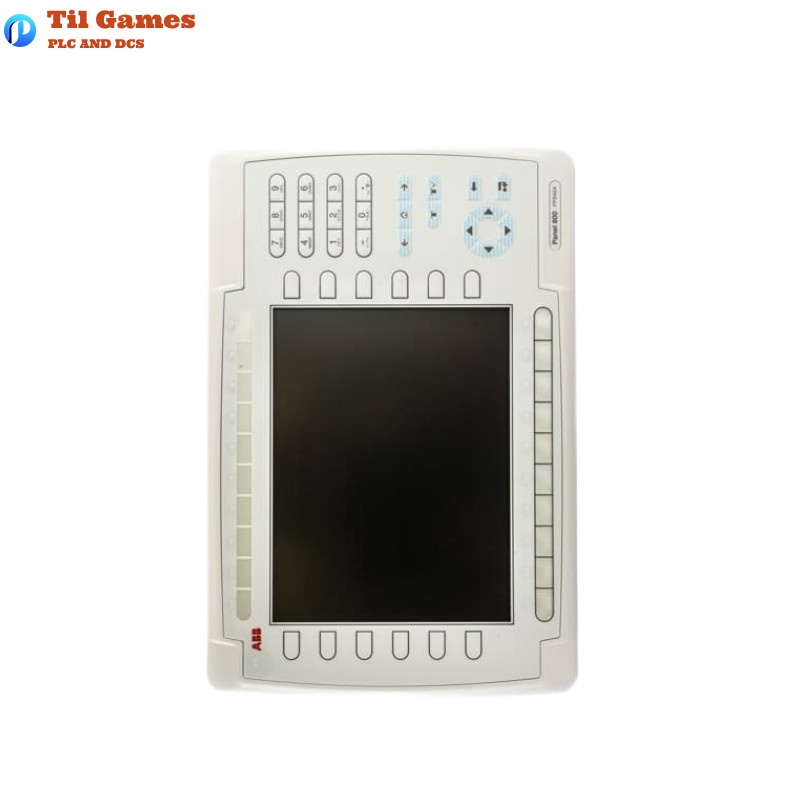

| Model | ABB PP846A |
| Part Number | 3BSE042238R2 |
| Front Panel Dimensions (W x H x D) | 382 x 252 x 6 mm |
| Mounting Depth | 58 mm (158 mm including clearance) |
| Weight | 2.5 kg |
| Display | TFT-LCD, 800×600 pixels, 64K colors, CCFL backlight |
| Display Area (W x H) | 211.2 x 158.4 mm |
| Keyboard | Membrane switch with metal domes, 1 million operations |
| Casing Material | Powder-coated aluminum |
| Protection (Front/Rear) | IP66 / IP20 |
| Power Supply | 24V DC (20 – 30V), 3-pin jack, internal fuse 3.15 AT |
| Power Consumption | Normal 0.5 A, Max 1.0 A |
| Serial Ports | RS422/RS485: 25-pin D-sub, RS232: 9-pin D-sub |
| USB Ports | Host: Type A, Device: Type B (USB 1.1) |
| Ethernet | Shielded RJ45 |
| Compact Flash | Type I and II |
| Flash Memory for Application | 12 MB |
| Real-Time Clock Accuracy | ±20 PPM (1 min/month @25°C) |
| Battery | CR2450 (min. 3 years), rechargeable |
| Ambient Temp. (Vertical Install) | 0 to +50°C |
| Ambient Temp. (Horizontal) | 0 to +40°C |
| Storage Temperature | -20 to +70°C |
| Relative Humidity | 5 – 85% (non-condensing) |
| Certifications | CE, UL 508, UL 1604 Class I Div 2, DNV, NEMA 4X (indoor only) |
FAQ
FAQ
Q1: What is the display resolution of the PP846A panel?
A1: The PP846A uses a TFT-LCD with 800×600 resolution and supports 64K colors.
Q2: What is the weight and size of the front panel?
A2: The front panel measures 382 x 252 x 6 mm and weighs 2.5 kg.
Q3: What power supply range is supported?
A3: The panel operates on 24V DC with a tolerance of 20 to 30V.
Q4: What environmental conditions is the panel suitable for?
A4: Operating temperature is 0–50°C (vertical) or 0–40°C (horizontal); relative humidity is 5–85% non-condensing.
Q5: What communication ports are available?
A5: It includes RS422/RS485, RS232, USB Host/Device, and Ethernet RJ45.
Q6: How much internal memory is available for applications?
A6: 12 MB of flash memory is available, including fonts.
Q7: Is the panel front resistant to industrial environments?
A7: Yes, the front has IP66 protection and uses a chemically resistant overlay.
Q8: What kind of battery is used for the RTC?
A8: A CR2450 lithium battery (Sanyo or Panasonic) is used, with a minimum lifetime of 3 years.
