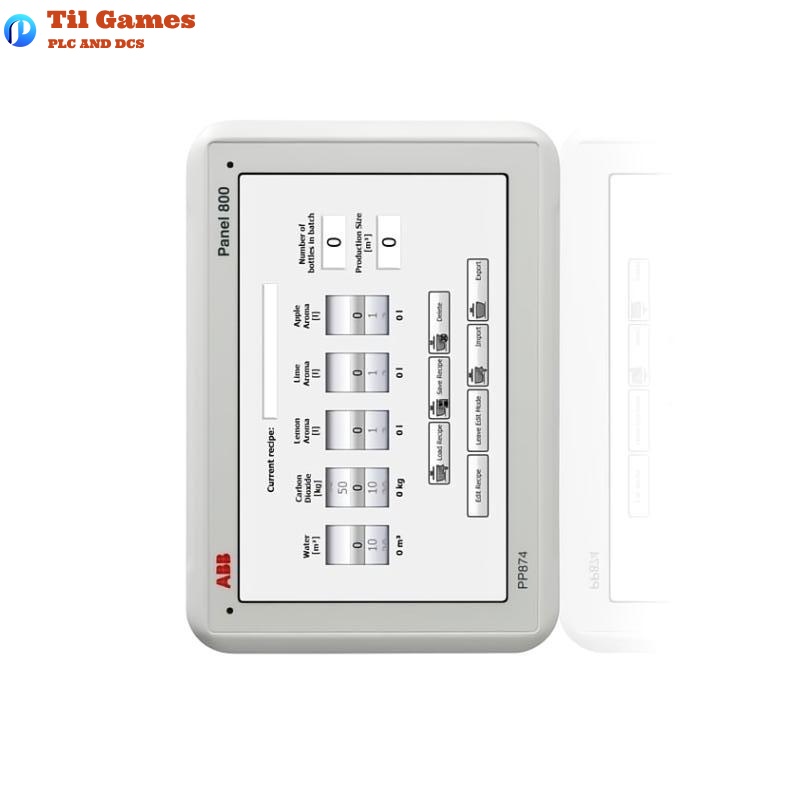

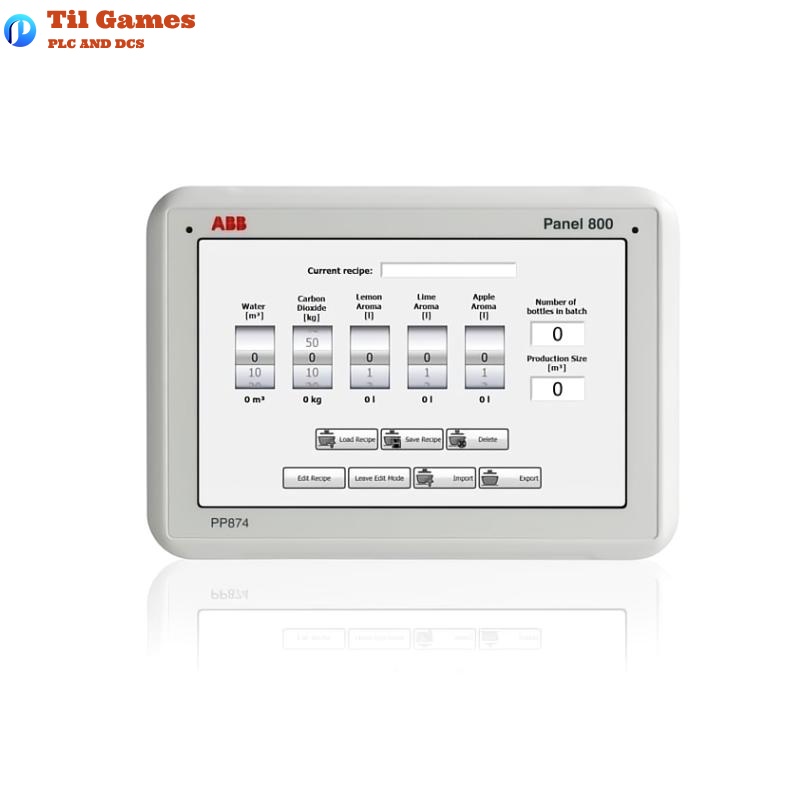

ABB PP874 3BSE069271R1 Operator Panel Technical Specifications
| Parameter | Description |
|---|---|
| Display Type | 7.0″ TFT-LCD with LED backlight, 800 × 480 pixels, 64K colors |
| Front Panel Size (W × H × D) | 204 × 143 × 7 mm |
| Cutout Dimensions (W × H) | 187 × 126 mm |
| Mounting Depth | 43 mm (143 mm with clearance) |
| Weight | 0.8 kg |
| Mounting Method | VESA 75 × 75 (Max screw length: 4 mm) |
| Front Panel Protection | IP65 |
| Rear Panel Protection | IP20 |

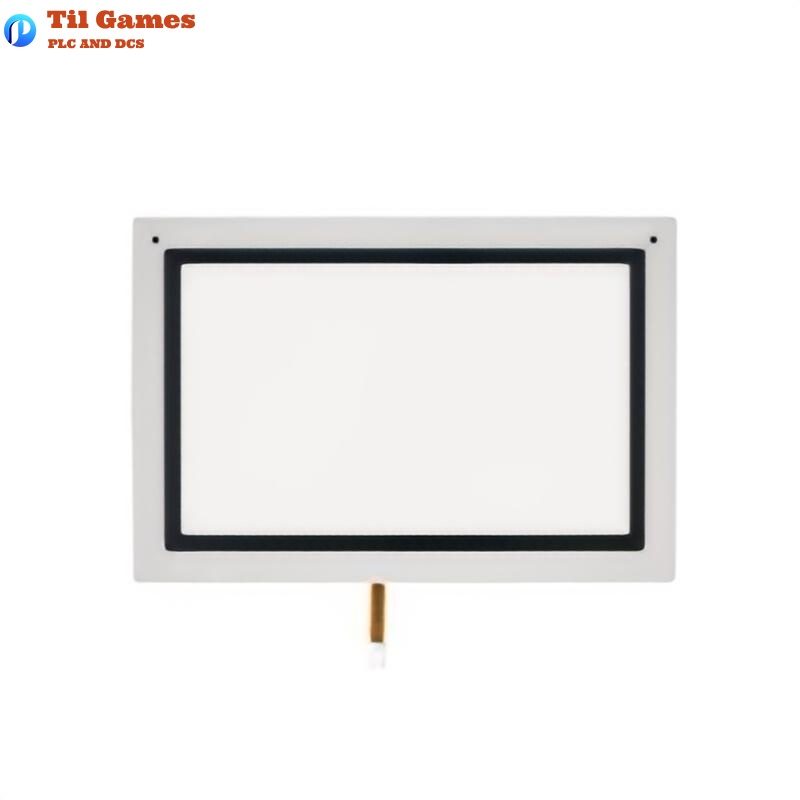

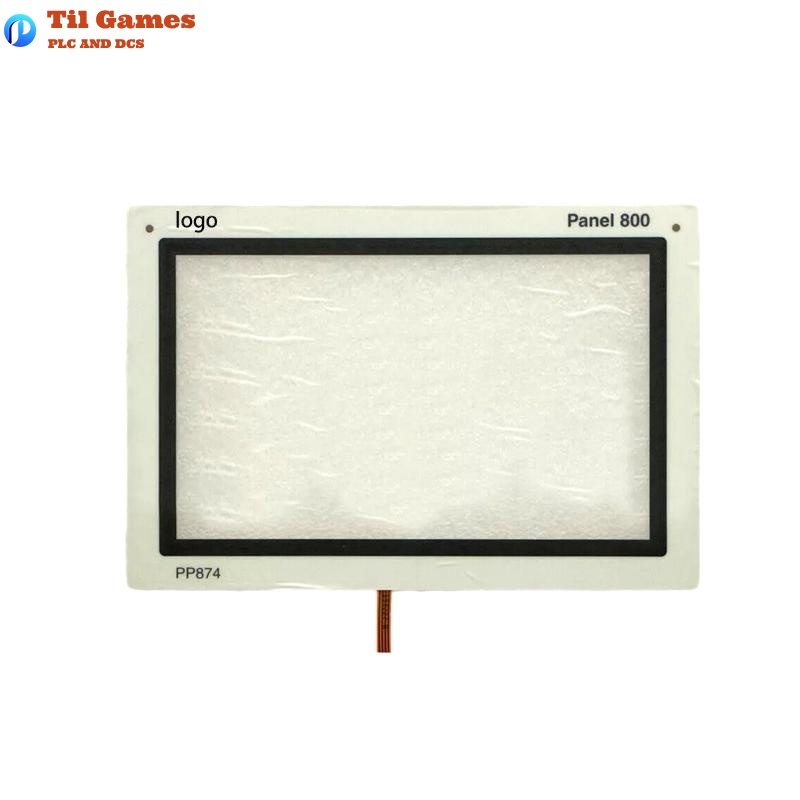

| Touch Screen | Resistive, Polyester on glass, Autoflex EBA 180L |
| Touch Operations | >1 million touches |
| Materials | Powder-coated aluminum casing and frame |
| COM1/COM3 (RS232) Ports | 9-pin D-sub, RS232 with RTS/CTS |
| COM2/COM4 (RS422/485) Ports | 9-pin D-sub, RS422/RS485 |
| Ethernet Port | 1 × 10/100 Base-T (shielded RJ45) |
| USB Port | 1 × USB Host 2.0, max 200 mA |
| Processor | 400 MHz ARM9 |
| Flash Memory | 128 MB NAND Flash (approx. 80MB usable) |
| RAM | 128 MB DDR2 |
| SD Card Support | Optional, standard SD format (up to 2 GB) |
| Real Time Clock | Yes, on-chip |
| Battery | Rechargeable battery (for 3BSE069271R1 only) |
| Power Consumption | 6.0 W (at 12 V / 24 V nominal) |
| Power Supply | +24 V DC (18 to 32 V DC), conforms to IEC 60950 & 61558-2-4 |
| Screen Brightness | 350 cd/m² |
| Display Active Area (W × H) | 152.4 × 91.4 mm |
| Viewing Angle | H: 140°, V: 130° |
| Backlight Life | 20,000 hours |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Operating Humidity | 5% – 85% non-condensed |
FAQ
Frequently Asked Questions (FAQ)
Q1: What communication interfaces are supported by PP874?
A1: The device supports 4 serial ports (RS232 and RS422/RS485), 1 Ethernet port, and 1 USB host port.
Q2: Is SD card expansion supported?
A2: Yes, PP874 supports standard SD cards up to 2GB in size.
Q3: What is the power input requirement for PP874?
A3: Power input is 24V DC, operating range 18 to 32V DC, compliant with IEC 60950 and IEC 61558-2-4.
Q4: Is PP874 dust and water resistant?
A4: The front panel is rated IP65, offering protection against dust and water; the rear is rated IP20.
Q5: Does the touchscreen support multi-touch?
A5: No, the PP874 uses a resistive touchscreen that supports only single-touch operations.
Q6: What are the installation options?
A6: Supports both panel-mount and VESA 75 × 75 mounting.
Q7: What is the operating temperature range?
A7: Operating temperature is -10°C to +60°C; storage temperature is -20°C to +70°C.
Q8: Are air bubbles in the screen a defect?
A8: No, minor bubbles are a cosmetic effect due to environmental conditions and do not affect functionality.
