Technical Specifications
| Parameter | Value |
|---|---|

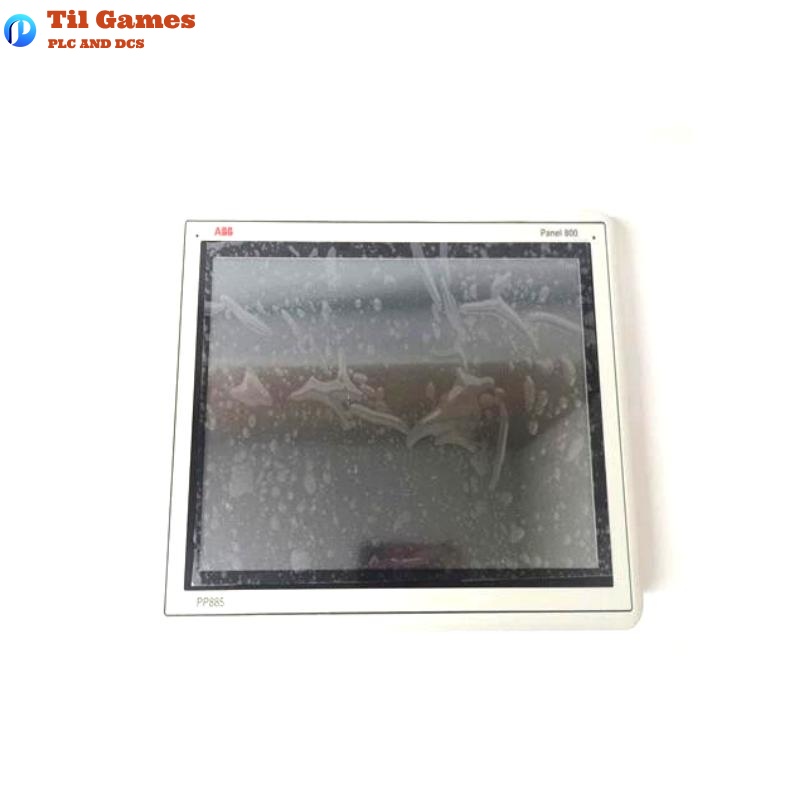

| Display Size | 15.4″ TFT-LCD with LED backlight |
| Resolution | 1280 × 800 pixels, 16.7 million colors |
| Brightness | 450 cd/m² |
| Viewing Angle | Horizontal: 160°, Vertical: 140° |
| Active Display Area | 331.2 × 207.0 mm |
| Touch Screen Type | Resistive, polyester on glass (Autoflex EB) |
| Touch Screen Durability | 5 million finger touches |
| Front Panel Dimensions (W×H×D) | 410 × 286 × 7 mm |
| Cut-Out Dimensions (W×H) | 394 ±1 × 270 ±1 mm, max corner radius 4 mm |
| Mounting Depth | 76 mm (176 mm with clearance) |
| Weight | 4.54 kg |
| Front Panel Protection | IP65, NEMA 4X |
| Rear Panel Protection | IP20 |
| Casing Material | Powder-coated aluminum |

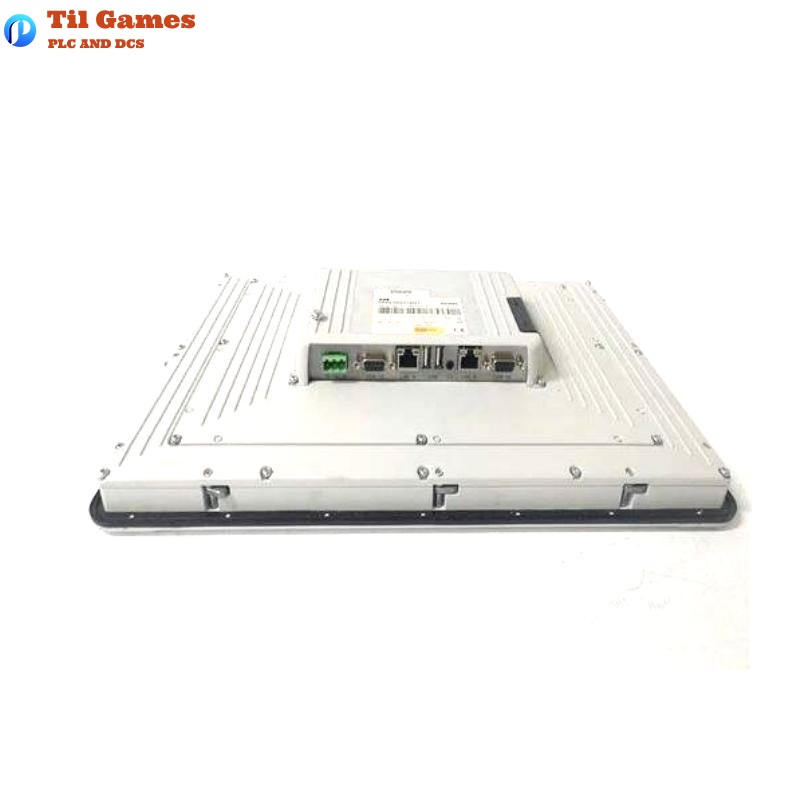

| Communication Ports | COM1: RS232, COM2: RS422/RS485 (9-pin D-sub) |
| Ethernet Ports | 1×10/100 Base-T, 1×10/100/1000 Base-T (shielded RJ45) |
| USB Ports | 3 × USB Host 2.0, max 500 mA output current |
| External Storage | 1 × SD card (optional) |
| Flash Memory (Application) | 4 GB SLC (3.5 GB usable) |
| RAM | 1 GB |
| Real Time Clock | Yes (on chip) |
| Battery | BR 2330A (non-user replaceable) |
| Power Supply Range | +12 to +28 VDC (recommended +24 VDC) |
| Power Consumption (12V / 24V) | Typical: 27.6W / 28.8W, Max: 31.2W / 31.2W |
| Operating Temperature | -30°C to 70°C |
| Storage Temperature | -40°C to +85°C |
| Certifications | CE, UL, Marine, ATEX, IECEx |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does this panel support multi-touch operation?
A1: No, PP885R uses a resistive single-touch screen.
Q2: How is the device mounted?
A2: The panel is designed for flush mounting into a control cabinet using the cut-out dimensions provided.
Q3: What is the power input range?
A3: It supports +12 to +28 VDC; +24 VDC is recommended.
Q4: What is the protection rating of the front panel?
A4: The front panel is rated IP65, suitable for industrial environments requiring dust and water protection.
Q5: Can the USB ports be used for external storage?
A5: Yes, the 3 USB 2.0 Host ports support USB flash drives or other compatible peripherals.
Q6: Is the device certified for use in hazardous areas?
A6: Yes, the PP885R is ATEX and IECEx Zone 2/22 certified.
Q7: What is the internal storage capacity, and can it be expanded?
A7: It comes with 4GB flash memory (3.5GB usable) and supports expansion via SD card.
Q8: Does it support Ethernet communication?
A8: Yes, it includes two shielded RJ45 ports supporting 10/100 and 10/100/1000 Mbps Ethernet.
