Technical Specifications
| Parameter | Details |
|---|---|

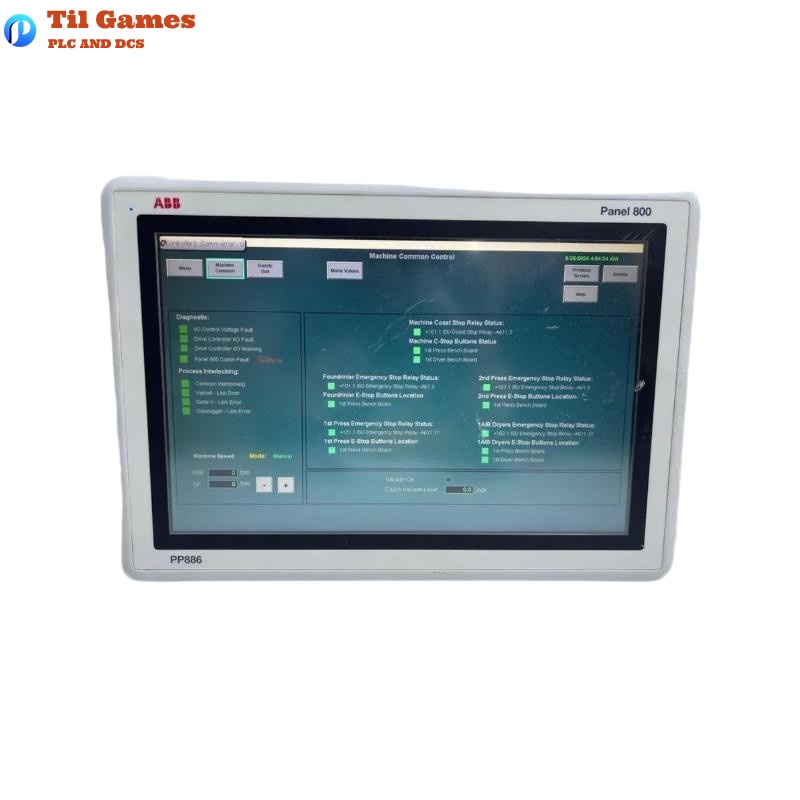

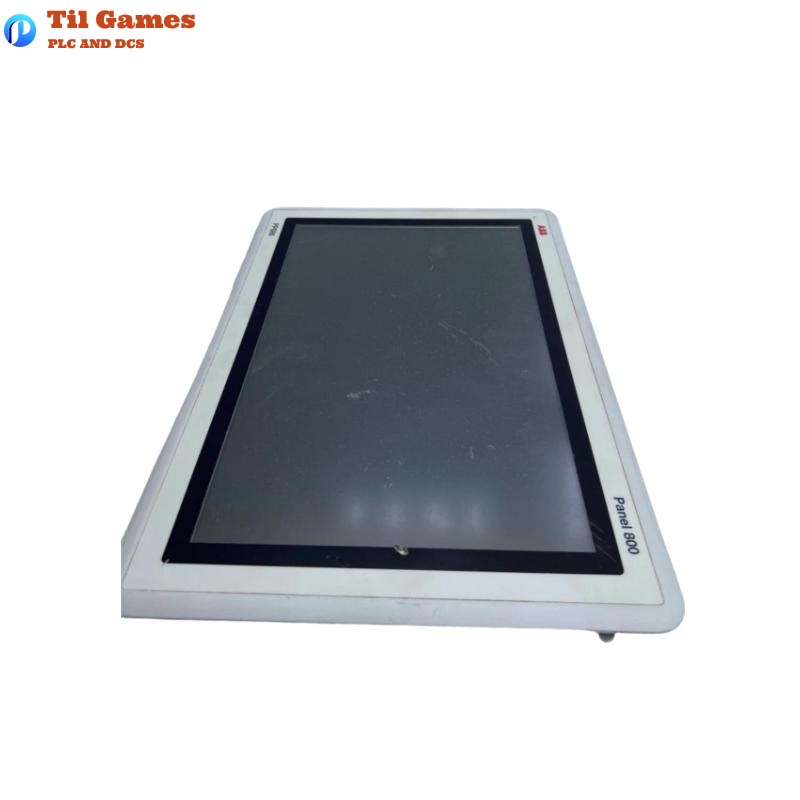

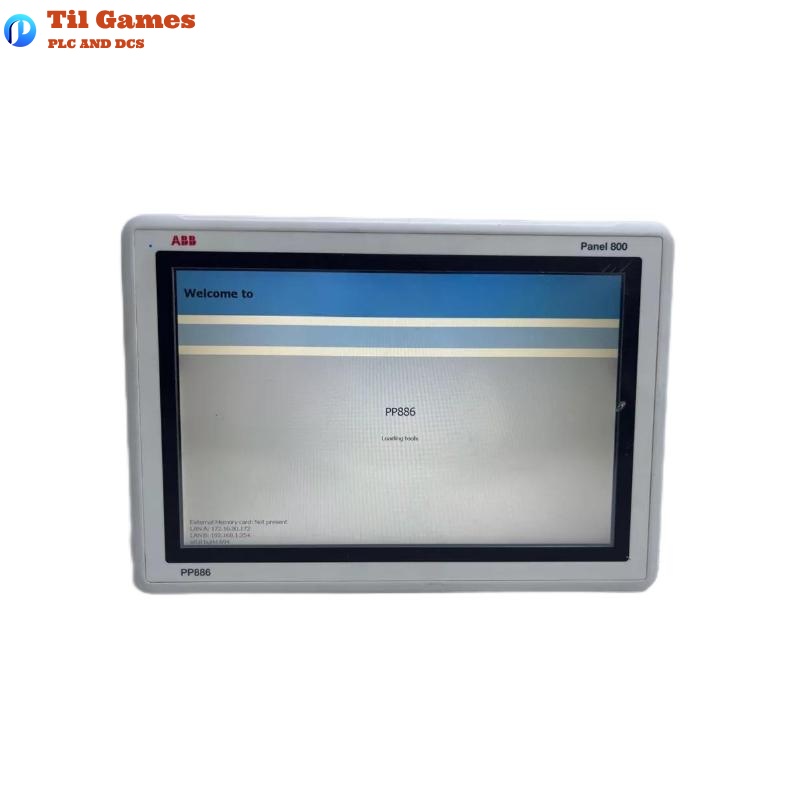

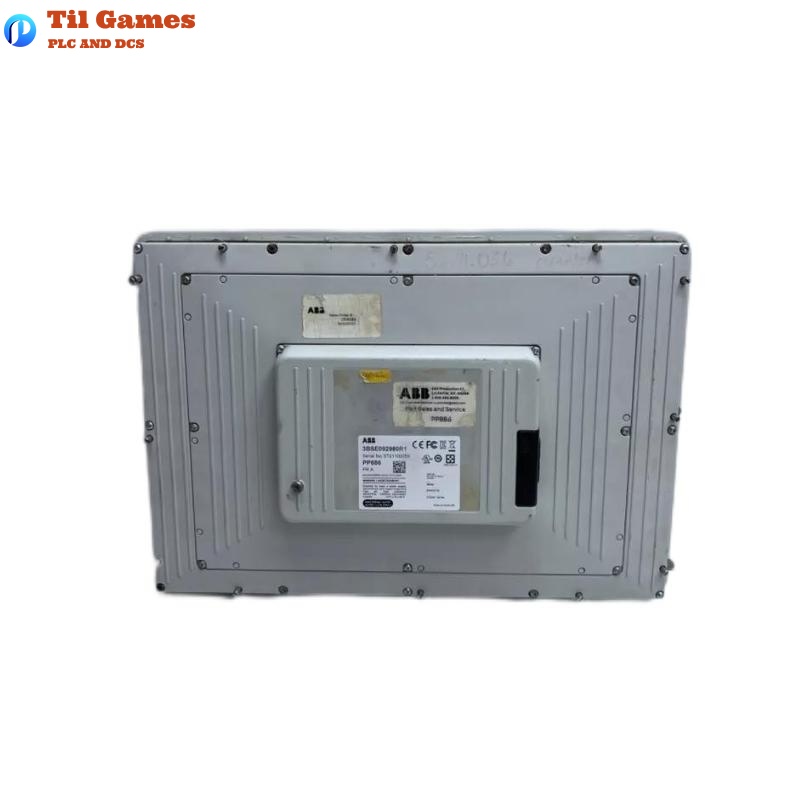

| Model Number | PP886 |
| Article Number | 3BSE092980R1 |
| Display Type | Touchscreen (TFT/LED) |
| Screen Size | 15.4 inches |
| Resolution / Ratio | 1280 x 800 (16:10) |
| Brightness | 450 cd/m² |
| Touch Type | Resistive Touch |
| Processor | ARM9, 1 GHz |
| RAM | 1 GB |
| Storage | 2 GB SSD (1.5 GB available for apps) |
| Power Supply | 24 VDC (range: 18 – 32 VDC) |
| Power Consumption | 31.2 W |
| Ethernet Ports | 2 x 10/100 Base-T (shielded RJ45) |
| USB Ports | 2 x USB 2.0 (500 mA) |
| Serial Ports | 1 x RS232, 1 x RS422/485, 1 x RS485 |
| Realtime Clock | Yes |
| Dimming Support | Yes |
| Front Material | White powder-coated aluminum |
| Front Protection | IP65, NEMA 4X/12, UL Type 4X/12 |
| Rear Protection | IP20 |
| Operating Humidity | 5% – 85% (non-condensed) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Vibration/Shock | 1 G / 15 G |
| Certifications | CE, FCC, KCC, UL 61010-2-201, DNV, KR, GL, LR, ABS, CCS |
| Hazardous Area Support | No |
| Environmental Compliance | RoHS 2011/65/EU, WEEE 2012/19/EU |
| Mounting Type | Panel Mount, VESA 75 x 75 |
| Dimensions (W×H×D) | 410 x 286 x 61 mm |
| Cut-out Size (W×H) | 394 x 270 mm |
| Mounting Depth (with clearance) | 53 mm (153 mm total) |
| Weight | 3.85 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the PP886 support widescreen display?
A1: Yes, it features a 15.4-inch widescreen display with 1280×800 resolution (16:10 ratio).
Q2: What type of touch technology is used?
A2: It uses resistive touch technology, ideal for precise operation in industrial environments.
Q3: Are multiple communication interfaces supported?
A3: Yes, it includes 2 Ethernet ports, 2 USB ports, and 3 serial ports (RS232/422/485).
Q4: What is the supported operating humidity range?
A4: The panel can operate in environments with 5% to 85% relative humidity (non-condensing).
Q5: Is the panel suitable for panel mount installation?
A5: Yes, it supports standard panel mounting and VESA 75×75 mount interface.
Q6: Can the application be simulated before deployment?
A6: Yes, the Panel Builder software allows application simulation before actual use.
Q7: Is the PP886 certified for maritime applications?
A7: Yes, it is certified by several maritime authorities including DNV, KR, GL, LR, ABS, and CCS.
Q8: Is this device suitable for hazardous area installations?
A8: No, it is not designed for hazardous or explosive environments.
