Technical Specifications
| Parameter | Specification |
|---|---|

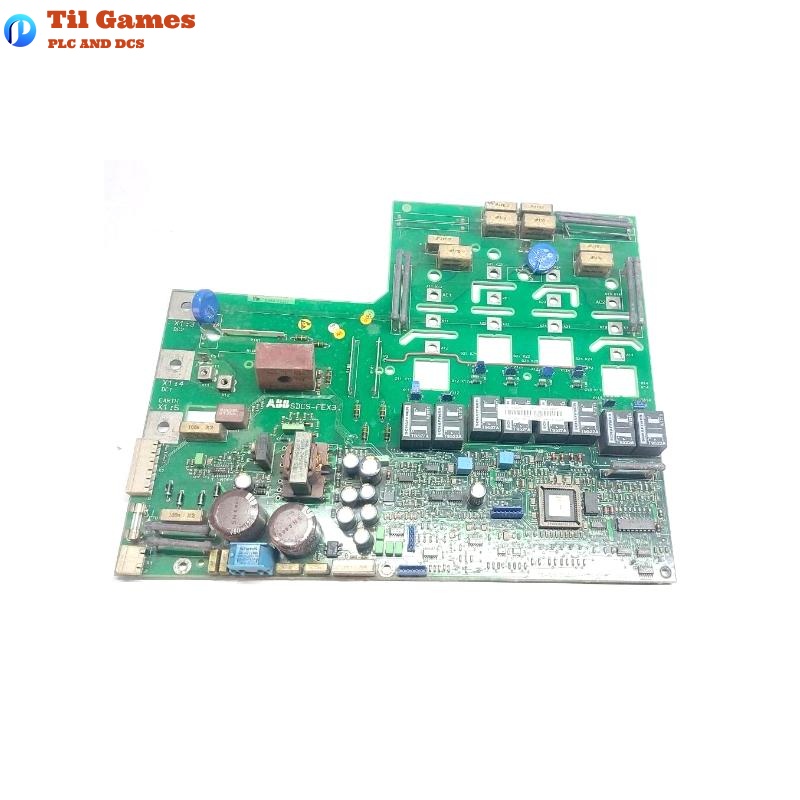

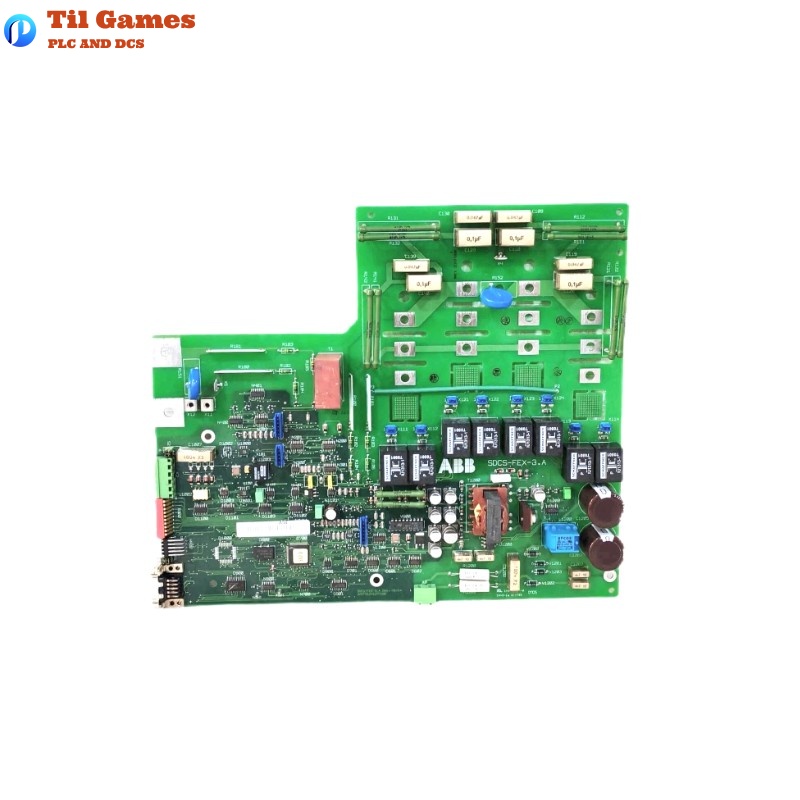

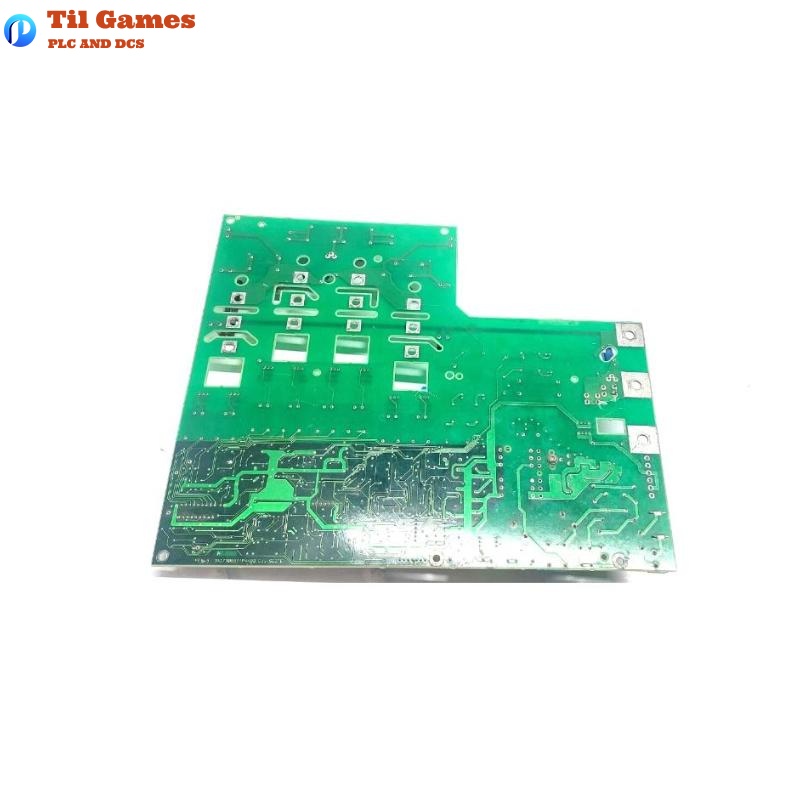

| Product Name | SDCS-FEX-31 Speed Control Motherboard |
| ABB Part Number | 3ADT306800R1 Rev.D |
| Product Type | Speed Control Motherboard for DCS Drive Systems |
| Application | Excitation control in ABB DCS 500B/600 drives |
| Compatibility | DCS 500B / DCS 600 series |
| Input Supply | From control and power interface boards |
| Communication Interface | Internal system bus |
| Mounting Type | Plug-in module |
| Board Material | Industrial-grade PCB |
| Dimensions (W × H × D) | 205 × 95 × 35 mm |
| Weight | 0.45 kg |
FAQ
FAQ
Q1: What is the primary function of the SDCS-FEX-31 board?
A1: It functions as a speed control motherboard, specifically managing field excitation in ABB DCS 500B and 600 series DC drive systems.
Q2: Which ABB drive systems is the SDCS-FEX-31 compatible with?
A2: It is compatible with ABB DCS 500B and DCS 600 drives.
Q3: Does the SDCS-FEX-31 require external configuration?
A3: No, it is pre-configured to operate within ABB drive environments and is recognized automatically upon integration.
Q4: Can SDCS-FEX-31 be used independently outside ABB systems?
A4: No, it is designed specifically for ABB DCS drive systems and requires system integration.
Q5: Is there any onboard communication interface?
A5: It uses an internal system bus for data exchange within the drive system.
Q6: What are the physical dimensions of this board?
A6: The dimensions are 205 mm (W) × 95 mm (H) × 35 mm (D).
Q7: What is the typical weight of the SDCS-FEX-31?
A7: The board weighs approximately 0.45 kg.
Q8: What revision is covered in this specification?
A8: The specifications provided refer to Revision D of the SDCS-FEX-31.
