Technical Specifications
| Parameter | Description |
|---|---|

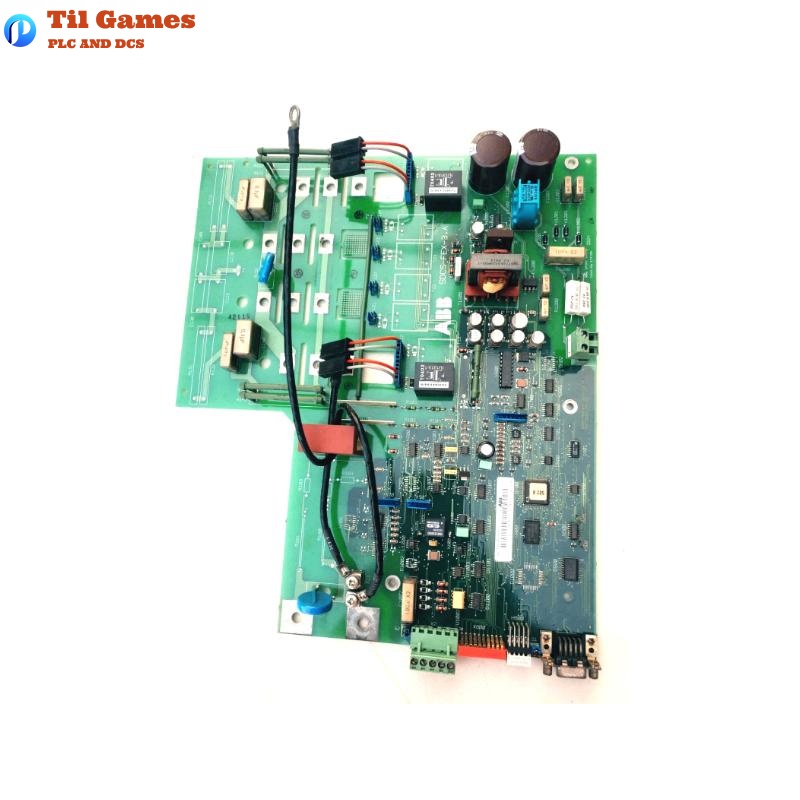

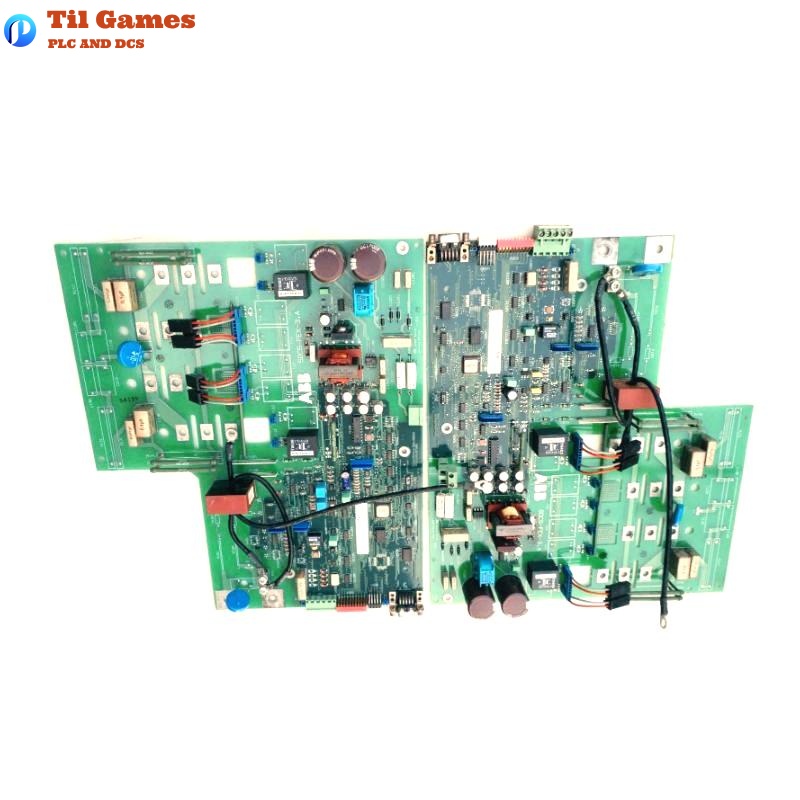

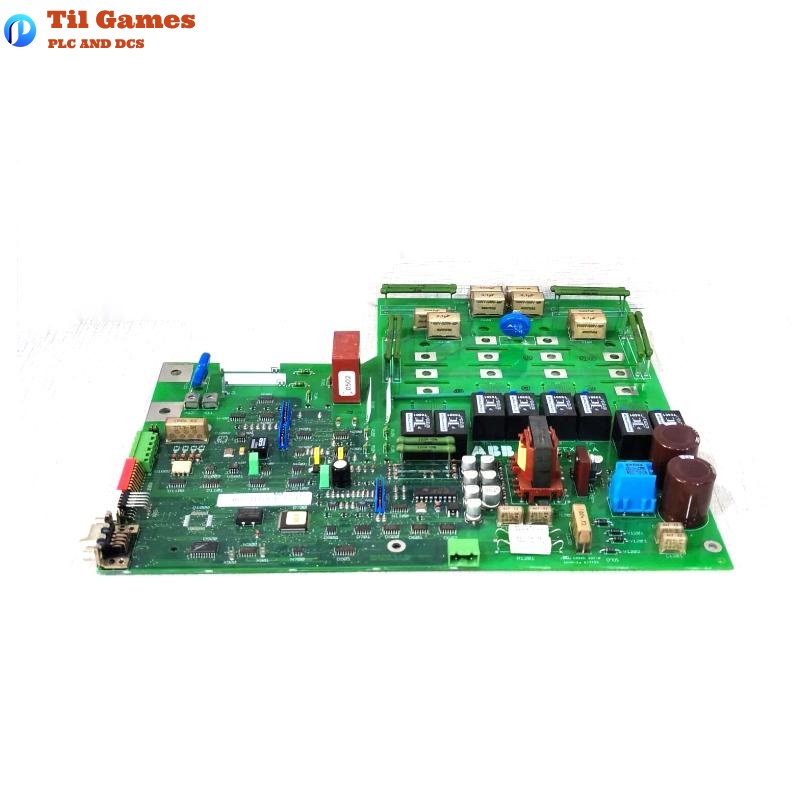

| Model Number | SDCS-FEX-32 |
| Part Number | 3BSE005715R1 |
| Revision | Rev. D |
| Function | Field exciter control for DC drive systems |
| Application | ABB DCS 500B / DCP 500B / DCS 600 DC drive systems |
| Interface | Connects via SDCS-CON-2 control board |
| Operating Voltage | Supplied via drive’s internal power |
| Cooling | Convection or fan-based (depends on drive config) |
| Installation | Mounts inside DC drive system chassis |
| Dimensions (W × H × D) | 205 × 95 × 35 mm |
| Weight | 0.45 kg |
| Compatibility | Compatible with DCS/DCP/DCF 500B and DCS/DCFs 600 |
| Manufacturer | ABB |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the SDCS-FEX-32 motherboard?
A1: It acts as a field exciter controller board for DC drive systems, regulating the excitation current for the motor field.
Q2: Which ABB drives is the SDCS-FEX-32 compatible with?
A2: It is used in DCS 500B, DCP 500B, and DCS 600 drive systems.
Q3: Is the SDCS-FEX-32 board hot-swappable?
A3: No, it must be installed or replaced when the power is completely off.
Q4: Does the board require a separate power supply?
A4: No, it receives power internally from the drive unit.
Q5: Can the SDCS-FEX-32 be used with older SDCS-CON-1 boards?
A5: No, it is designed specifically for systems using SDCS-CON-2.
Q6: How is the SDCS-FEX-32 cooled?
A6: It typically relies on the drive’s internal fan or convection cooling system.
Q7: What are the physical dimensions of the SDCS-FEX-32?
A7: The board measures 205 mm × 95 mm × 35 mm.
Q8: What is the weight of the SDCS-FEX-32 module?
A8: The weight is approximately 0.45 kilograms.
