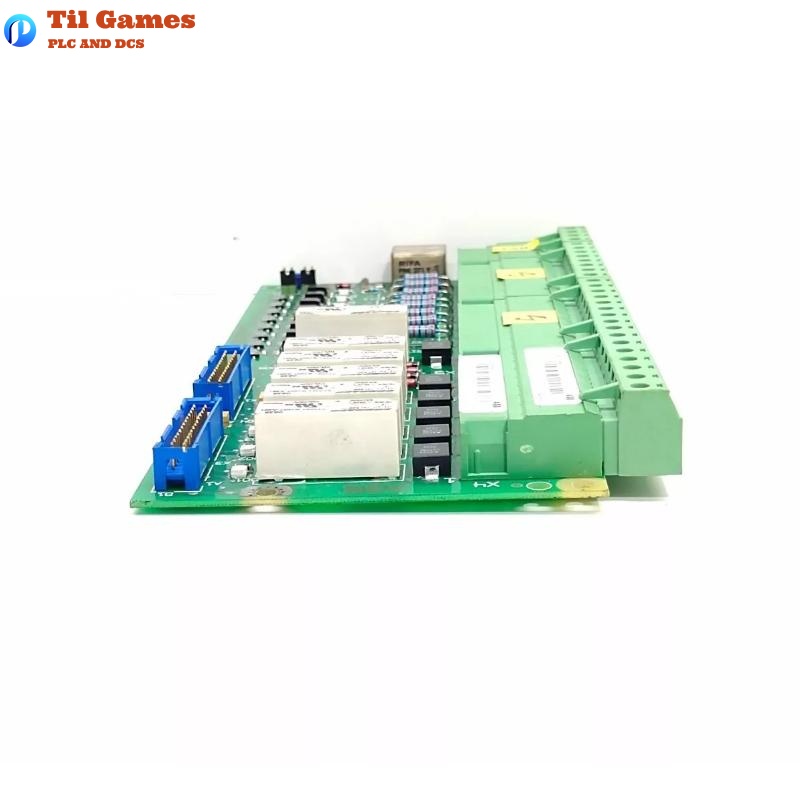

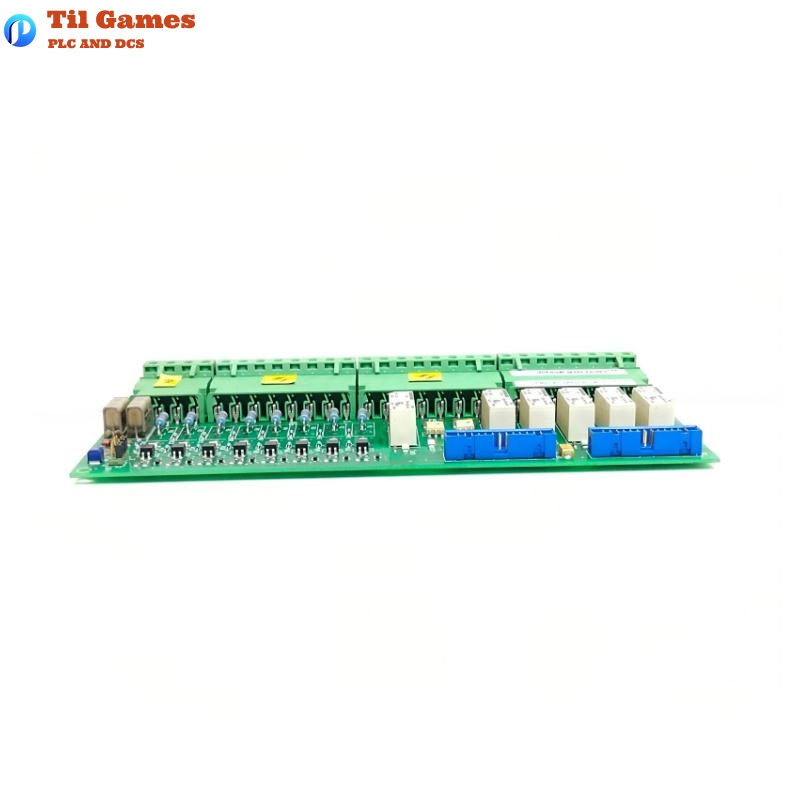

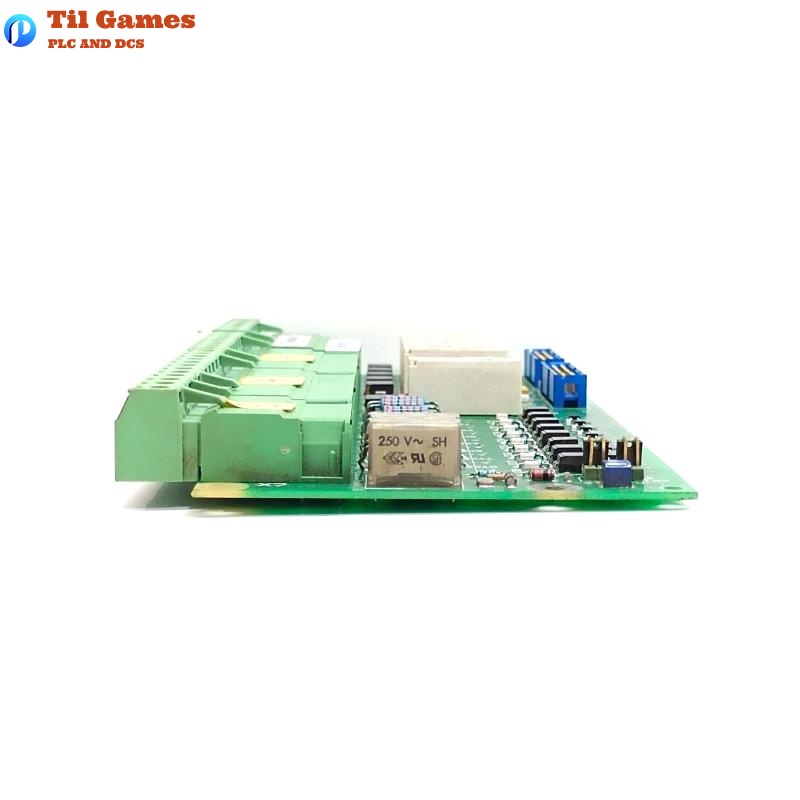

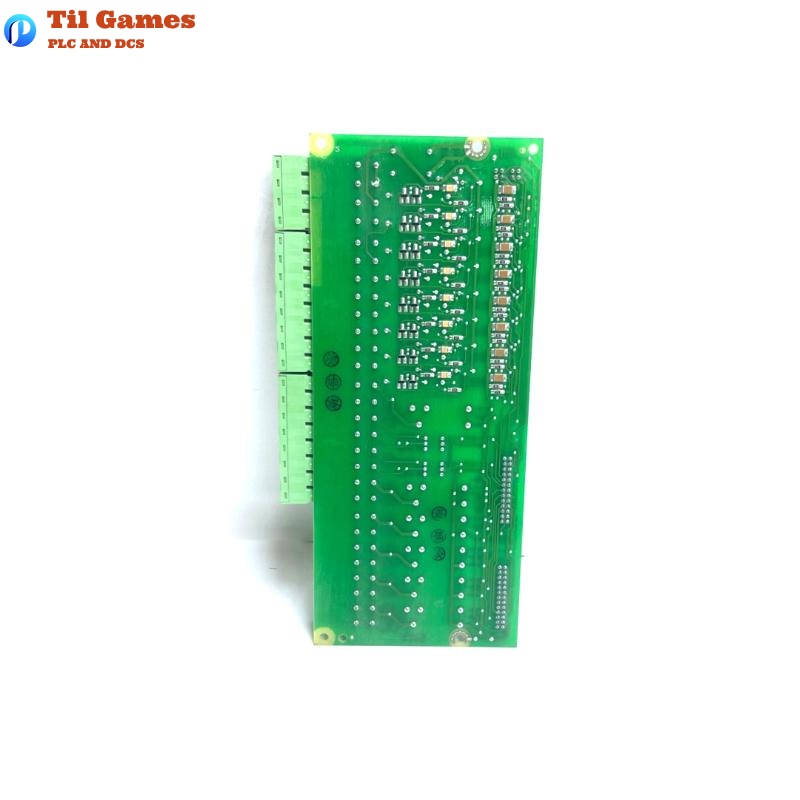

Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | SDCS-IOB-21 |
| Order Code | 3ADT220090R0014 |
| Type | Digital Input/Output Module |
| Digital Inputs | 10 channels |
| Digital Outputs | 6 channels |
| Input Signal Type | 24 V DC, optically isolated |
| Output Signal Type | Open collector, max 24 V DC |
| Output Load Capacity | Max. 0.5 A per channel |
| Electrical Isolation | Between inputs, outputs, and logic |
| Mounting Method | Plug-in type for control board slot |
| Dimensions (W×H×D) | 233.5 × 97.5 × 18.5 mm |
| Weight | 0.37 kg |
| Operating Temperature | 0 to +55°C |
| Storage Temperature | -40 to +70°C |
| Protection Rating | IP20 (installed inside control cabinet) |
| Redundancy Support | Not supported |
| Communication | Internal via control board slot |
FAQ
Frequently Asked Questions
Q1: Which ABB systems is the SDCS-IOB-21 compatible with?
A1: It is designed for use with ABB’s DCS800 DC drive systems as a digital I/O expansion module.
Q2: Does the module provide electrical isolation for signals?
A2: Yes, it provides electrical isolation between input, output, and control logic for safety and noise immunity.
Q3: Is hot swapping supported?
A3: The module is plug-in type, but power must be turned off before replacement to ensure safety.
Q4: Does it include short-circuit protection on outputs?
A4: No built-in short-circuit protection; external protection should be integrated into the system design.
Q5: Is redundancy supported by this module?
A5: Redundancy is not supported for this module.
Q6: How is module diagnostic performed?
A6: Diagnostics are accessed via the SDCS-CON control board, showing signal and module status.
Q7: How is power supplied to the module?
A7: Power is supplied through the backplane of the control board slot; no external power is needed.
Q8: What is the maintenance frequency?
A8: In normal environments, annual inspection of connection and signal integrity is sufficient.
