Technical Specifications
| Parameter | Details |
|---|---|

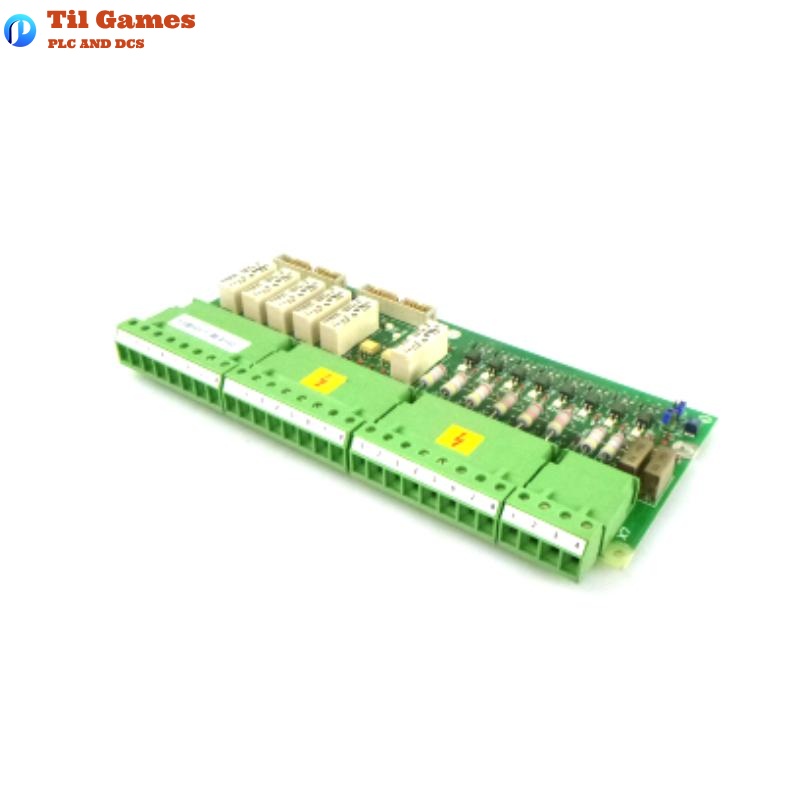

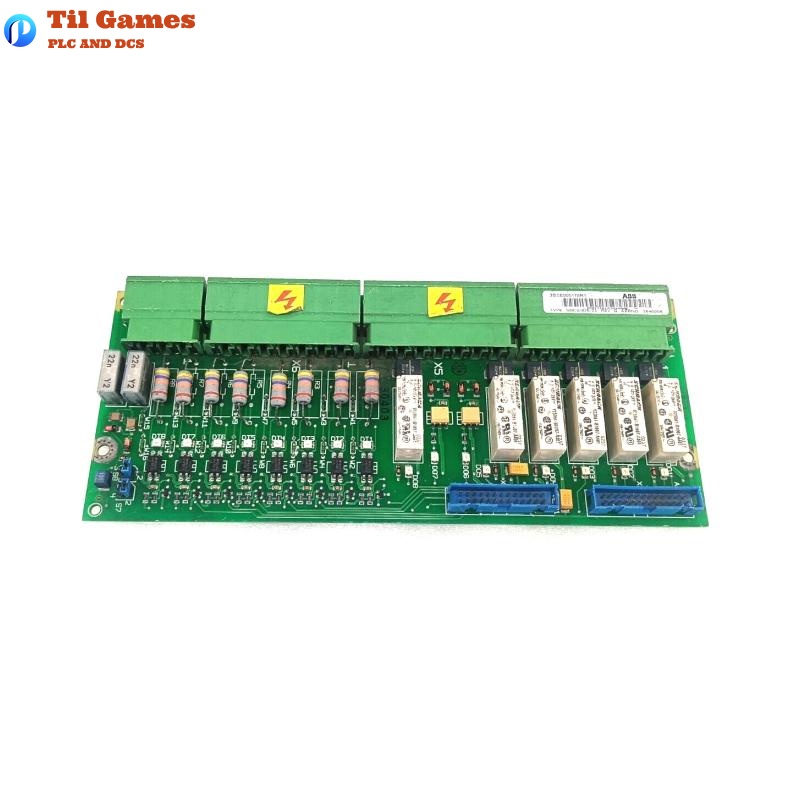

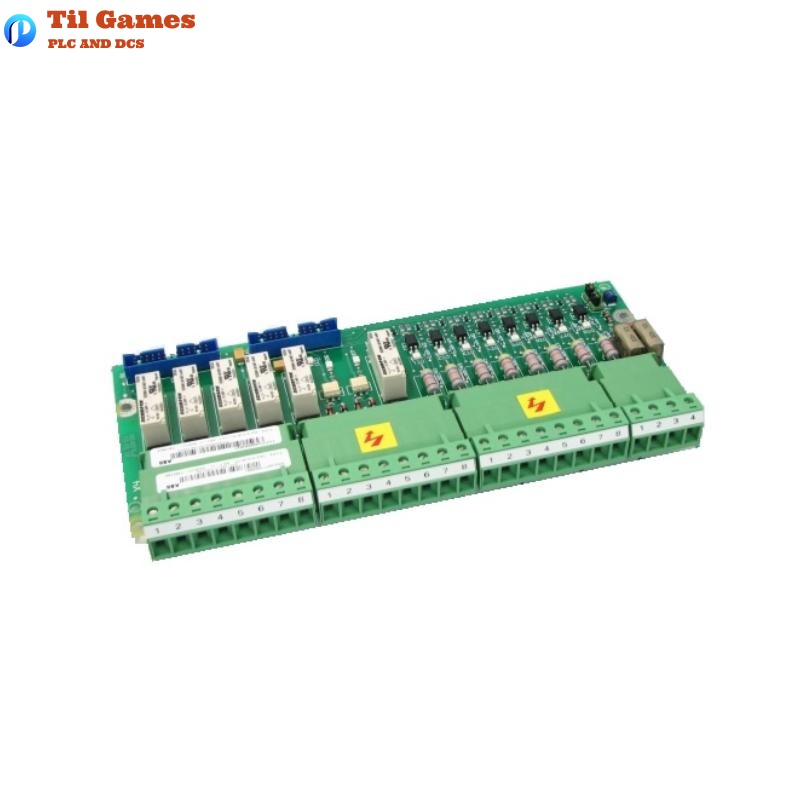

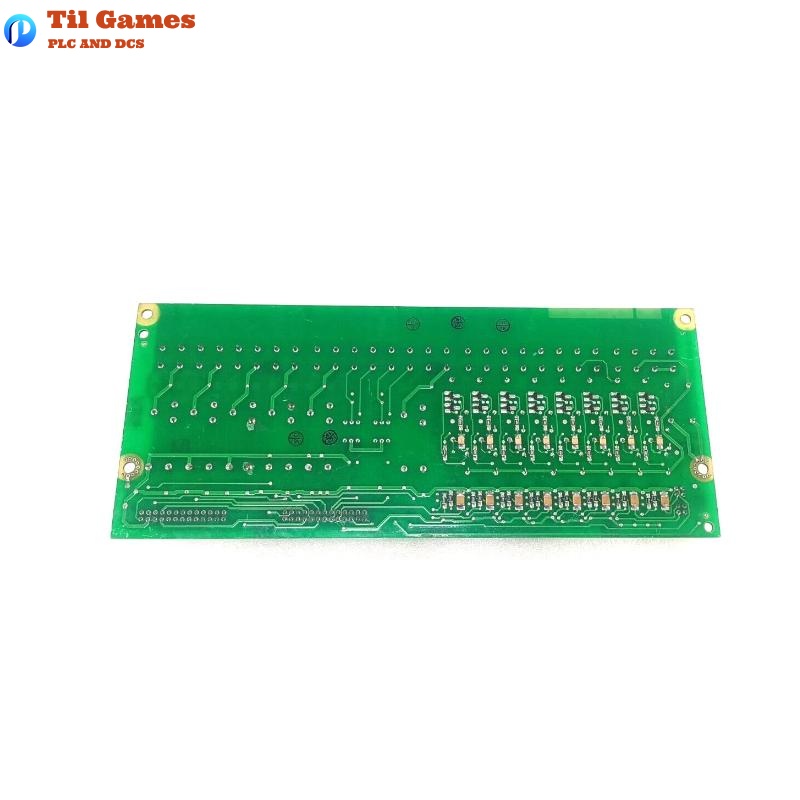

| Model Number | SDCS-IOB-23 |
| Ordering Code | 3ADT220090R0023 |
| Input Voltage Level | 230 V AC |
| Digital Inputs | 8 channels |
| Digital Outputs | 8 channels |
| Input Type | Optocoupler-isolated with filtering |
| Input Signal Range | 0…40 V (LOW), 90…250 V (HIGH) |
| Input Resistance | R1…R8 = 47 kΩ |
| Output Type | Relay (K1-K5, K8) / Optocoupler (K6-K7) Isolated |
| Output Rating | AC: ≤250 V~/3 A; DC: ≤24 V-/3 A or 115/230 V-/0.3 A |
| Output Protection | MOV-protected (275 V) |
| Mounting | External to DCS module, grounding required |
| Terminal Type | Screw terminals, max wire size 4 mm² |
| Cable Length Limit | X1 |
| Chassis Grounding | Conductive supports, mounting hole Ø 4.3 mm |
| Dimensions (L×W×H) | 233.5 × 97.5 × 18.5 mm |
| Weight | 0.35 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many digital I/O channels does the SDCS-IOB-23 have?
A1: It provides 8 digital inputs and 8 digital outputs.
Q2: What is the input voltage range?
A2: The input voltage is 90 to 250 V AC; low level is considered below 40 V.
Q3: Are the inputs electrically isolated?
A3: Yes, the inputs are galvanically isolated using optocouplers with filters.
Q4: What types of output drivers are used?
A4: Relay drivers (K1-K5, K8) and optocoupler drivers (K6-K7) are used.
Q5: What is the maximum output voltage and current?
A5: Up to 250 V AC / 3 A or 24 V DC / 3 A; certain ports support 230 V DC / 0.3 A.
Q6: Is grounding necessary for installation?
A6: Yes, proper grounding through conductive supports is required.
Q7: Is this module compatible with SDCS-CON-4?
A7: Yes, but the cable length limits (X1X2 = 1.7 m, X1X3 = 0.5 m) must be observed.
Q8: Which ABB systems support this board?
A8: It is used in ABB DCS500 and DCS800 drive systems.
