Technical Specifications
| Parameter | Description |
|---|---|
| Analog Inputs | 5 channels, voltage range: -10 to +10 V, input impedance: 200 kΩ or 250 Ω |
| Analog Outputs | 3 channels, voltage range: -10 to +10 V, max load current: ≤ 5 mA |
| Resolution | 15-bit plus sign (input/output) |
| Supply Voltage | Selectable 5V, 12V, or 24V; encoder supply current limit: 250 mA / 200 mA |
| Temp Sensor Current | PTC: 1.5 mA, PT100: 5 mA |
| Encoder Input | Optically isolated; supports differential and single-ended; max 300 kHz |
| Voltage Compensation | Sense lines for 5V/12V encoder supply to correct voltage drop |
| Mounting | Must be mounted outside DCS module; ensure good grounding via supports |
| Max Cable Length | Max 1.7 m between X1 and X2; max 0.5 m between X1 and X3 |
| Dimensions | 233.5 × 85 × 18.5 mm |
| Weight | 0.19 kg |
FAQ
Frequently Asked Questions (FAQ)

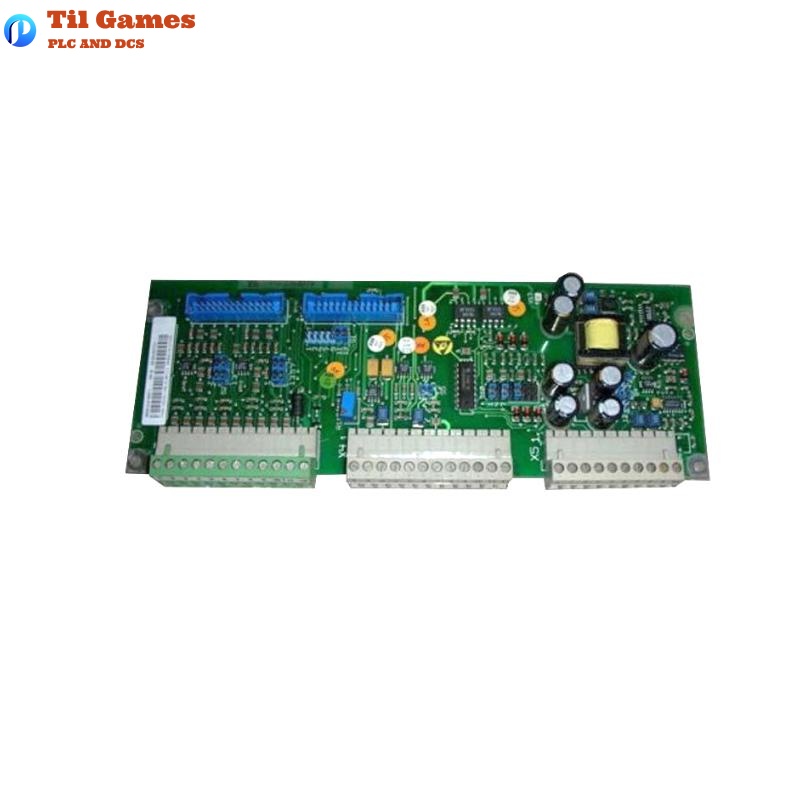

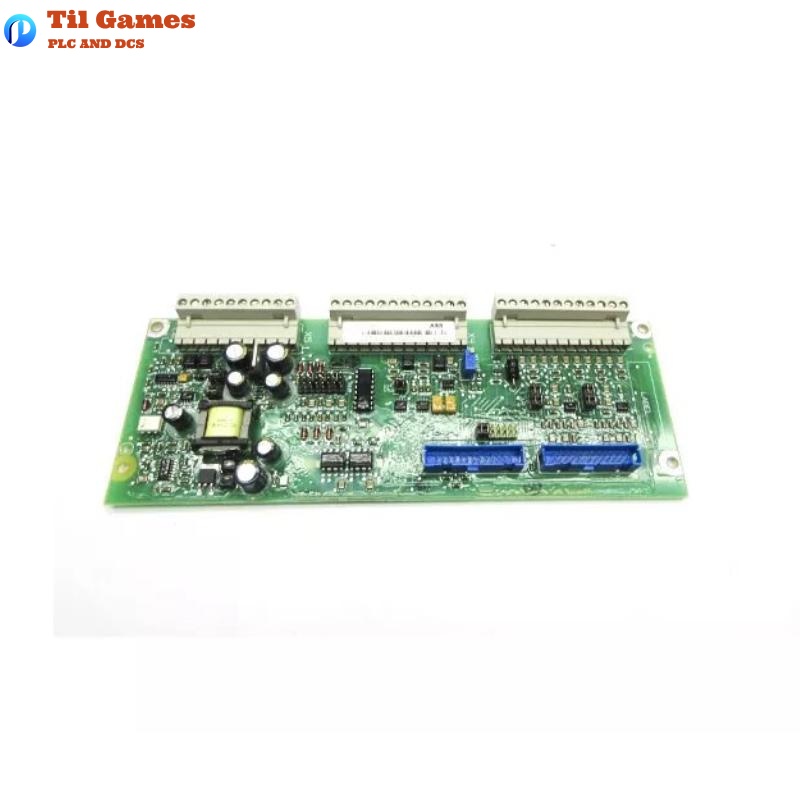

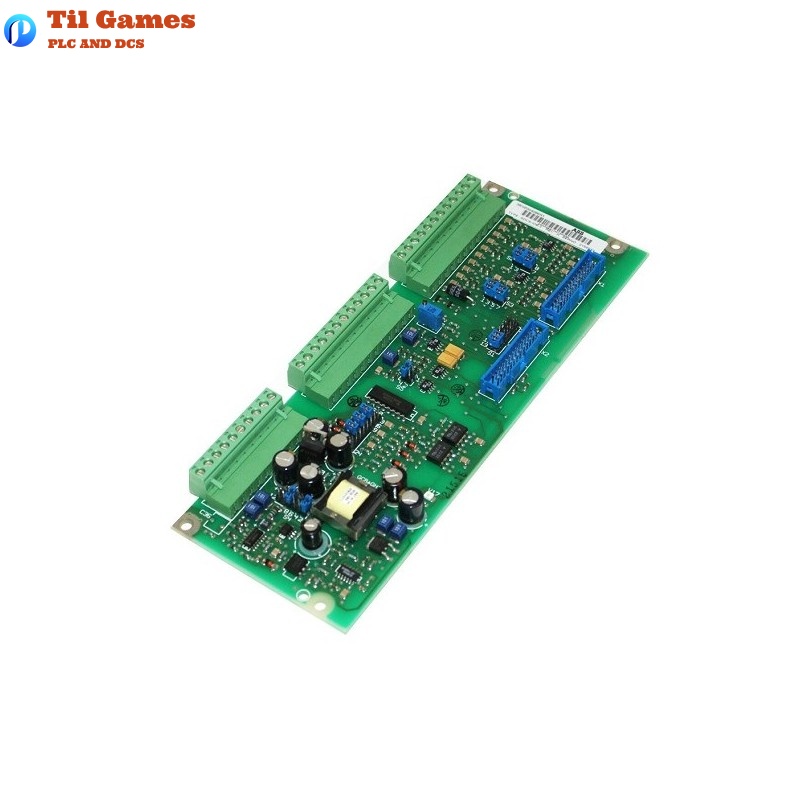

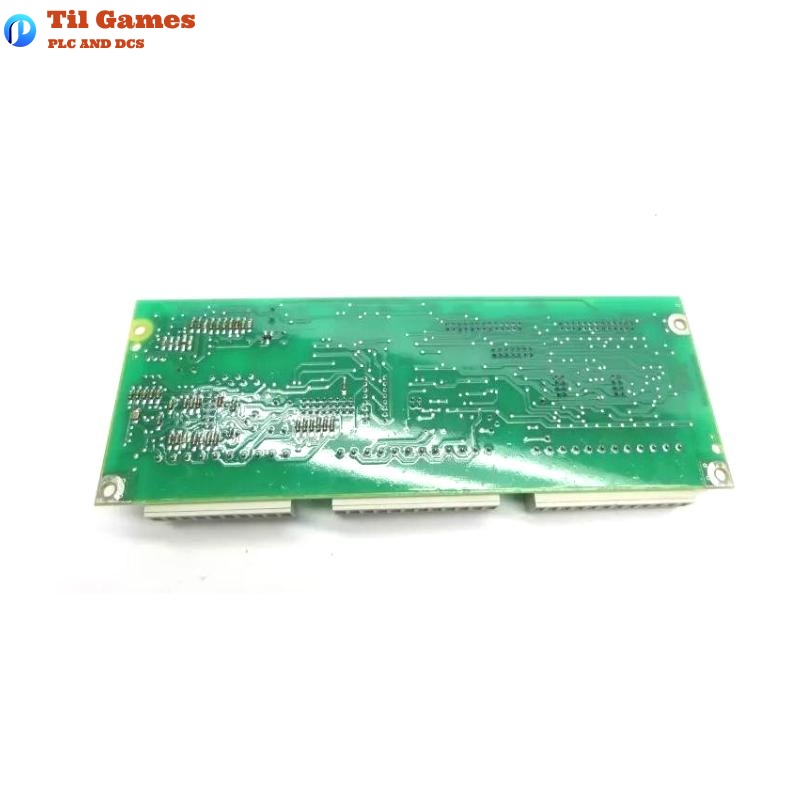

Q1: How many analog channels are available on the SDCS-IOB-3 board?
A1: The board supports 5 analog input channels and 3 analog output channels.
Q2: What are the input voltage and current ranges?
A2: Voltage input range is -10V to +10V; current input range is -20 mA to +20 mA.
Q3: What is the maximum output current?
A3: Each analog output channel supports up to 5 mA.
Q4: Are the encoder inputs isolated?
A4: Yes, encoder inputs are optically isolated and support both differential and single-ended modes.
Q5: How should the board be installed?
A5: It must be mounted outside the DCS module, with conductive supports properly grounded.
Q6: What encoder supply voltages are supported?
A6: 5V, 12V, and 24V; for 5V, it is recommended to use sense lines to compensate for voltage drops.
Q7: Does the board support temperature sensing?
A7: Yes, it supports PTC and PT100 sensors with current sources of 1.5 mA and 5 mA, respectively.
Q8: What is the maximum cable length allowed?
A8: Maximum 1.7 meters between X1 and X2, and 0.5 meters between X1 and X3 due to EMC considerations.
