Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | SDCS-PIN-46 |
| ABB Part Number | 3BSE004939R1003 |
| Function | Pulse transformer board for DCS800 (D5/D6/D7 converters) |
| Application Voltage | 400–990 V (matched via SDCS-PIN-51 board voltage coding) |
| Quadrant Compatibility | Supports both 2-Q and 4-Q configurations |

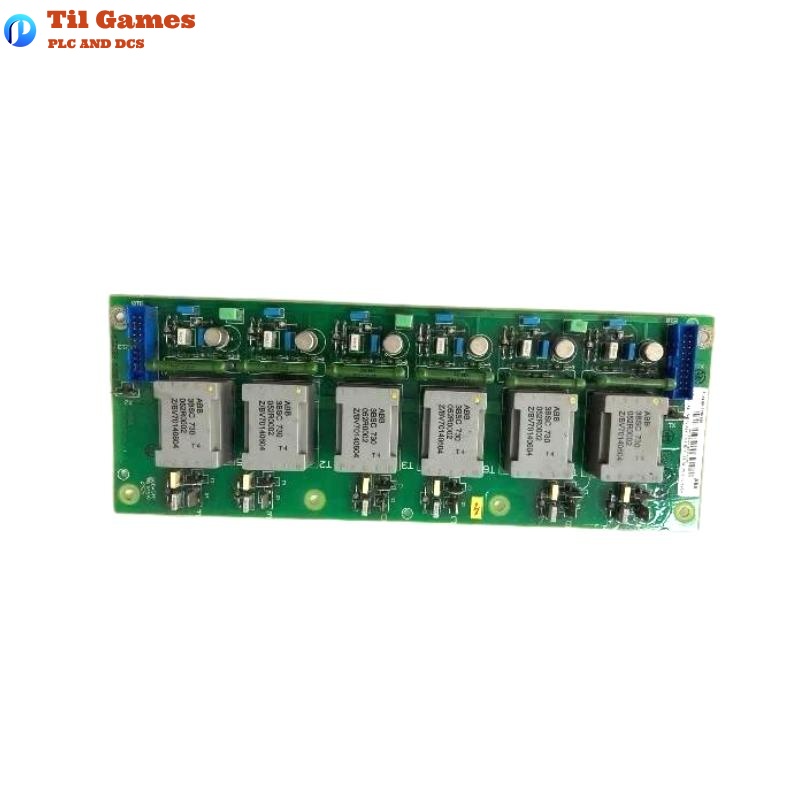

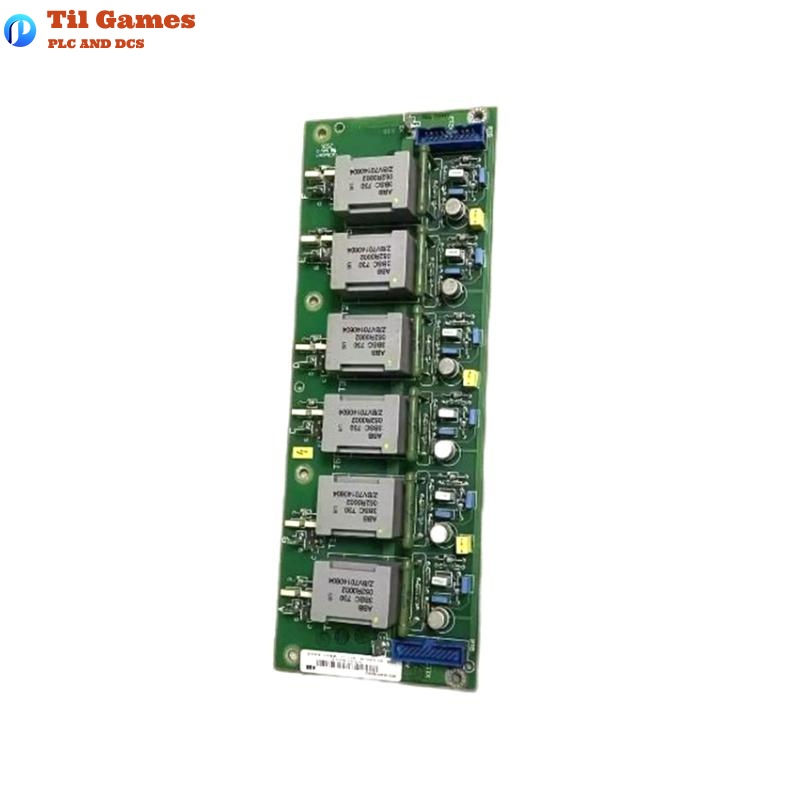

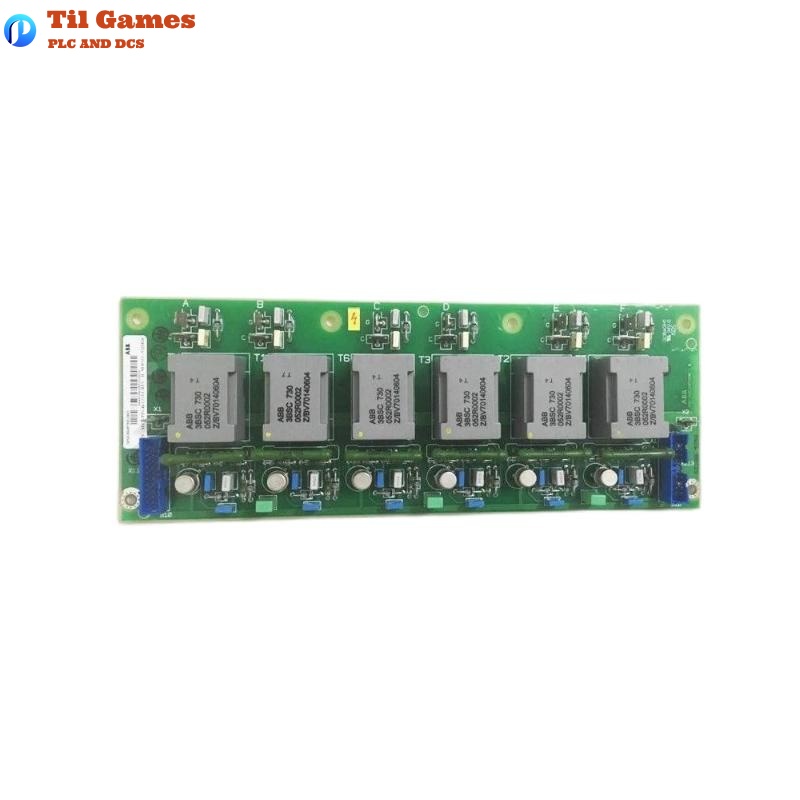

| Internal Components | 6 pulse transformers with amplifiers |
| Mounting Method | DIN rail or direct module installation |
| Operating Temperature Range | -10°C to +70°C |
| Insulation Voltage | 1200 V AC |
| Isolation Test Voltage | 3500 V AC |
| Dimensions (W × H × D) | 257 × 200 × 15 mm |
| Weight | 0.38 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of converters is the SDCS-PIN-46 compatible with?
A1: It is designed for DCS800 converter modules of types D5, D6, and D7.
Q2: What is the role of the SDCS-PIN-46 module?
A2: It serves as a pulse transformer board providing firing pulses for the thyristors in the armature bridge.
Q3: Can SDCS-PIN-46 be used in both 2-quadrant and 4-quadrant systems?
A3: Yes, the module supports both 2-Q and 4-Q systems, depending on the connection configuration.
Q4: What is the difference between SDCS-PIN-46 and SDCS-PIN-48?
A4: SDCS-PIN-48 is a drop-in replacement for SDCS-PIN-46 and includes updated compatibility for newer converters.
Q5: Is SDCS-PIN-46 used alone or with other boards?
A5: It is typically used together with the SDCS-PIN-51 measuring board in the power interface system.
Q6: How is galvanic isolation ensured in SDCS-PIN-46?
A6: Through high-voltage insulation and the use of pulse transformers between control and power sections.
Q7: What voltage input is supported?
A7: It supports converters with nominal input voltages from 400 V to 990 V depending on the configuration.
Q8: What are the main dimensions and weight of the SDCS-PIN-46?
A8: It measures 257 × 200 × 15 mm and weighs approximately 0.38 kg.
