Technical Specifications
| Parameter | Details |
|---|---|

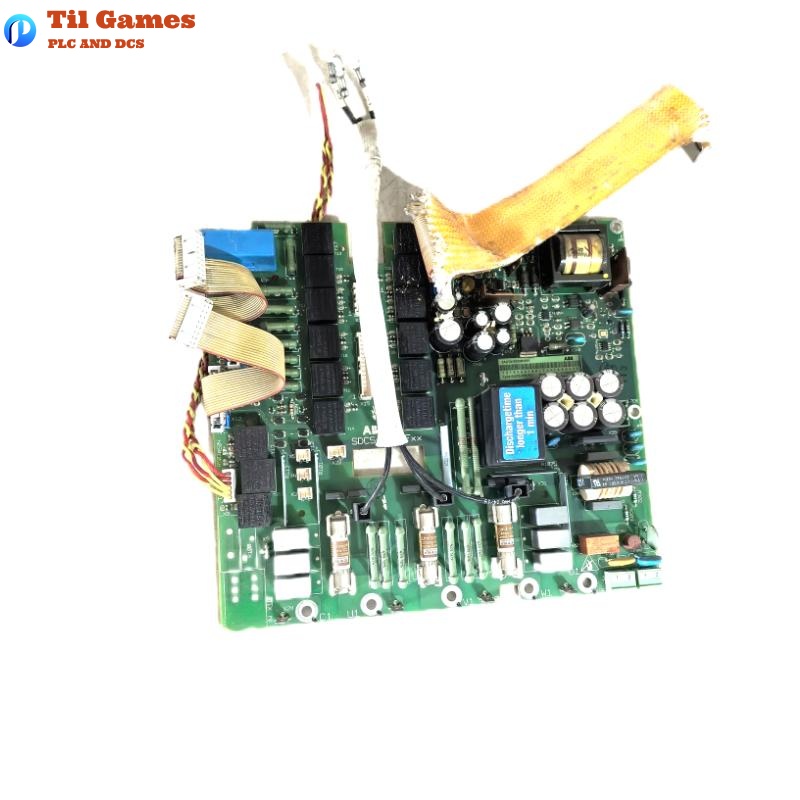

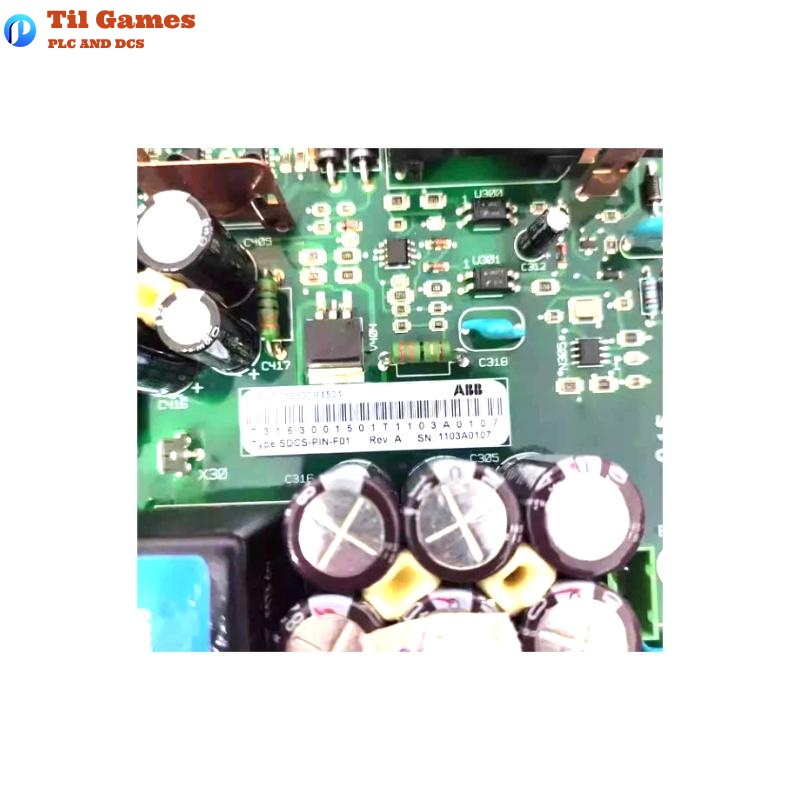

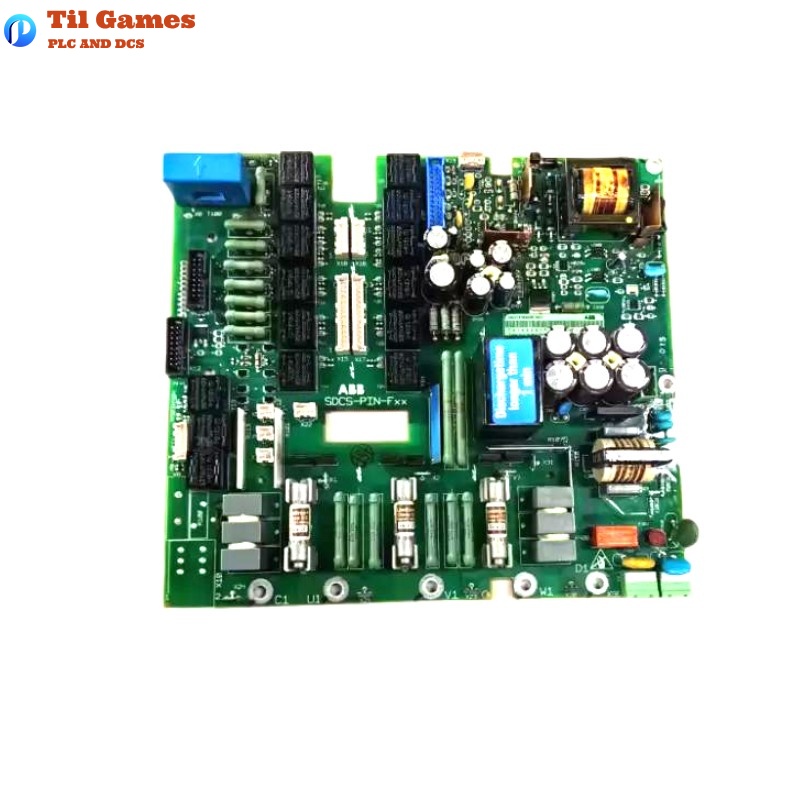

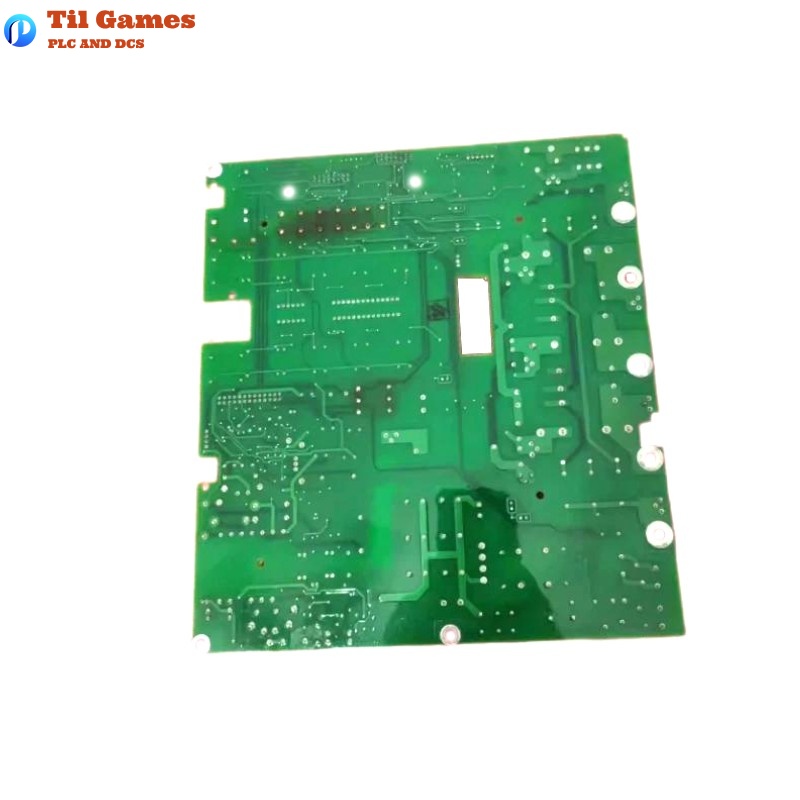

| Product Model | SDCS-PIN-F01 |
| Ordering Code | 3ADT316300R1501 |
| Product Type | Power Interface Board |
| Compatible Series | ABB DCS550 series |
| Mounting Method | Plug-in module |
| Function | Power interface and connection |
| Spare Part Kit | DCS550SUITCASE |
| Fuse Configuration | Uses 3 dedicated fuses |
| ESD Protection | Equipped |
| Dimensions | 265 x 282 x 40 mm |
| Weight | 0.48 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Which drive series is the SDCS-PIN-F01 intended for?
A1: The SDCS-PIN-F01 is specifically designed for the ABB DCS550 DC drive series.
Q2: What is the main function of the SDCS-PIN-F01 module?
A2: It acts as a power interface to provide electrical connectivity and distribution.
Q3: Does the module include ESD protection?
A3: Yes, it comes with ESD protection for safe operation in industrial settings.
Q4: Are fuses required with this module?
A4: Yes, it requires 3 fuses to ensure proper circuit protection.
Q5: Is the SDCS-PIN-F01 hot-swappable?
A5: No, power must be turned off before insertion or removal.
Q6: Can it be purchased separately or only in a kit?
A6: It is available both as a standalone spare part and as part of the DCS550SUITCASE.
Q7: Can it be used with other models like DCS800?
A7: No, use SDCS-PIN-4 for DCS800; SDCS-PIN-F01 is specific to DCS550.
Q8: What are the dimensions and weight of the product?
A8: It measures 265 x 282 x 40 mm and weighs 0.48 kg.
