Technical Specifications
| Parameter | Specification |
|---|---|

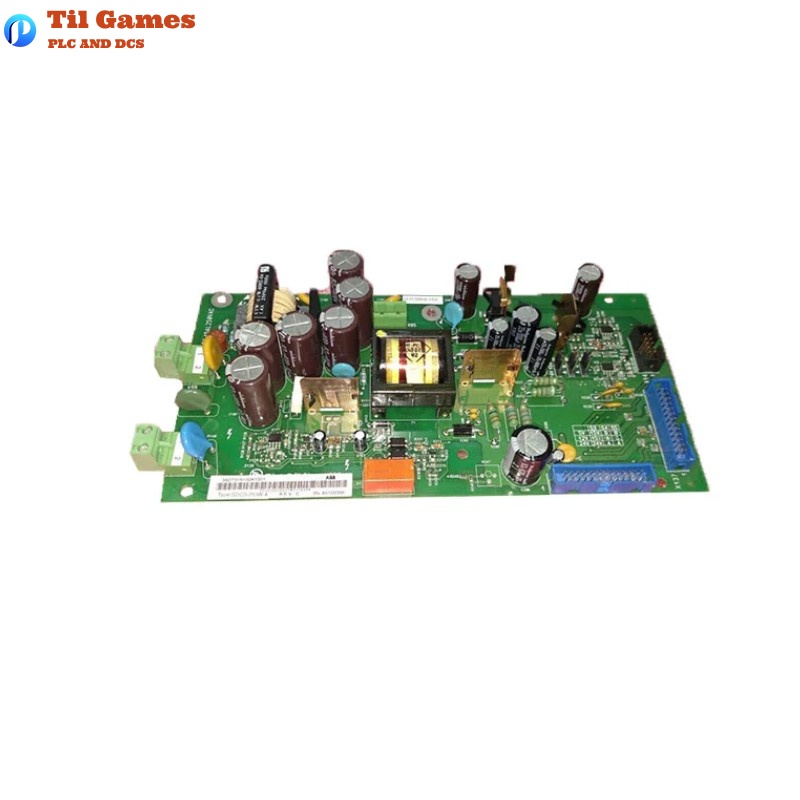

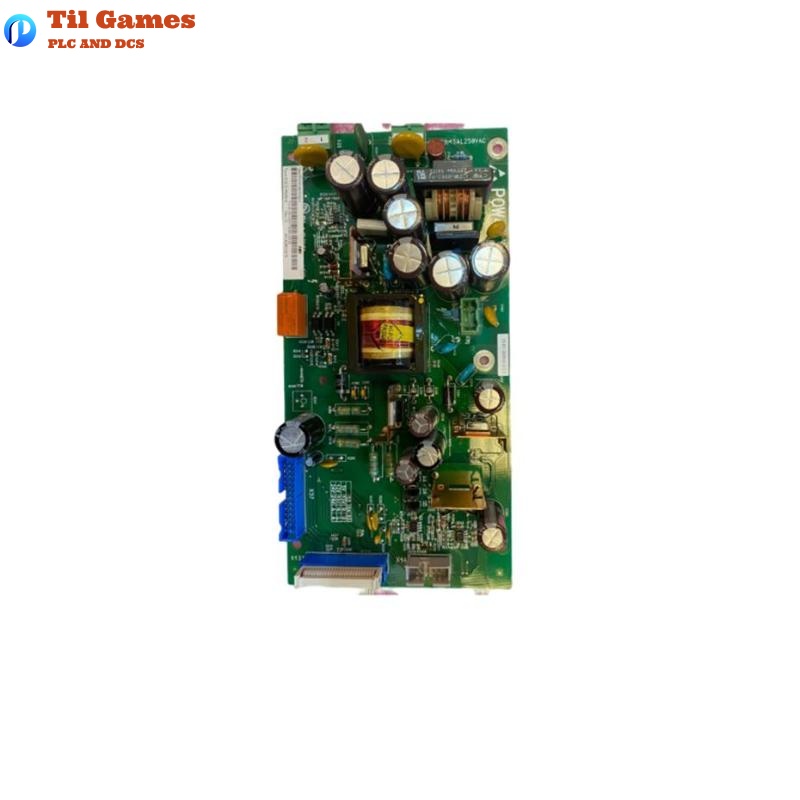

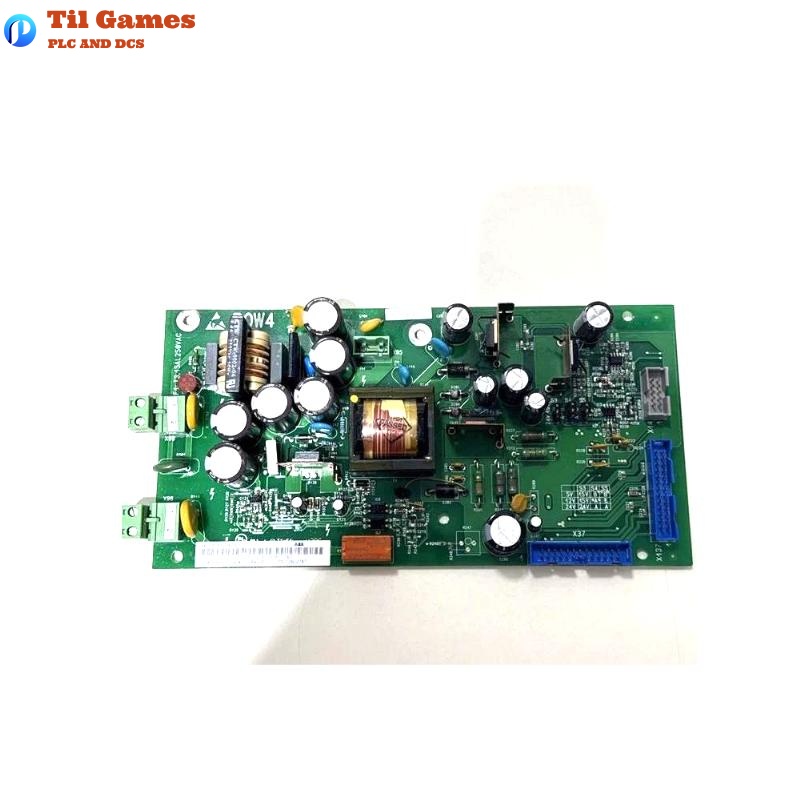

| Product Name | ABB SDCS-POW-4 Converter Power Board |
| Product Code | 3ADT315100R1001 |
| Compatible Drives | Upgrade kits for DCS500, DCS500B, DCS600 to DCS800 |
| Function Description | Supplies electronic power to control boards like SDCS-CON-4 |
| Input Voltage Range | Max 24 VDC (control voltage) |
| System Application | Included in ABB DCS800-R upgrade kits |
| Board Coating | All boards are conformal coated |
| Dimensions (LxWxH) | 105 x 125 x 60 mm |
| Weight | 0.386 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the SDCS-POW-4 board?
A1: It supplies electronic power to the control board (such as SDCS-CON-4) and is a vital part of ABB’s DCS800 upgrade kits.
Q2: Can the board be used independently?
A2: No, SDCS-POW-4 is designed to operate in conjunction with other system components and is not standalone.
Q3: Which drive modules are compatible with this board?
A3: It is compatible with modules upgrading DCS500, DCS500B, and DCS600 drives to DCS800.
Q4: Is it included in the DCS800-R upgrade kits?
A4: Yes, it is included as a standard part in several DCS800-R upgrade kit variants.
Q5: Does the board support harsh environmental conditions?
A5: The board is conformal coated for basic environmental protection, but usage should remain within ABB’s recommended environmental parameters.
Q6: Can it replace the older SDCS-POW-1 board?
A6: Yes, the SDCS-POW-4 is an updated version and is intended as a replacement for the SDCS-POW-1 in upgrade applications.
Q7: Are special tools required for configuration or commissioning?
A7: ABB recommends using DriveWindow 2.2 or later for configuration and commissioning purposes.
Q8: How is the SDCS-POW-4 installed?
A8: Installation is performed with an electronic tray and other components.
