Technical Specifications
| Parameter | Description |
|---|---|

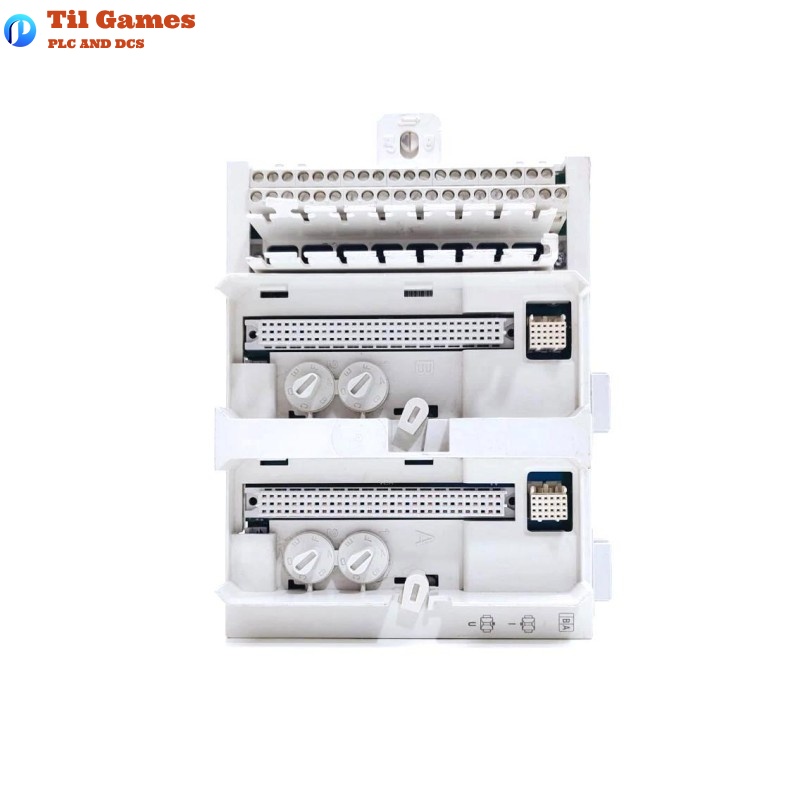

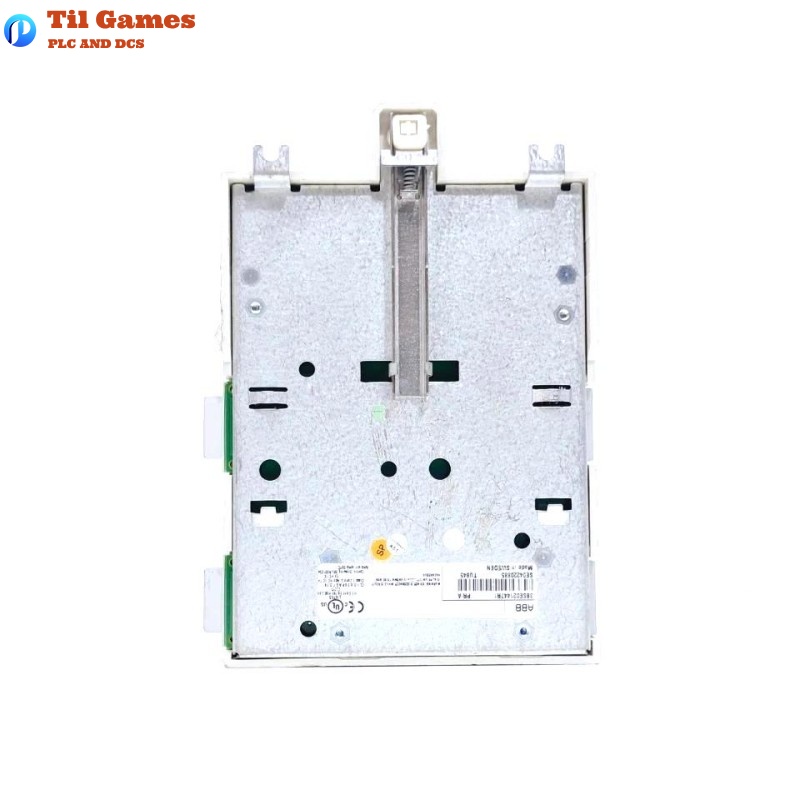

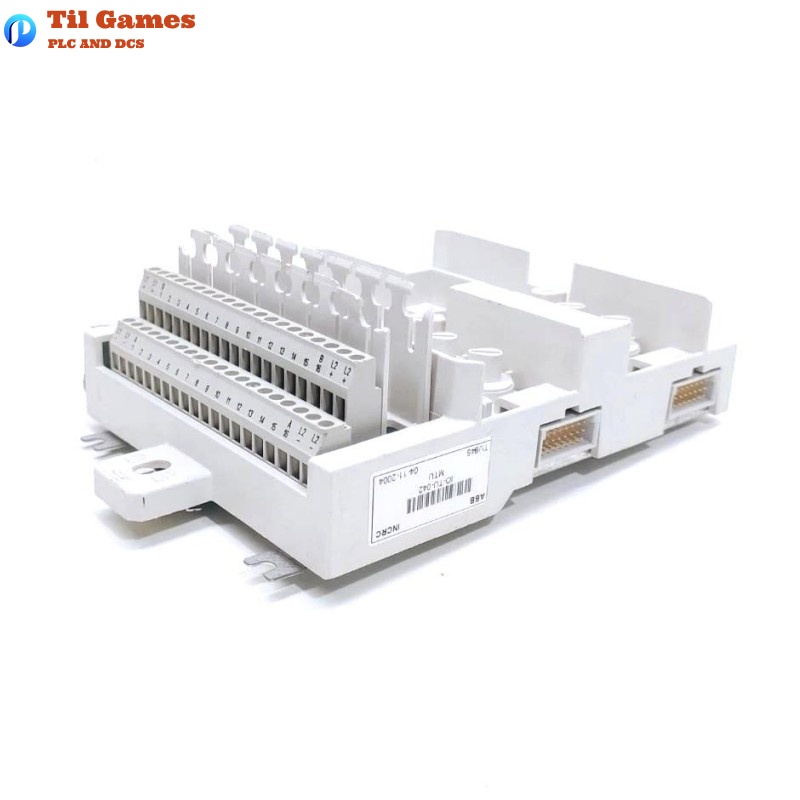

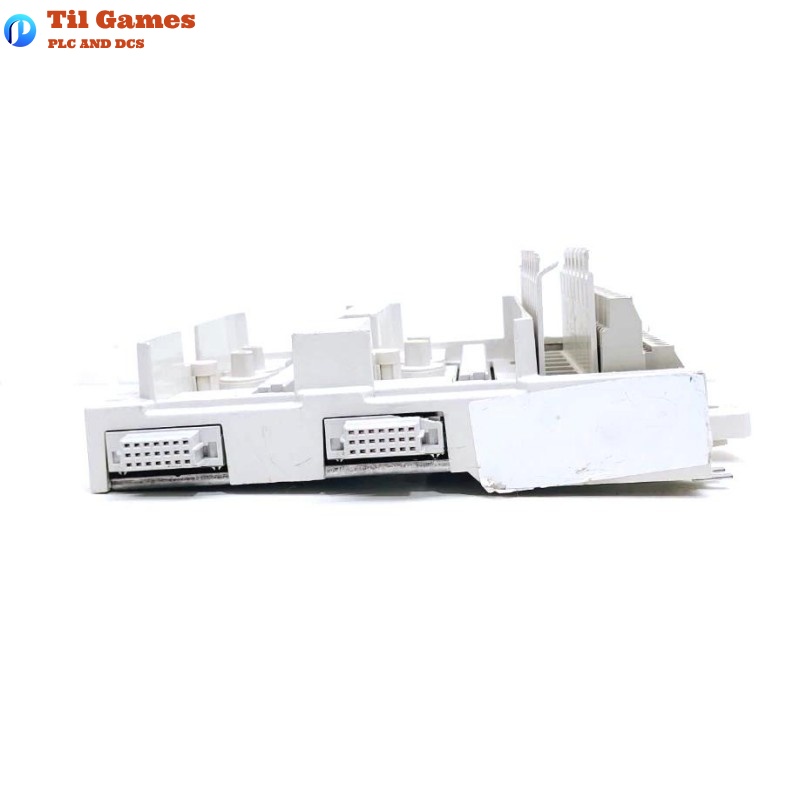

| Product Model | TU845 |
| Article Number | 3BSE021447R1 |
| Channels | 8 channels (2 terminals + 1 ZP per channel) |
| Max Voltage | 50 V |
| Max Current per Channel | 2 A |
| Max Current (Process) | 5 A |
| Compatible I/O Modules | AI845, AI880, AI880A, DP840 |
| Connection Type | Terminal block |
| I/O Redundancy Support | Yes |
| Acceptable Wire Sizes | Solid: 0.2–4 mm², Stranded: 0.2–2.5 mm² (24–12 AWG) |
| Recommended Torque | 0.5–0.6 Nm |
| Stripping Length | 7 mm |
| Mounting | Vertical, with DIN rail latch |
| Protection Class | IP20 (IEC 60529) |
| Electrical Safety | EN 61010-1, UL 61010-1, EN 61010-2-201 |
| Environmental Certifications | CE, ATEX Zone 2, cULus C1D2/Zone 2 |
| Operating Temperature | 0 to +55 °C (certified for +5 to +55 °C) |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5% – 95%, non-condensing |
| Pollution Degree | Degree 2 (IEC 60664-1) |
| EMC | EN 61000-6-2, EN 61000-6-4 |
| Overvoltage Category | IEC/EN 60664-1, EN 50178 |
| Equipment Class | Class I (IEC 61140) |
| RoHS/WEEE Compliance | EN 50581:2012, Directive 2012/19/EU |
| Dimensions (W x D x H) | 64 x 186.5 x 131 mm |
| Weight | 0.6 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What I/O modules are compatible with TU845?
A1: TU845 is compatible with AI845, AI880, AI880A, and DP840 modules.
Q2: What is the maximum current per I/O channel?
A2: Each I/O channel supports up to 2 A.
Q3: Does TU845 support redundant I/O configurations?
A3: Yes, TU845 supports redundant configurations.
Q4: What type of wiring is supported?
A4: Terminal block wiring is supported for both solid and stranded wires.
Q5: How is the module mounted?
A5: It is mounted vertically on a DIN rail using a mechanical latch.
Q6: Does TU845 have keying to prevent incorrect module insertion?
A6: Yes, it includes mechanical keying to prevent incorrect module insertion.
Q7: What is the protection class of TU845?
A7: It has IP20 protection, suitable for installation inside control cabinets.
Q8: Is TU845 compliant with safety and environmental regulations?
A8: Yes, it complies with CE, ATEX, RoHS, and WEEE standards.
