Technical Specifications
| Parameter Category | Detailed Description |
|---|---|

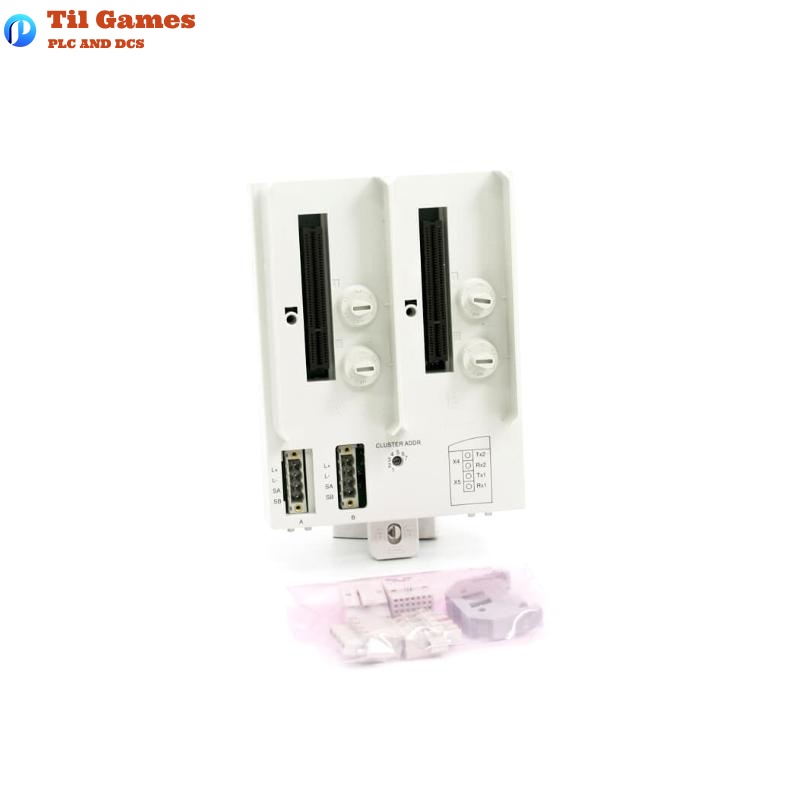

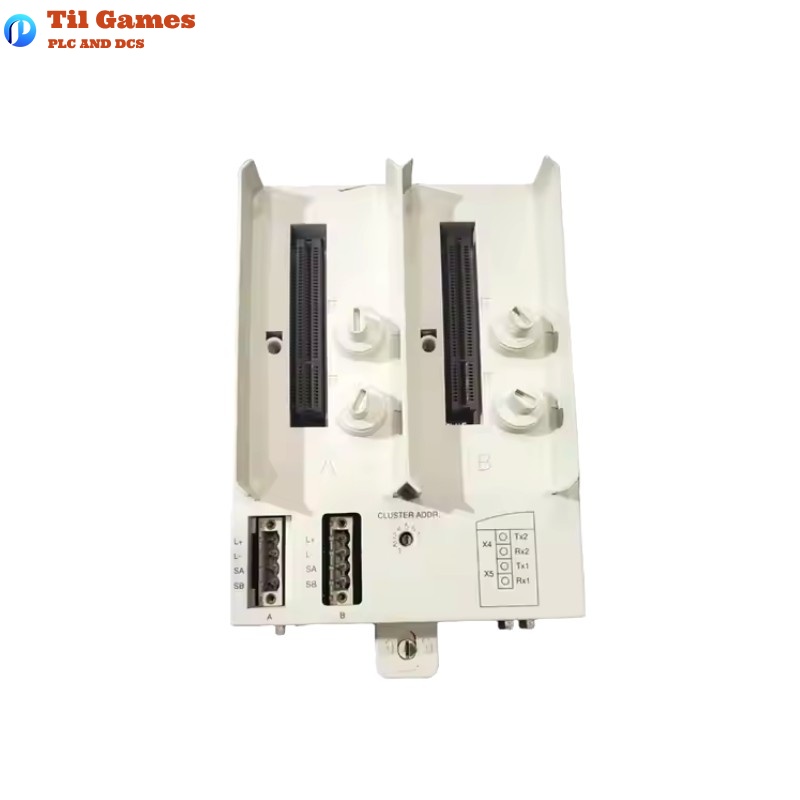

| Product Model | TU848 |
| Article Number | 3BSE042558R1 |
| Communication Protocol | ModuleBus |
| Redundancy Support | Supports both module and line redundancy |
| Hot Swap Capability | Not supported |
| Power Input | 24 V DC (range: 19.2–30 V) |
| ModuleBus Current | Max 5 V 1.5 A / 24 V 1.5 A |
| Power Dissipation | 2.5 W |
| Rated Insulation | 50 V |
| Dielectric Test Voltage | 500 V AC |
| Wire Specification | Solid: 0.2–2.5 mm²; Stranded: 0.2–2.5 mm² (24–12 AWG) |
| Recommended Torque | 0.5 Nm |
| Mechanical Keys | 36 different combinations |
| Cluster Address | Rotary switch (1 to 7) |
| Mounting | DIN rail, vertical or horizontal |
| Operating Temperature | 0 to +55°C (approval range +5 to +55°C) |
| Storage Temperature | -40 to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Ingress Protection | IP20 (IEC 60529) |
| Equipment Class | Class I per IEC 60536 (earth protected) |
| Marine Certifications | ABS, BV, DNV-GL, LR |
| Hazardous Area Certs | cULus Class 1 Zone 2, ATEX Zone 2 |
| Safety Standards | EN/UL 61010-1, EN/UL 61010-2-201 |
| RoHS Compliance | Yes (2011/65/EU) |
| WEEE Compliance | Yes (2012/19/EU) |
| Dimensions (W x H x D) | 124 x 186.5 x 47 mm |
| Weight | 0.45 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the TU848 support module and line redundancy?
A1: Yes, the TU848 is designed to support both module and line redundancy with dual TB840/TB840A modems.
Q2: Is hot swapping supported on the TU848?
A2: No, hot swapping is not supported for this unit.
Q3: What is the input power specification of the TU848?
A3: It accepts 24 V DC, within a range of 19.2 to 30 V.
Q4: How is the cluster address configured?
A4: The cluster address is set using a rotary switch, with positions from 1 to 7.
Q5: What wire sizes are supported?
A5: Solid wires from 0.2–2.5 mm² and stranded wires from 0.2–2.5 mm² (24–12 AWG) are supported.
Q6: What is the typical power dissipation of the unit?
A6: The unit typically dissipates 2.5 W.
Q7: Is the TU848 certified for hazardous environments?
A7: Yes, it has certifications for ATEX Zone 2, cULus Class 1 Zone 2, as well as marine certifications.
Q8: How can the TU848 be mounted?
A8: It can be mounted on a DIN rail in both vertical and horizontal orientations, with locking and grounding features.
