Technical Specifications
| Item | Specification |
|---|---|

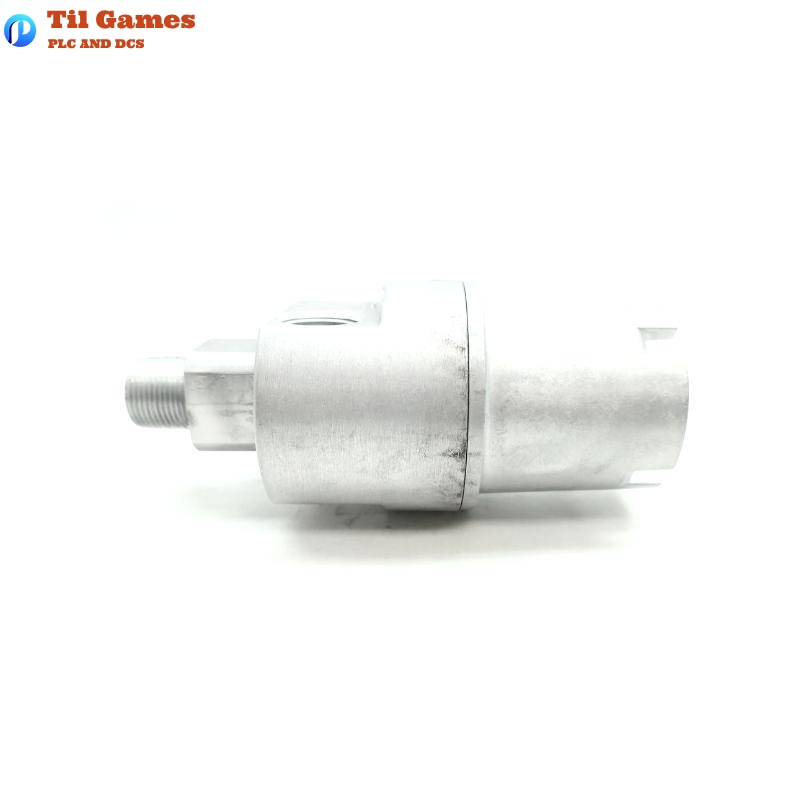

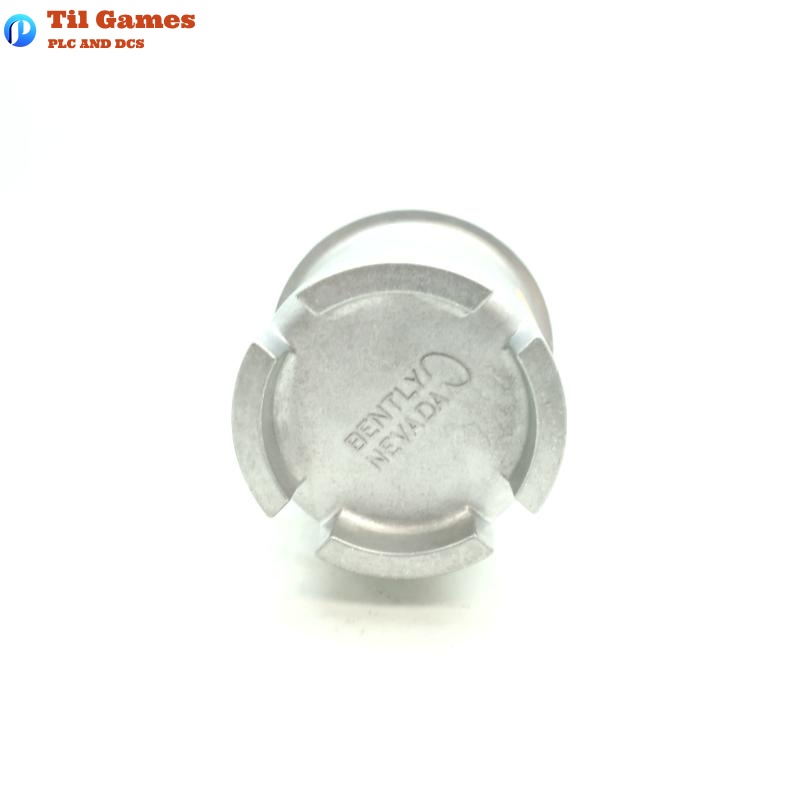

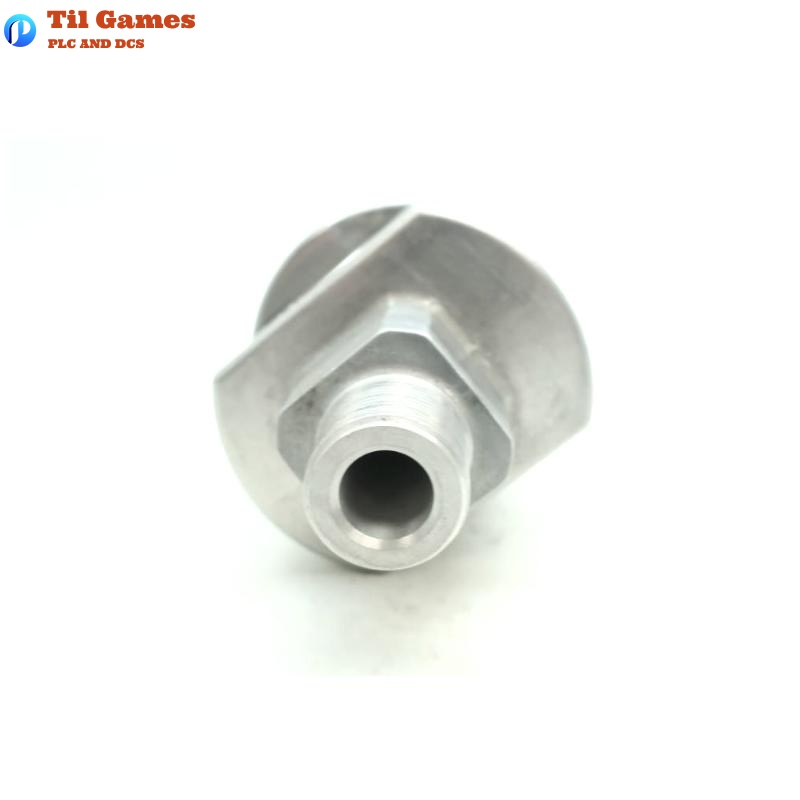

| Model | 21000-00-00-00-043-04-02 |
| Material | Aluminum housing with 304 stainless steel sleeve |
| Operating Temperature | -51°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Probe Compatibility | Compatible with 3300 XL 8mm, NSv, and 11mm probes |
| Enclosure Rating | CSA explosion-proof, Type 4 enclosure |
| Compliance | Complies with API 670 standard for external probes |
| Sleeve Length Options | Minimum 38 mm, up to 742 mm with sleeve support |
| Probe Penetration Range | Minimum 25.4 mm, adjustable in 3 mm increments |
| Housing Body Diameter | 83.3 mm |
| Housing Weight | 1.1 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is this housing explosion-proof?
A1: Yes, the 21000 housing is CSA-certified for use in Class I, II, and III hazardous areas.
Q2: What types of probes are supported?
A2: It supports 3300 XL 8mm, NSv, and 11mm reverse-mount probes.
Q3: What is the maximum sleeve length?
A3: Up to 742 mm. Sleeve support is recommended for lengths over 304 mm.
Q4: What applications is this model used for?
A4: Designed for external proximity probe installations in hazardous environments, such as turbines and compressors.
Q5: Is the housing material selectable?
A5: Yes. The 21000 uses aluminum. Stainless steel is available under model 24701.
Q6: What is the supported temperature range?
A6: Operating and storage temperatures from -51°C to +177°C.
Q7: Are different cable lengths available for the probes?
A7: Yes, cable lengths from 0.5 meters to 1 meter are available.
Q8: Does the housing include fittings?
A8: Fittings are optional. You may choose configurations with 3/4-14 NPT explosion-proof fittings or plugs when ordering.
