Technical Specifications
| Parameter | Specification |
|---|---|

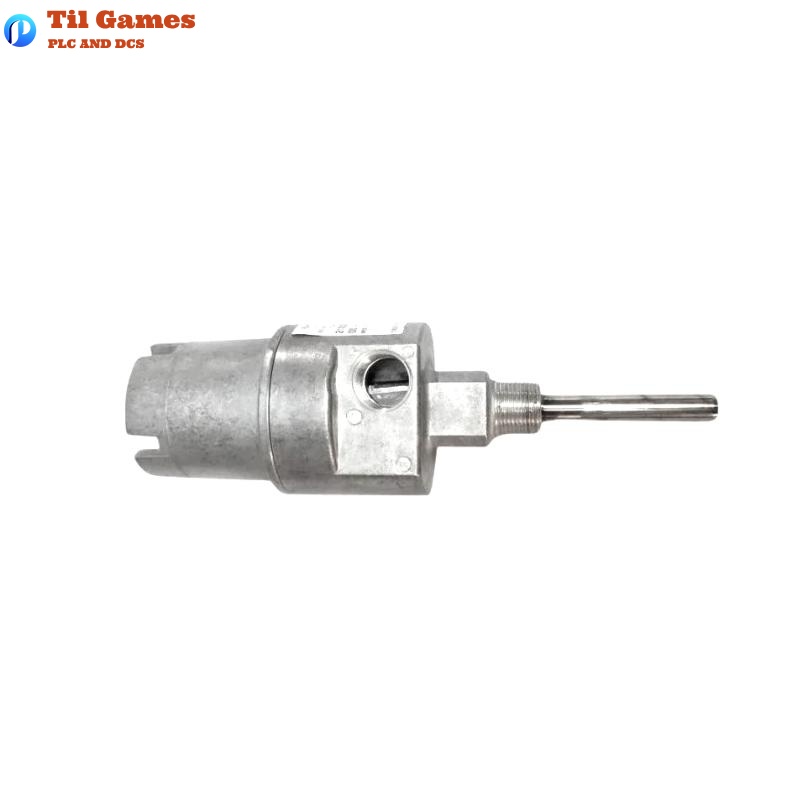

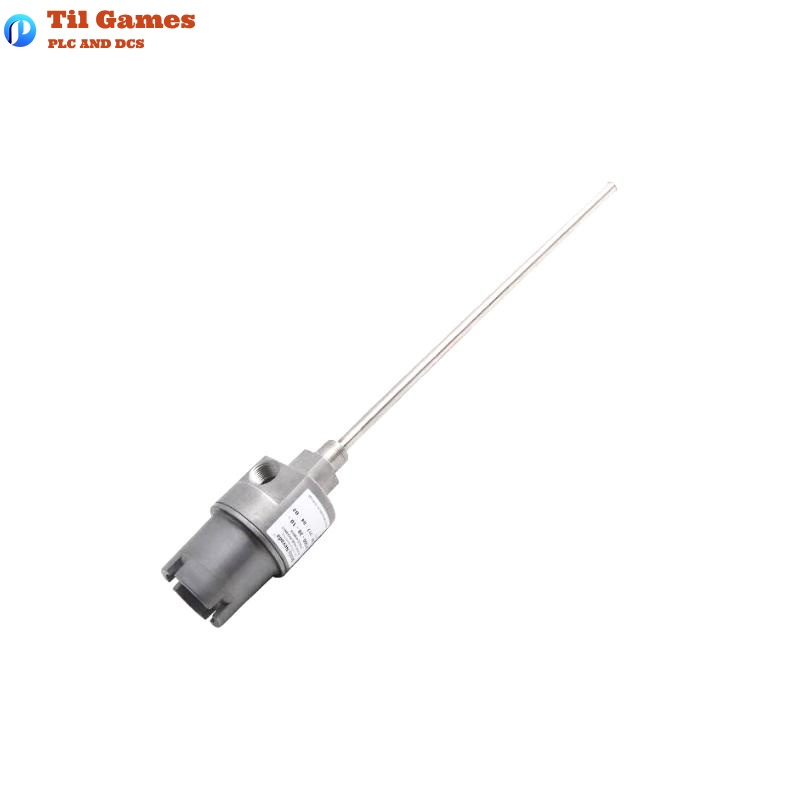

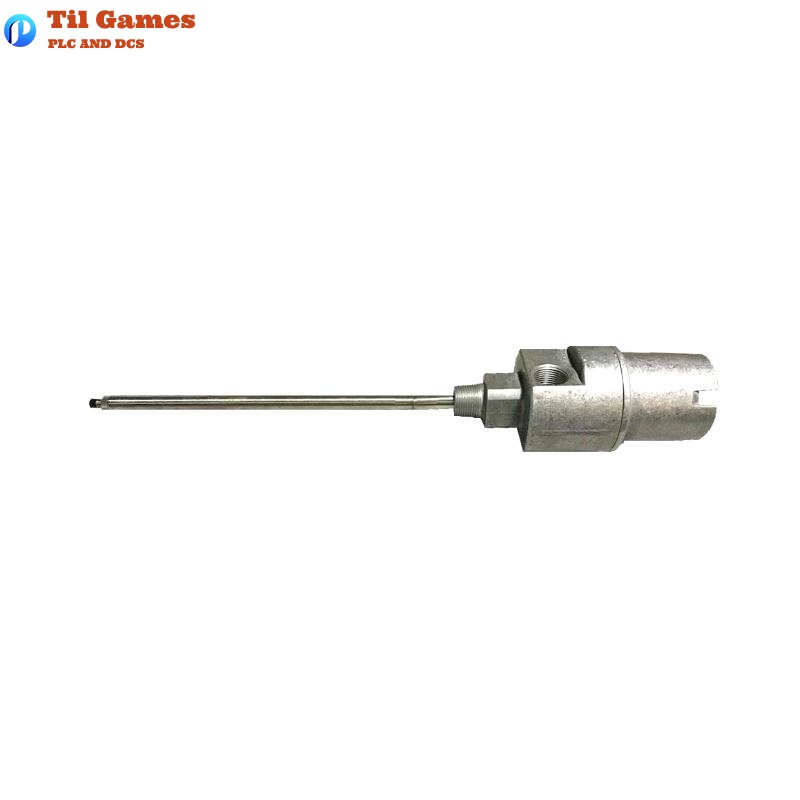

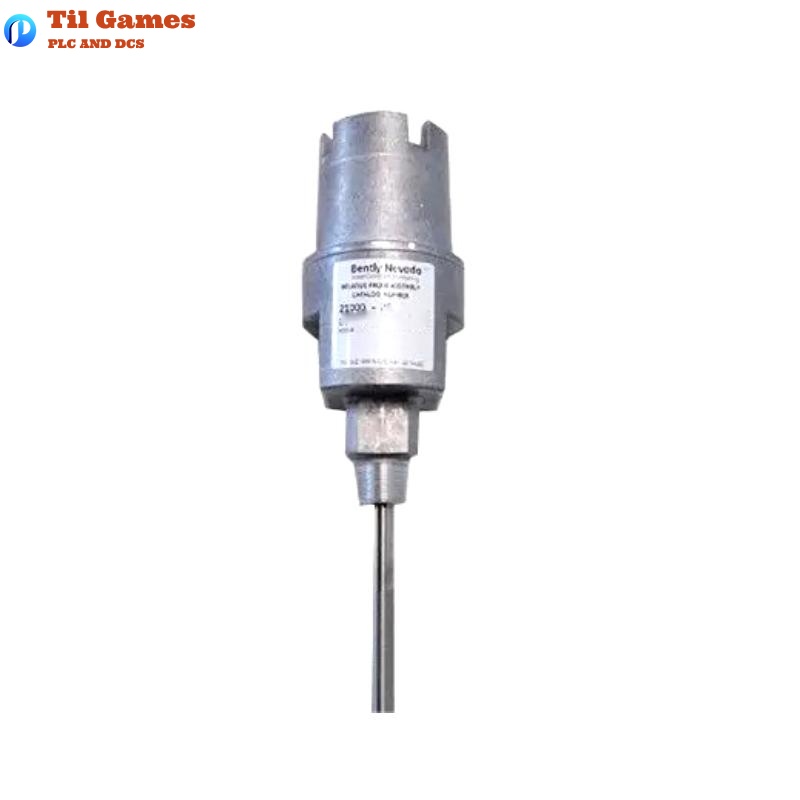

| Housing Model | 21000 Series |
| Material | Aluminum housing with 304 stainless steel sleeve |
| Compatible Probes | 3300 XL 8mm, 3300 XL 11mm, 3300 NSv reverse mount |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Enclosure Rating | CSA Type 4, compliant with API 670 |
| Explosion Proof | Certified for Class I/II/III, Div 1 & 2, Groups C, D, E, F, G |
| Housing Diameter | 83.3 mm (3.28 in) |
| Housing Length | 161.6 mm (6.36 in) |
| Weight (typical) | 1.1 kg (2.4 lb), without fittings |
| Max Probe Sleeve Length (C+D) | 742 mm (29.2 in), based on configuration |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is the 21000 housing certified for hazardous areas?
A1: Yes, it is CSA-certified for Class I, II, III, Div 1 & 2 hazardous locations.
Q2: Can it be used below -50°C?
A2: The housing itself allows down to -51°C, but probe seals may fail below -34°C.
Q3: What probes are compatible with this housing?
A3: It supports 3300 XL 8mm, 3300 XL 11mm, and 3300 NSv reverse mount probes.
Q4: Is the probe sleeve length customizable?
A4: Yes. The sleeve length is installation-dependent and can be up to 742 mm. Sleeves over 304 mm require additional support.
Q5: Does this housing comply with API 670?
A5: Yes, the 21000 series is fully compliant with API 670 for externally mounted proximity probes.
Q6: Can this model be ordered without a probe?
A6: Yes. Select option A:00 in the model code to exclude the probe.
Q7: What mounting thread options are available?
A7: Options include 3/4-14 NPT, 1-11 1/2 NPT, 1/2-14 BSP, and 7/8-14 UNF-2A.
Q8: Does the weight include cables or fittings?
A8: No, the 1.1 kg figure represents the housing only without fittings or cables.
