Technical Specifications
| Parameter | Specification |
|---|---|

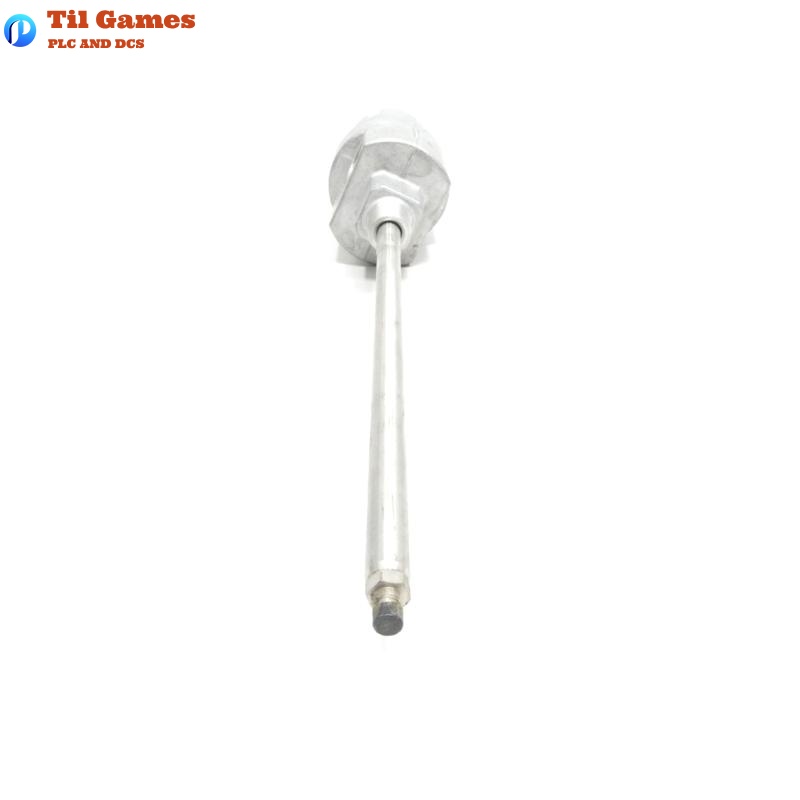

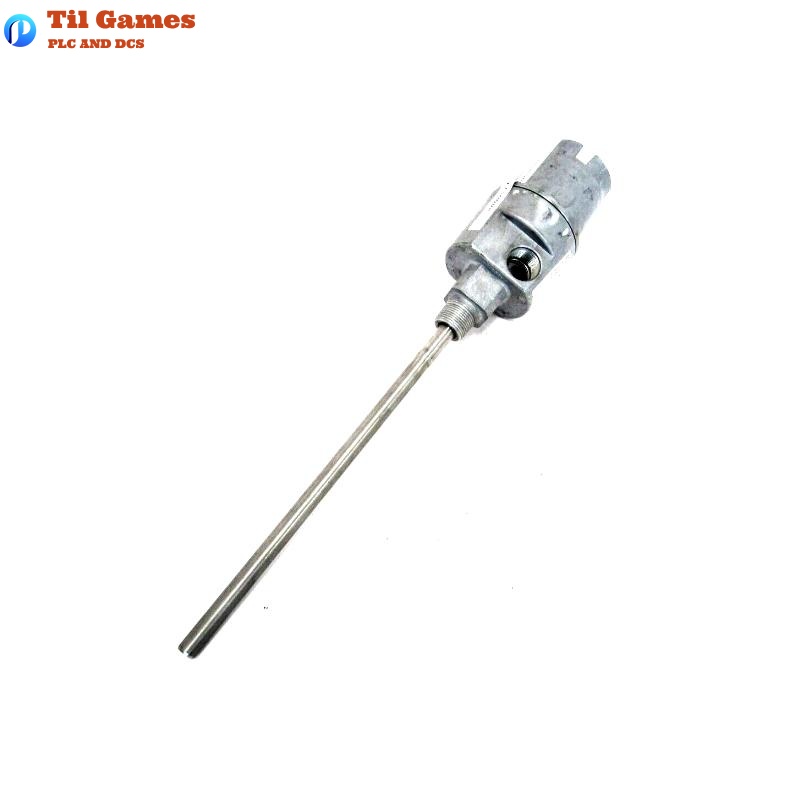

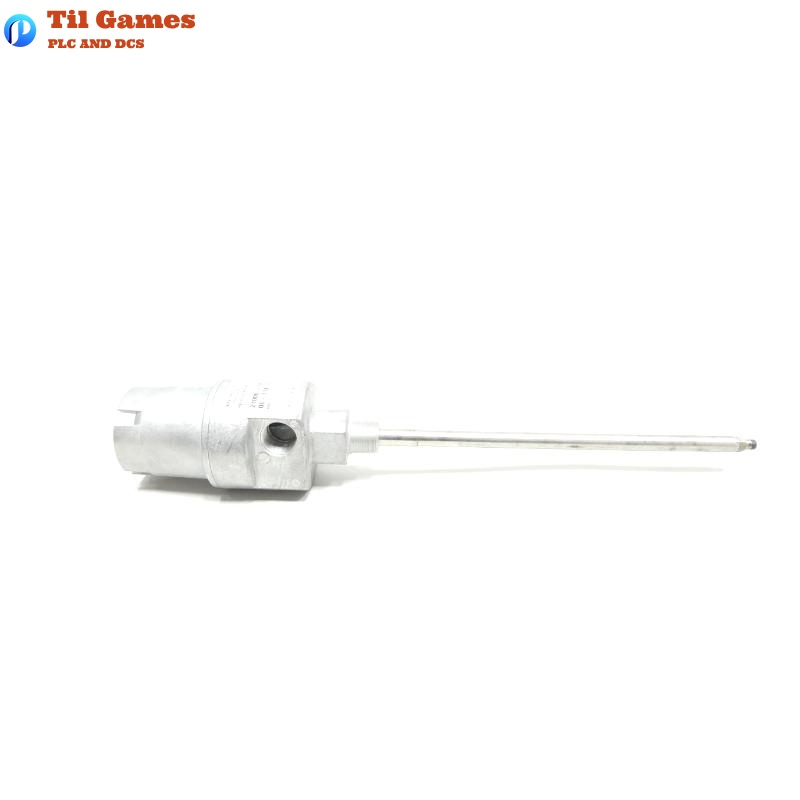

| Model | 21000-16-05-15-098-03-02 |
| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Compatible Probes | 3300 XL 8mm, 3300 XL NSv, 3300 XL 11mm (reverse mount) |
| Certification | CSA Certified, Explosion-proof (Type 4 Enclosure) |
| Compliance | API 670, RoHS Directive 2011/65/EU |
| Operating Environment | Hazardous Locations: Class I & II Div 1/2, Groups C–G |
| Sleeve Length Options | Customizable up to 742 mm (29.2 in), longer sleeves require support |
| Mounting Thread | 3/4-14 NPT (Option F:02) |
| Fittings | Explosion-proof options: E:00, E:01, E:02, or E:04 |
| Housing Body Diameter | 83.3 mm (3.28 in) |
| Overall Length (Body) | 161.6 mm (6.36 in) |
| Weight | 1.1 kg (2.4 lbs) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What probe types are supported by the 21000 housing?
A1: It supports reverse mount 3300 XL 8mm, 3300 XL NSv, and 3300 XL 11mm probes.
Q2: What is the maximum sleeve length for this model?
A2: The maximum sleeve length is 742 mm for 1.0 m probes. Sleeve support is required beyond 304 mm.
Q3: Is this housing explosion-proof?
A3: Yes, when ordered as CA21000 with proper fittings, it meets CSA Type 4 explosion-proof standards.
Q4: What certifications does the housing comply with?
A4: It complies with CSA for hazardous areas, API 670, and RoHS 2011/65/EU.
Q5: Can it be installed in hazardous locations?
A5: Yes. It is rated for Class I Div 1 & 2 Groups C/D and Class II Div 1 & 2 Groups E, F, G.
Q6: What are the temperature limits for operation and storage?
A6: The operating and storage temperature range is from -51°C to +177°C.
Q7: Is it compatible with ceramic-capped probes?
A7: No, ceramic-capped probes are compatible only with the 164818 housing model.
Q8: What mounting thread options are available?
A8: Commonly used is 3/4-14 NPT (F:02), required for standoff adapter use.
