Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 21000-16-10-00-044-03-02 |

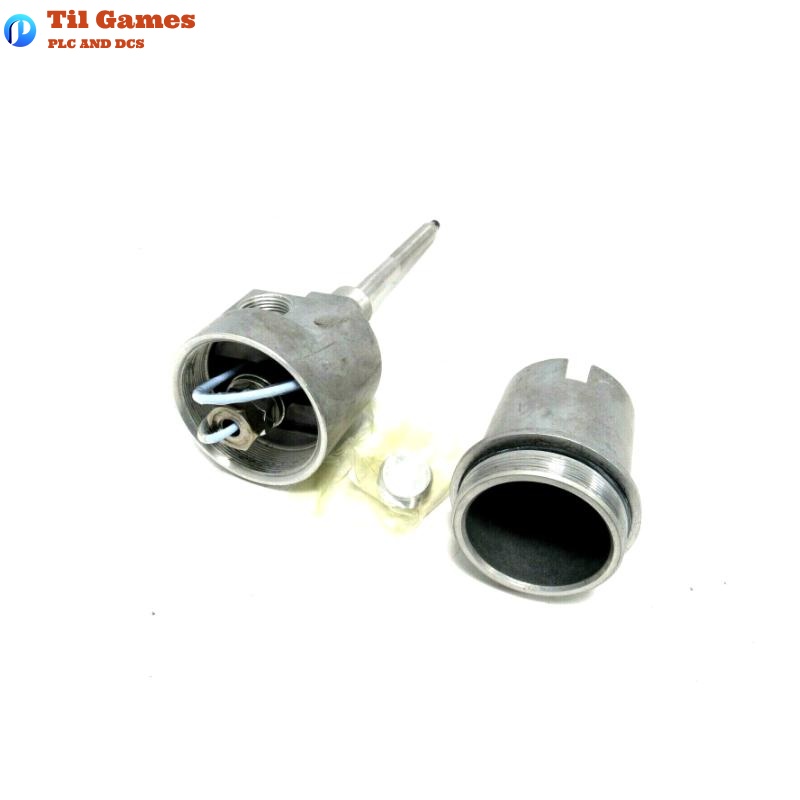

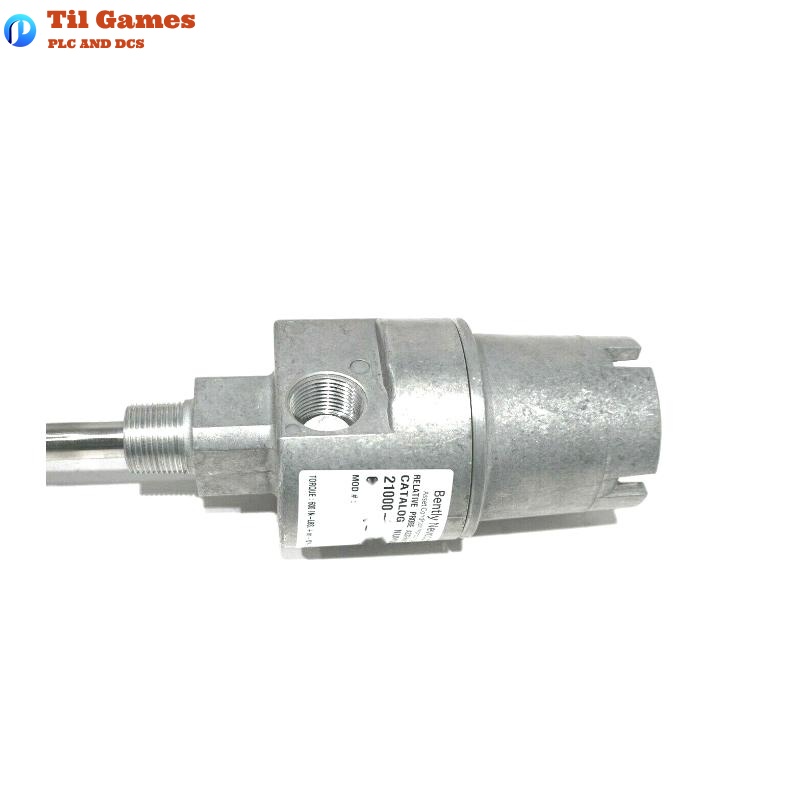

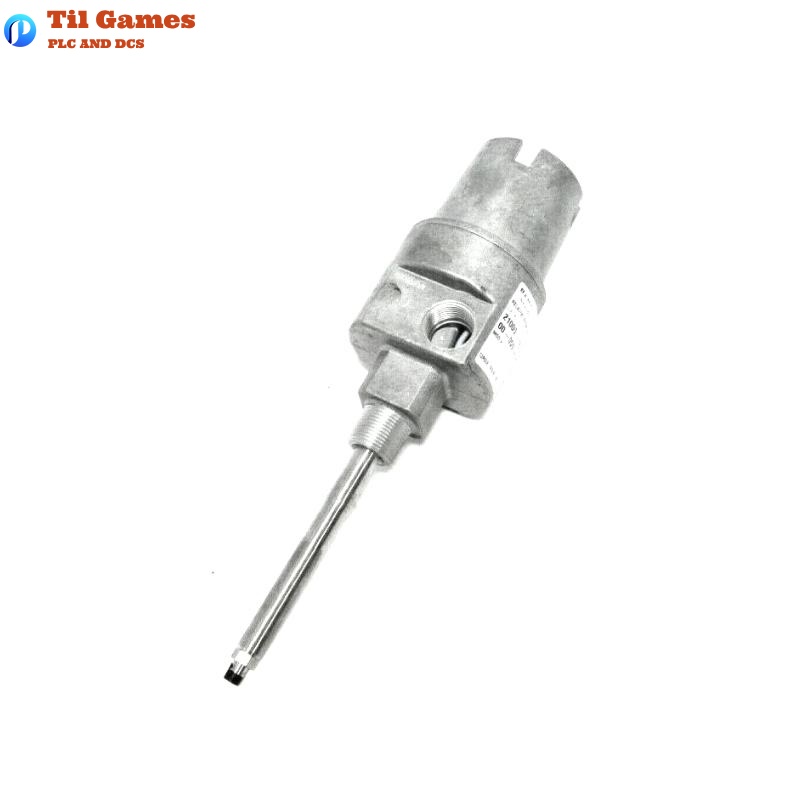

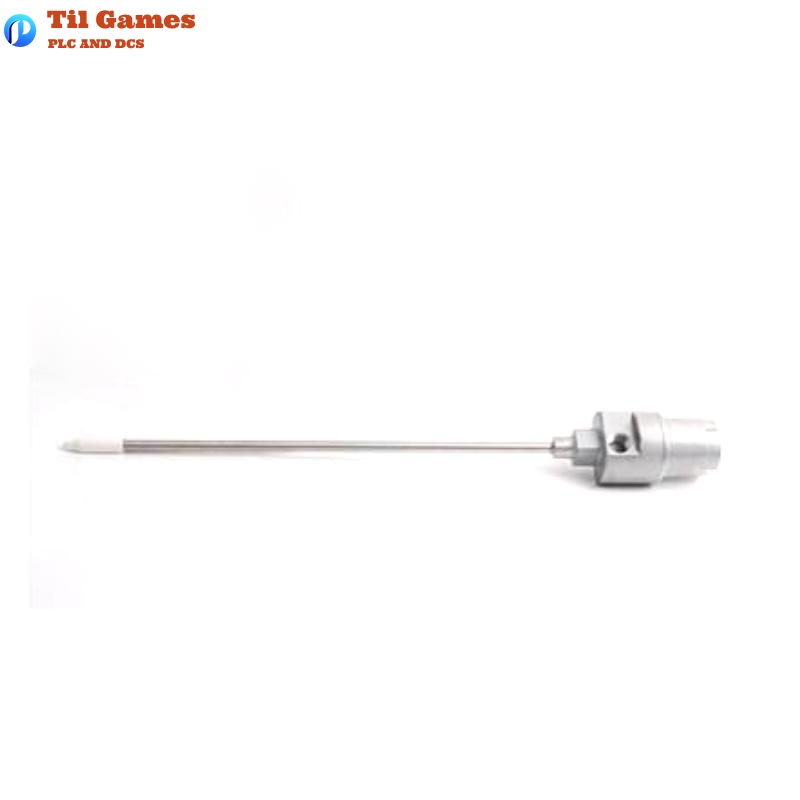

| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) for 3300 XL 8mm and 11mm probes |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Probe Compatibility | 3300 XL 8mm, NSv, 11mm reverse mount probes |
| Explosion-proof Rating | CSA certified: Class I & II, Div 1 & 2, Groups C-G, Class III |
| Enclosure Rating | CSA Type 4 |
| Housing Body Diameter | 83.3 mm (3.28 in) |
| Housing Length (Body only) | 161.6 mm (6.36 in) |
| Probe Sleeve Length | Customizable, up to 742 mm depending on cable |
| Weight | 1.1 kg (2.4 lb), without fittings |
| Mounting Thread Option | 3/4-14 NPT (Option F: 02) |
| Fitting Option | Explosion-proof fitting (Option E: 03) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What probe types are supported by the 21000 housing?
A1: It supports 3300 XL 8mm, NSv, and 11mm reverse mount proximity probes.
Q2: Is this housing explosion-proof?
A2: Yes, when ordered with CSA-approved options (e.g., fittings option E:00 to E:04), the 21000 housing is explosion-proof.
Q3: What is the housing made of?
A3: The 21000 housing is made of aluminum with a 304 stainless steel probe sleeve.
Q4: What is the maximum allowable probe penetration depth?
A4: The maximum sleeve length (C + D) can reach up to 742 mm with appropriate cable options.
Q5: Can the housing be used in hazardous environments?
A5: Yes, it is CSA certified for use in Class I, II, and III hazardous locations.
Q6: How is the probe sleeve length determined?
A6: It is based on the standoff adapter (Option C) and probe penetration length (Option D), which are ordered in specific increments.
Q7: What is the minimum operating temperature for this housing?
A7: -51°C for storage and operation. However, probes should not be exposed below -34°C.
Q8: Are there specific mounting thread options required for CSA-certified housings?
A8: Yes, option F must be set to 02 (3/4-14 NPT) for CA21000 explosion-proof versions.
