Technical Specifications
| Item | Description |
|---|---|
| Model | 21000-16-10-00-058-03-02 |

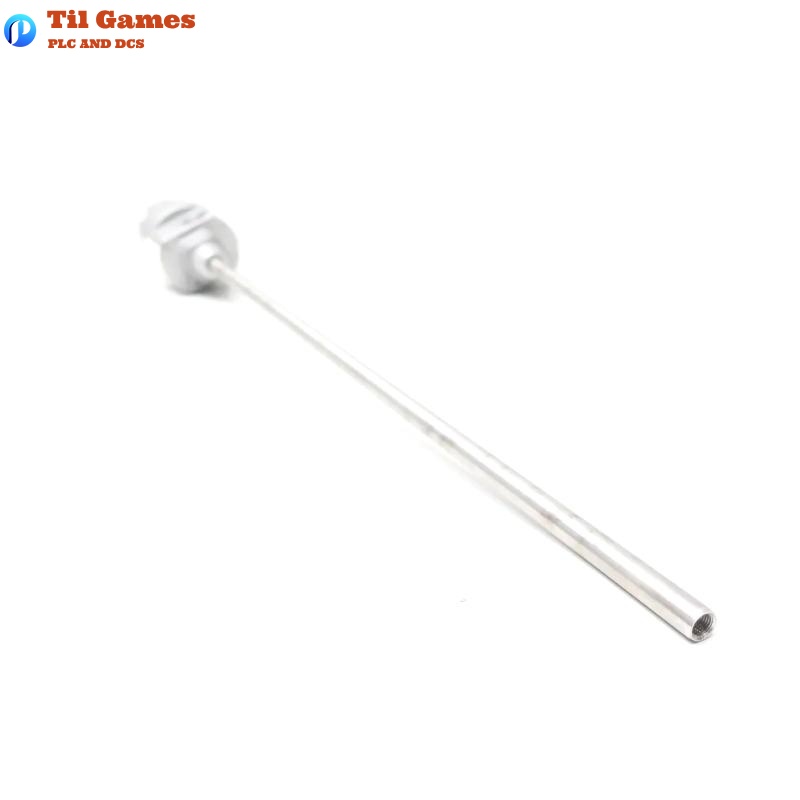

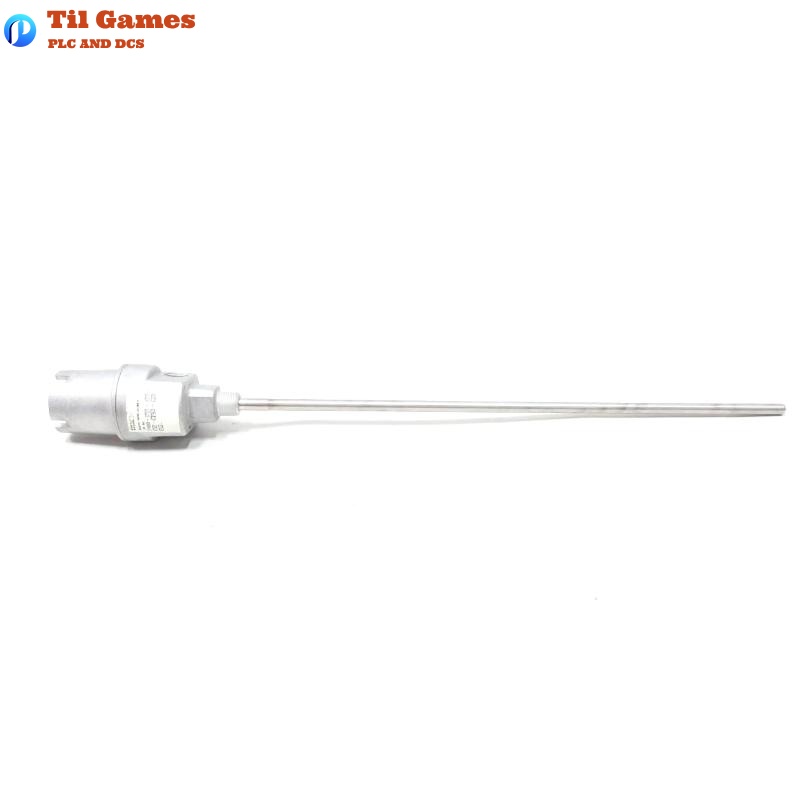

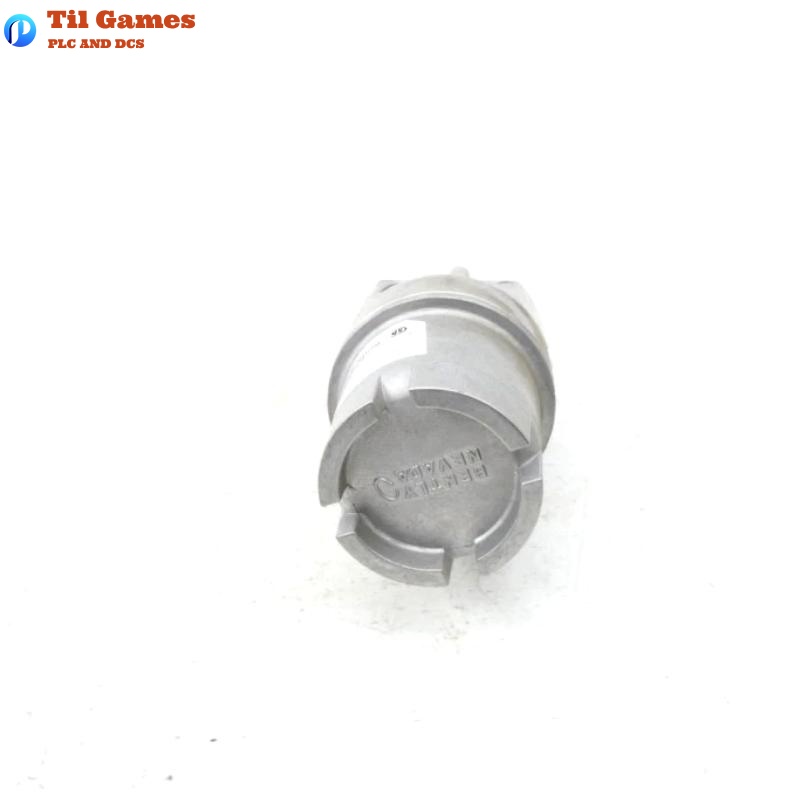

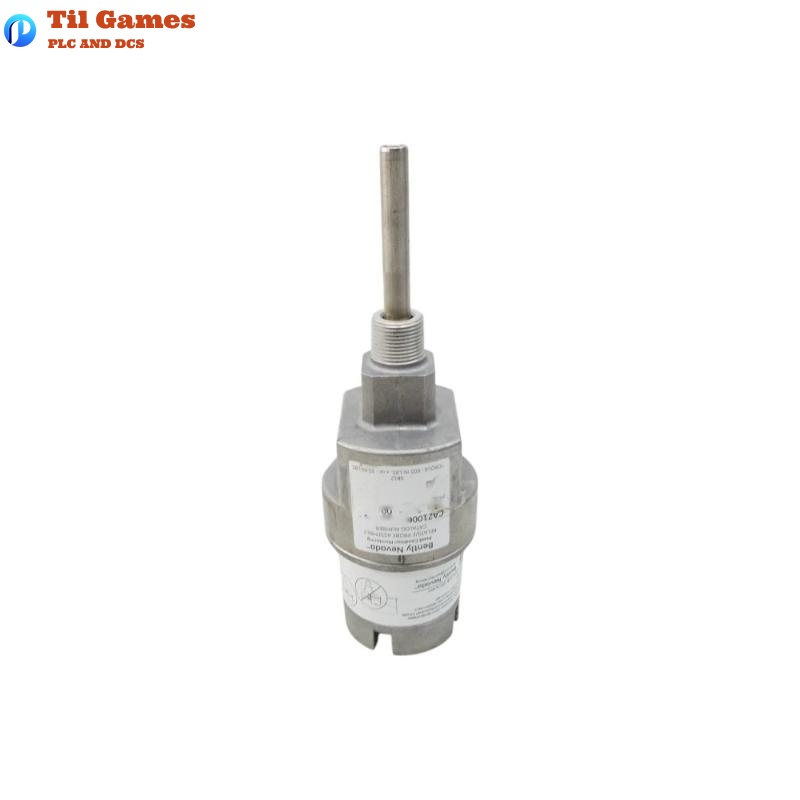

| Product Type | External Proximity Probe Housing Assembly |
| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Probe Compatibility | Supports 3300 XL 8mm / 11mm and 3300 NSv series |
| Operating Temperature | -51°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Enclosure Rating | CSA Type 4, compliant with API 670 |
| Mounting Options | Threaded ports (e.g., 3/4-14 NPT, 1/2-14 BSP, etc.) |
| Sleeve Length | Customizable; sleeves longer than 304 mm require support |
| Standoff Adapter | Optional; 1.5 in to 7.5 in (38 mm to 191 mm) available |
| Explosion Proof Rating | CSA certified for Class I, II, III, Div 1 & 2, Groups C, D, etc. |
| Housing Body Diameter | 83.3 mm (3.28 inches) |
| Weight | 1.1 kg (typical, without fittings) |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is the housing explosion-proof?
A1: Yes, the 21000 series is CSA certified for explosion-proof applications in hazardous areas.
Q2: Can this assembly be used with different probe types?
A2: Yes, it supports multiple probe types including 3300 XL 8mm, 11mm, and NSv probes.
Q3: What is the material of the housing body?
A3: The housing is made of aluminum with a 304 stainless steel sleeve.
Q4: What is the operating temperature range?
A4: The system supports operation and storage in the range of -51°C to +177°C.
Q5: How should the sleeve length be selected?
A5: Sleeve length must exceed the probe lead length. For sleeves over 304 mm, extra support is required.
Q6: What are the available mounting thread options?
A6: Mounting thread options include 3/4-14 NPT, 1/2-14 BSP, and others.
Q7: What is the weight of the 21000 housing?
A7: The typical weight is 1.1 kg without fittings.
Q8: Are custom lengths supported?
A8: Yes, both standoff adapters and probe sleeves can be ordered in custom lengths with specific increments.
