Technical Specifications
| Parameter | Specification |
|---|---|

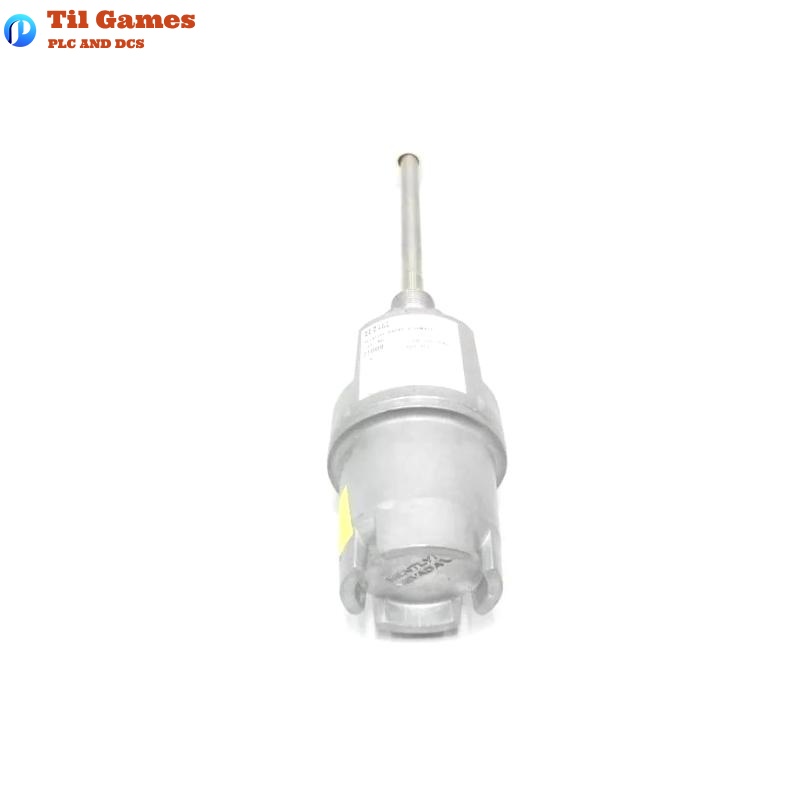

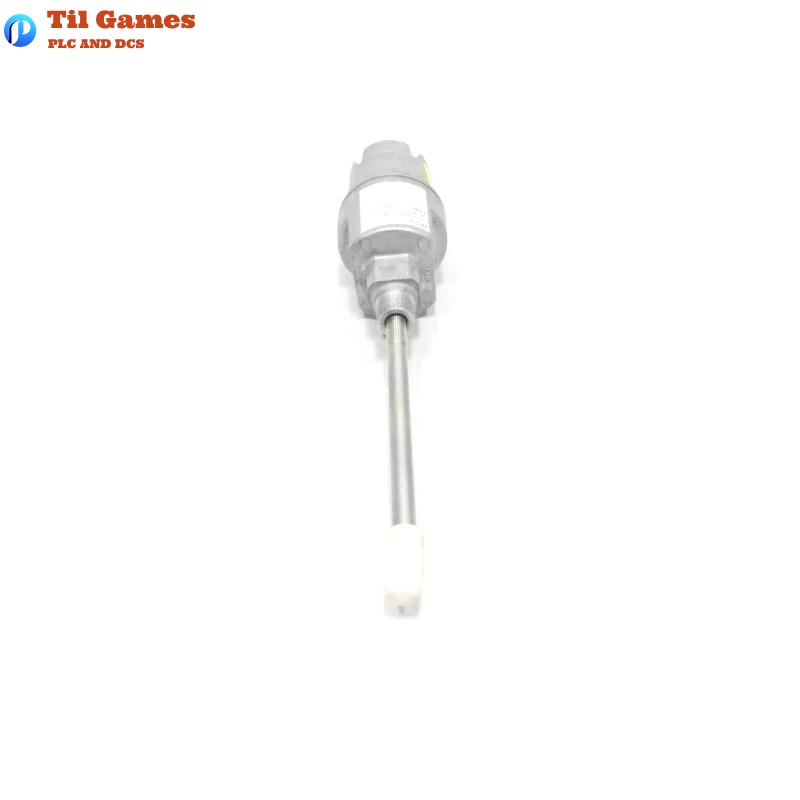

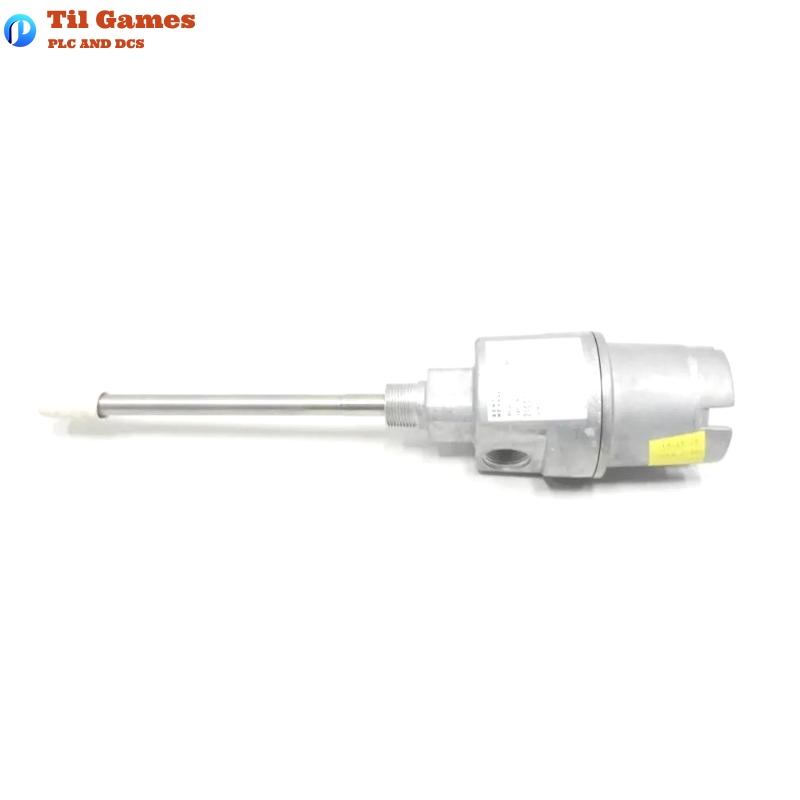

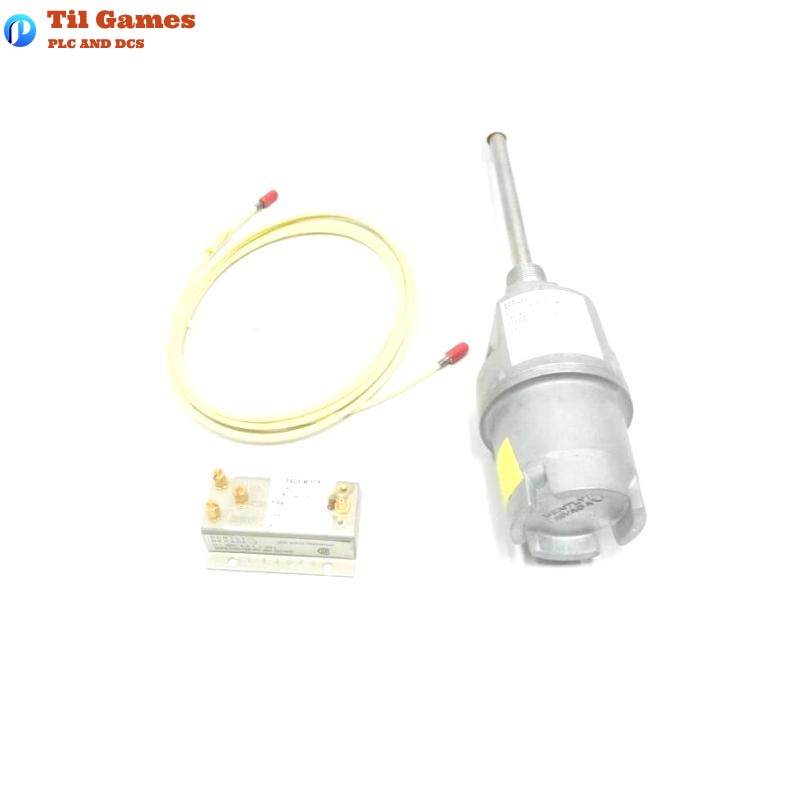

| Model | Bently Nevada 21000-16-10-00-065-04-02 |
| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Environmental Rating | CSA Type 4, Explosion-proof (Class I Div 1 & 2, Groups C and D) |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Compatible Probes | 3300 XL 8mm, 3300 XL 11mm, 3300 XL NSv |
| Max Probe Penetration Length | Up to 742 mm (29.2 in) depending on cable and sleeve configuration |
| Fittings | 3/4-14 NPT plug + reducer or optional configurations |
| Mounting Threads | 3/4-14 NPT (Option F02 required for CA21000 housing) |
| Sleeve Length Options | Customizable: 1.0″ to 29.2″ (25.4 mm to 741.7 mm), ordered in 0.1″ increments |
| Housing Body Diameter | 83.3 mm (3.28 in) |
| Weight | 1.1 kg (2.4 lb) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary material of the 21000 housing?
A1: The housing is made of aluminum with a 304 stainless steel sleeve.
Q2: Is this housing certified for hazardous locations?
A2: Yes, it is CSA certified for explosion-proof use in Class I Div 1 & 2, Groups C and D.
Q3: What is the operating temperature range?
A3: The operating and storage temperature range is -51°C to +177°C.
Q4: Which probes are compatible with this housing?
A4: It supports 3300 XL 8mm, 11mm, and NSv probes.
Q5: What is the maximum allowable sleeve length?
A5: The maximum sleeve length is 742 mm (29.2 in), depending on configuration.
Q6: What are the available mounting thread options?
A6: Options include 3/4-14 NPT, 1-11½ NPT, BSP, and UNF threads, with F02 required for CA21000.
Q7: Can I order this housing without fittings?
A7: Yes, fittings are optional. Multiple configurations such as plug-only or explosion-proof fittings are available.
Q8: Does the housing comply with API 670 standard?
A8: Yes, it meets the API 670 standard for externally mounted proximity probe housings.
