Technical Specifications
| Parameter | Description |
|---|---|

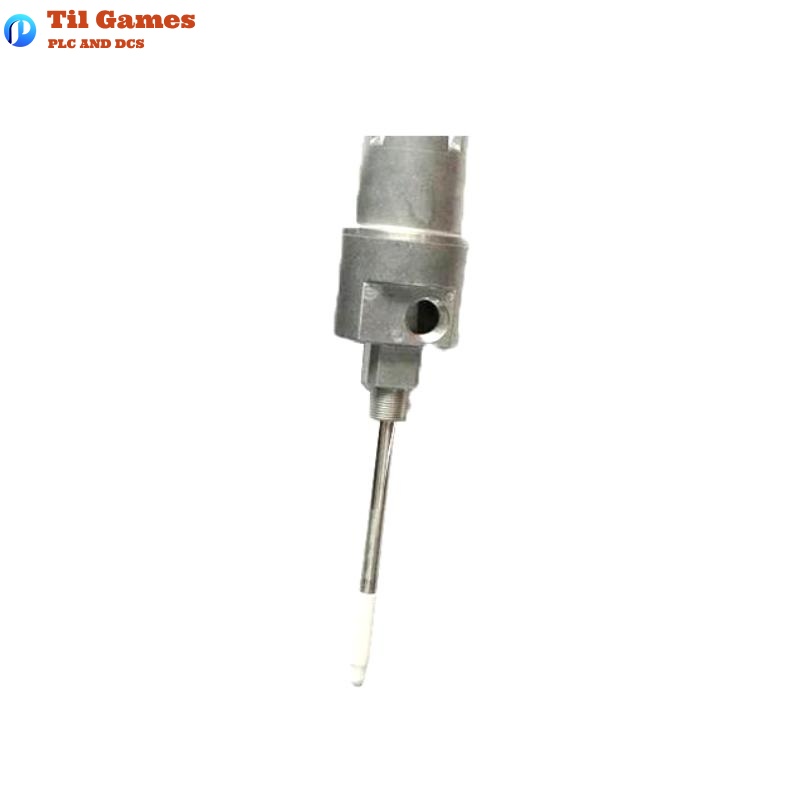

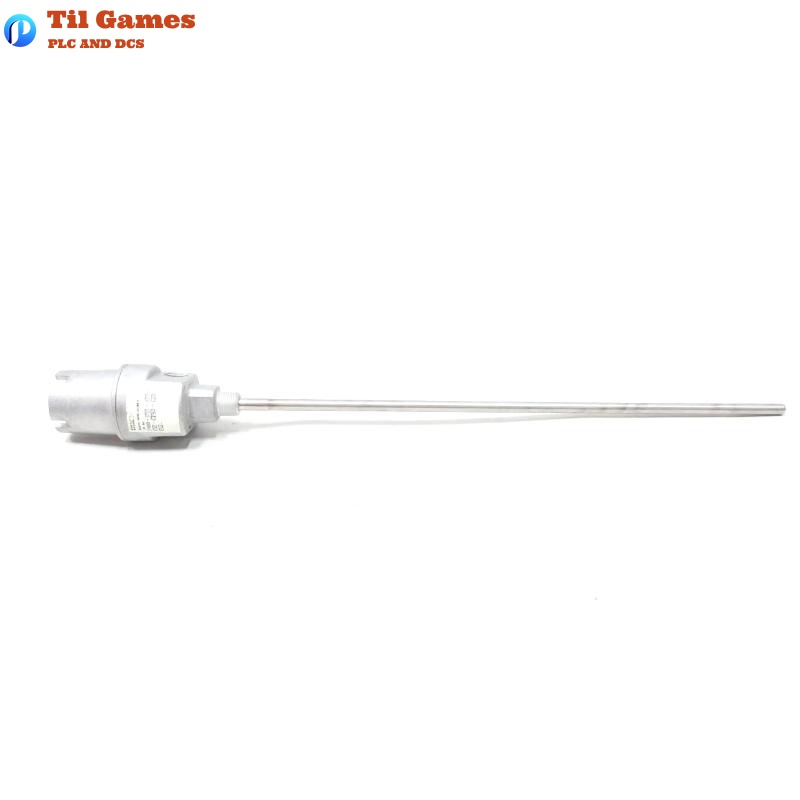

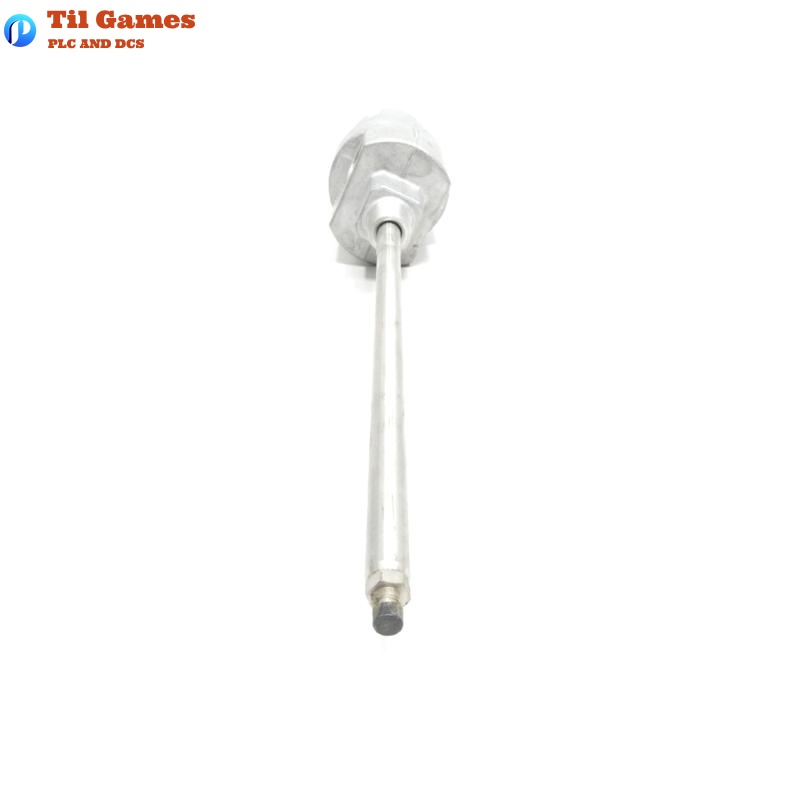

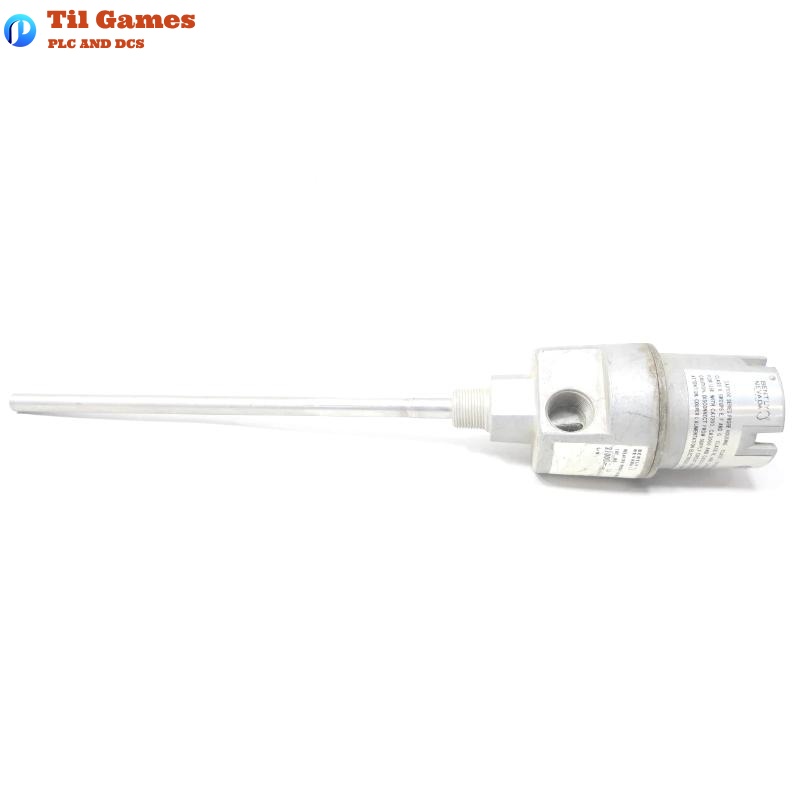

| Model | Bently Nevada 21000-16-10-00-077-03-02 |
| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Compatible Probe Types | 3300 XL 8mm, 3300 XL 11mm, 3300 NSv |
| Certification | CSA certified for Class I Div 1 & 2, Groups C & D; Class II Div 1 & 2, Groups E, F, G |
| Environmental Rating | CSA Type 4 Enclosure (IP66 equivalent) |
| Hazardous Area Use | Explosion-proof certified |
| Conduit Fitting Options | Optional: 3/4-14 NPT fittings, plugs, reducers |
| Probe Sleeve Length | Configurable: up to 742 mm (29.2 in) with sleeve support if >304 mm |
| Mounting Threads | 3/4-14 NPT standard (option F:02 recommended for CA21000 version) |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
FAQ
Frequently Asked Questions (FAQs)
Q1: What types of probes are compatible with the 21000 housing?
A1: The housing supports 3300 XL 8mm, 3300 XL 11mm, and 3300 NSv proximity probes.
Q2: Can the 21000 housing be used in hazardous locations?
A2: Yes, it is CSA-certified explosion-proof for Class I, II, and III hazardous areas.
Q3: What is the material of the 21000 housing?
A3: It is constructed from aluminum with a 304 stainless steel sleeve.
Q4: What is the maximum allowable sleeve length?
A4: Up to 742 mm (29.2 inches), but lengths over 304 mm (12 inches) require support.
Q5: What thread type is recommended for explosion-proof applications?
A5: The 3/4-14 NPT thread (option F:02) is recommended for CA21000 variants.
Q6: What environmental rating does the housing meet?
A6: It meets CSA Type 4, equivalent to IP66.
Q7: What is the operating temperature range for this housing?
A7: From -51°C to +177°C (-60°F to +351°F).
Q8: Does the housing include a proximity probe?
A8: Not by default; it depends on the ordering options selected (Option A).
