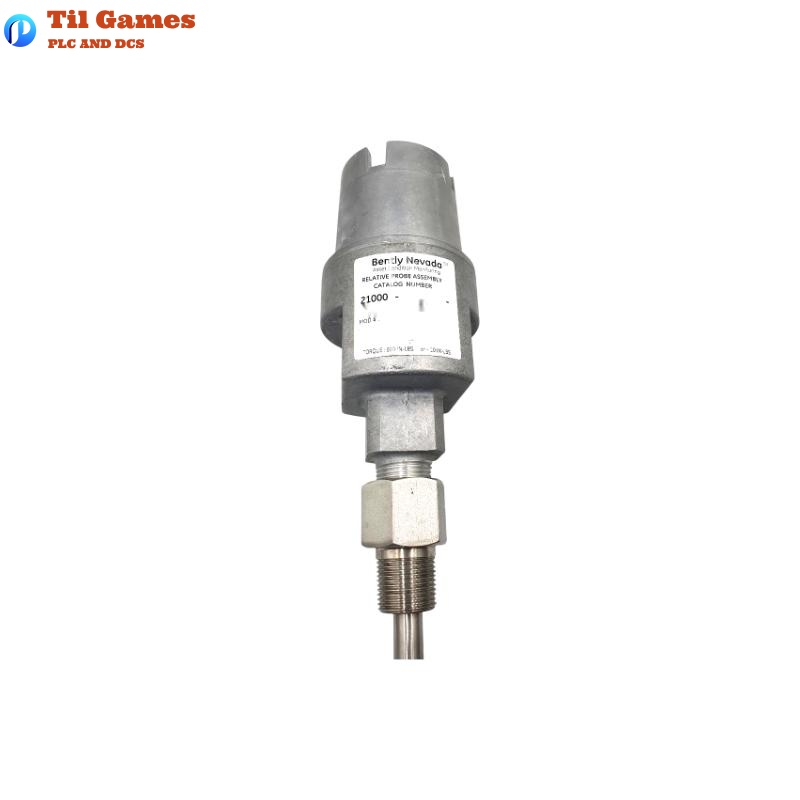

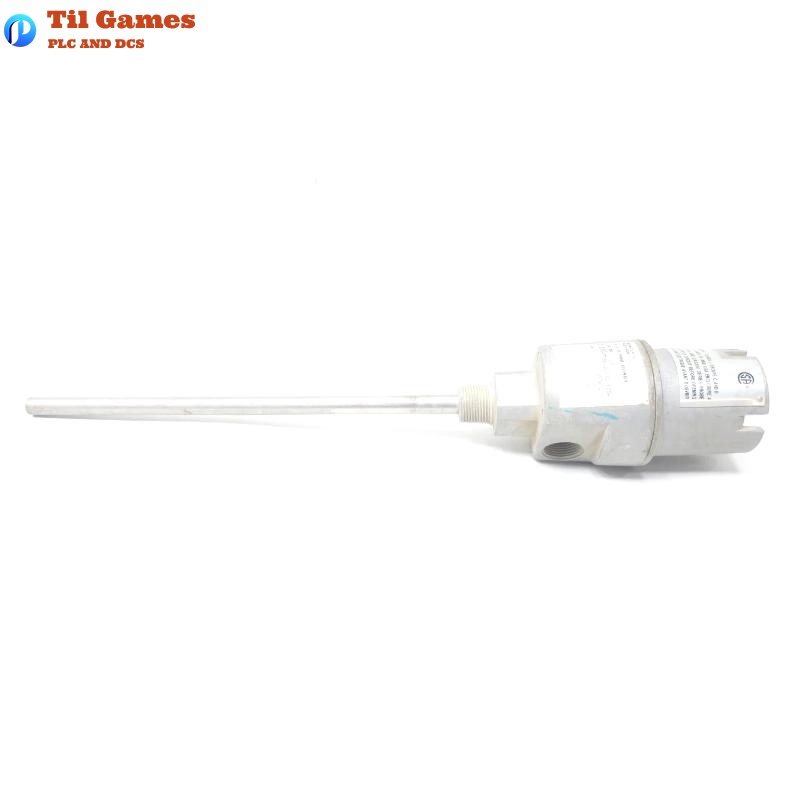

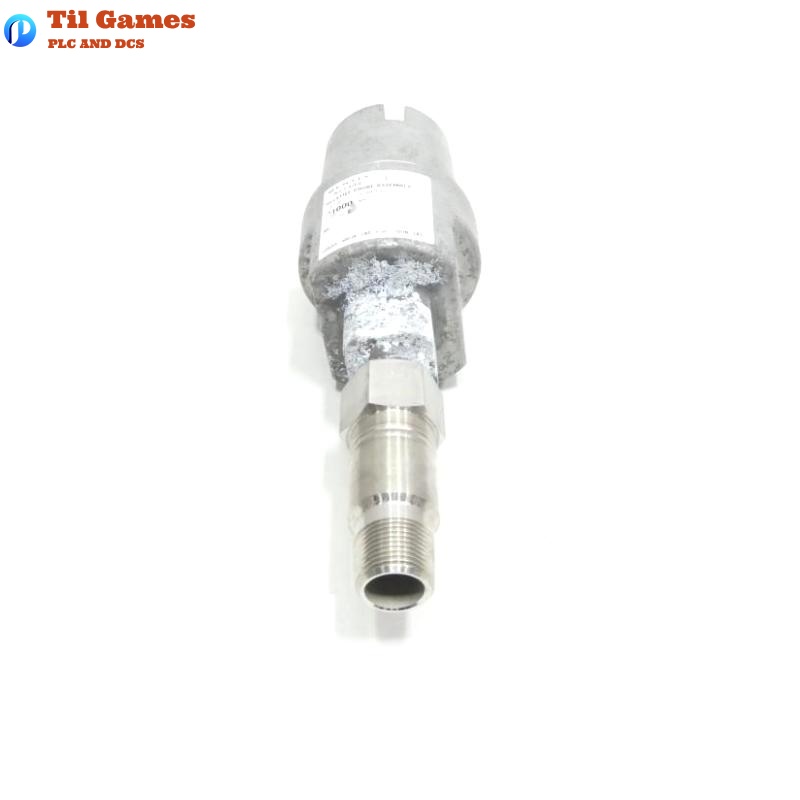

Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 21000-16-10-00-090-03-02 |
| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Probe Type | 3300 XL 8mm |
| Operating Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Compliance | CSA certified, API 670 compliant, RoHS Directive 2011/65/EU |
| Explosion Proof Rating | Class I Div 1 & 2 Groups C, D / Class II Div 1 & 2 Groups E, F, G / Class III |
| Enclosure Rating | Type 4 |
| Conduit Fittings | One 3/4-14 NPT plug + One 3/4-14 to 1/2-14 NPT reducer (option 03) |
| Mounting Thread | 3/4-14 NPT (option 02) |
| Standoff Adapter Length | None (option 00) |
| Probe Penetration Length | 90 mm (option 090) |
| Housing Body Diameter | 83.3 mm |
| Overall Weight | 1.1 kg (without fittings) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of probe is used in this housing assembly?
A1: The assembly uses a 3300 XL 8mm reverse mount proximity probe.
Q2: What materials are used in the construction of the 21000 housing?
A2: The housing body is made of aluminum, and the sleeve is stainless steel (304).
Q3: Is the 21000 housing certified for hazardous areas?
A3: Yes, it has CSA certifications for use in Class I, II, and III hazardous environments.
Q4: What is the temperature operating range of the probe housing?
A4: The housing operates from -51°C to +177°C.
Q5: What mounting thread type is used for this model?
A5: This model uses a 3/4-14 NPT mounting thread.
Q6: Is the 21000 assembly compliant with API standards?
A6: Yes, it meets the API 670 standard for externally mounted proximity probe housings.
Q7: What is the typical use case for this housing?
A7: It is typically used for mounting proximity probes in rotating machinery monitoring applications.
Q8: Does this assembly include explosion-proof conduit fittings?
A8: Yes, it includes one 3/4-14 NPT plug and one 3/4-14 to 1/2-14 NPT reducer, suitable for explosion-proof installations.
