Technical Specifications
| Parameter | Specification |
|---|---|

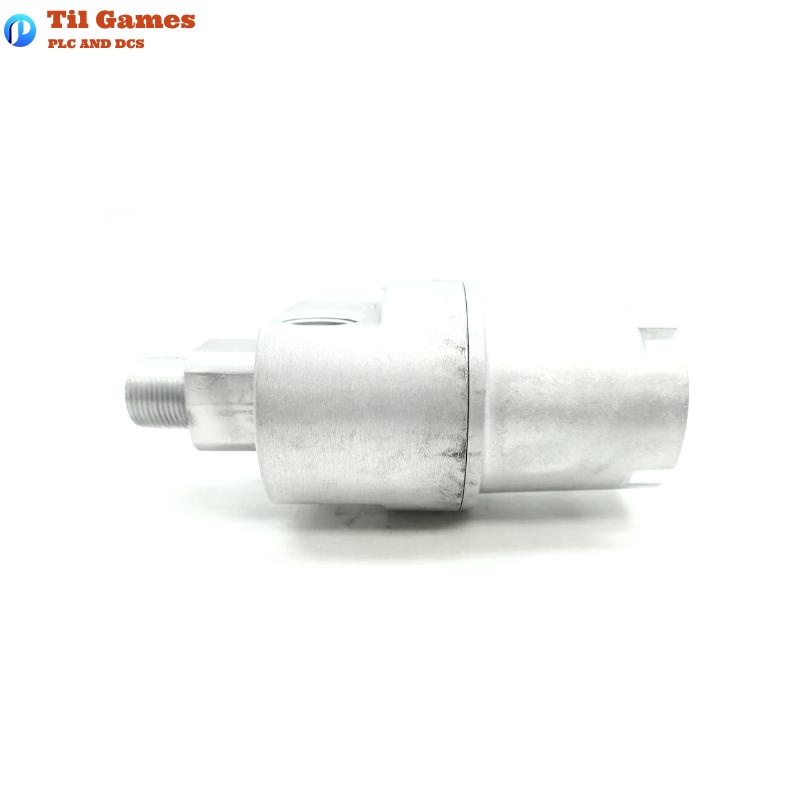

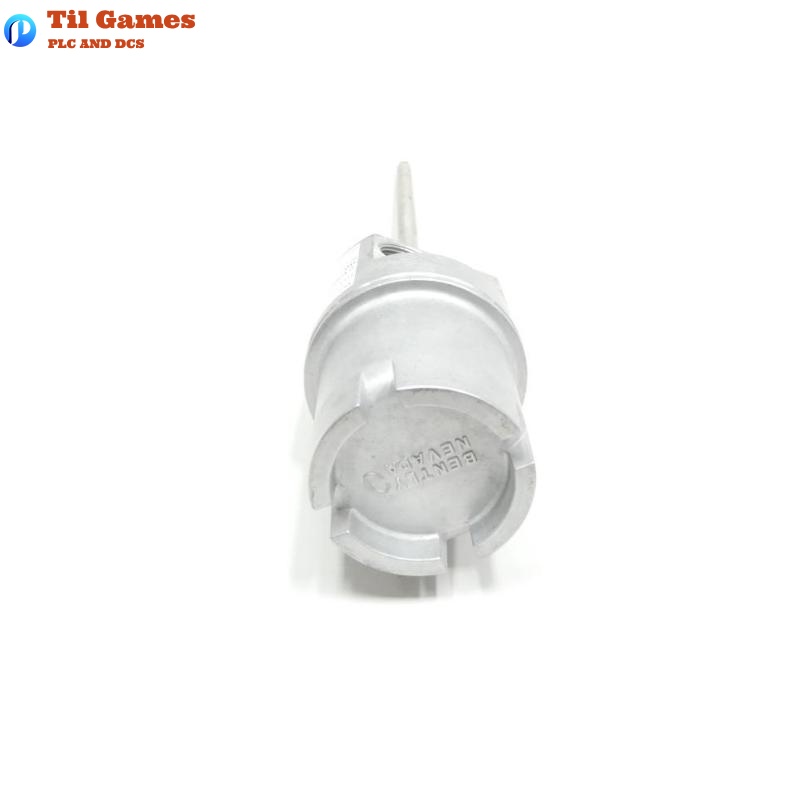

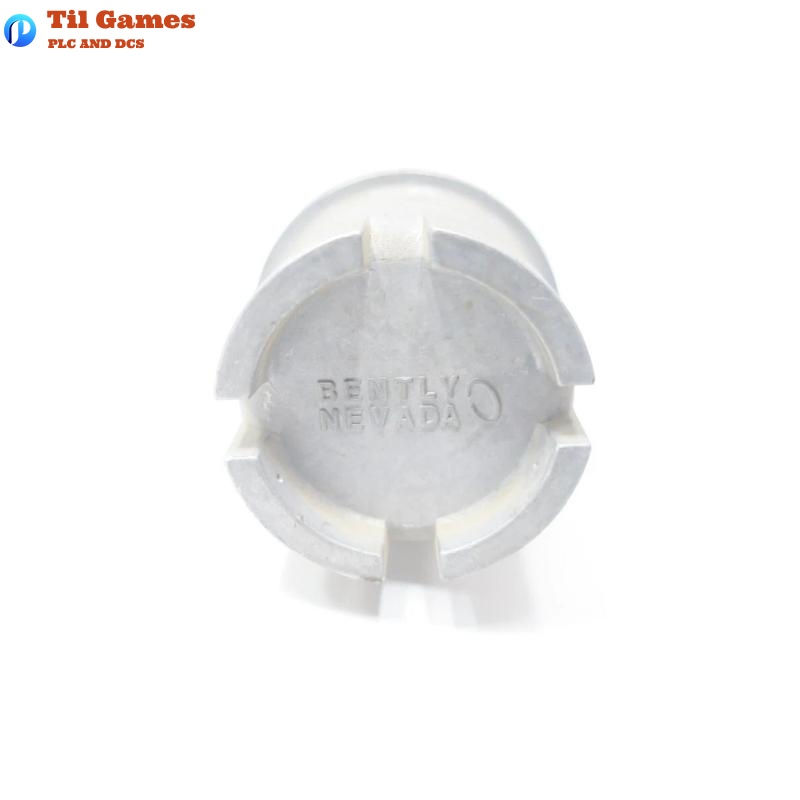

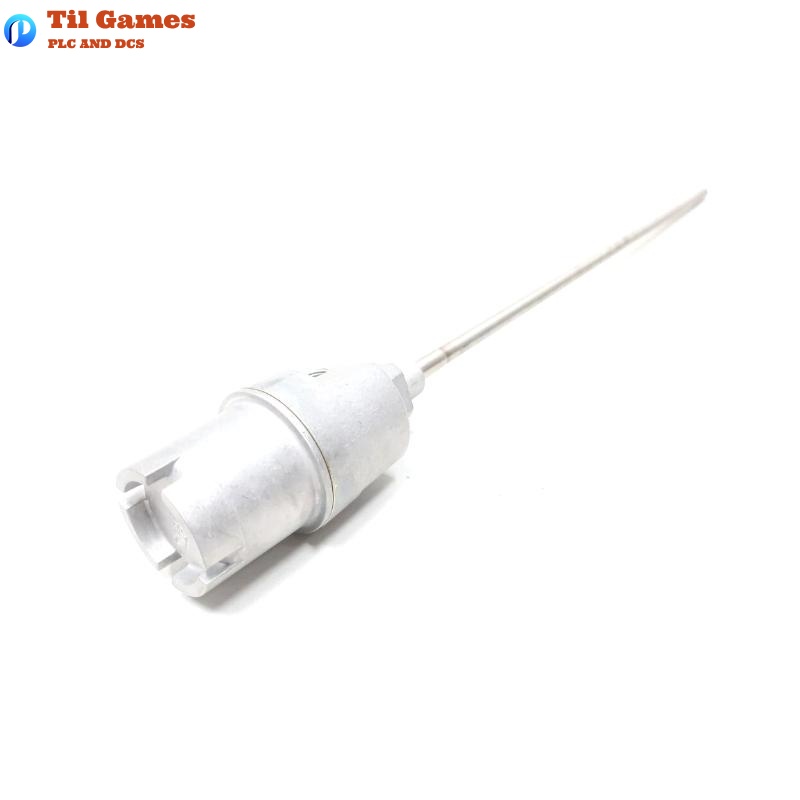

| Product Model | 21000-16-10-00-090-04-02 |
| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Temperature Range (Operation/Storage) | -51°C to +177°C (-60°F to +351°F) |
| Probe Compatibility | 3300 XL 8mm, XL 11mm, XL NSv |
| Housing Body Diameter | 83.3 mm |
| Housing Weight | 1.1 kg |
| Conduit Ports | Threaded, supports optional explosion-proof fittings |
| Environmental Rating | CSA Type 4 enclosure, API 670 compliant |
| Hazardous Area Certification | Class I, Div 1 & 2, Groups C and D; Class II & III |
| Mounting Thread Option | 3/4-14 NPT, 1/2-14 BSP, etc. (option selectable) |
FAQ
FAQ
Q1: What material is the 21000 housing made of?
A1: The 21000 housing is made of aluminum with a 304 stainless steel probe sleeve.
Q2: What is the operating temperature range for the 21000 housing assembly?
A2: It supports a wide range from -51°C to +177°C (-60°F to +351°F), suitable for harsh environments.
Q3: What certifications does the 21000 housing have?
A3: It is CSA-certified for explosion-proof use in hazardous areas and complies with API 670 standards.
Q4: What is the typical weight of the 21000 housing?
A4: The 21000 housing weighs approximately 1.1 kg without fittings.
Q5: Which probes are compatible with this housing assembly?
A5: It is compatible with 3300 XL 8mm, 3300 XL NSv, and 3300 XL 11mm reverse mount probes.
Q6: Are explosion-proof conduit fittings available?
A6: Yes, explosion-proof fittings are available and should be specified in the ordering options.
Q7: Is this product suitable for high-vibration environments?
A7: Yes, but for sleeve lengths over 304 mm (12 in), additional sleeve support is recommended.
Q8: Can the probe penetration depth be customized?
A8: Yes, options C (standoff adapter) and D (probe penetration) allow precise customization in increments.
