Technical Specifications
| Parameter | Description |
|---|---|

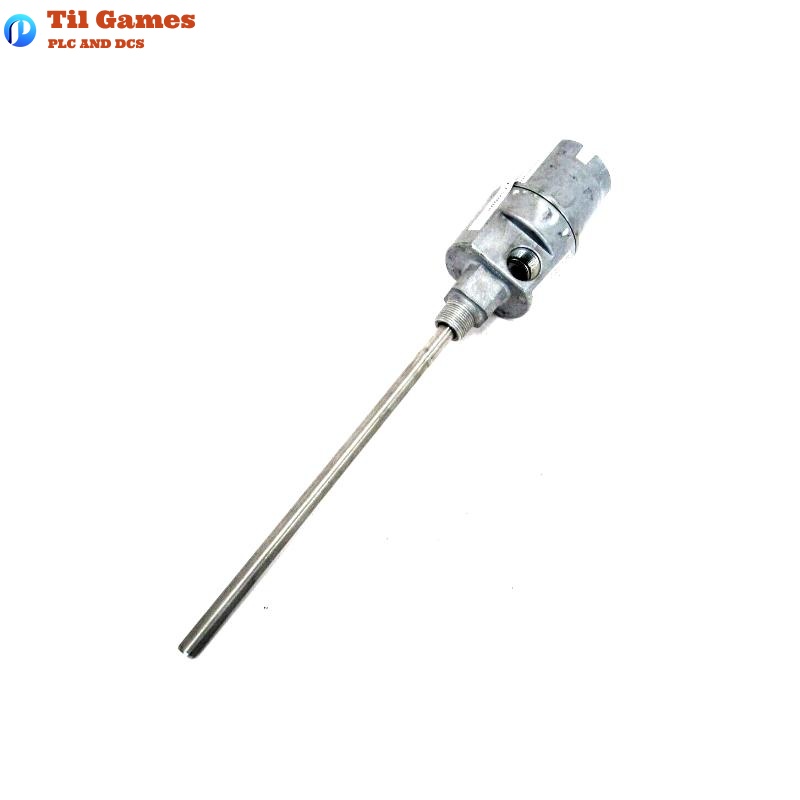

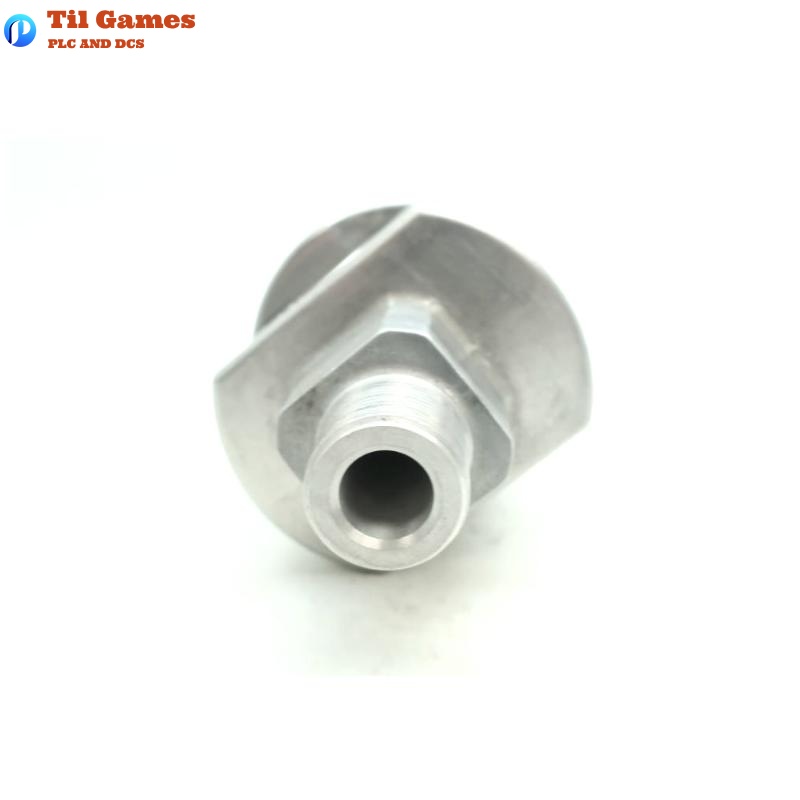

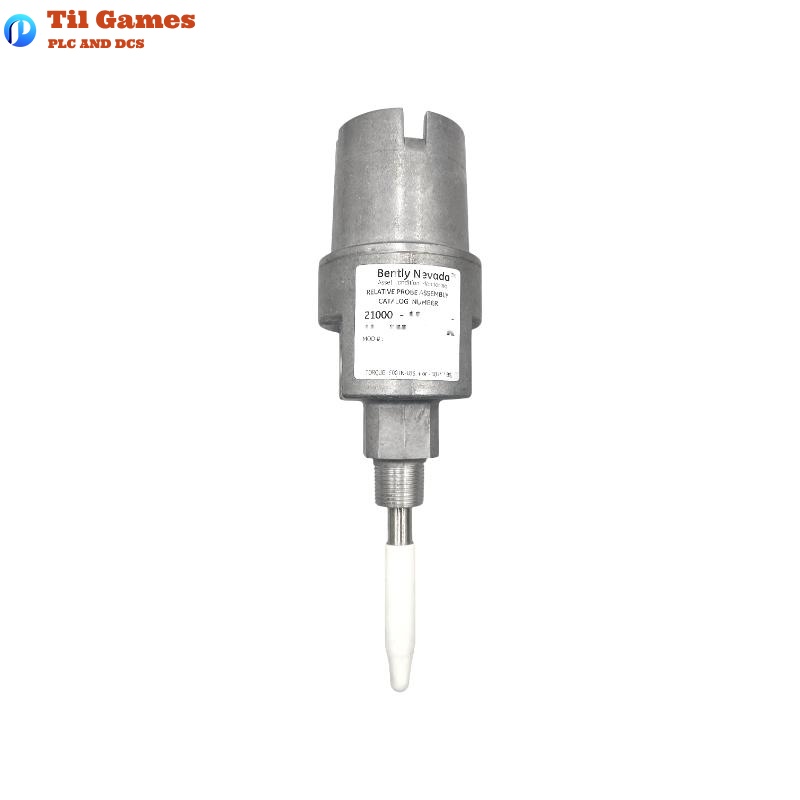

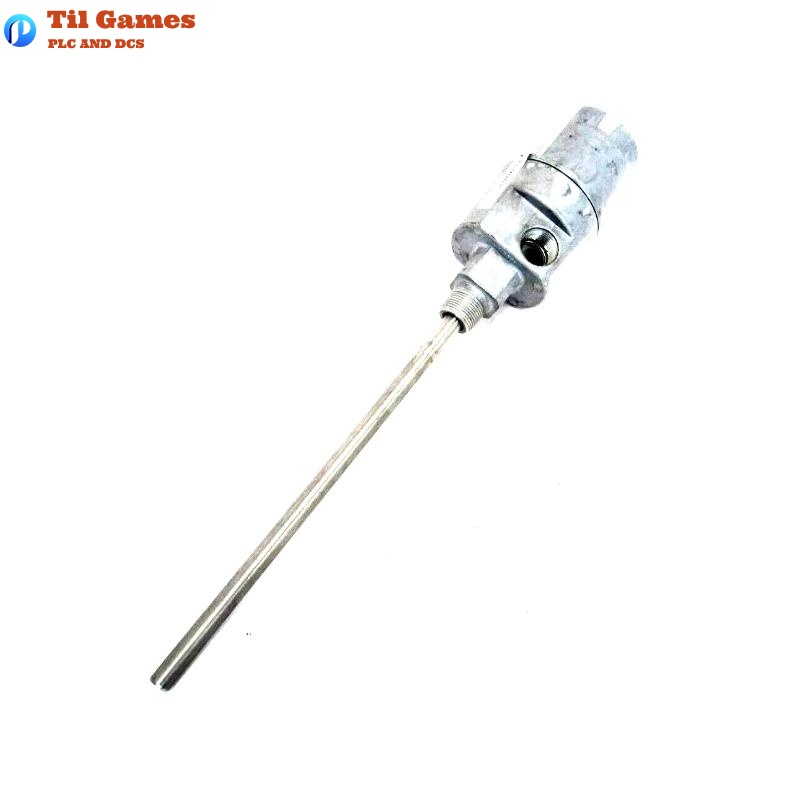

| Housing Model | 21000-16-10-00-101-03-02 |
| Material | Aluminum housing body with 304 stainless steel sleeve |
| Housing Diameter | 83.3 mm |
| Weight | 1.1 kg (typical, without fittings) |
| Operating & Storage Temp | -51°C to +177°C (for 3300 XL and 3300 NSv probes) |
| Explosion-Proof Rating | CSA: Class I Div 1 & 2 (Groups C & D); Class II Div 1 & 2 (Groups E, F, G); Class III |
| Enclosure Rating | Type 4 |
| Compatible Probes | 3300 XL 8mm, NSv, and 11mm reverse mount |
| Mounting Method | Reverse mount with optional connector protector |
| Sleeve Support | Required for lengths over 304 mm (12 in) |
| Conduit Threads | Available in 3/4-14 NPT, 1/2-14 BSP, etc. |
| Optional Accessories | Conduit fittings, seals, O-rings, standoff adapter |
FAQ
Frequently Asked Questions (FAQ)
Q1: What probe types are supported by the 21000 housing?
A1: The housing supports reverse-mount 3300 XL 8mm, NSv, and 11mm probes.
Q2: Is this housing explosion-proof?
A2: Yes, it is CSA certified for use in Class I, II, and III hazardous areas.
Q3: What is required if the sleeve length exceeds 12 inches?
A3: For lengths over 304 mm, a sleeve support (e.g., part 37948-01) must be used to prevent vibration-related resonance.
Q4: How is probe penetration depth configured?
A4: Depths are ordered in 0.1 in (3 mm) increments, with a minimum of 1.0 in. If total depth exceeds 300 mm, extra support is necessary.
Q5: Can the housing be used in intrinsically safe applications?
A5: Yes, approved configurations of the 21000 housing are suitable for intrinsically safe zones.
Q6: What mounting thread options are available?
A6: Options include 3/4-14 NPT, 1/2-14 BSP, 1-11 1/2 NPT, M24x1.5, and 7/8-14 UNF-2A.
Q7: Is the housing suitable for high-temperature environments?
A7: Yes, it operates reliably between -51°C and +177°C.
Q8: How do I choose the correct standoff adapter length?
A8: Standoff adapters are selectable in 0.5 in (13 mm) increments, with lengths ranging from 1.5 in to 7.5 in.
