Technical Specifications
| Parameter | Description |
|---|---|

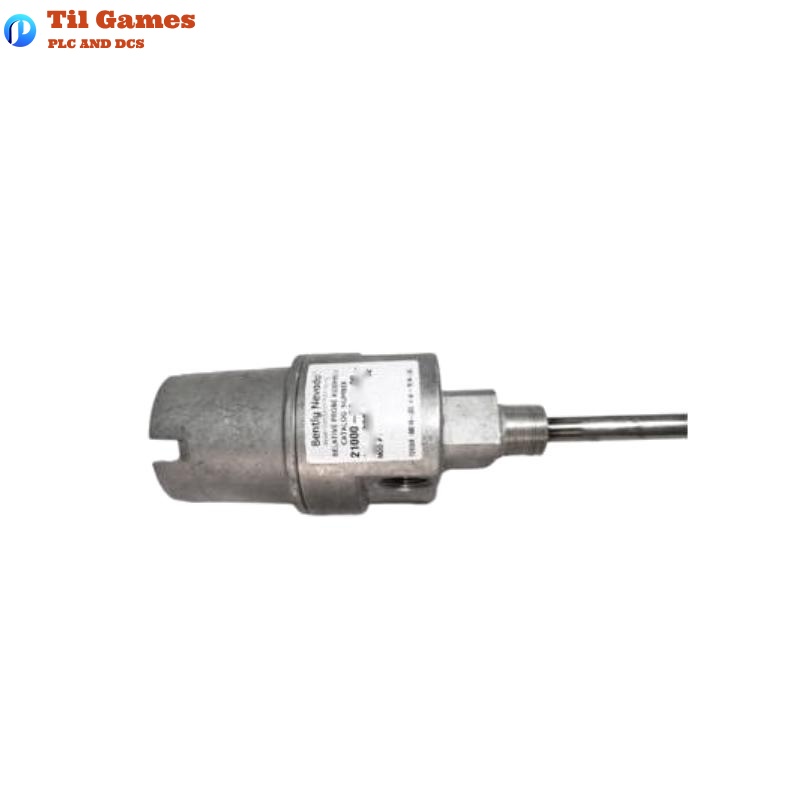

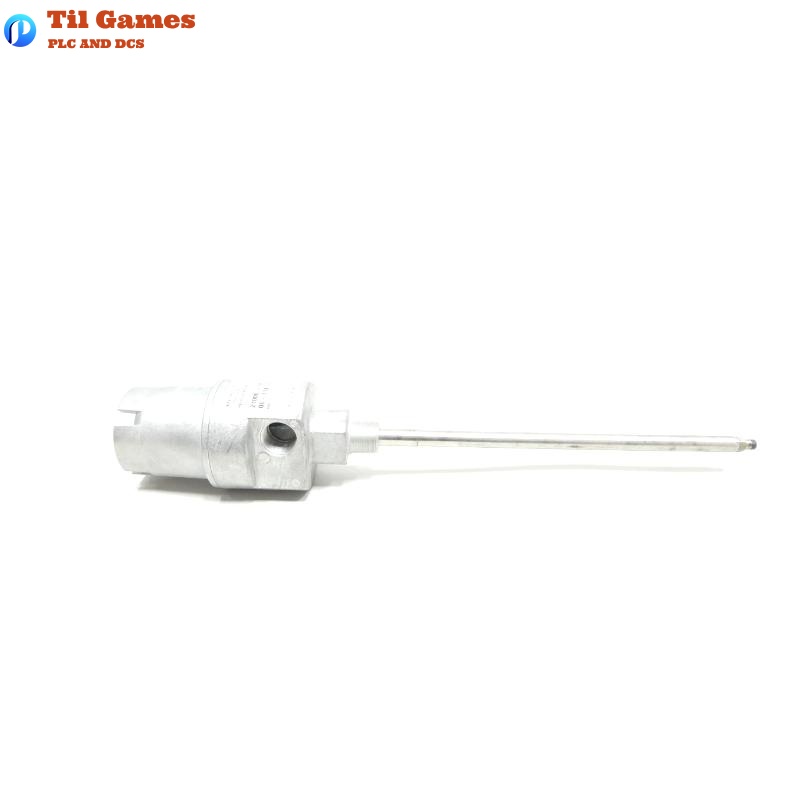

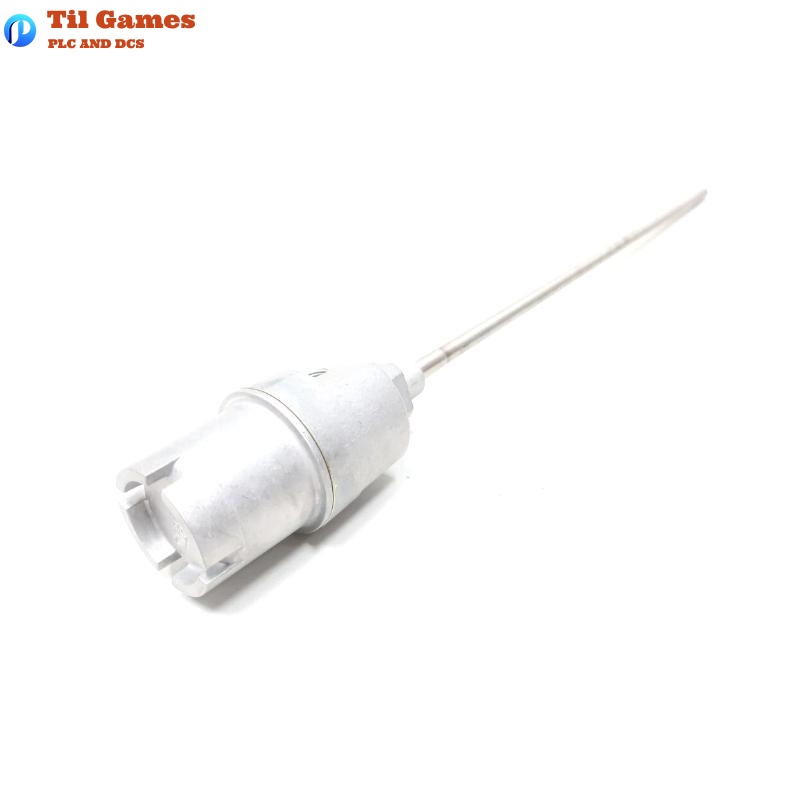

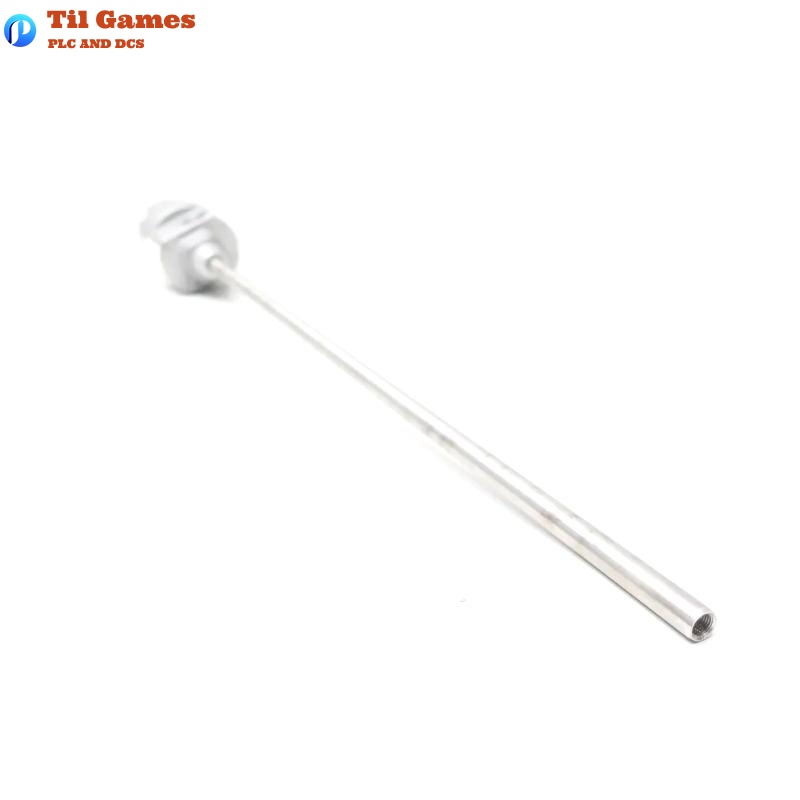

| Model | Bently Nevada 21000-16-10-15-044-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Temperature Range (Operation) | -51°C to +177°C (-60°F to +351°F) |
| Temperature Range (Storage) | -51°C to +177°C (-60°F to +351°F) |
| Compliance | CSA Explosion-Proof Certified, RoHS Compliant |
| Enclosure Rating | CSA Type 4, API 670 Compliant |
| Housing Body Diameter | 83.3 mm (3.28 in) |
| Length (Overall) | 161.6 mm (6.36 in) |
| Weight | Approx. 1.1 kg (2.4 lbs) |
| Mounting Thread | 3/4-14 NPT (option 02) |
| Probe Supported | 3300 XL 8mm (option 16) |
| Probe Cable Length | 1.0 m (option 10 = 39 in) |
| Standoff Adapter Length (C) | 1.5 in (option 15 = 38 mm) |
| Probe Penetration Length (D) | 4.4 in (option 044 = 112 mm) |
| Fittings | One 3/4-14 NPT plug + reducer (option 03) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of material is used for the 21000 series housing?
A1: The 21000 series housing uses an aluminum body with a 304 stainless steel sleeve.
Q2: What is the operational temperature range of this housing assembly?
A2: It operates reliably from -51°C to +177°C (-60°F to +351°F).
Q3: What kind of probes can be used with the 21000-16-10-15-044-03-02 model?
A3: It supports the 3300 XL 8mm reverse mount proximity probe.
Q4: Is this housing suitable for hazardous environments?
A4: Yes, it is CSA certified for Class I, II, and III Division 1 and 2, Groups C, D, E, F, and G.
Q5: Does this product meet any industry standards?
A5: Yes, it complies with API 670 and is classified as a CSA Type 4 enclosure.
Q6: What is the total length of the housing body?
A6: The total length is approximately 161.6 mm (6.36 inches).
Q7: What mounting thread is used on this model?
A7: It uses a 3/4-14 NPT mounting thread.
Q8: How much does the housing assembly weigh?
A8: The housing weighs approximately 1.1 kg (2.4 lbs) without fittings.
