Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 21000-16-10-15-057-03-02 |
| Material | Aluminum body with 304 stainless steel sleeve |
| Enclosure Rating | CSA Type 4 enclosure, API 670 compliant |
| Compatible Probes | 3300 XL 8mm, 3300 XL 11mm, 3300 NSv reverse mount |
| Operating Temperature | -51°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
| Sleeve Length | Min. 38 mm, Max. 742 mm (based on order options C+D) |
| Entry Threads | 3/4-14 NPT, 1/2-14 BSP, and more options |
| Explosion Proof Rating | North America Class I, II, III, Div 1 & 2, Groups C-G |
| Max. C+D (1m cable) | 742 mm |

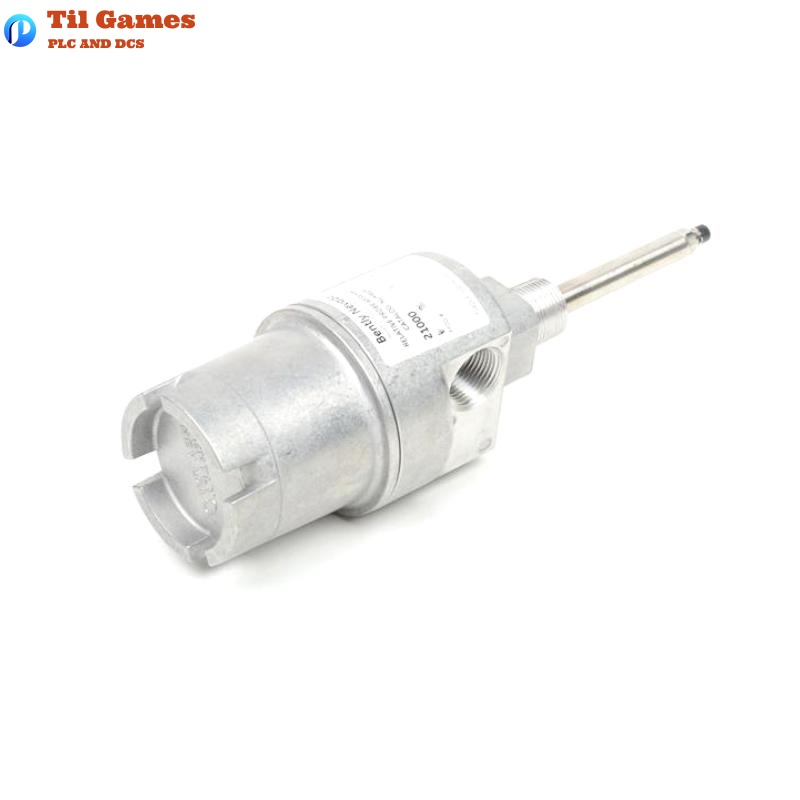

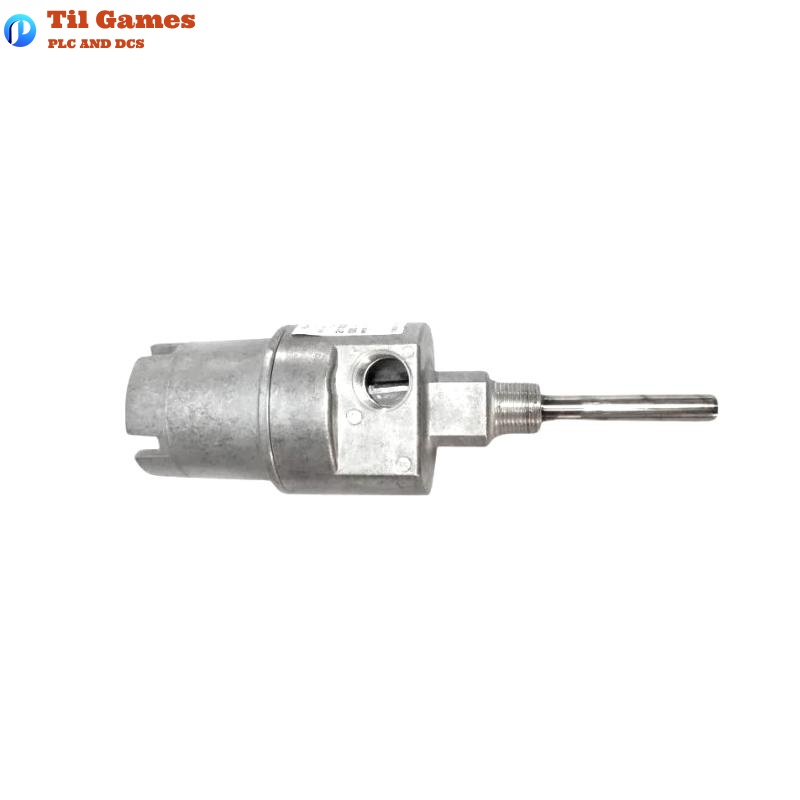

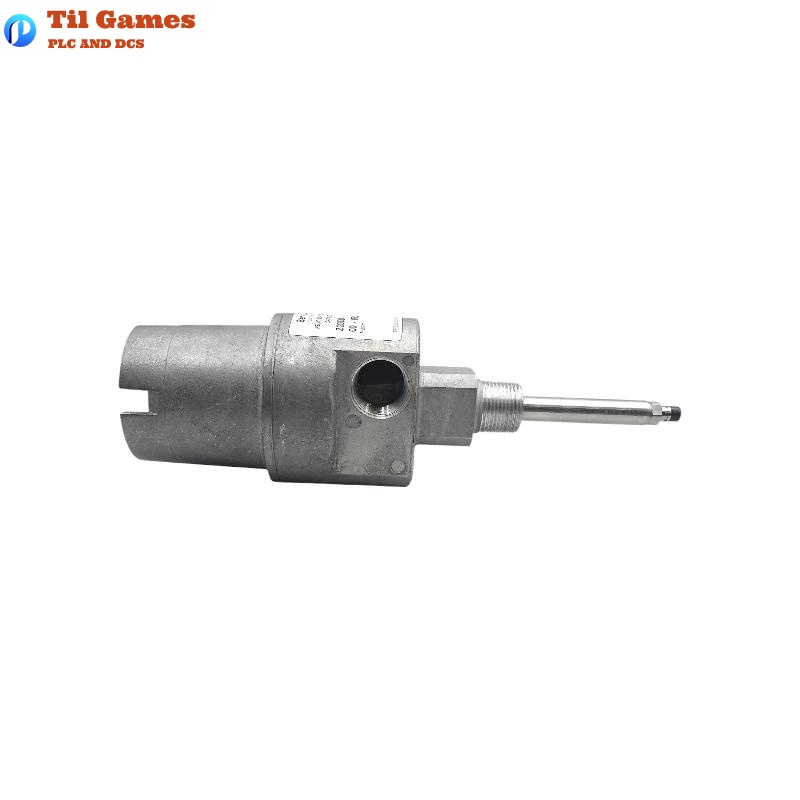

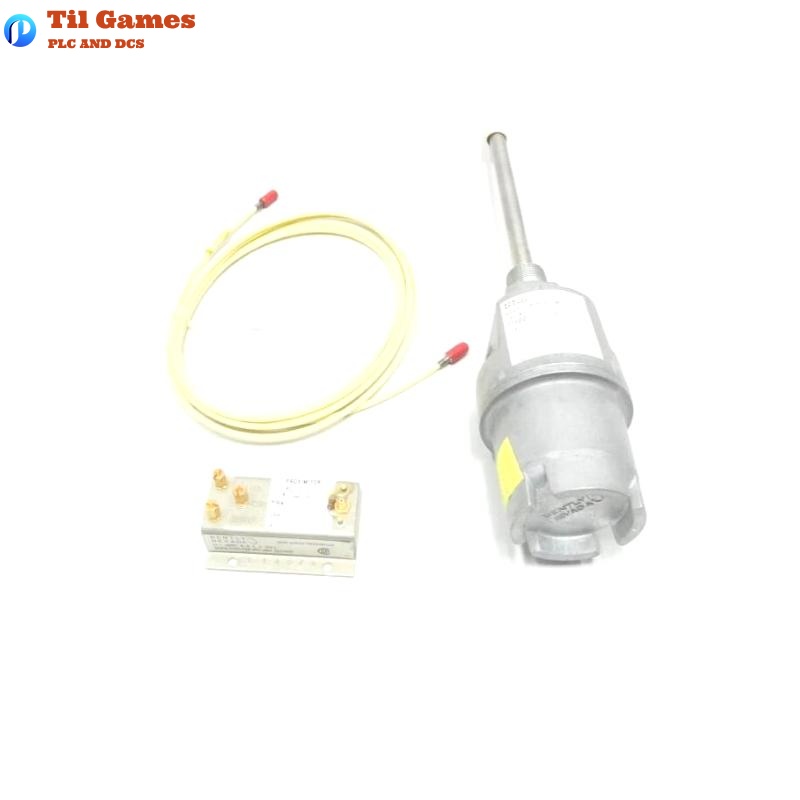

| Structure | Dome cover, threaded ports, probe sleeve, O-rings, reverse mount probe |
FAQ
FAQ
Q1: What is the standard material for the 21000 series housing?
A1: The 21000 series features an aluminum body with a 304 stainless steel probe sleeve for both lightweight and corrosion resistance.
Q2: Which proximity probes are compatible with this housing?
A2: Compatible with Bently Nevada 3300 XL 8mm, 3300 XL 11mm, and 3300 NSv reverse mount probes.
Q3: What are the housing body diameter and weight?
A3: The housing body diameter is 83.3 mm, and the typical weight is 1.1 kg.
Q4: What is the operating temperature range?
A4: The housing can operate and be stored in environments from -51°C to +177°C.
Q5: What is the maximum supported sleeve length?
A5: For a 1-meter probe cable, the maximum C+D sleeve length can reach 742 mm.
Q6: What protection and certifications does this product offer?
A6: CSA Type 4 enclosure, North America Class I, II, III, Div 1 & 2 explosion proof, and fully API 670 compliant.
Q7: What entry thread options are available?
A7: Entry threads include 3/4-14 NPT, 1/2-14 BSP, and other options to meet various installation needs.
Q8: What should be noted for long sleeve installation?
A8: For sleeves longer than 304 mm (12 inches), additional sleeve support is required to prevent resonance and vibration.
