Technical Specifications
| Parameter | Specification |
|---|---|

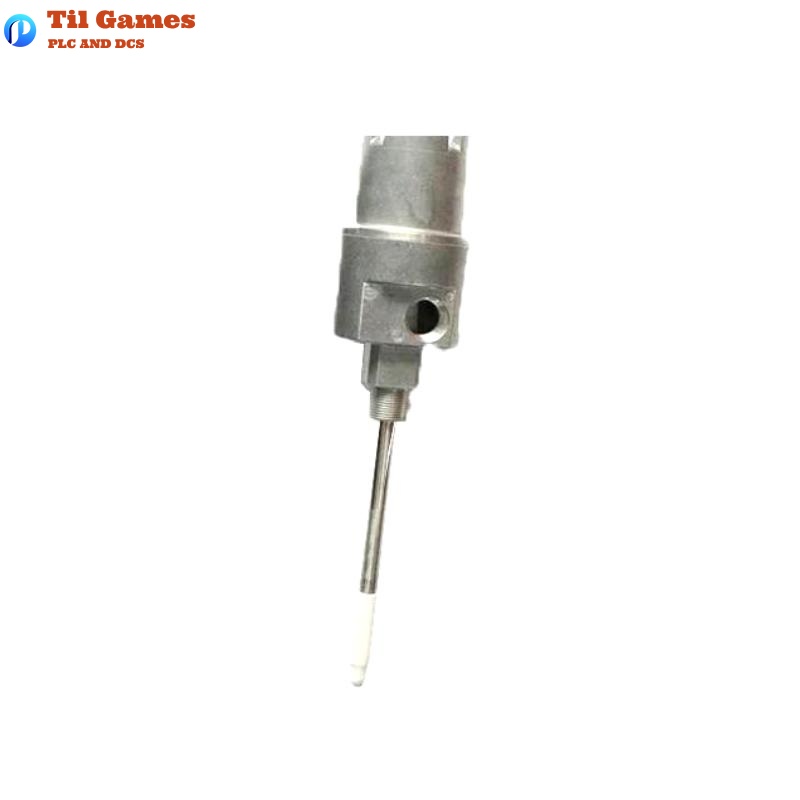

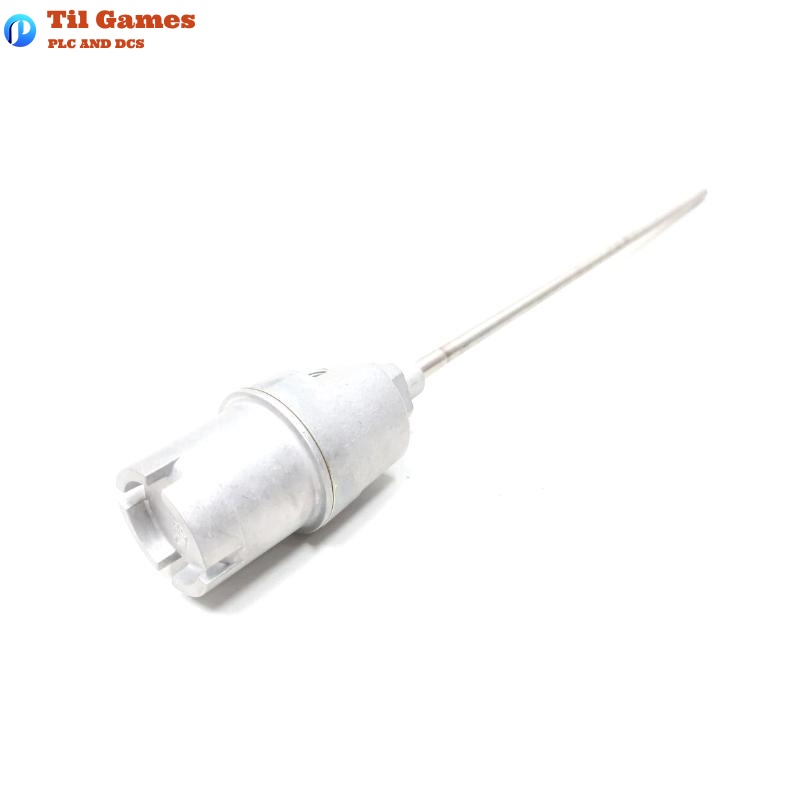

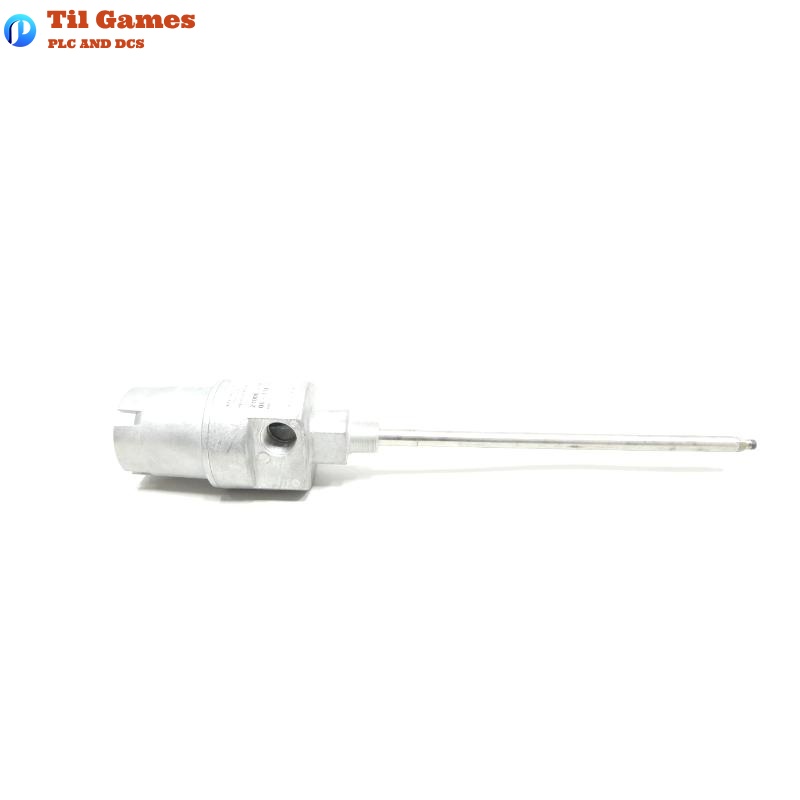

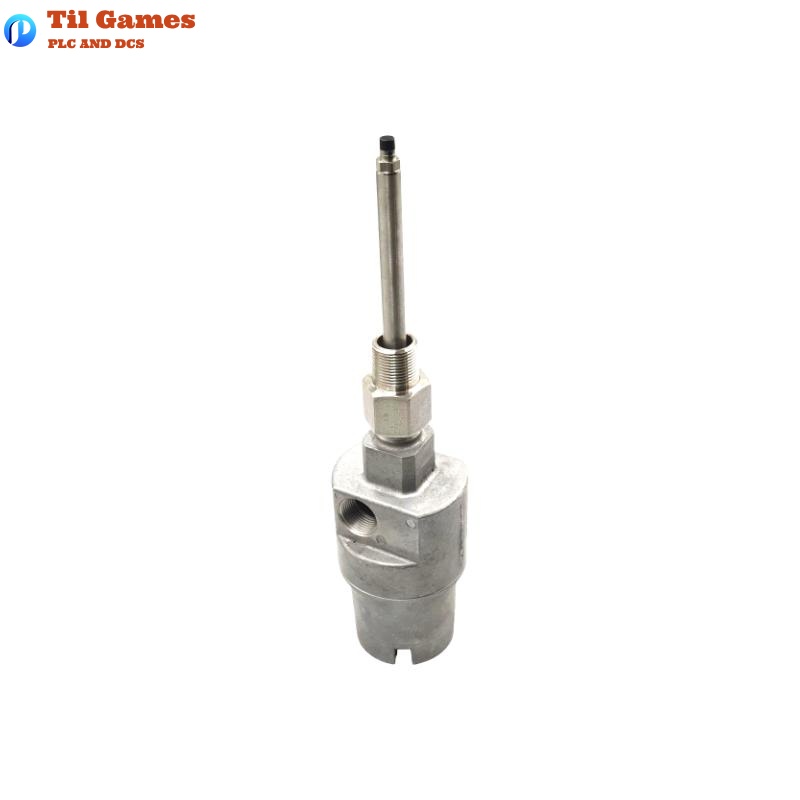

| Product Model | Bently Nevada 21000-16-10-15-144-03-02 |
| Housing Material | Aluminum housing with 304 stainless steel probe sleeve |
| Operating Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Compatible Probes | 3300 XL 8mm, 11mm, NSv Series |
| Sleeve Length | Based on configuration; up to 742 mm (29.2 in) with 1.0 m probe cable |
| Threaded Mounting Option | 3/4-14 NPT, as cast, or other options per order code |
| Conduit Fittings Options | Various configurations including NPT plugs, reducers, and cable seals |
| Certifications | CSA certified, Explosion-proof, Type 4 enclosure, API 670 compliant |
| RoHS Compliance | Yes (Directive 2011/65/EU) |
| Housing Body Diameter | 83.3 mm (3.28 in) |
| Housing Weight | 1.1 kg (2.4 lbs) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What probe types are compatible with the 21000 housing?
A1: It supports 3300 XL 8mm, 3300 XL 11mm, and 3300 NSv probes.
Q2: What is the operating temperature range for this housing?
A2: The operating temperature range is -51°C to +177°C (-60°F to +351°F).
Q3: Is the 21000 housing explosion-proof?
A3: Yes, it is CSA certified for explosion-proof applications (Class I, II, III hazardous areas).
Q4: Does this housing comply with API 670?
A4: Yes, it meets the requirements of the American Petroleum Institute’s API 670 standard.
Q5: Can the probe sleeve be customized in length?
A5: Yes, sleeve lengths are customizable and must be selected based on the probe and installation location.
Q6: What materials are used for the housing and sleeve?
A6: The housing is aluminum and the probe sleeve is made from 304 stainless steel.
Q7: Are optional conduit fittings available?
A7: Yes, including NPT plugs, reducers, and cable seals for different cable diameters.
Q8: What is the diameter and weight of the housing?
A8: The housing body diameter is 83.3 mm and weighs approximately 1.1 kg.
