Technical Specifications
| Parameter | Value |
|---|---|
| Model | 21000-16-10-15-227-03-02 |

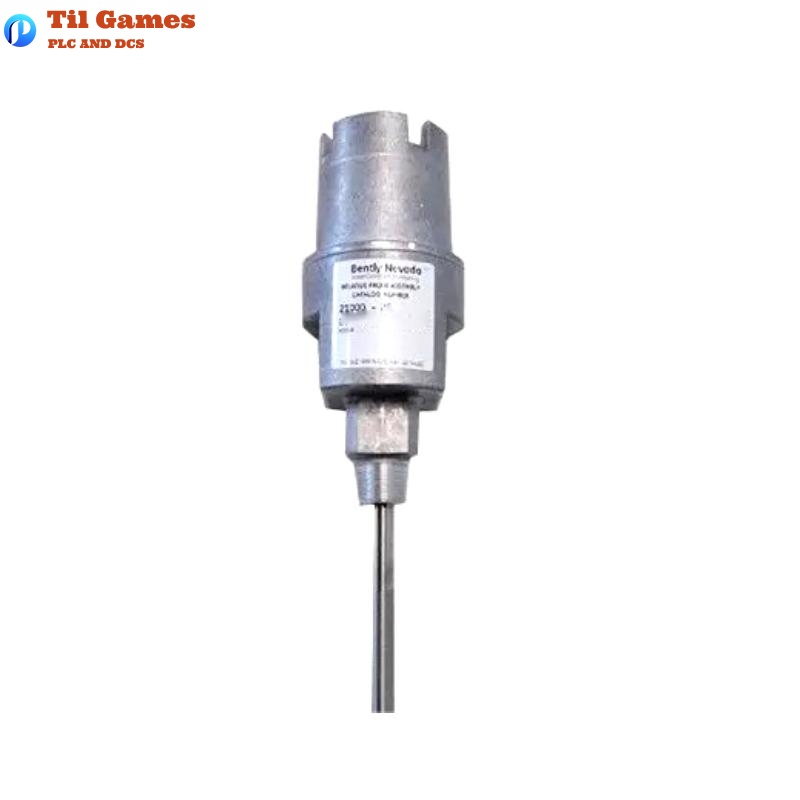

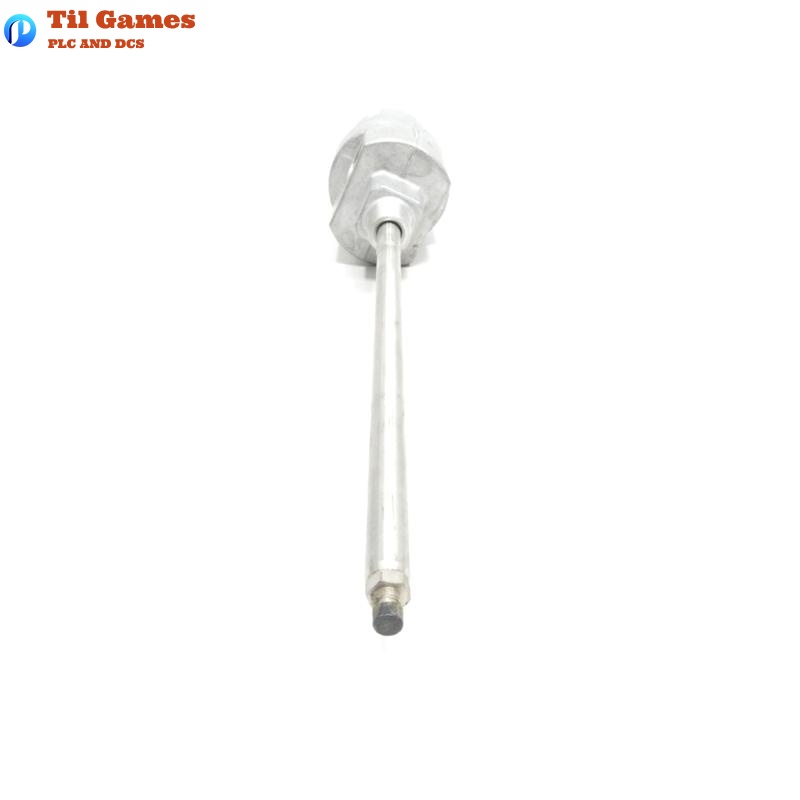

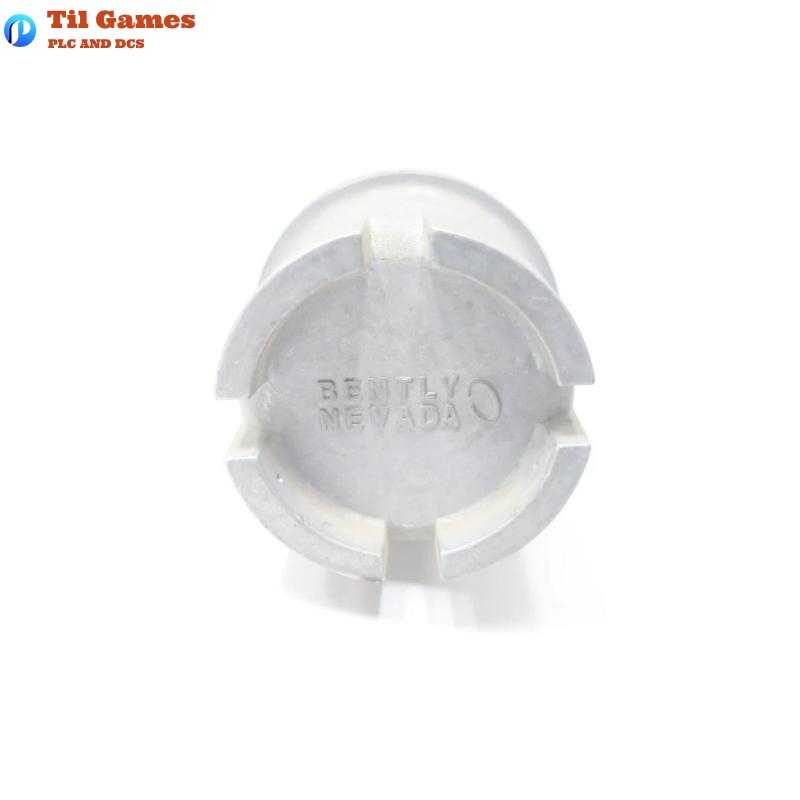

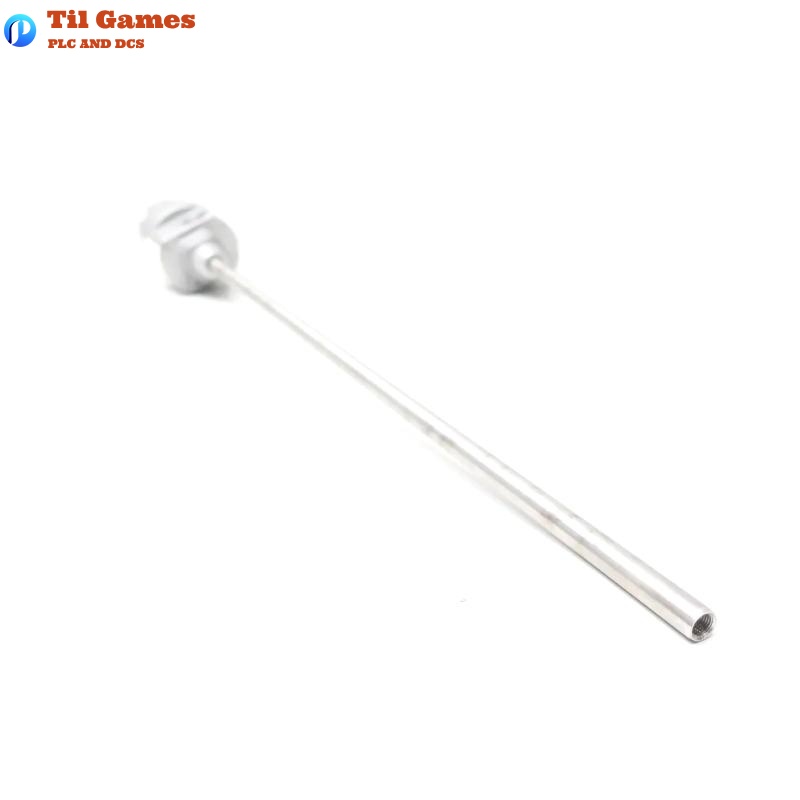

| Housing Material | Aluminum body with 304 Stainless Steel sleeve |
| Temperature Range (operation) | -51°C to +177°C (-60°F to +351°F) |
| Temperature Range (storage) | -51°C to +177°C (-60°F to +351°F) |
| Compatible Probe Types | 3300 XL 8mm, 3300 XL 11mm, 3300 NSv (depending on option) |
| Threaded Mounting Ports | 3/4-14 NPT or other options per configuration |
| Explosion-Proof Rating | CSA Certified: Class I Div 1 & 2, Class II Div 1 & 2, Class III, Type 4 |
| Sleeve Length | Configurable, e.g. 227 = 22.7 in (577.6 mm) |
| Standoff Adapter Length | 1.5 in (38 mm) |
| Probe Penetration Length | 2.27 in (57.7 mm) |
| Housing Body Diameter | 83.3 mm (3.28 in) |
| Overall Length (approx.) | Varies by configuration, typically up to 742 mm |
| Weight | Approx. 1.1 kg (2.4 lb), without fittings |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the material used for the 21000 housing?
A1: The 21000 housing is made of aluminum with a 304 stainless steel probe sleeve.
Q2: What probes are compatible with the 21000 housing?
A2: It supports 3300 XL 8mm, 3300 XL 11mm, and 3300 NSv probes depending on the selected options.
Q3: Can this housing be used in hazardous environments?
A3: Yes, it is CSA-certified explosion-proof for Class I, II, and III hazardous areas with Type 4 enclosure.
Q4: What is the maximum sleeve length that can be supported?
A4: Sleeve lengths longer than 304 mm (12 in) are supported, but require additional sleeve support to avoid resonance.
Q5: What does the code “227” in the part number represent?
A5: It refers to the probe penetration length in tenths of inches—22.7 inches (approximately 577.6 mm).
Q6: Is it possible to get this housing with CSA certification for explosion-proof use?
A6: Yes, CA21000 variants are CSA-certified for explosion-proof installations when selected with appropriate options.
Q7: What thread type is used for mounting?
A7: It is typically 3/4-14 NPT but may vary depending on the configuration. Some versions offer BSP or UNF threads.
Q8: What is the total weight of the 21000 housing without fittings?
A8: Approximately 1.1 kg (2.4 pounds).
