Technical Specifications
| Parameter | Specification |
|---|---|

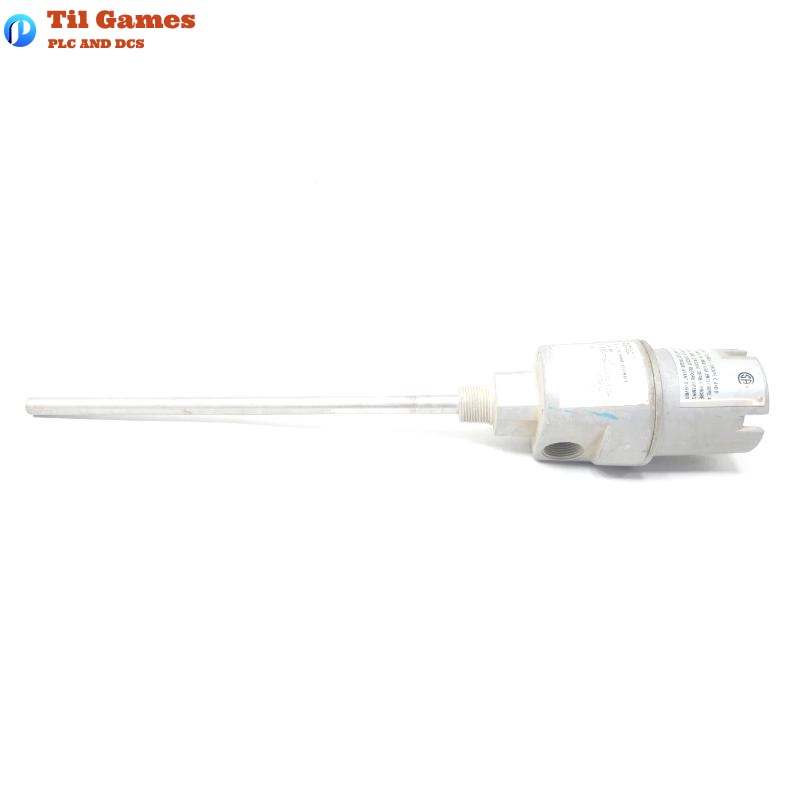

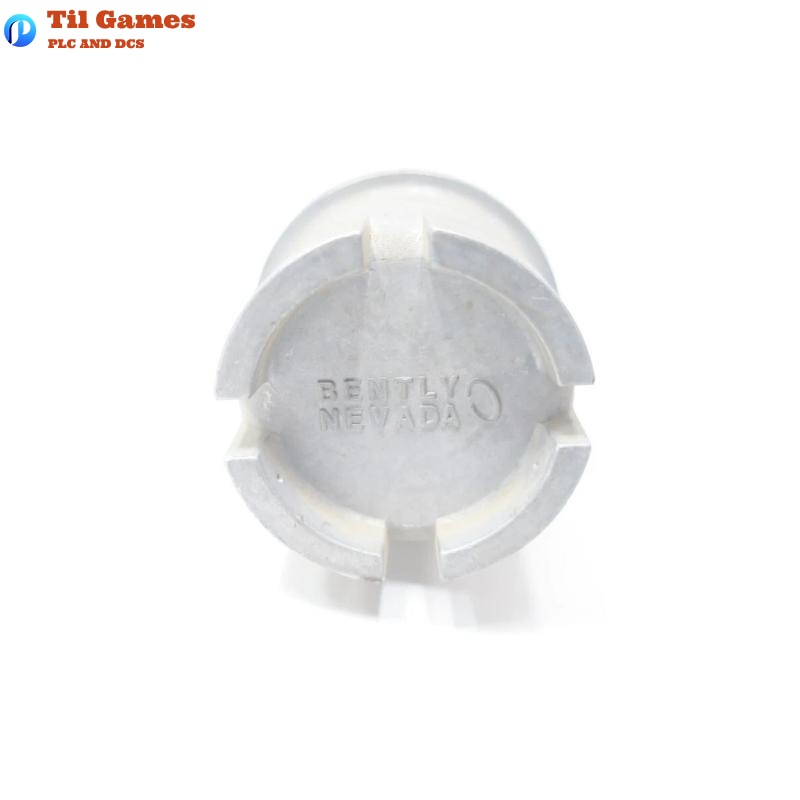

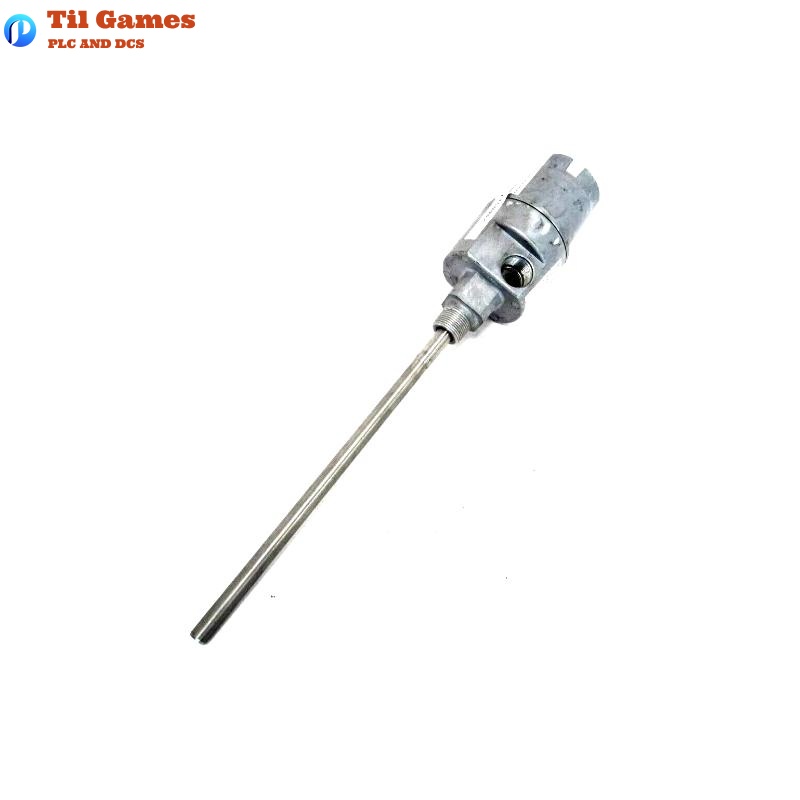

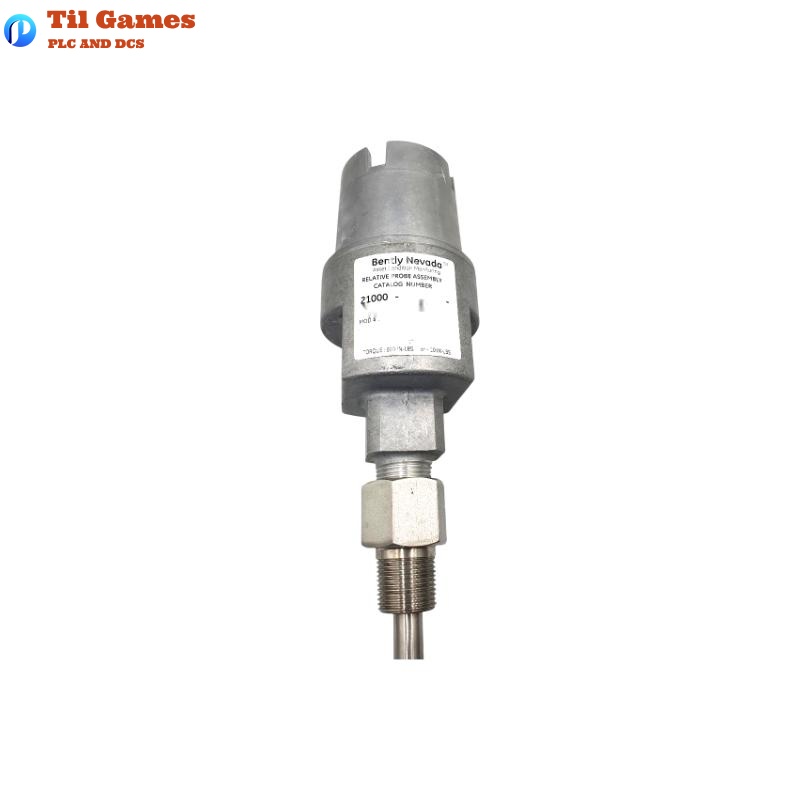

| Model | Bently Nevada 21000-28-05-00-076-04-02 |
| Housing Material | Aluminum body with 304 Stainless Steel sleeve |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Environmental Rating | CSA Type 4; Explosion-Proof; API 670 compliant |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg (without fittings) |
| Compatible Probes | 3300 XL 8mm, 3300 XL 11mm, 3300 NSv Reverse Mount |
| Maximum Sleeve Length | Up to 742 mm (for 1.0 m cable) |
| Probe Penetration Length | Configurable from 25.4 mm (1.0 in) up to 569 mm (22.4 in) |
| Standoff Adapter Length | 38 mm to 191 mm (1.5 in to 7.5 in), in 13 mm (0.5 in) increments |
| Mounting Thread Options | 3/4-14 NPT, 1/2-14 BSP, 7/8-14 UNF-2A, and others |
| Conduit Fittings (Optional) | Up to two 3/4-14 NPT explosion-proof fittings |
| Certifications | CSA Certified for Class I, II, III Div. 1 & 2 (Groups C-G); T4/T5 rated |
FAQ
FAQ – Frequently Asked Questions
Q1: What probe types are supported by the 21000 housing?
A1: It supports 3300 XL 8mm, 11mm, and 3300 NSv reverse mount proximity probes.
Q2: Is the 21000 housing explosion-proof?
A2: Yes, when configured with CSA-approved options (e.g., E:00, E:01, E:02, E:04), the housing is certified explosion-proof.
Q3: What is the maximum supported probe penetration length?
A3: The probe penetration length (C + D) can reach up to 742 mm for 1-meter probe cables.
Q4: Can the housing be used in hazardous environments?
A4: Yes, it is CSA-certified for Class I, II, and III Divisions 1 & 2 and complies with API 670 standards.
Q5: What material is used for the housing body and sleeve?
A5: The body is aluminum, and the sleeve is 304 stainless steel.
Q6: What are the temperature limitations of the housing assembly?
A6: It operates and stores between -51°C to +177°C.
Q7: Is sleeve support required for long probe penetrations?
A7: Yes, sleeve lengths over 304 mm (12 in) must be supported to prevent vibration.
Q8: How is the probe cable length determined?
A8: It is based on the installation location and must be longer than the sleeve.
