Technical Specifications
| Parameter | Description |
|---|---|

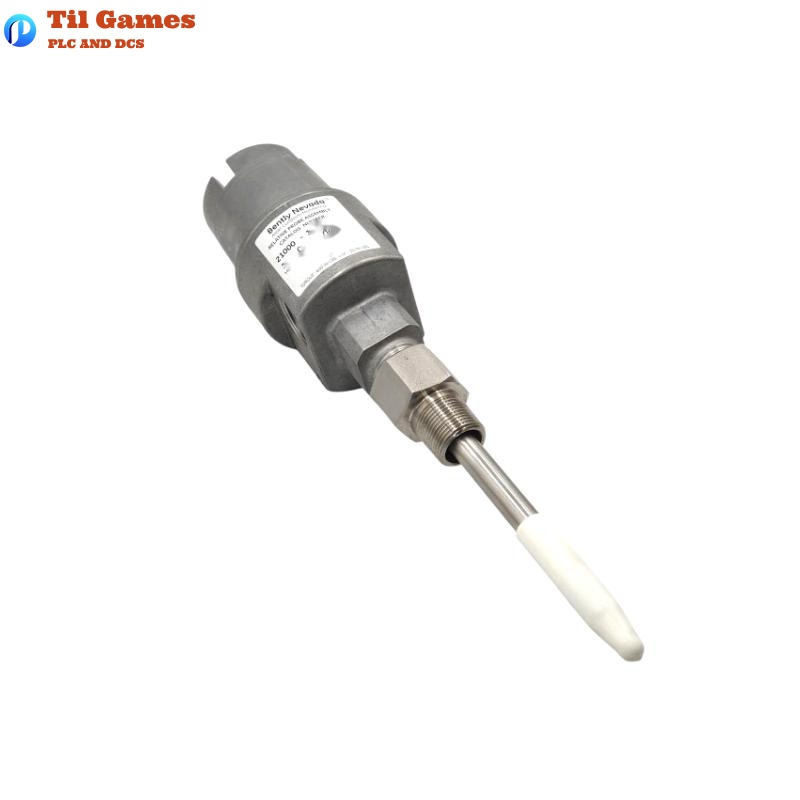

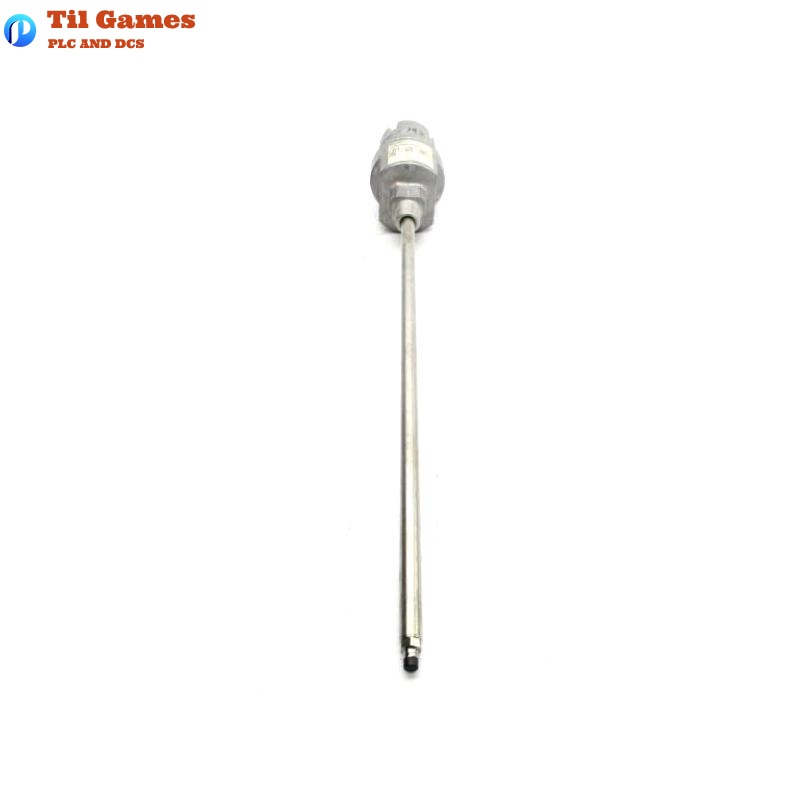

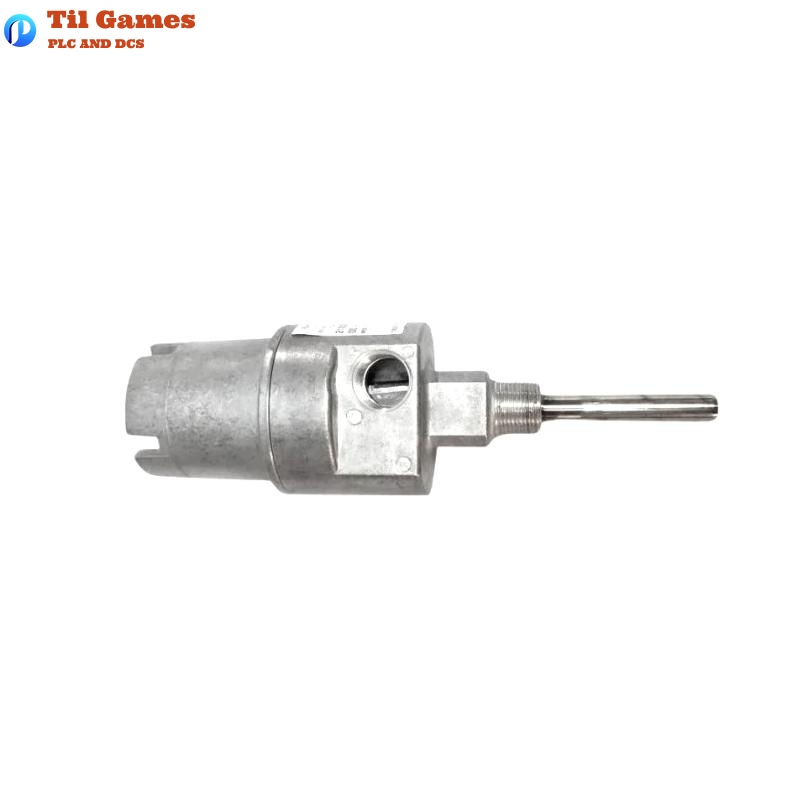

| Model | 21000-28-05-20-038-04-02 |
| Material | Aluminum housing, 304 stainless steel sleeve |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Probe Compatibility | 3300 XL 8mm, 11mm, and NSv |
| Certifications | CSA Type 4, API 670 compliant, explosion-proof (CA version) |
| Environmental Rating | Hazardous areas (Class I, II, III Div 1 and 2) |
| Mounting Thread Option | 3/4-14 NPT (Option F02) |
| Conduit Fittings | 1 x 3/4-14 NPT plug and reducer (Option E03) |
| Probe Sleeve Length | 3.8 in (Option C = 038) |
| Probe Penetration Length | 2.0 in (Option D = 020) |
| Cable Length | 0.5 m (Option B = 05) |
| Housing Body Diameter | 83.3 mm (3.28 in) |
| Weight | 1.1 kg (2.4 lb) |
FAQ
FAQ – Frequently Asked Questions
Q1: What is the material of the 21000 probe housing?
A1: The housing is made of aluminum, and the sleeve is 304 stainless steel.
Q2: Can the 21000 housing be used in hazardous areas?
A2: Yes, when ordered as the CA21000 version, it is certified explosion-proof by CSA for Class I, II, III Div 1 and 2.
Q3: What probe types are supported by this housing?
A3: It supports 3300 XL 8mm, 3300 XL 11mm, and 3300 NSv probes.
Q4: What is the maximum temperature rating?
A4: The housing supports probe operation and storage in temperatures from -51°C to +177°C.
Q5: Is additional support needed for long probe sleeves?
A5: Yes, sleeves longer than 304 mm (12 in) require additional support to prevent vibration issues.
Q6: What is the standard body diameter and weight of the 21000 housing?
A6: The body diameter is 83.3 mm, and the typical weight is 1.1 kg.
Q7: Is this housing compliant with API standards?
A7: Yes, it is compliant with the API 670 standard for proximity probe housing.
Q8: What fitting configuration is used in Option E03?
A8: Option E03 includes one 3/4-14 NPT plug, a 3/4-14 to 1/2-14 NPT reducer, and cable seal grips.
