Technical Specifications
| Parameter | Value |
|---|---|

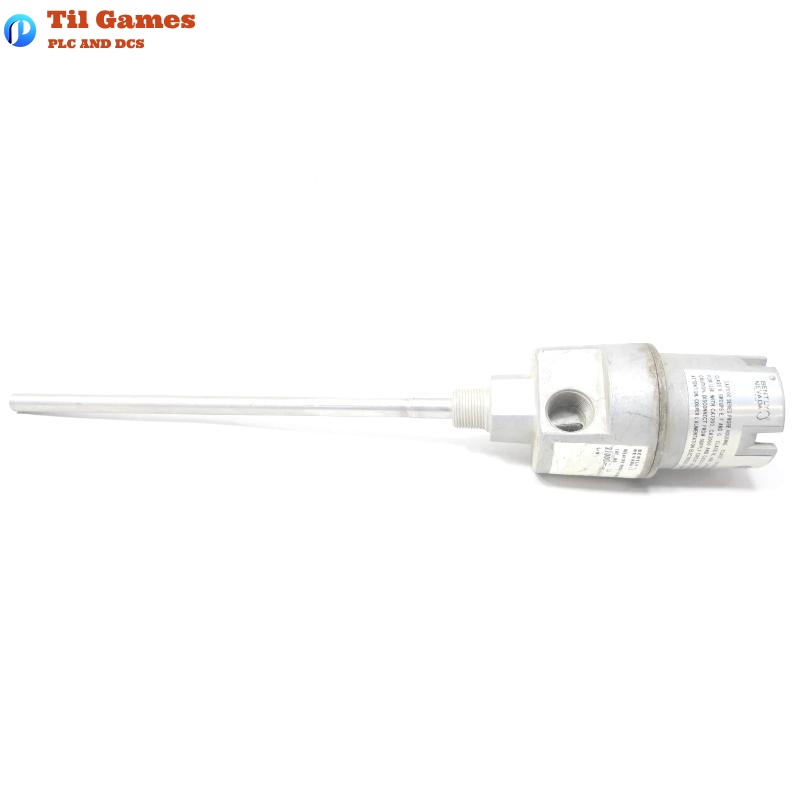

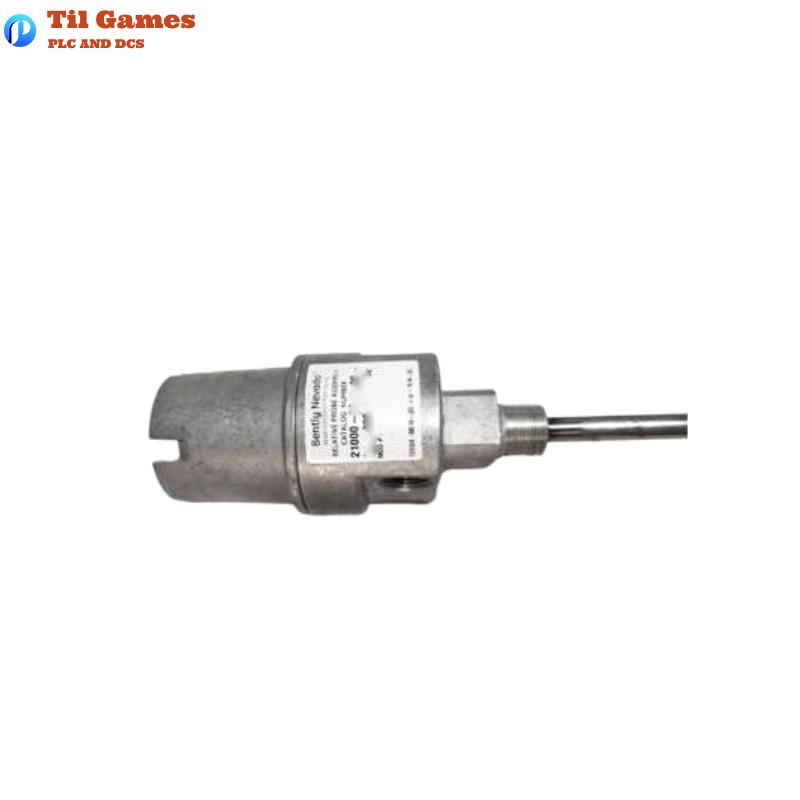

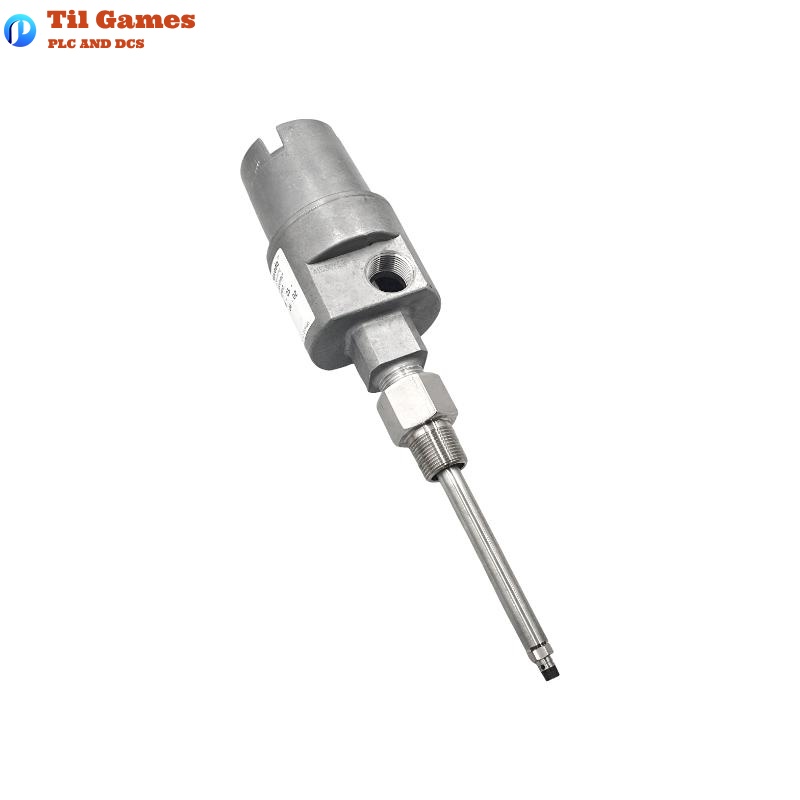

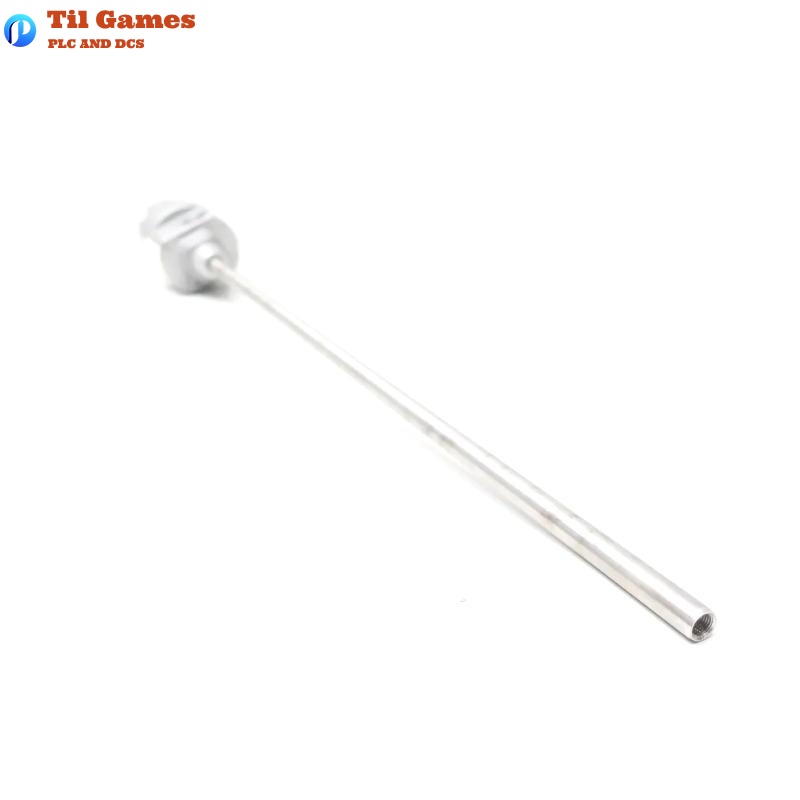

| Model | 21000-34-05-15-056-04-02 |
| Housing Material | Aluminum housing with 304 stainless steel sleeve |
| Operating Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Compatible Probe Types | 3300 XL 8mm / 3300 XL 11mm / 3300 NSv |
| Mounting Thread | 1/2-14 BSP (Option F: 04) |
| Fitting Configuration | One 3/4-14 NPT plug only (Option E: 04) |
| Probe Cable Length | 0.5 m (20 in) (Option B: 05) |
| Standoff Adapter Length | 1.5 in (38 mm) (Option C: 15) |
| Probe Penetration Length | 5.6 in (142 mm) (Option D: 056) |
| Housing Body Diameter | 83.3 mm (3.28 in) |
| Weight | 1.1 kg (2.4 lb) without fittings |
| Environmental Rating | CSA Certified, Explosion-proof, Enclosure Type 4 |
| Compliance | RoHS Directive 2011/65/EU |
FAQ
Frequently Asked Questions (FAQ)
Q1: What probe types are compatible with the 21000 housing assembly?
A1: The housing supports 3300 XL 8mm, 3300 XL 11mm, and 3300 NSv reverse mount probes.
Q2: Is the 21000 housing certified for hazardous locations?
A2: Yes, the CA21000 variant is CSA-certified for Class I, II, III hazardous areas, Divisions 1 and 2.
Q3: What is the recommended sleeve support condition?
A3: If the combined standoff adapter and penetration length exceeds 304 mm (12 in), sleeve support is required to prevent resonance.
Q4: What is the maximum operating temperature for this housing?
A4: The maximum operating temperature is +177°C (+351°F).
Q5: Can the unit be installed without threads?
A5: Yes, Option F:01 offers a version with “as-cast without threads” for weld-in applications.
Q6: What does the fitting option E:04 mean?
A6: It includes only one 3/4-14 NPT plug and no explosion-proof fittings.
Q7: Is this housing compliant with API 670 standards?
A7: Yes, it meets the requirements of API 670 for externally mounted proximity probes.
Q8: Can the probe cable be replaced independently?
A8: Yes, the probe and cable are modular and selectable via the ordering options.
