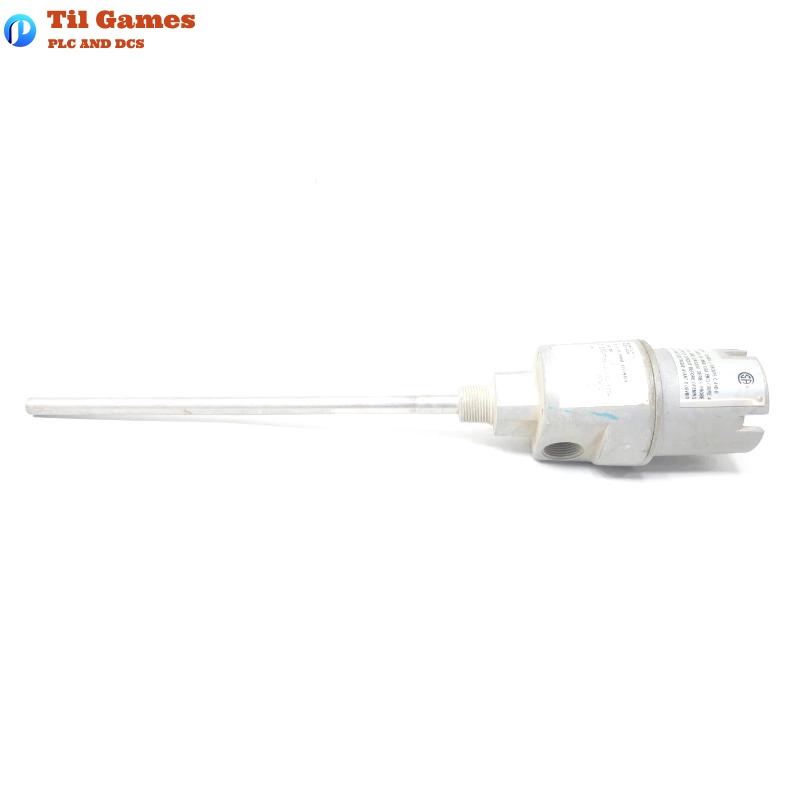

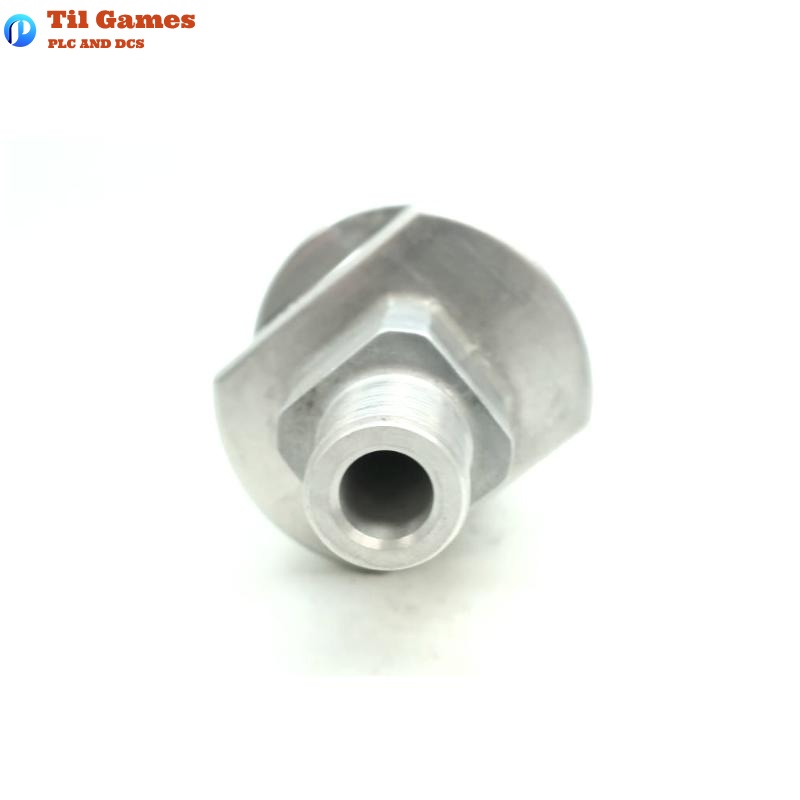

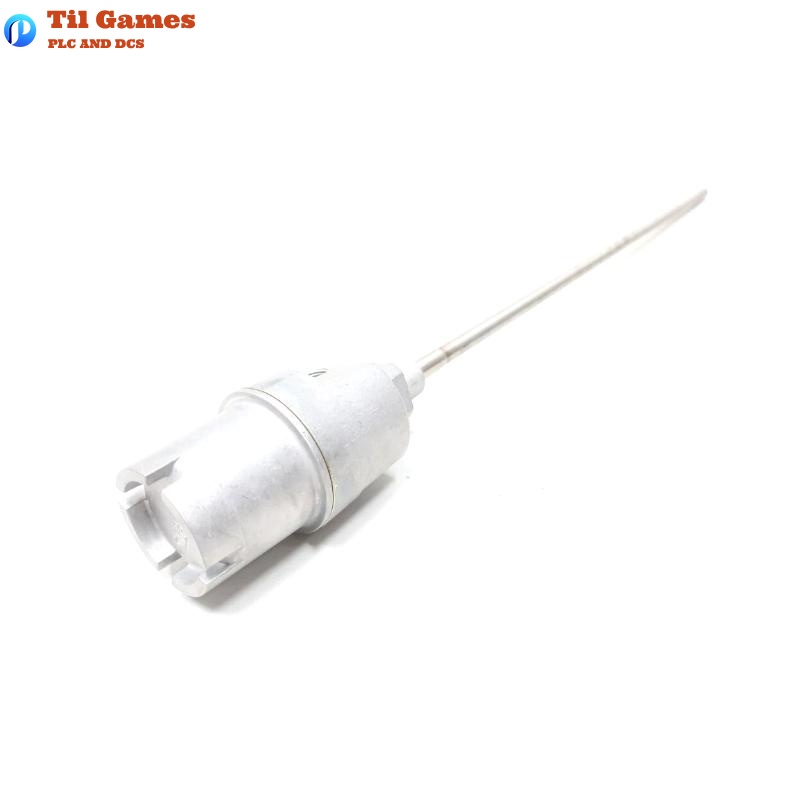

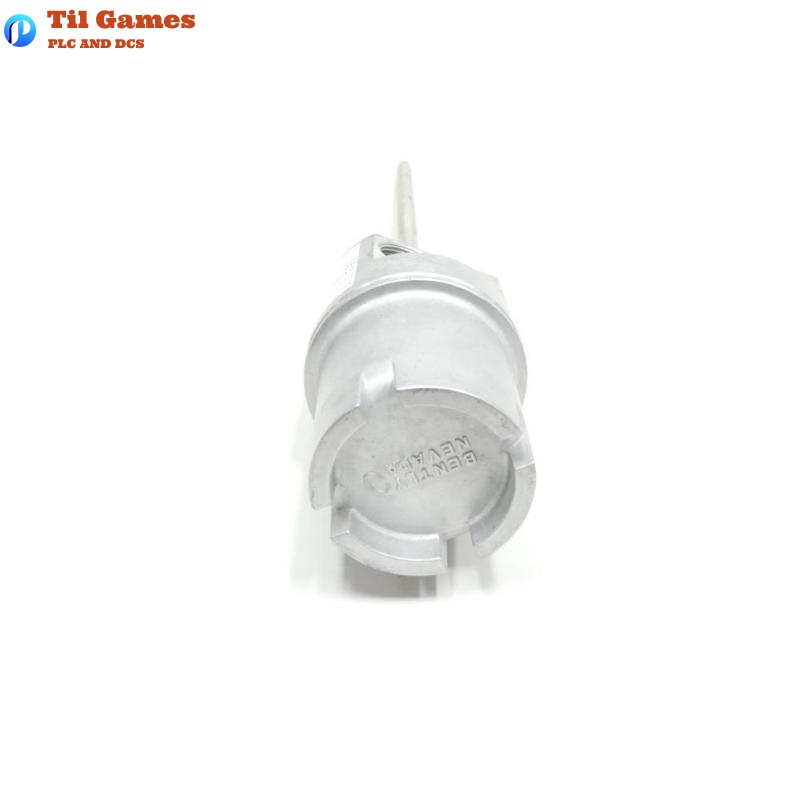

Technical Specifications (21000 Series Aluminum Probe Housing)
| Parameter | Specification |
|---|---|
| Model | 21000-34-10-20-058-04-02 |
| Material | Aluminum housing with 304 stainless steel sleeve |
| Operating Temp. | -51°C to +177°C |
| Storage Temp. | -51°C to +177°C |
| Enclosure Rating | CSA Type 4, explosion-proof for hazardous areas |
| Mounting Threads | 3/4-14 NPT, 1-11½ NPT, 1/2-14 BSP, 7/8-14 UNF-2A |
| Probe Compatibility | 3300 XL 8mm / 11mm / NSv reverse mount probes |
| Probe Mounting | Reverse mount |
| Cable Length | Standard 0.5 m / 1.0 m (customizable) |
| Probe Penetration D | 20 = 2.0 in = 50.8 mm (minimum 1.0 in) |
| Standoff Length C | 10 = 1.0 in = 25.4 mm (minimum 1.5 in) |
| Housing Diameter | 83.3 mm |
| Housing Length | 161.6 mm |
| Weight | 1.1 kg |
| Cable Fittings | 3/4-14 NPT plug, optional sealing grommets |
| Standards | API 670 compliant, RoHS, CSA certified |
FAQ
Frequently Asked Questions (FAQ)
Q1: What probes are compatible with the 21000 housing?
A1: The 21000 housing is compatible with 3300 XL 8mm, 11mm, and NSv reverse-mount probes.
Q2: Is the 21000 housing explosion-proof?
A2: Yes, the 21000 series is CSA certified for Class I Div 1 & 2, Groups C and D hazardous areas.
Q3: What is the maximum allowable probe penetration length?
A3: The combined C + D dimension can reach up to 742 mm. For lengths over 304 mm (12 in), sleeve support is required.
Q4: Is the housing suitable for corrosive environments?
A4: The aluminum 21000 model offers general protection; for higher corrosion resistance, consider the 24701 stainless steel version.
Q5: Are cable seals mandatory?
A5: No, but they are recommended for environmental protection and sealing.
Q6: Does this housing comply with API 670 standards?
A6: Yes, it fully meets API 670 requirements for externally mounted proximity probe housings.
Q7: Are there orientation restrictions when mounting the probe sleeve?
A7: The probe sleeve is reverse-mounted and should be installed according to machine geometry and design.
Q8: Can the probe be replaced in the field?
A8: Yes, probes are threaded and can be easily removed and replaced on site.
