Technical Specifications
| Parameter | Description |
|---|---|

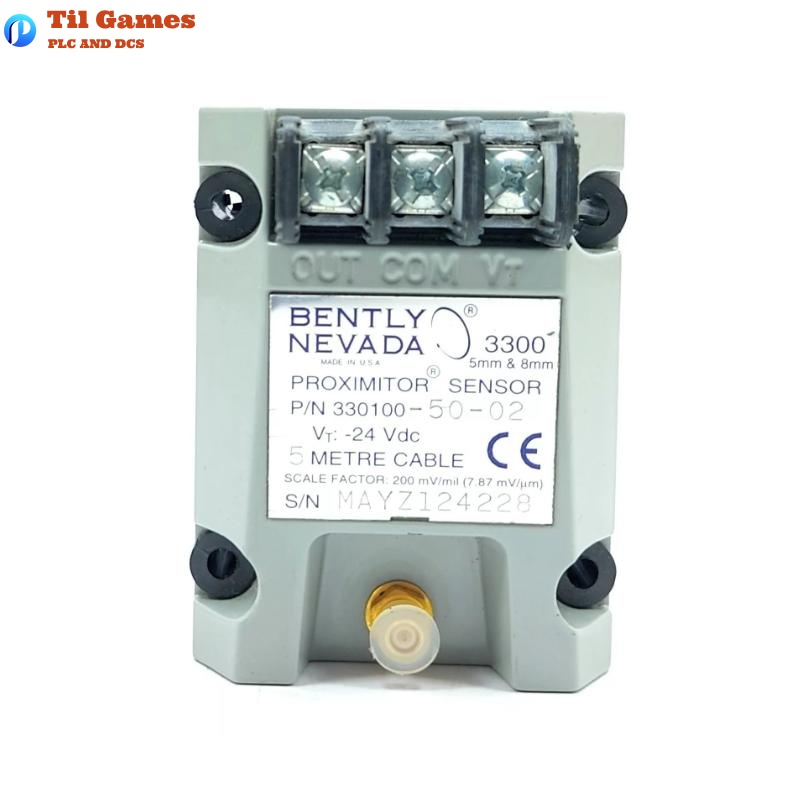

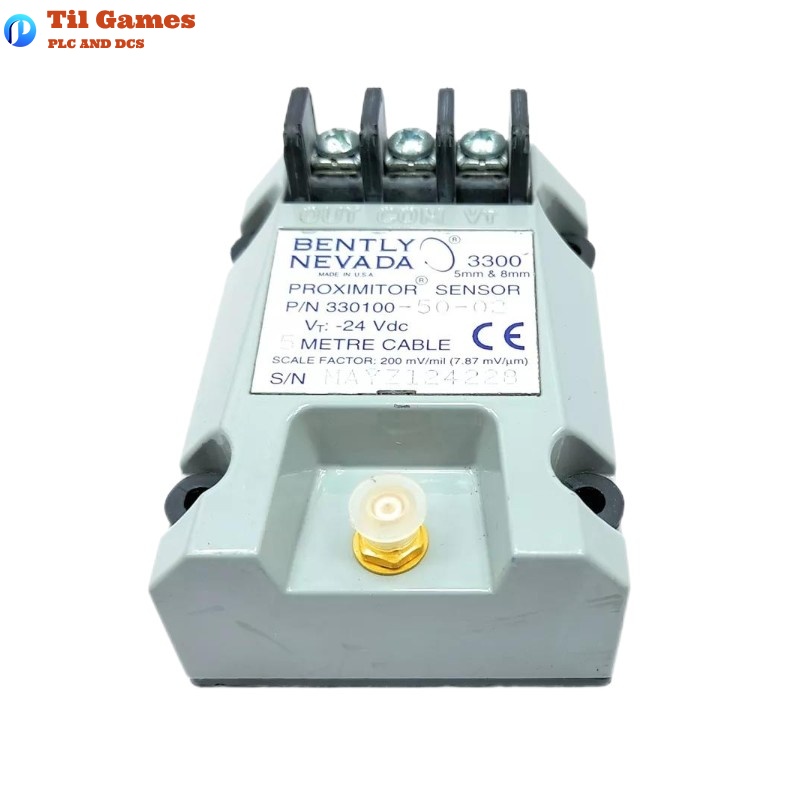

| Model | Bently Nevada 330100-50-02 |
| Product Type | 3300 Proximitor® Sensor |
| Application | Vibration and position monitoring of fluid-film bearing machines |
| Input | 3300 5 mm, 3300 8 mm or 3300 XL 8 mm probe with extension cable |
| Output Resistance | 50 Ω |
| Operating Voltage | -17.5 Vdc to -26 Vdc, max 12 mA |
| Linear Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Scale Factor | 7.87 mV/µm (200 mV/mil) ±6.5% |
| Frequency Response | 0 – 6.5 kHz (with up to 305 m field wiring) |
| Operating Temperature (Probe) | -35°C to +177°C |
| Operating Temperature (Sensor) | -51°C to +100°C |
| Humidity | 100% condensing, non-submersible |
| Housing Material (Sensor) | Aluminum A383 |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Total Length | 5.0 meters |
| Weight | 0.25 kg (approximate for 5 m system) |
| Minimum Shaft Diameter | 50.8 mm recommended (≥76.2 mm for optimal performance) |
| Minimum Cable Bend Radius | 25.4 mm |
| Mounting Torque (M10/M8 Threads) | Varies (up to 33.9 N·m max for M10) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of probes is compatible with the 330100-50-02 Proximitor Sensor?
A1: It is compatible with 3300 5 mm, 8 mm, and 3300 XL 8 mm probes.
Q2: What is the recommended gap setting for optimal accuracy?
A2: The recommended gap is 1.27 mm (50 mils).
Q3: What is the linear measurement range supported?
A3: The sensor supports a linear range from 0.25 mm to 2.3 mm.
Q4: What are the operating voltage requirements?
A4: It requires a power supply between -17.5 Vdc and -26 Vdc with a maximum current draw of 12 mA.

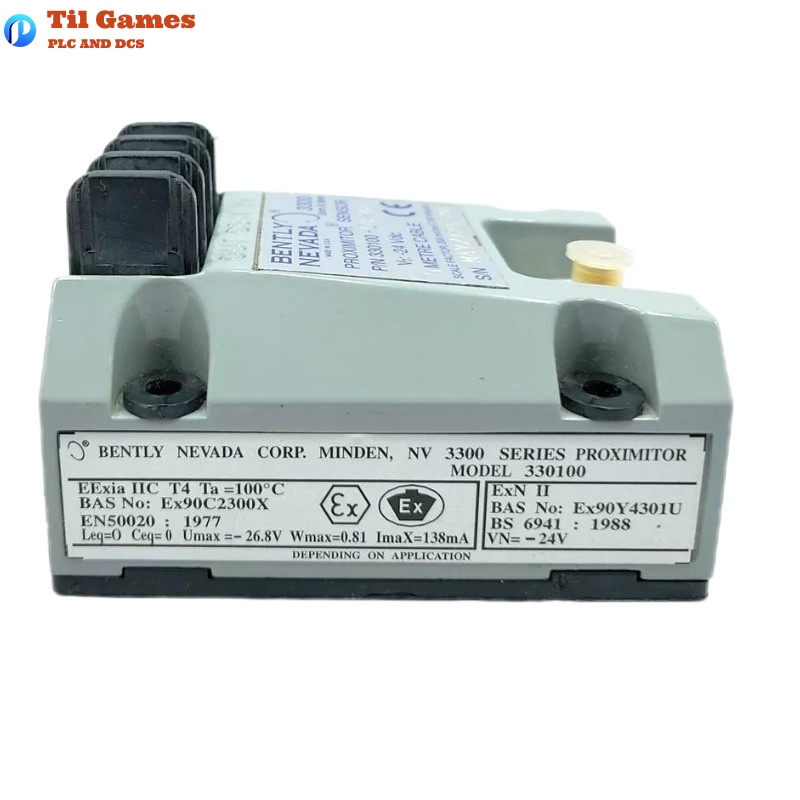

Q5: Is the 330100-50-02 sensor certified for hazardous areas?
A5: Yes, it has CSA and BASEEFA/CENELEC certifications for use in hazardous areas.
Q6: What is the total weight of a 5.0-meter system?
A6: Approximately 0.25 kg.
Q7: Can the sensor be used in high-humidity environments?
A7: Yes, it supports 100% condensing humidity if connectors are protected.
Q8: What is the frequency response of the system?
A8: It supports up to 6.5 kHz with signal fidelity within +0/-3 dB.
