Technical Specifications
| Parameter | Specification |
|---|---|

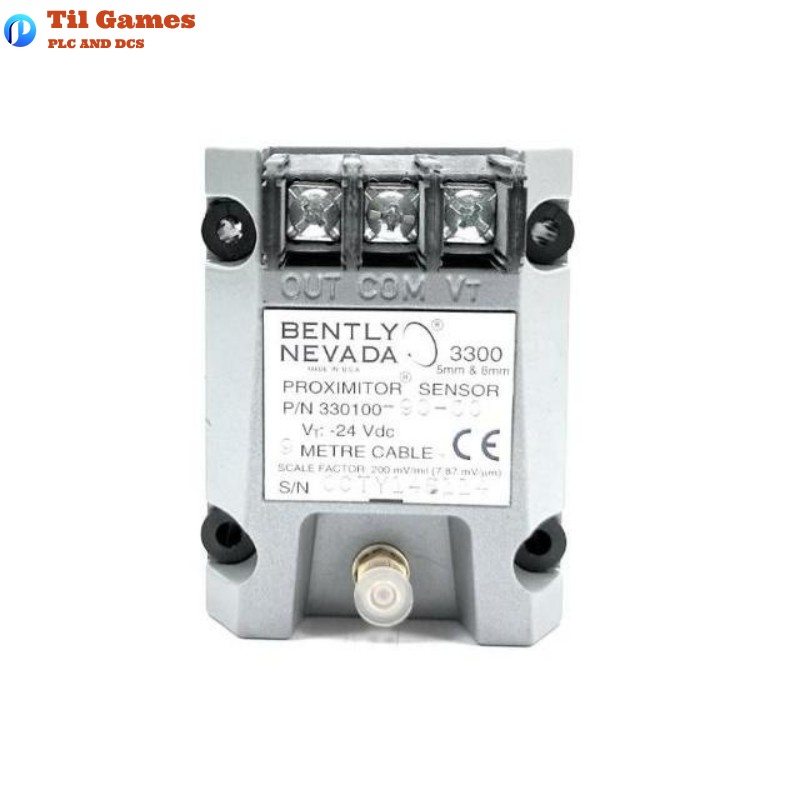

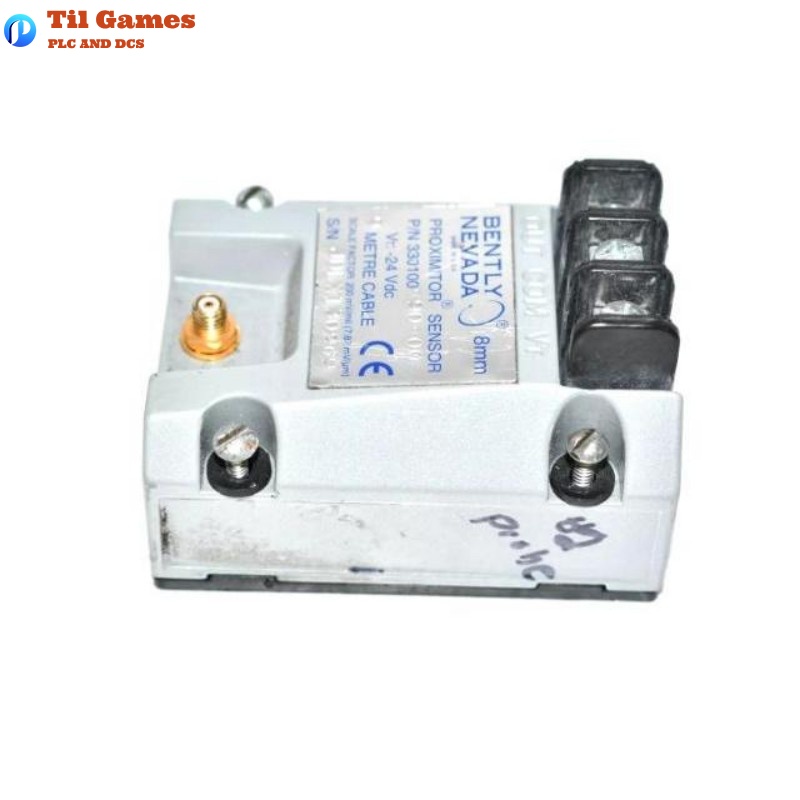

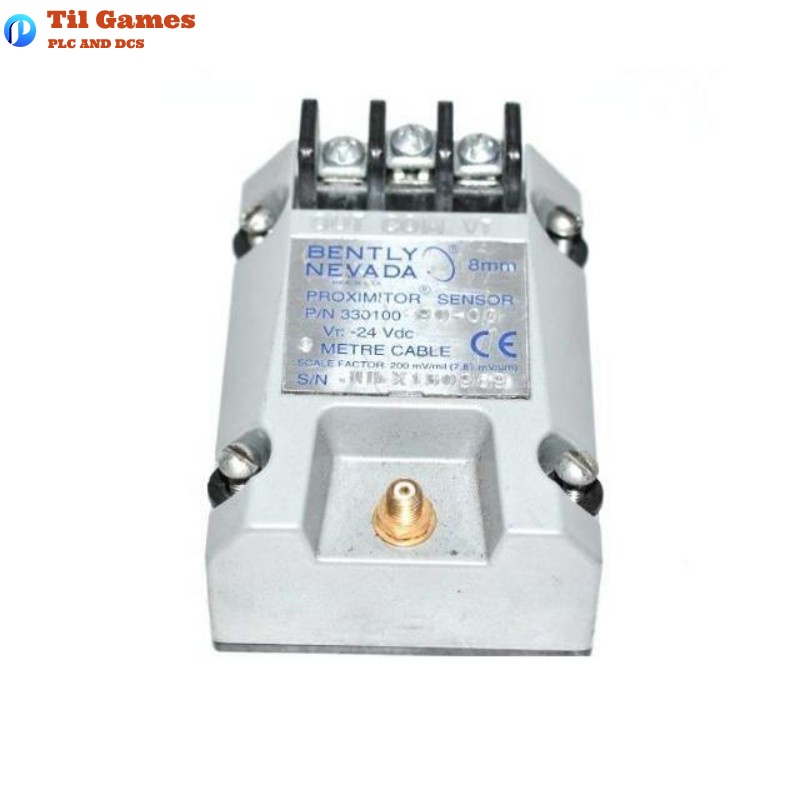

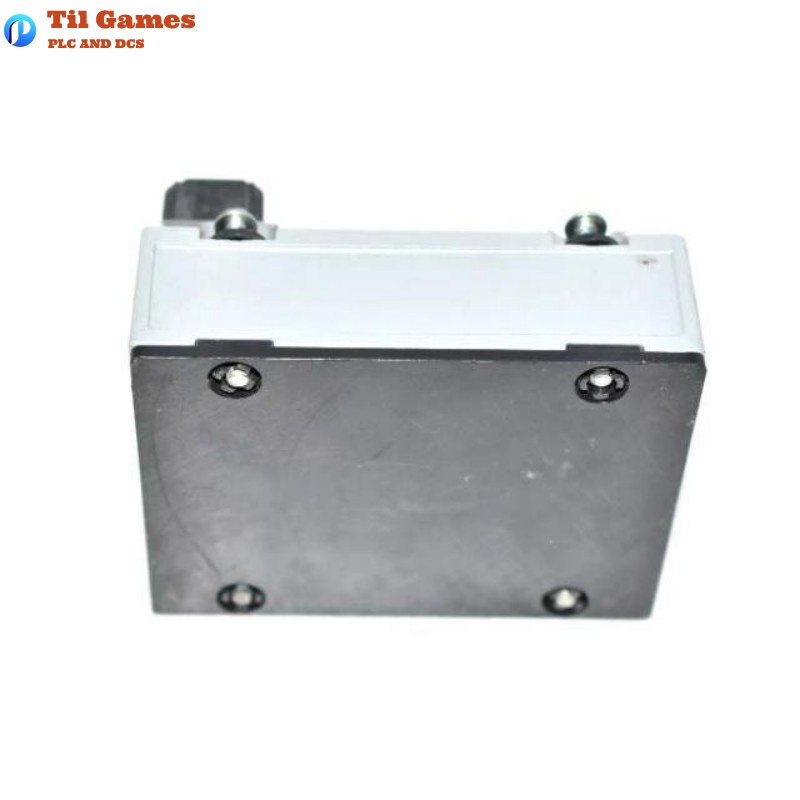

| Product Model | Bently Nevada 330100-90-00 |
| System Type | 3300 Proximitor Sensor System (with probe, extension cable, sensor) |
| Power Supply | -17.5 Vdc to -26 Vdc, max 12 mA |
| Output Resistance | 50 Ω |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Scale Factor | 7.87 mV/µm (200 mV/mil) ±6.5% |
| Frequency Response | 0 to 6.5 kHz (with up to 305 m field wiring) |
| Minimum Target Size | 15.2 mm diameter |
| Minimum Shaft Diameter | 50.8 mm (recommended ≥ 76.2 mm) |
| Total Length | 9.0 meters |
| Weight | 0.25 kg |
| Operating Temp (Sensor) | -51°C to +100°C |
| Operating Temp (Probe) | -51°C to +177°C (XL) / -35°C to +177°C (non-XL) |
| Humidity | 100% condensing, non-submersible |
| Connector Type | ClickLoc™ gold-plated brass |
| Materials | Probe: 304 SST & PPS tip, Sensor: Aluminum |
| Minimum Cable Bend Radius | 25.4 mm |
| Safety Certification | CSA/NRTL/C, BASEEFA/CENELEC Exia, ExN (Zone 2) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330100-90-00 Proximitor Sensor?
A1: It measures both static position and dynamic vibration of rotating machinery using eddy current technology.
Q2: What is the recommended gap setting?
A2: The recommended gap between the probe and target is 1.27 mm (50 mils).
Q3: Is the system suitable for high-temperature environments?
A3: Yes. The probe can withstand up to 177°C, and the sensor operates up to 100°C.
Q4: Can the components be interchanged without recalibration?
A4: Yes. The system allows full interchangeability of probe, cable, and sensor without the need for recalibration.
Q5: What is the minimum shaft diameter recommended for reliable measurement?
A5: While the absolute minimum is 50.8 mm, 76.2 mm or larger is recommended for accuracy.
Q6: What certifications does this product hold?
A6: It meets CSA, BASEEFA, and CENELEC certifications for hazardous areas (Zones 0, 1, 2).
Q7: Does the system support long-distance wiring?
A7: Yes, up to 305 meters (1000 feet) of field wiring is supported with shielded triad cables.
Q8: What materials are used in the probe construction?
A8: The probe is made of 304 stainless steel with a polyphenylene sulfide (PPS) molded tip.
