Technical Specifications
| Parameter | Description |
|---|---|

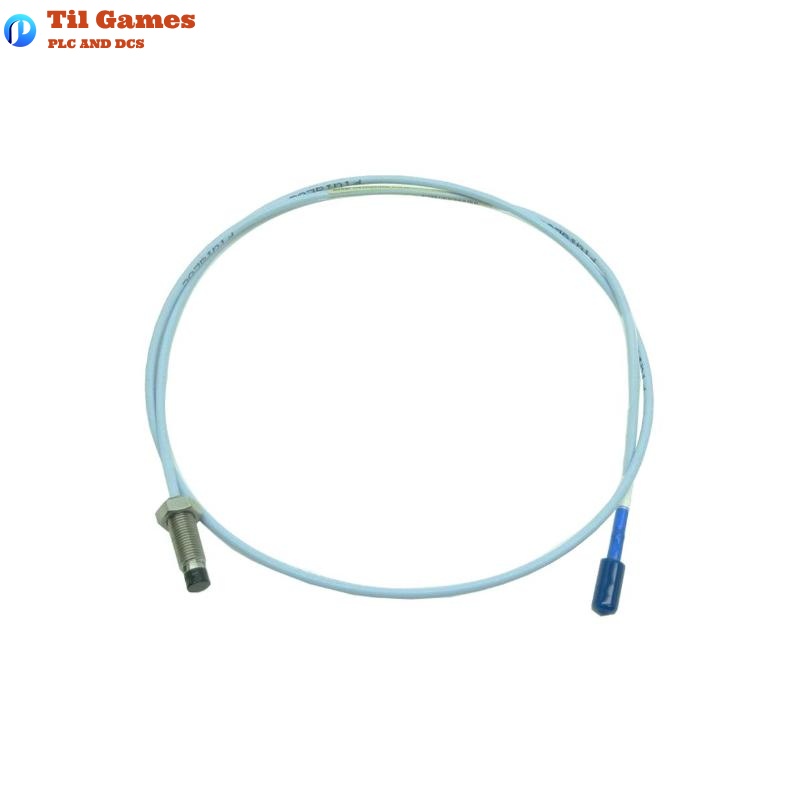

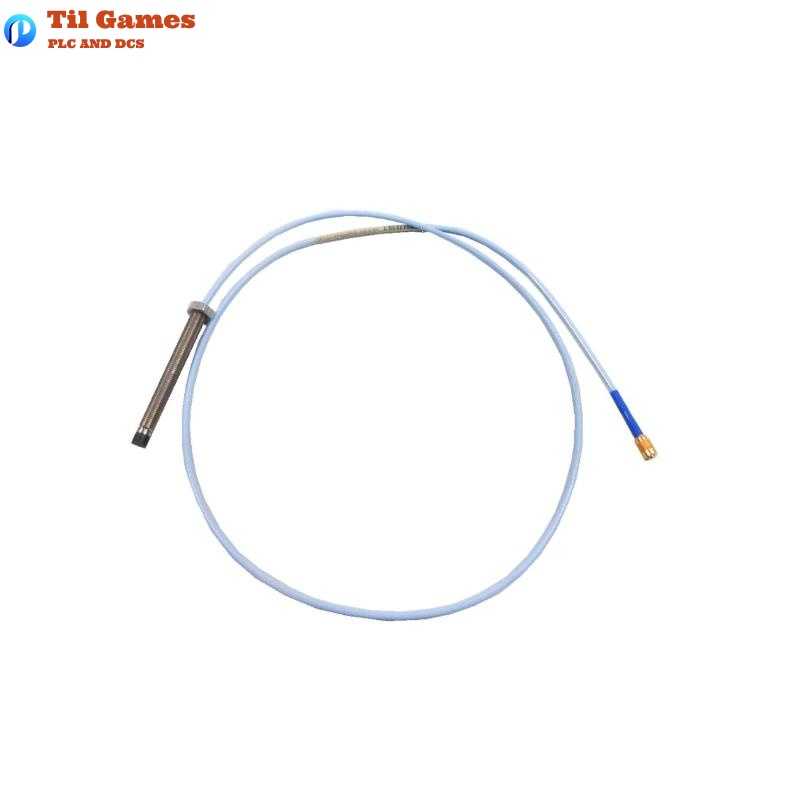

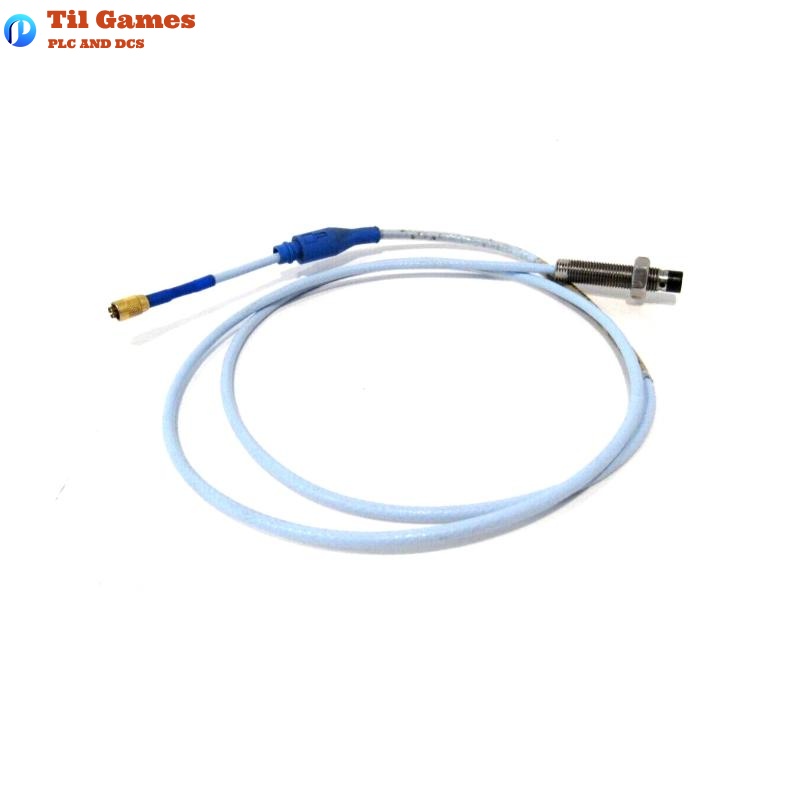

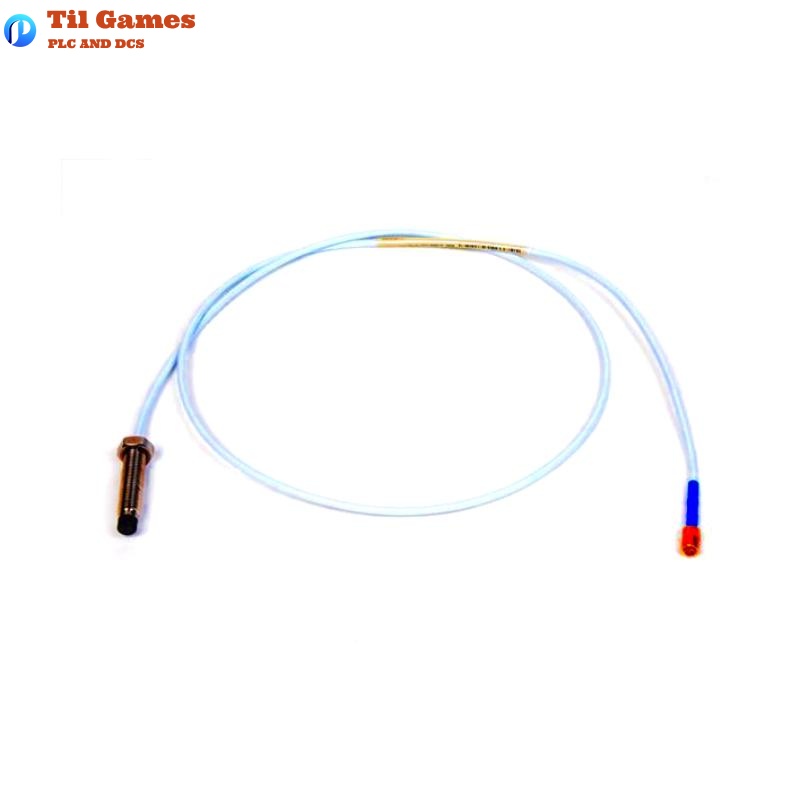

| Product Model | Bently Nevada 330101-00-08-20-02-05 |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Probe Cable Type | 75Ω triaxial FEP-insulated standard cable |
| Connector Type | Miniature coaxial ClickLoc (gold-plated brass or beryllium copper) |
| Connector Torque | Max 0.565 N·m (5 in·lbf) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (5 m or 1 m system) |
| Frequency Response | 0 to 10 kHz, +0, -3 dB with up to 305 m field wiring |
| Shaft Diameter (Min / Recommended) | Min: 50.8 mm / Recommended: 76.2 mm |
| Power Supply Range | –17.5 VDC to –26 VDC, nominal -24 VDC |
| Total Length | 2.0 meters |
| Total System Weight | 0.646 kg |
| Operating Temperature (Probe) | -52°C to +177°C (Standard) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Environmental Compliance | FCC, CE, RoHS, SIL2/SIL3, ATEX, IECEx |
FAQ
FAQ
Q1: What is the function of the 330101-00-08-20-02-05 proximity probe?
A1: It measures both static (position) and dynamic (vibration) parameters in fluid-film bearing machines.
Q2: What type of cable insulation is used?
A2: The probe uses a FEP-insulated 75Ω triaxial cable.
Q3: Can the probe be used in high-temperature applications?
A3: Yes, but for temperatures above +177°C, the Extended Temperature Range (ETR) version is required.
Q4: Is the connector assembly tool-free?
A4: Yes, ClickLoc connectors are finger-tight and require no special tools.
Q5: Is the system compatible with older 3300 series components?
A5: Yes, it is both electrically and physically compatible with 3300 5 mm and 8 mm systems.
Q6: What is the recommended gap voltage for vibration measurement?
A6: –9 VDC, which corresponds to approximately 1.27 mm (50 mils) gap.
Q7: Is the probe resistant to electromagnetic interference?
A7: Yes, the Proximitor Sensor has improved RFI/EMI immunity and meets CE requirements.
Q8: What is the maximum tensile strength of the cable-to-probe connection?
A8: The maximum rated strength is 330 N (75 lbf).
