Technical Specifications
| Item | Description |
|---|---|
| Model | 330101-00-08-20-02-CN |

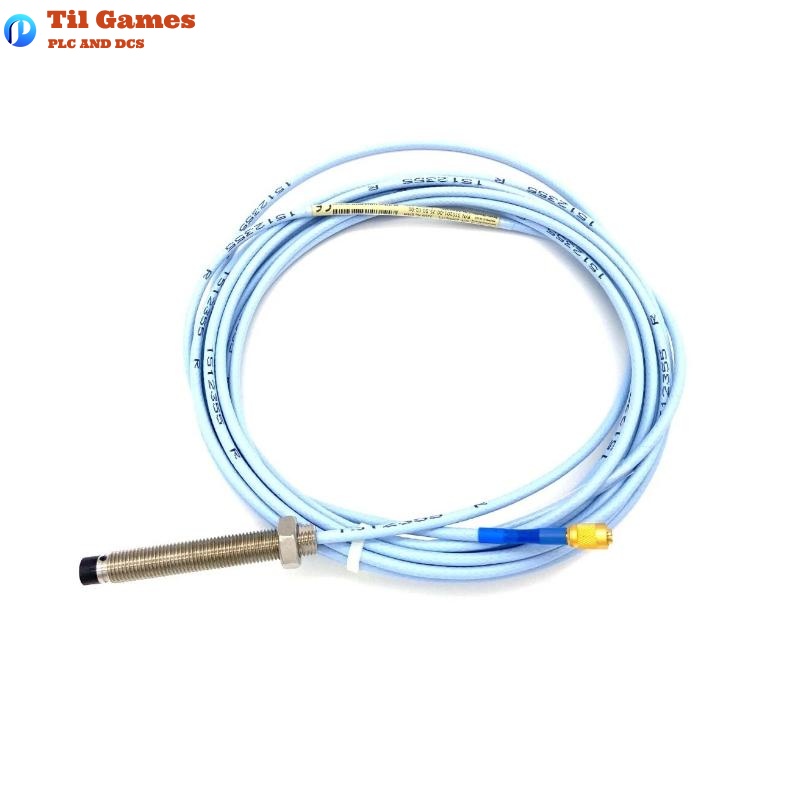

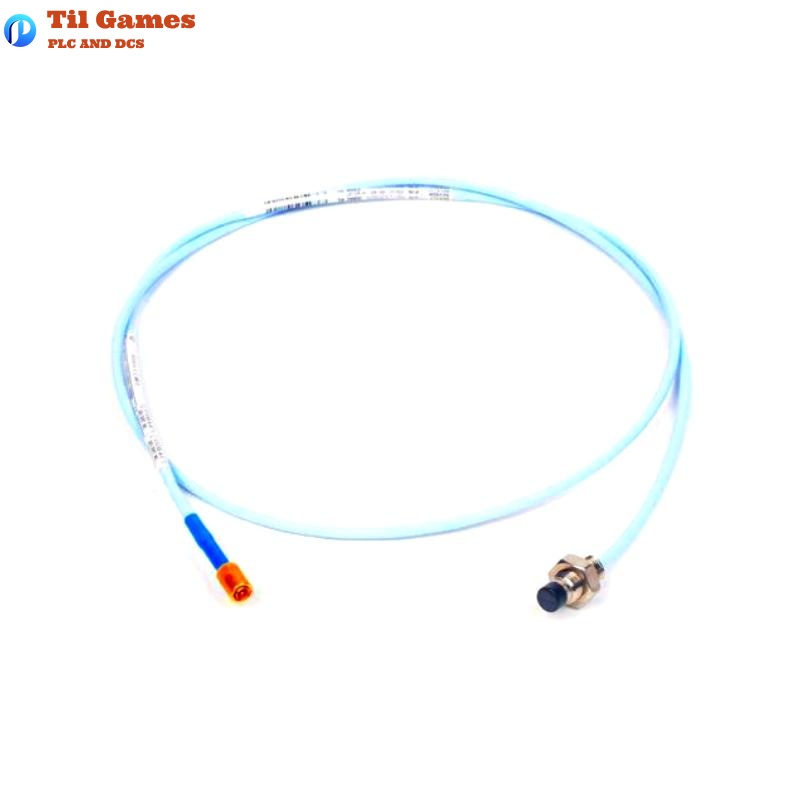

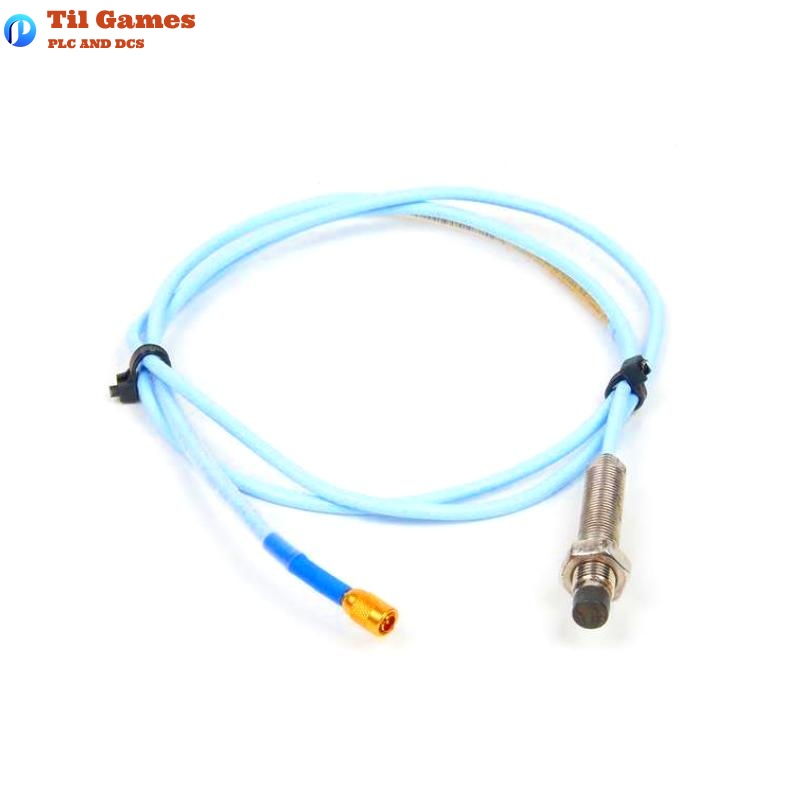

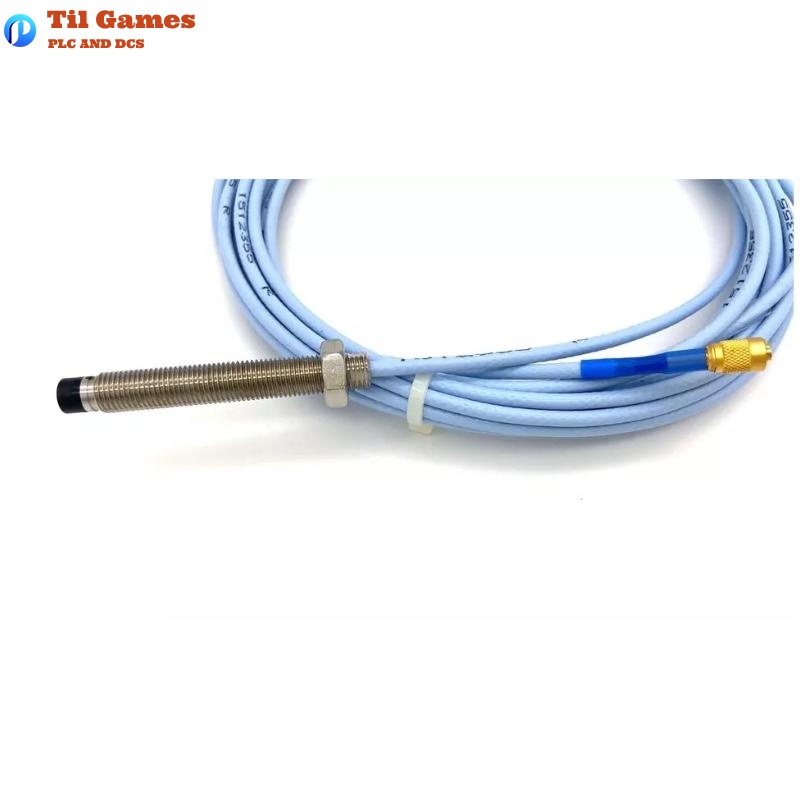

| Probe Type | Non-contacting eddy current displacement sensor |
| Probe Diameter | 8 mm |
| Probe Material | AISI 303/304 stainless steel, PPS tip |
| Cable Type | 75Ω triaxial, FEP insulated standard cable |
| Total Length | 2.0 meters (6.6 feet) |
| Recommended Thread | 3/8-24 UNF |
| Recommended Gap Voltage | -9 Vdc (approx. 1.27 mm / 50 mils) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% (standard system) |
| Temperature Range | -52°C to +177°C |
| Weight (System Total) | 0.646 kg (typical) |
| Minimum Shaft Diameter | 50.8 mm (recommended minimum 76.2 mm) |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Recommended Load | 10 kΩ |
| Frequency Response | 0 to 10 kHz, +0 / -3 dB |
| Minimum Target Size | 15.2 mm flat surface |
| Recommended Probe Spacing | 38 mm (radial), 40 mm (axial) |
| Min Cable Bend Radius | 25.4 mm |
| Mounting Options | Panel mount or DIN rail mount |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the operating temperature range of the 330101 probe?
A1: The standard probe operates from -52°C to +177°C.
Q2: What is the total length of this model?
A2: The total length is 2.0 meters including probe and cable.
Q3: What is the output sensitivity of the probe?
A3: 7.87 V/mm (200 mV/mil) ±5% for standard system configuration.
Q4: What parameters can this probe measure?
A4: It measures both static (position) and dynamic (vibration) displacement.
Q5: What is the typical weight of the system?
A5: The typical total weight is 0.646 kg.
Q6: What components are needed with this probe?
A6: The probe works with a 3300 XL extension cable and a 3300 XL Proximitor Sensor.
Q7: Is it compliant with API 670 standards?
A7: Yes, the 3300 XL 8 mm system fully complies with API 670.
Q8: Are special tools needed for installation?
A8: No, all connectors are ClickLoc design and require only hand-tightening.
