Technical Specifications
| Parameter | Description |
|---|---|
| Part Number | 330101-00-11-20-02-05 |

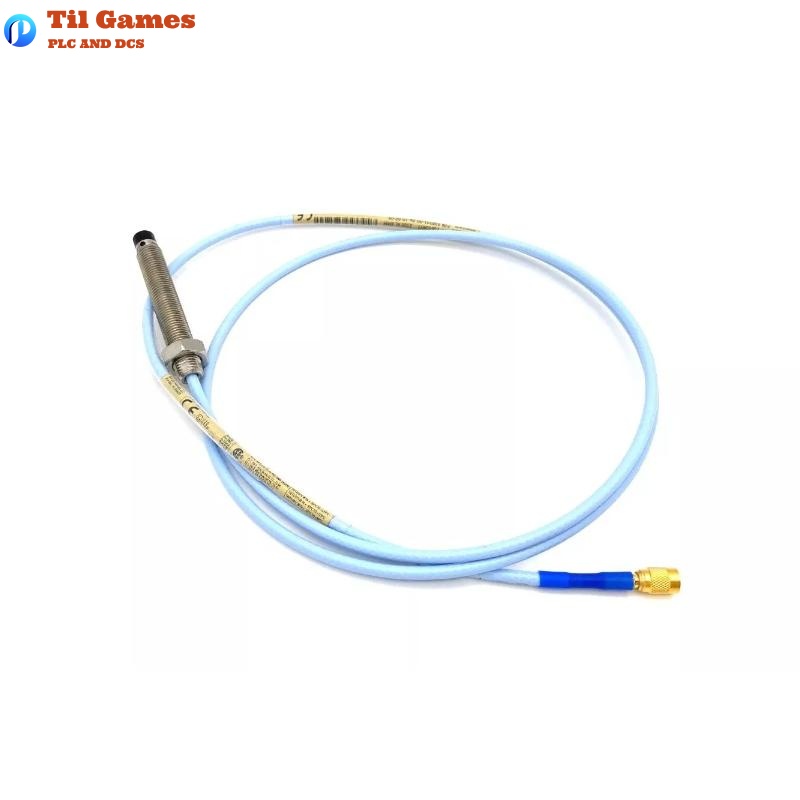

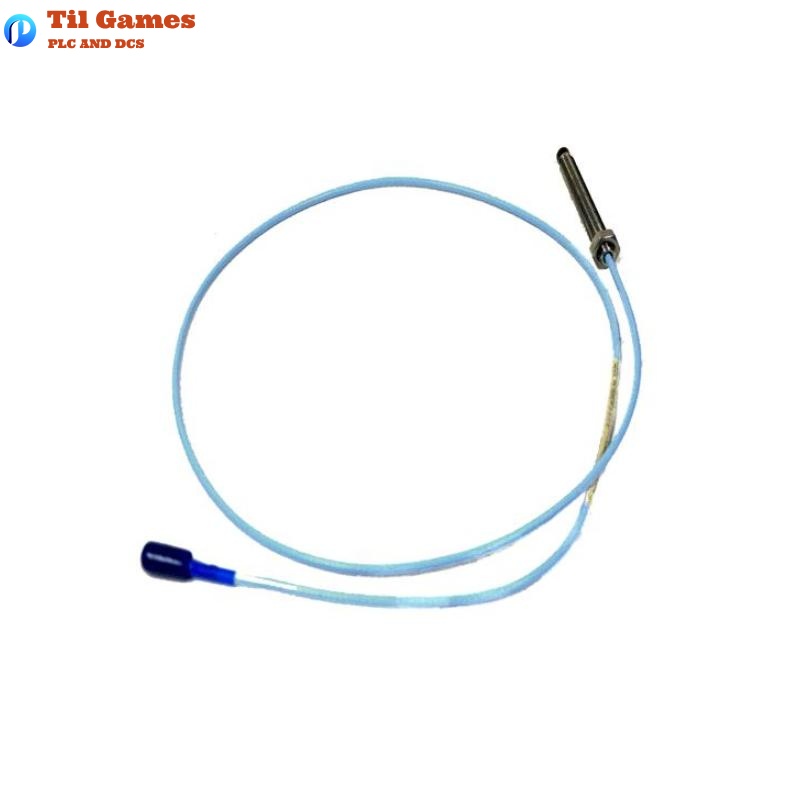

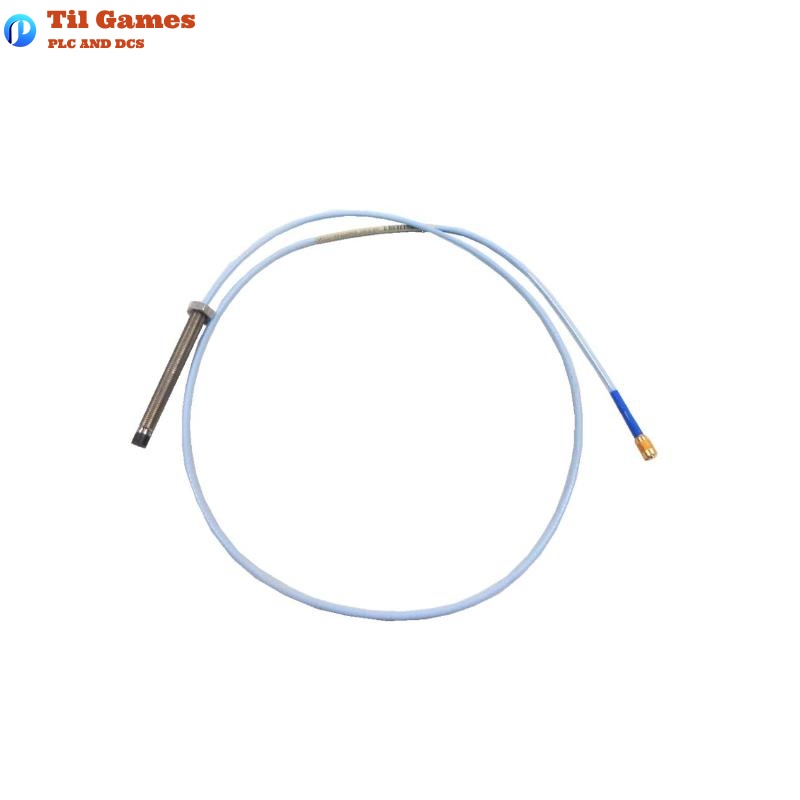

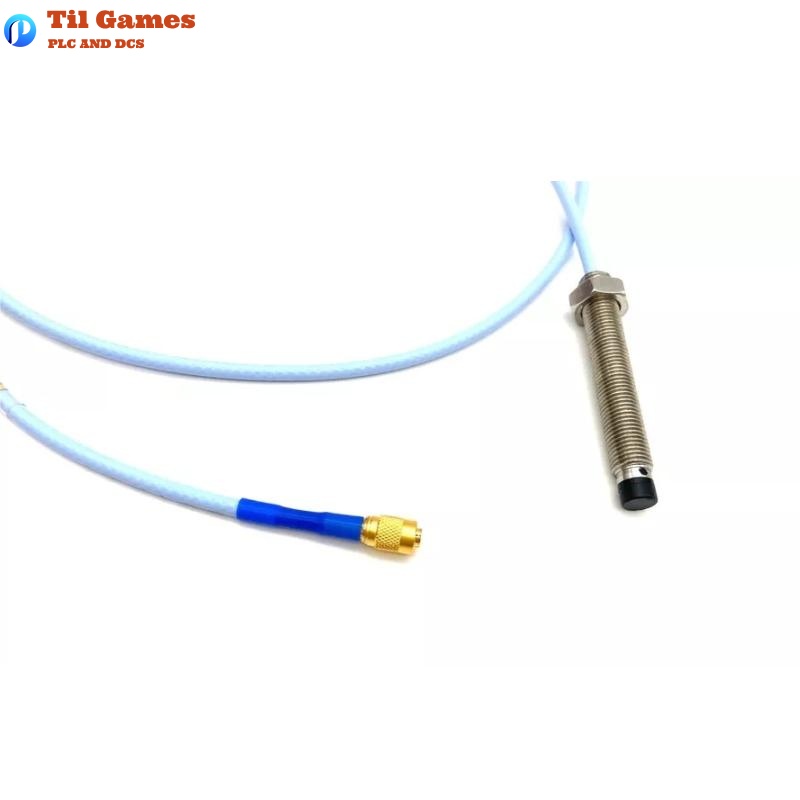

| Probe Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Total Length | 2.0 meters |
| System Weight | 0.646 kg (typical) |
| Cable Pull Strength | 330 N (probe housing to cable), 270 N (cable connection) |
| Probe Housing Material | AISI 303 or 304 Stainless Steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Temperature Range (Std) | -52°C to +177°C |
| Temperature Range (ETR) | Probe Tip: -52°C to +218°C / Cable: -52°C to +260°C |
| Minimum Cable Bend Radius | 25.4 mm |
| Recommended Gap | -9 VDC (approximately 1.27 mm) |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (5-meter system) |
| Accuracy | ±0.025 mm (±1 mil, 5-meter system) |
| Output Impedance | 50 Ω |
| Minimum Shaft Diameter | 50.8 mm (recommended ≥ 76.2 mm) |
| Minimum Target Size | 15.2 mm (flat target) |
| RFI/EMI Immunity | Meets CE mark standards, no metal enclosure required |
| Connector Type | ClickLoc gold-plated, tool-free installation |
| Compatibility | Fully interchangeable with non-XL 3300 8 mm and 5 mm components |
FAQ
Frequently Asked Questions (FAQ)
Q1: What measurements does the 330101-00-11-20-02-05 probe support?
A1: It measures static position (displacement) and dynamic vibration, commonly used in fluid-film bearing machines.
Q2: Does this probe meet the API 670 standard?
A2: Yes. It fully complies with API 670 for mechanical configuration, linear range, accuracy, and temperature stability.
Q3: Can different cable lengths and probes be mixed?
A3: Yes. All 3300 XL 8 mm components are fully interchangeable without the need for matched calibration.
Q4: Can the probe operate in high-temperature environments?
A4: Yes. Standard models withstand up to 177°C; extended temperature models can handle up to 218°C (probe), 260°C (cable).
Q5: What is the recommended gap setting?
A5: The recommended gap voltage is -9 VDC, equivalent to approximately 1.27 mm physical gap.
Q6: Can this model be used for speed or Keyphasor signal detection?
A6: Yes. It supports Keyphasor and speed measurement, though application notes should be reviewed for specifics.
Q7: Can the cable length be customized?
A7: Yes. Standard lengths range from 0.5 to 9 meters, and a 2.0-meter total system length can be configured.
Q8: What accessories are recommended for environmental sealing?
A8: Use ClickLoc connectors with protectors and FluidLoc cables for enhanced sealing and oil leakage prevention.
