Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-13-10-02-05 |

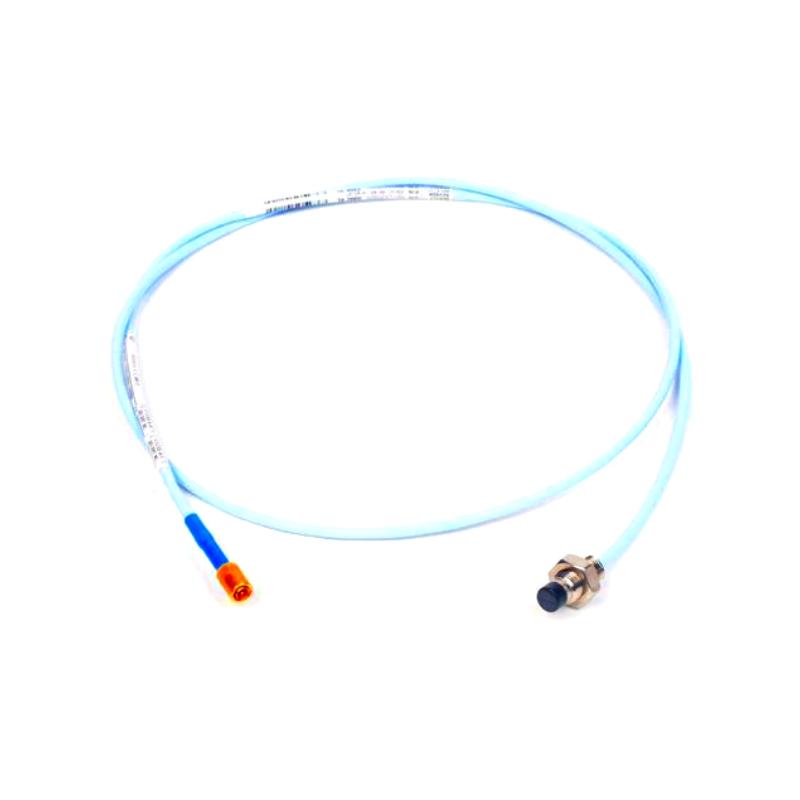

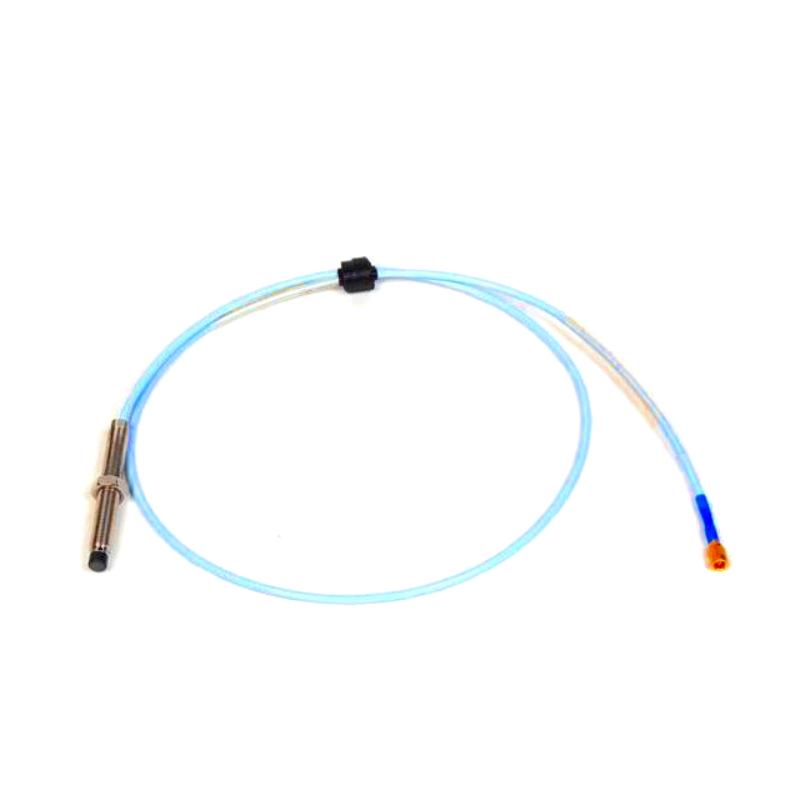

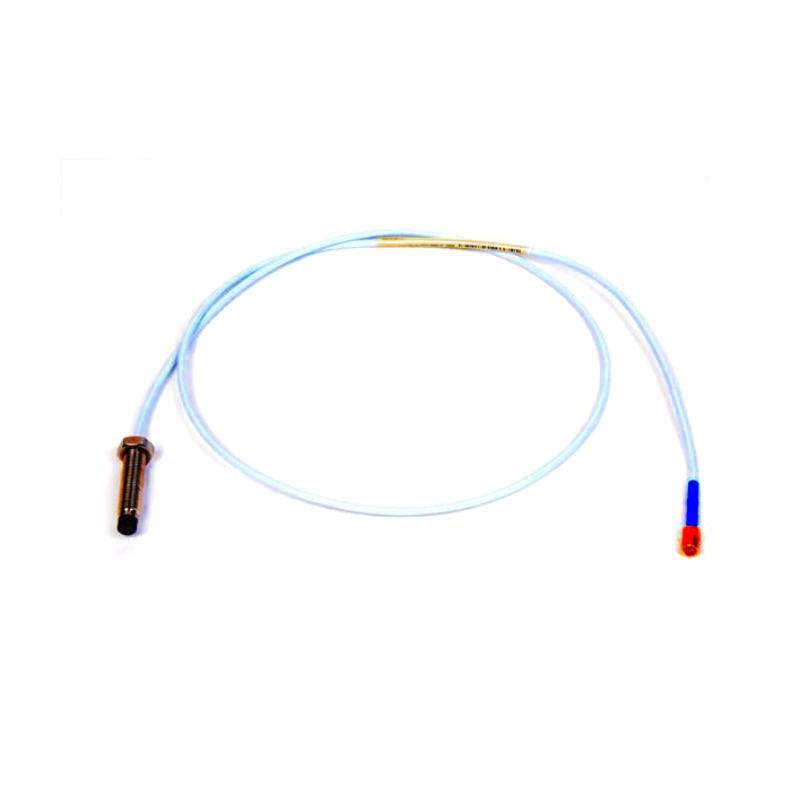

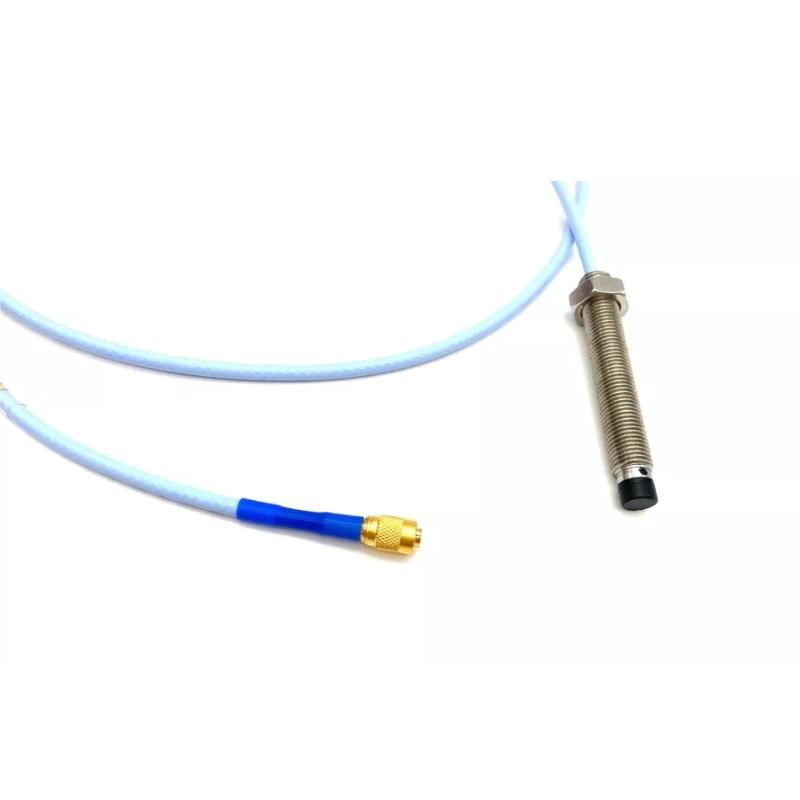

| Product Type | 3300 XL 8 mm Proximity Probe |
| System Components | Probe only (1.0 meter total length, no extension cable) |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc |
| Connector Material | Gold-plated brass or beryllium copper |
| Minimum Cable Bend Radius | 25.4 mm (1.0 inch) |
| Linear Range | 2 mm (80 mils); from 0.25 mm to 2.3 mm |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (standard 1 m system) |
| Recommended Gap Setting | -9 VDC ≈ 1.27 mm (50 mils) |
| Temperature Range (Probe) | -52°C to +177°C |
| Pressure Sealing | Viton® O-ring between probe tip and case |
| Environmental Resistance | Humidity ≤ 93%, minimal scale factor change (<3%) over 56 days |
| Certification | API 670 compliant; CE; FCC; RoHS; SIL 2 / SIL 3 capable |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the total length and weight of the 330101-00-13-10-02-05 probe?
A1: The total length is 1.0 meter, and the weight is approximately 0.323 kg.
Q2: What is the linear measurement range of the 3300 XL 8 mm probe?
A2: The linear range is 2 mm (from 0.25 mm to 2.3 mm).
Q3: What material is used for the probe tip and casing?
A3: The probe tip is made from PPS (Polyphenylene sulfide), and the case is stainless steel (AISI 303 or 304).
Q4: What is the recommended gap setting for optimal measurement?
A4: A recommended gap voltage is -9 VDC, which corresponds to about 1.27 mm.
Q5: Is the probe compatible with extension cables or other system components?
A5: Yes, it is compatible with 3300 XL and non-XL series components but accuracy aligns with the least capable component.
Q6: Can the probe operate in high-temperature environments?
A6: The standard version operates up to 177°C. For higher temperatures, use ETR models.
Q7: Is the probe suitable for applications involving vibration or position measurements?
A7: Yes, it is designed for both dynamic (vibration) and static (position) monitoring in fluid-film bearing machines.
Q8: Does the probe meet international standards for hazardous environments?
A8: Yes, it holds CSA, ATEX, IECEx certifications and complies with SIL and marine standards.
