Technical Specifications – 330102-00-40-10-02-00
| Item | Specification |
|---|---|

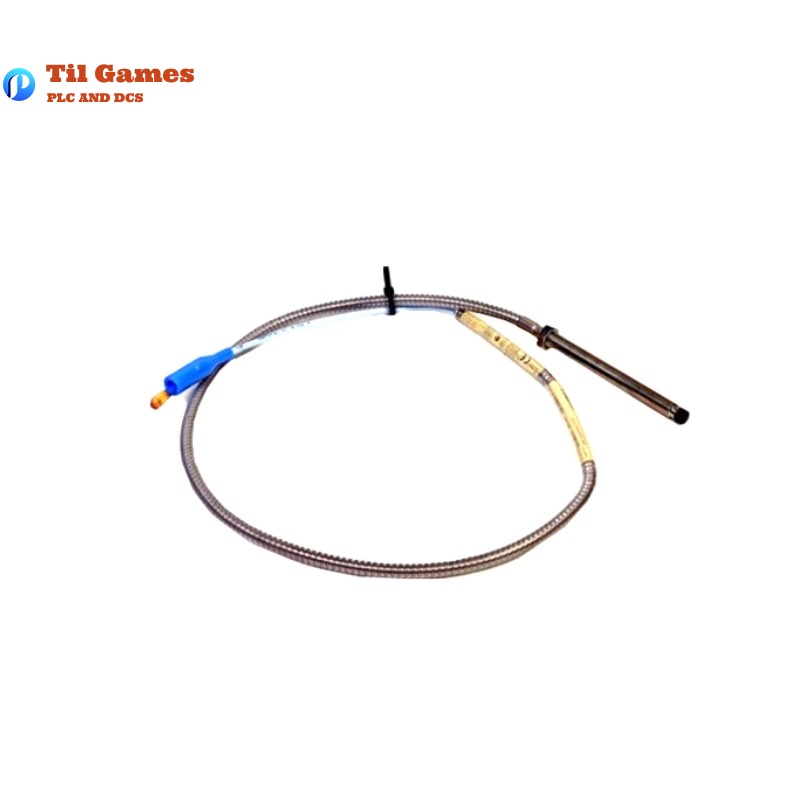

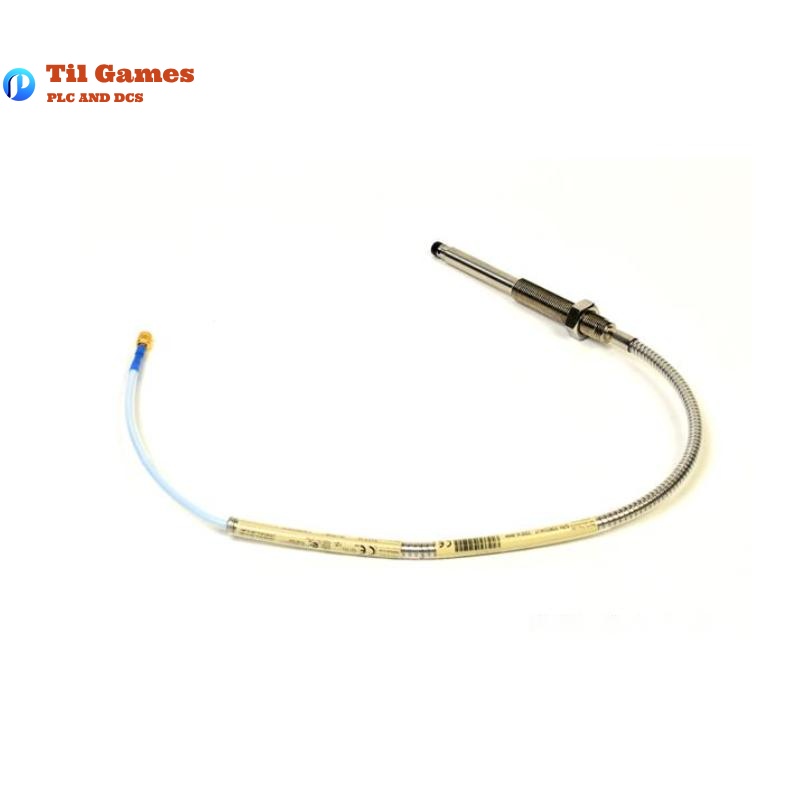

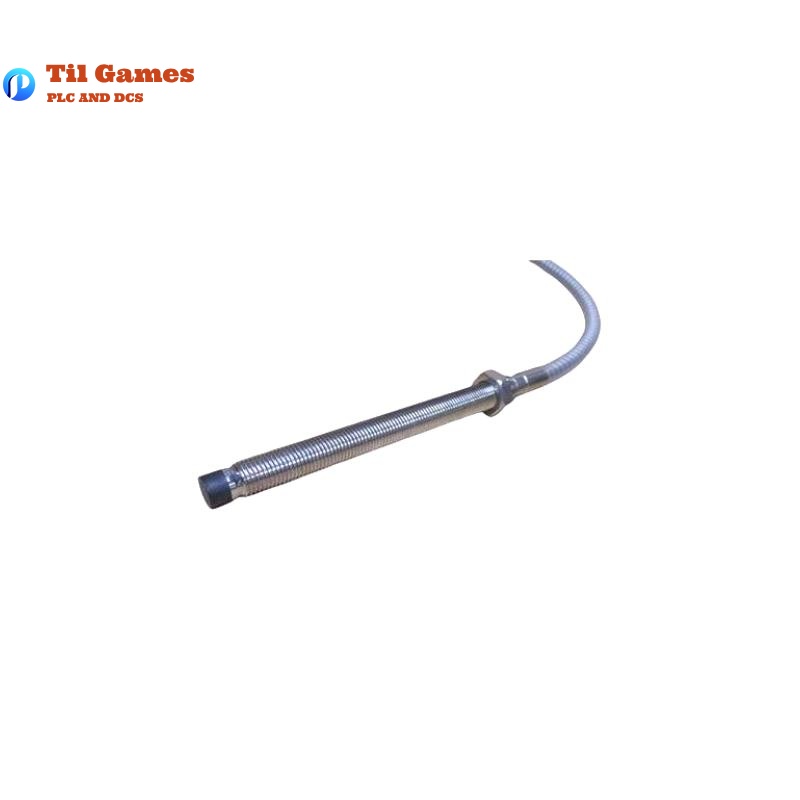

| Probe Type | 3300 XL 8 mm Proximity Probe |
| Thread Size | 3/8-24 UNF |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc (gold-plated brass or BeCu) |
| Maximum Connector Torque | 0.565 N·m (5 in·lbf) |
| Max Tensile Strength | 330 N (probe case to cable); 270 N (cable to connector) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Temperature Range (Standard Probe) | -52°C to +177°C (-62°F to +350°F) |
| Pressure Seal | Viton® O-ring |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (1 m system) |
| Deviation from Linear (DSL) | ±0.025 mm (±1 mil) for 1 m system |
| Environmental Protection | ClickLoc with optional connector protector |
FAQ
FAQ – 330102-00-40-10-02-00
Q1: What is the main application of the 3300 XL 8 mm proximity probe?
A1: It is primarily used for measuring shaft vibration and position in fluid-film bearing machines.
Q2: Is this probe compatible with older 3300 series systems?
A2: Yes, the 3300 XL 8 mm probe is backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: What type of connector does the 330102-00-40-10-02-00 use?
A3: It uses a gold-plated miniature coaxial ClickLoc connector that requires no tools for installation.
Q4: What is the recommended gap setting for the probe?
A4: The recommended gap setting is approximately 1.27 mm (50 mils), equivalent to -9 Vdc.
Q5: Can the probe withstand high temperatures?
A5: Yes, the standard version operates up to +177°C, while the extended version can go up to +218°C.
Q6: What is the linear measurement range of this probe?
A6: The linear range is 2 mm, from approximately 0.25 mm to 2.3 mm.
Q7: Is an extension cable required for the 1.0 m version?
A7: No, the 1.0 m system is probe-only and does not use an extension cable.
Q8: What are the benefits of the armored cable version?
A8: Armored cables provide additional mechanical protection and environmental resistance.
