Technical Specifications
| Category | Detailed Specification |
|---|---|

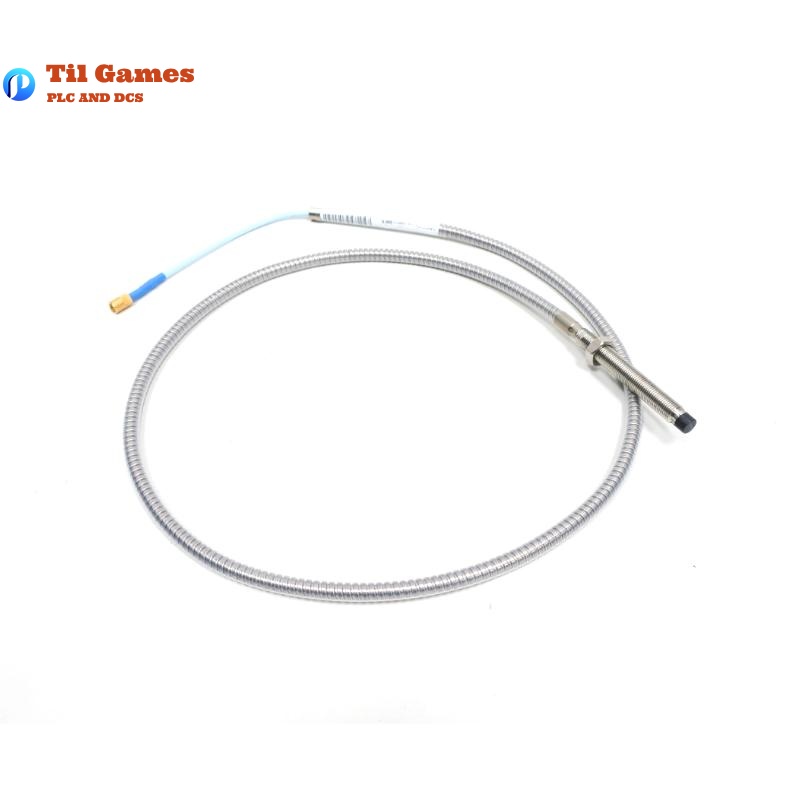

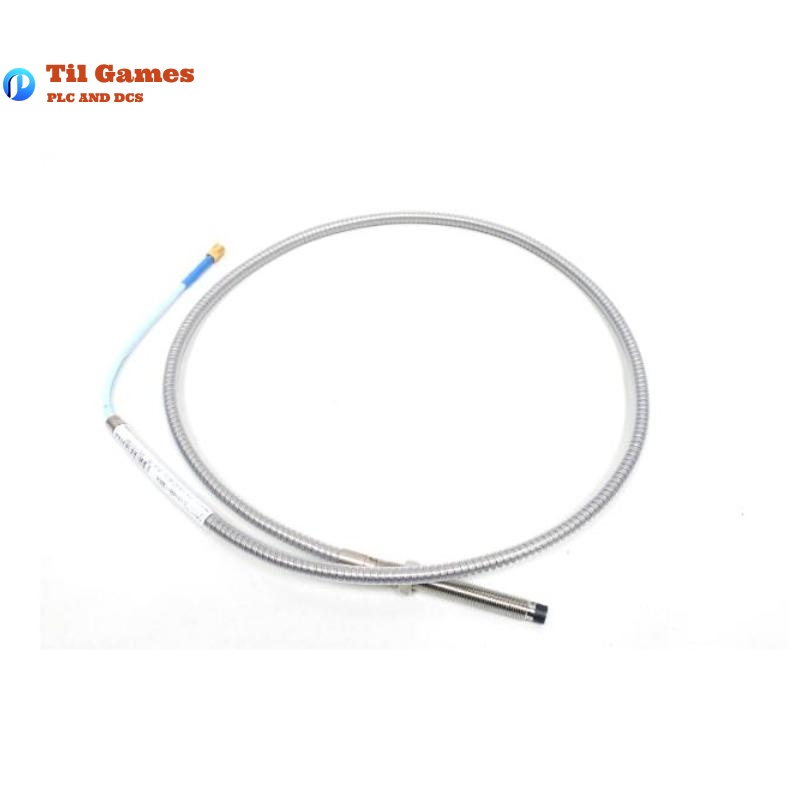

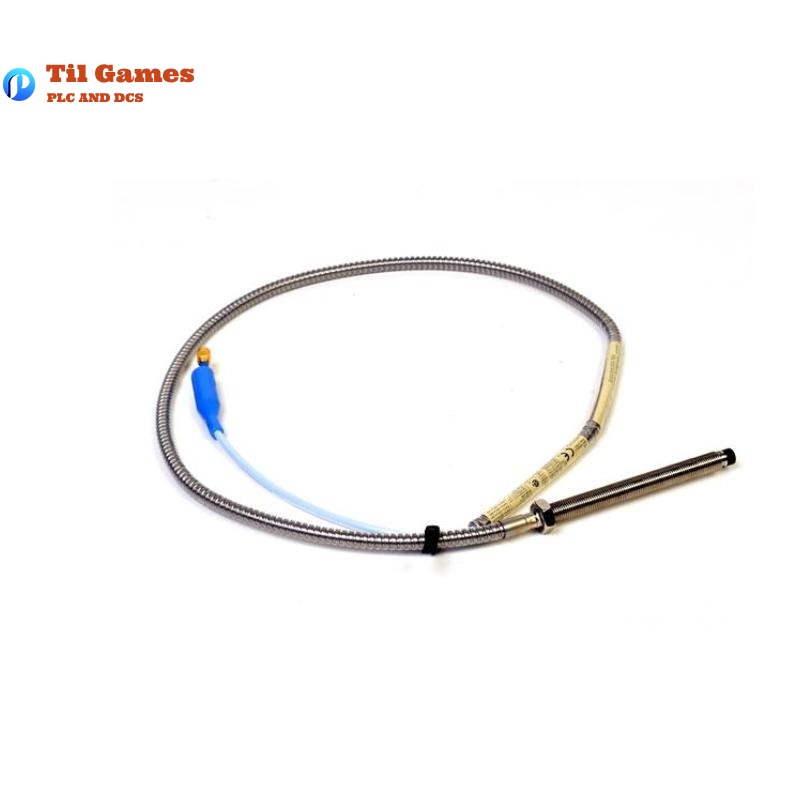

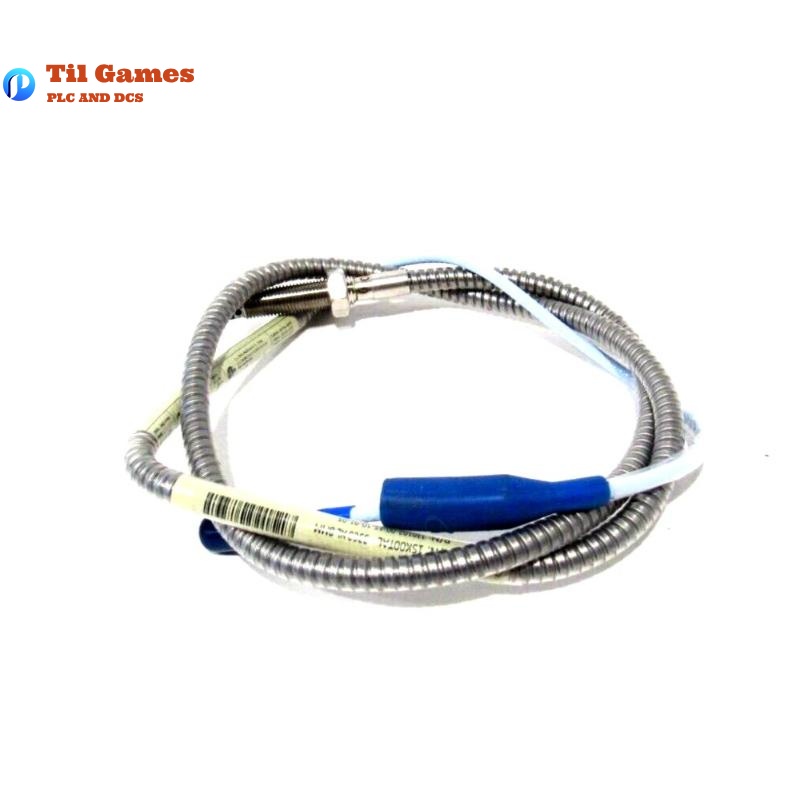

| Model | 330102-00-50-10-02-05 |
| Probe Diameter | 8 mm |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Cable Type | 75Ω triaxial FEP-insulated (armored version: FEP sheathed stainless steel) |
| Connector Type | Gold-plated ClickLoc coaxial connector with optional protector |
| Total Length | 1.0 meter |
| Weight (Full System) | Approx. 0.7 kg (Probe: 0.323 kg/m; Extension: 0.034 kg/m; Proximitor: 0.246 kg) |
| Pull Strength | 330 N (probe to lead); 270 N (lead to extension) |
| Mounting Torque | Forward: 11.2 N·m; Reverse: 7.5 N·m |
| Min. Bend Radius | 25.4 mm (1.0 in) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap | -9 Vdc (approx. 1.27 mm or 50 mils) |
| Scale Factor | 7.87 V/mm ± 5% (Standard 1 m or 5 m system) |
| Operating Temp (Probe) | -52°C to +177°C (standard); up to +218°C (ETR version) |
| Operating Temp (Cable) | -52°C to +177°C (standard); up to +260°C (ETR version) |
| Operating Temp (Proximitor) | -52°C to +100°C |
| Humidity Resistance | <3% scale factor change under 93% RH for 56 days (IEC 68 2 3 compliant) |
| Thread Type | 3/8-24 UNF, max thread depth 0.563 in |
FAQ
Frequently Asked Questions (FAQ)
Q1: What applications is the 330102 probe used for?
A1: It is used for vibration and position monitoring on fluid-film bearing machines, Keyphasor reference, and speed measurements.
Q2: Does this model meet the API 670 standard?
A2: Yes, the standard 5-meter system fully complies with API 670 specifications for mechanical design, linear range, accuracy, and thermal stability.
Q3: Can I mix different probe and extension cable lengths?
A3: Yes, as long as the combined length matches the Proximitor sensor length and both are XL series components.
Q4: Is system-wide calibration necessary?
A4: No. All XL components are fully interchangeable and do not require matched calibration.
Q5: Is the extension cable oil-resistant?
A5: Yes, if ordered with the FluidLoc option, which prevents oil ingress through the cable.
Q6: Are tools required to install connectors?
A6: No. ClickLoc connectors are finger-tightened and click when properly secured.
Q7: Is this system suitable for high-temperature environments?
A7: Yes. The ETR (Extended Temperature Range) version supports up to 218°C for the probe and 260°C for the cable.
Q8: Is the probe certified for hazardous areas?
A8: Yes. It has CSA, ATEX, and IECEx approvals for Zone 0, Zone 1, and Zone 2 classified areas.
