Technical Specifications
| Parameter | Specification |
|---|---|

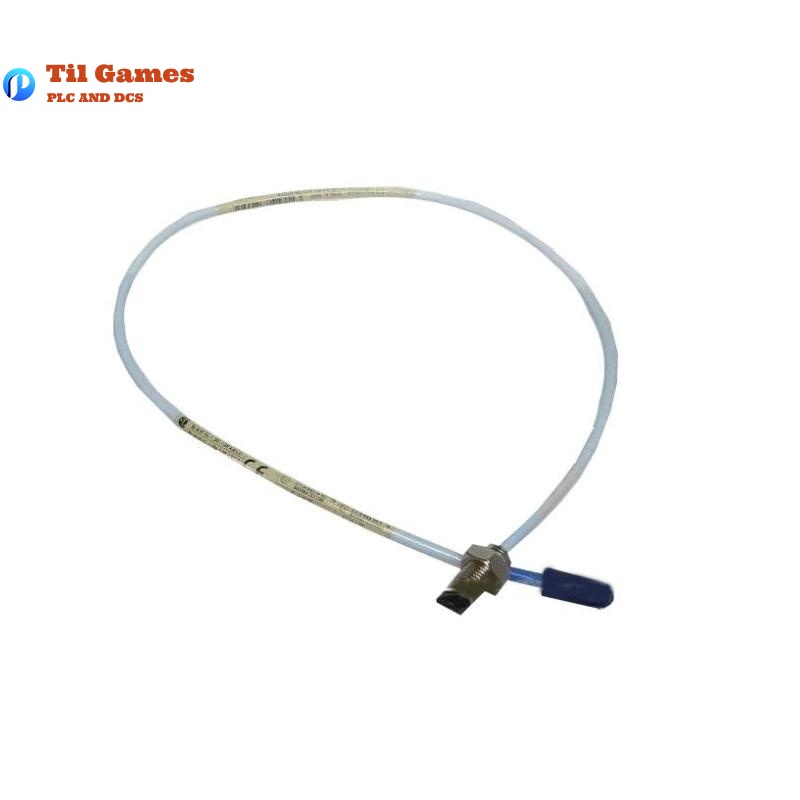

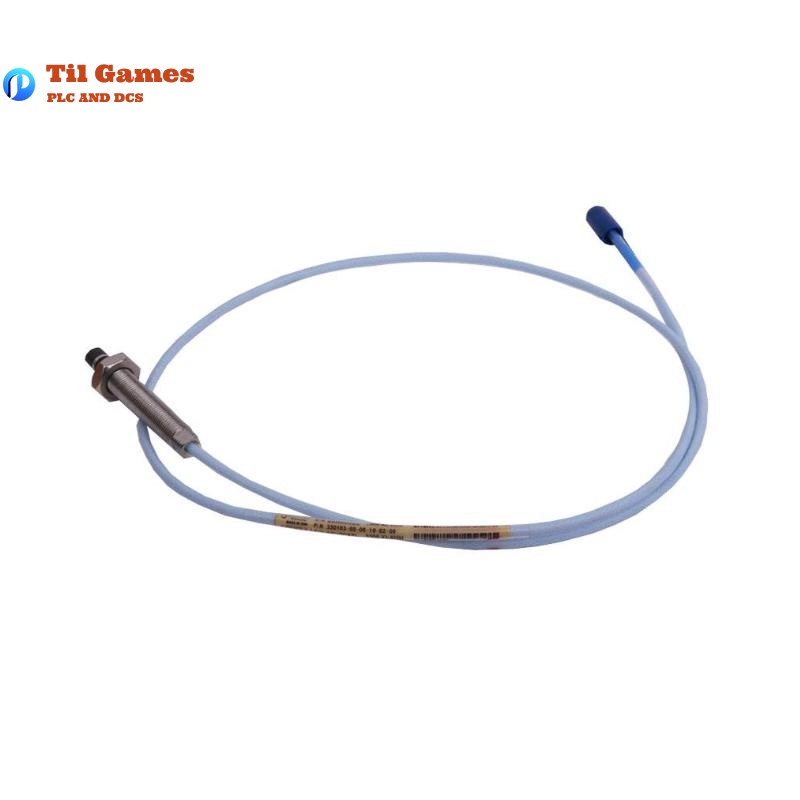

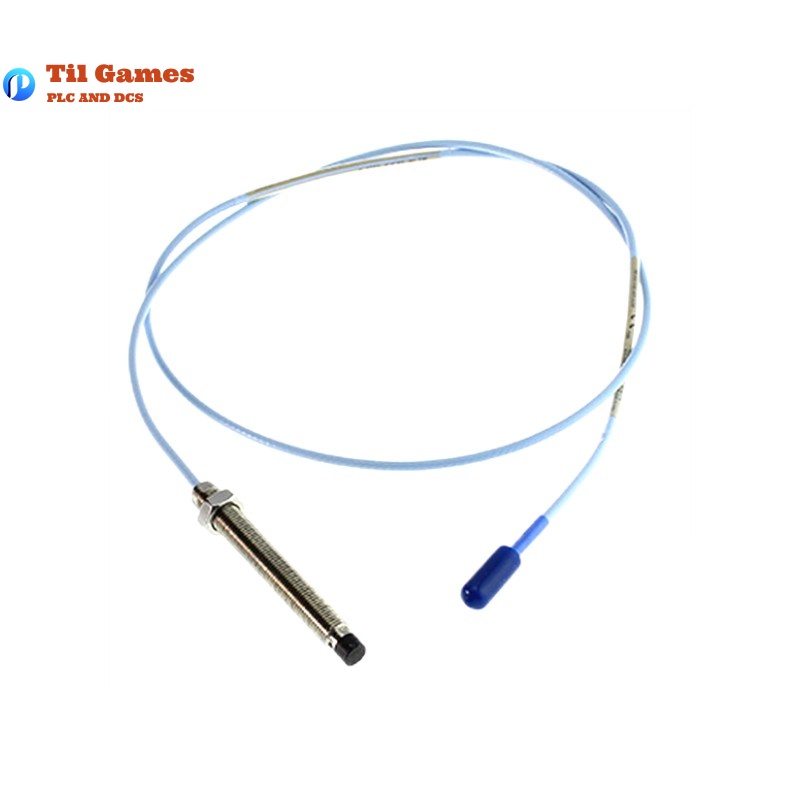

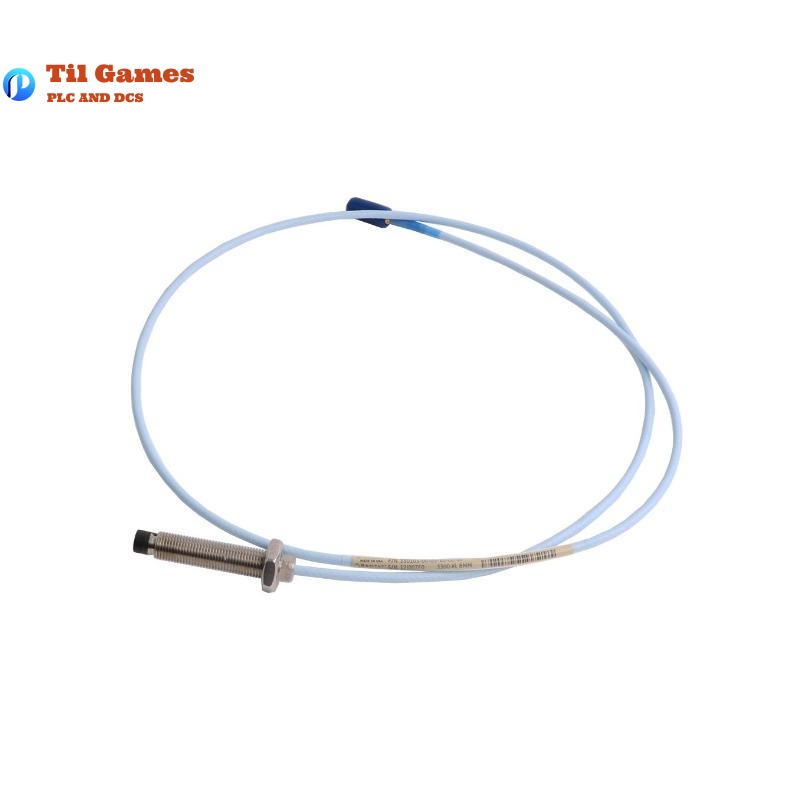

| Model | Bently Nevada 330103-00-02-10-02-05 |
| System Type | 3300 XL 8 mm Proximity Transducer System |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Thread Size | M10 x 1 (metric threaded version) |
| Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector | Miniature coaxial ClickLoc gold-plated connector |
| Operating Temperature | -52°C to +177°C (Standard); up to +218°C (Extended Temperature Range) |
| Pressure Seal | Viton® O-ring seal between tip and case |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Linear Range | 2 mm (80 mils), from 0.25 mm to 2.3 mm |
| Recommended Gap Setting | -9 Vdc ≈ 1.27 mm (50 mils) |
| ISF (Incremental Scale Factor) | 7.87 V/mm ±5% (Standard), ±6.5% (9 m), ±6.5% (ETR) |
| Deviation from Best Fit Line (DSL) | < ±0.025 mm (1 m), < ±0.038 mm (9 m, ETR) |
| Frequency Response | 0 to 10 kHz, +0, -3 dB |
| Output Resistance | 50 Ω |
| Humidity Resistance | ≤3% change in ASF at 93% RH over 56 days (IEC 68-2-3) |
| Compliance | CE, FCC Part 15, RoHS, SIL 2/3, ATEX, IECEx, CSA |
FAQ
FAQs (Q&A)
Q1: What is the main application of the 3300 XL 8 mm Proximity Probe?
A1: It is used for measuring shaft vibration and position on fluid-film bearing machines.
Q2: What material is the probe case made from?
A2: The probe case is made from AISI 303 or 304 stainless steel.
Q3: Is the 330103 probe compatible with older systems?
A3: Yes, it is both physically and electrically compatible with previous 3300-series 8 mm and 5 mm systems.
Q4: What is the standard output voltage scale?
A4: 200 mV/mil or 7.87 V/mm with a linearity deviation of less than ±0.025 mm for standard 1-meter systems.
Q5: How is the connector secured?
A5: The ClickLoc connector uses a finger-tight mechanism that “clicks” when fully engaged, requiring no tools.
Q6: What is the environmental sealing method used?
A6: A Viton® O-ring provides sealing between the probe tip and case.
Q7: Can the probe withstand high temperatures?
A7: Yes, standard probes up to 177°C, and ETR versions up to 218°C (probe tip) and 260°C (cable).
Q8: What is the minimum shaft diameter for accurate radial vibration measurement?
A8: Recommended minimum is 76.2 mm (3 in) for optimal performance.
