Technical Specifications
| Item | Specification |
|---|---|
| Model | 330103-00-03-50-02-00 |

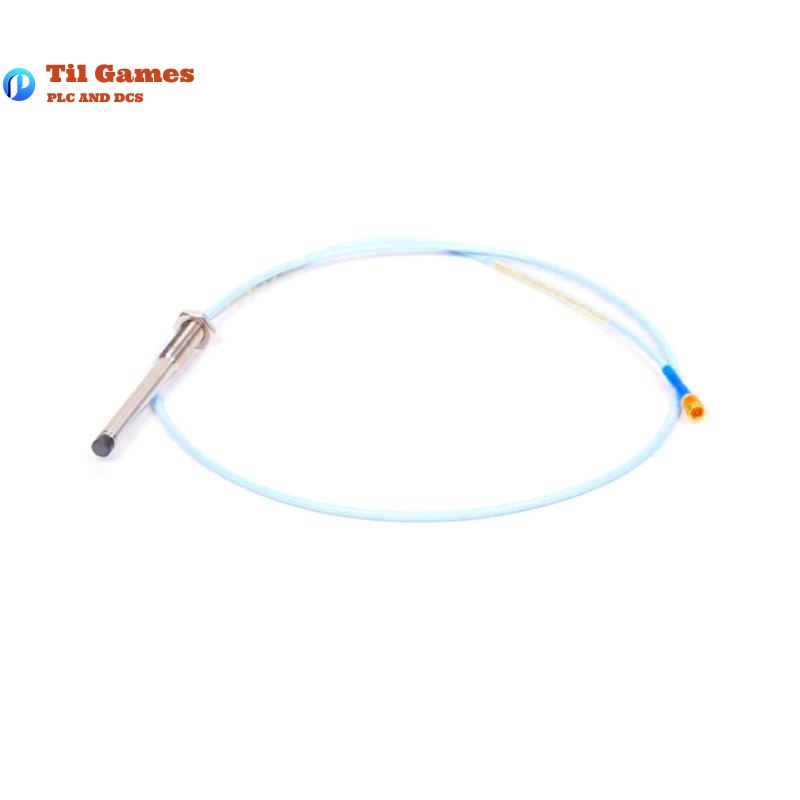

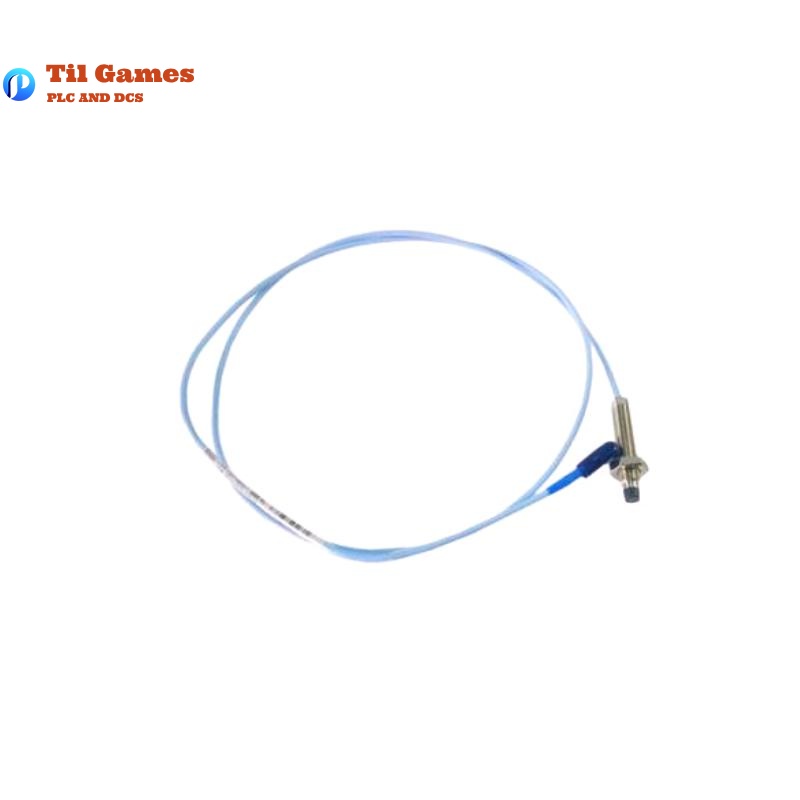

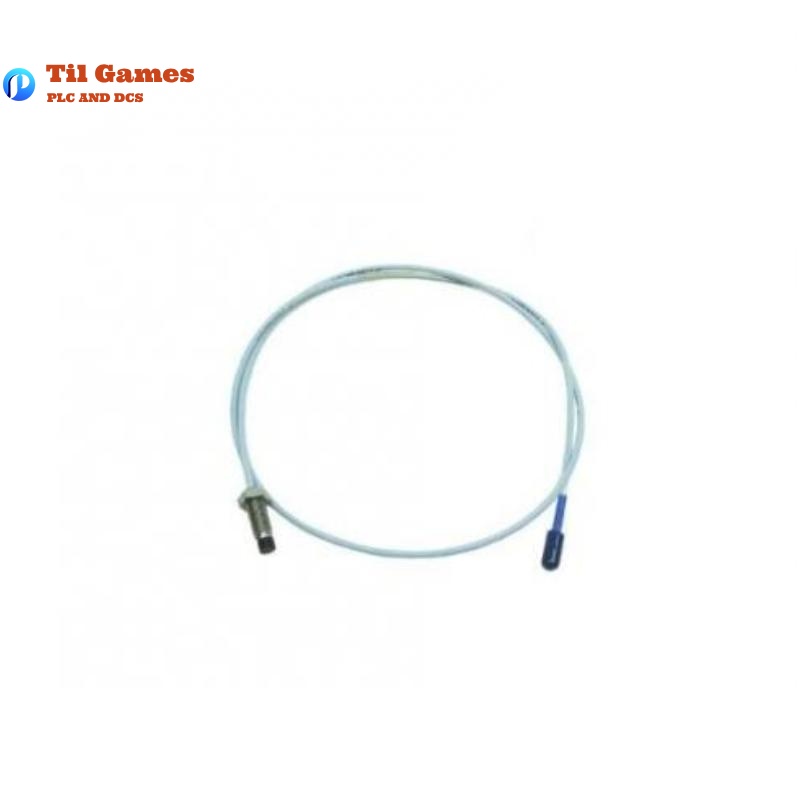

| Probe Type | Non-contacting 3300 XL 8 mm eddy current displacement probe |
| Connector Type | ClickLoc miniature coaxial gold-plated connector |
| Thread Size | M10 x 1, non-armored |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Cable Type | 75Ω triaxial FEP insulated |
| Total Length | 5.0 meters |
| Recommended Gap Voltage | -9 VDC (~1.27 mm) |
| Linear Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Incremental Scale Factor | 7.87 V/mm ± 5% (200 mV/mil) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Minimum Shaft Diameter | 76.2 mm (3 in) |
| Output Resistance | 50 Ω |
| Minimum Target Size | 15.2 mm diameter |
| Power Requirement | -17.5 VDC to -26 VDC |
| Operating Temperature (Probe) | -52°C to +177°C (standard) -52°C to +218°C (ETR) |
| Storage Temperature (Probe) | Same as above |
| Total System Weight | 1.615 kg (for 5.0 meter length) |
| Minimum Cable Bend Radius | 25.4 mm |
| Maximum Installation Torque | 7.5 N·m (M10 thread) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary application of the 330103 probe?
A1: It is mainly used for vibration and position monitoring on fluid-film bearing machines, and for Keyphasor and speed measurements.
Q2: Can the 330103 be used in high-temperature environments?
A2: Yes. The ETR version supports up to 218°C for the probe and 260°C for the extension cable.
Q3: What is the linear measurement range of this probe?
A3: It ranges from 0.25 mm to 2.3 mm, delivering accurate linear output voltage.
Q4: Does it require a specific Proximitor Sensor?
A4: Yes. It must be used with the 3300 XL Proximitor Sensor and matching extension cable to ensure full performance.
Q5: Is this model compliant with API 670 standards?
A5: Yes. The 3300 XL 8 mm system meets the API 670 standard for configuration, linearity, accuracy, and temperature stability.
Q6: Can this probe be mixed with non-XL 3300 components?
A6: It can, but performance will default to the lowest non-XL component rating. Full XL system use is recommended.
Q7: Are special tools needed for connector installation?
A7: No. The ClickLoc connectors are designed for finger-tight installation with a click-lock feature.
Q8: How does this probe perform in high humidity?
A8: It shows less than 3% change in Average Scale Factor after 56 days in 93% humidity, suitable for moist environments.
